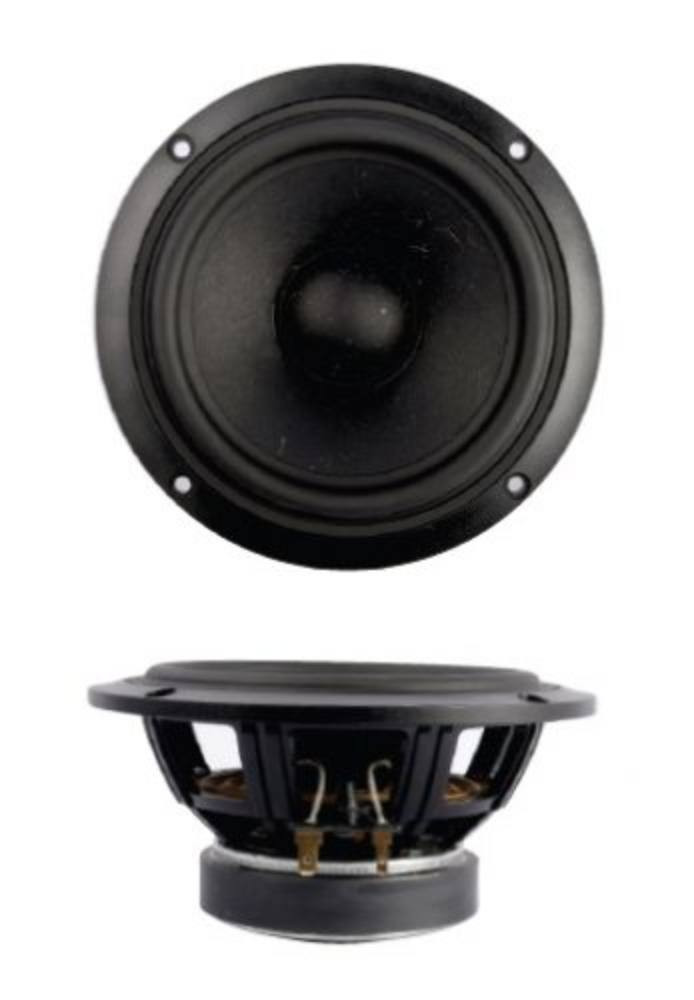

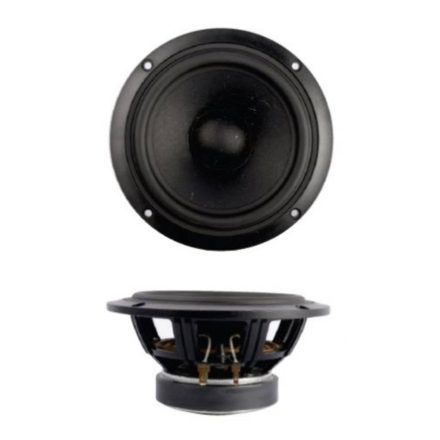

SB Acoustics SB13PFCR25-4

5" mély-közép sugárzó

• Vented reinforced plastic chassis
• Proprietary cone material with natural fibers made in-house
• Soft low damping rubber surround for improved transient response
• Optimized motor system
• Vented coil former for low compression
• Non-resonant long life lead wires

• Nominal Impedance 4 Ω
• DC resistance, Re 3.2 Ω
• Voice coil inductance, Le 0.56 mH
• Effective piston area, Sd 87 cm2
• Voice coil diameter 25.4 mm
• Voice coil height 14 mm
• Air gap height 5 mm
• Linear coil travel (p-p) 9 mm
• Magnetic flux density 1.06 T
• Magnet weight 0.36 kg
• Net weight 0.91 kg
• Free air resonance, Fs 44 Hz
• Sensitivity (2.83 V / 1 m) 89 dB
• Mechanical Q-factor, Qms 2.6
• Electrical Q-factor, Qes 0.33
• Total Q-factor, Qts 0.29
• Moving mass incl. air, Mms 10.5 g
• Force factor, Bl 5.3 Tm
• Equivalent volume, VAS 13.4 liters
• Compliance, Cms 1.25 mm/N
• Mechanical loss, Rms 1.1 kg/s
• Rated power handling* 40 W
