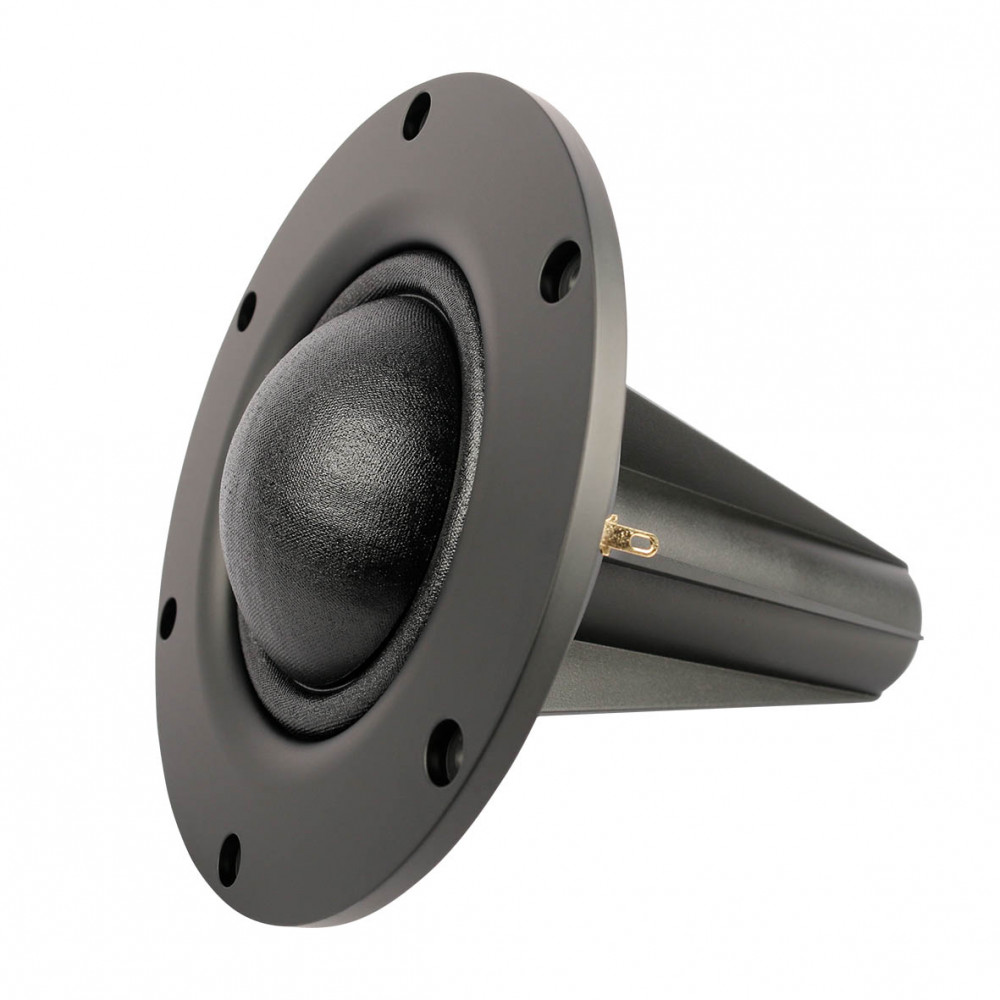

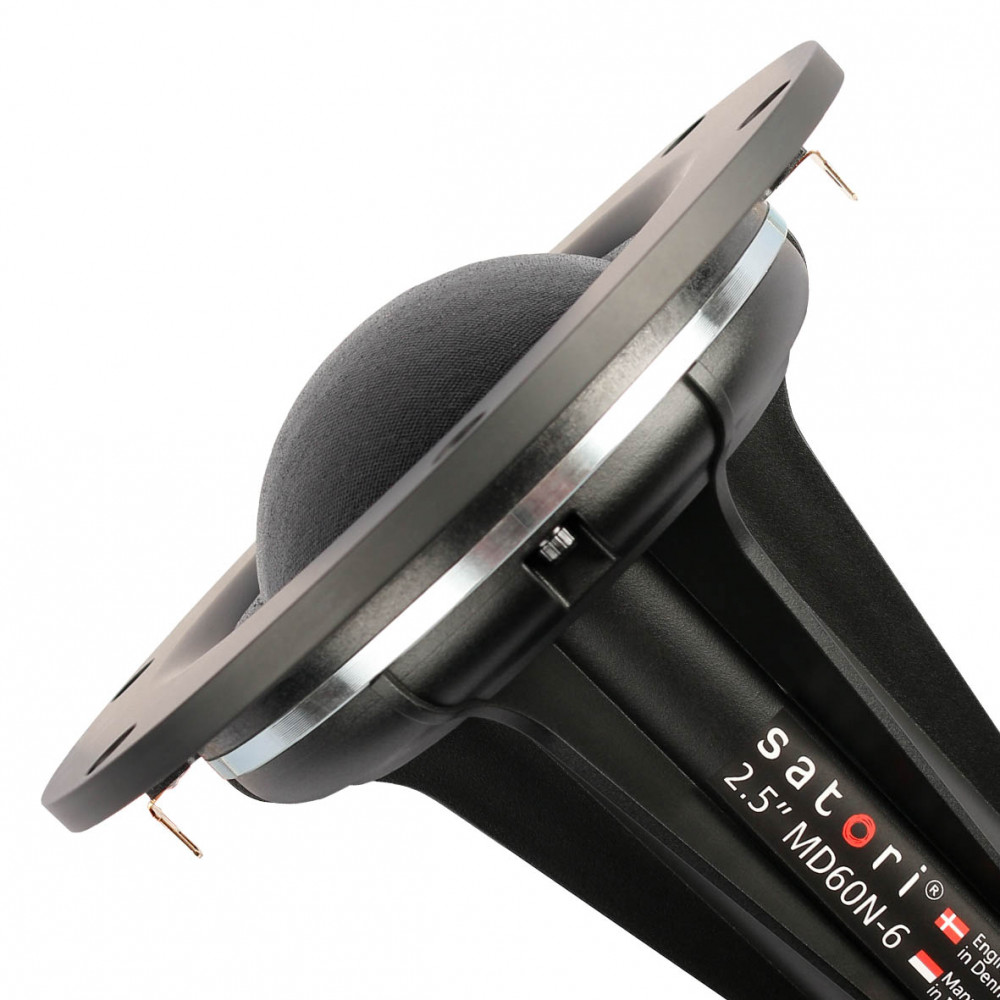

SATORI MD60N-6 / Fabric 2½″

159.87 € excl. VAT

SATORI MD60N-6 / Fabric 2½″

SATORI MD60N-6 / Fabric 2½″

SATORI MD60N-6 / Fabric 2½″

SATORI MD60N-6 / Fabric 2½″

SATORI MD60N-6 / Fabric 2½″

SATORI MD60N-6 / Fabric 2½″

SATORI MD60N-6 / Fabric 2½″

SATORI MD60N-6 / Fabric 2½″

Shipping within (if available from supplier)

6. Dec.

Manufacturer

SB Acoustics

Further data

Orderable

159.87 € excl. VAT

Details

Nominal Impedance 6 Ω
DC resistance, Re 5.3 Ω
Voice coil inductance, Le 0.14 mH
Effective piston area, Sd 32 cm²
Voice coil diameter 60.5 mm
Voice coil height 4.3 mm
Air gap height 3 mm
Linear coil travel,X_max ±0.5 mm
Magnetic flux density 1.28 T
Magnet weight 0.06 kg
Net weight 0.58 kg
Free air resonance, Fs 400 Hz
Sensitivity (2.83V/1m) 95 dB
Mechanical Q-factor, Qms N/A
Electrical Q-factor, Qes N/A
Total Q-factor, Qts N/A
Moving mass incl. air,Mms 2.0 g
Force factor, Bl 7.2 Tm
Equivalent volume, Vas – liters
Compliance, Cms – mm/N
Mechanical loss, Rms – kg/s
Rated power handling 120 W

Info

Article No.

060-2973
