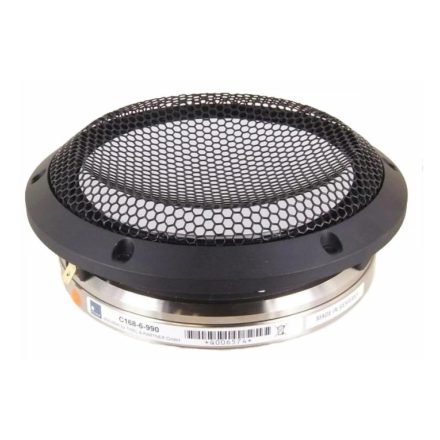

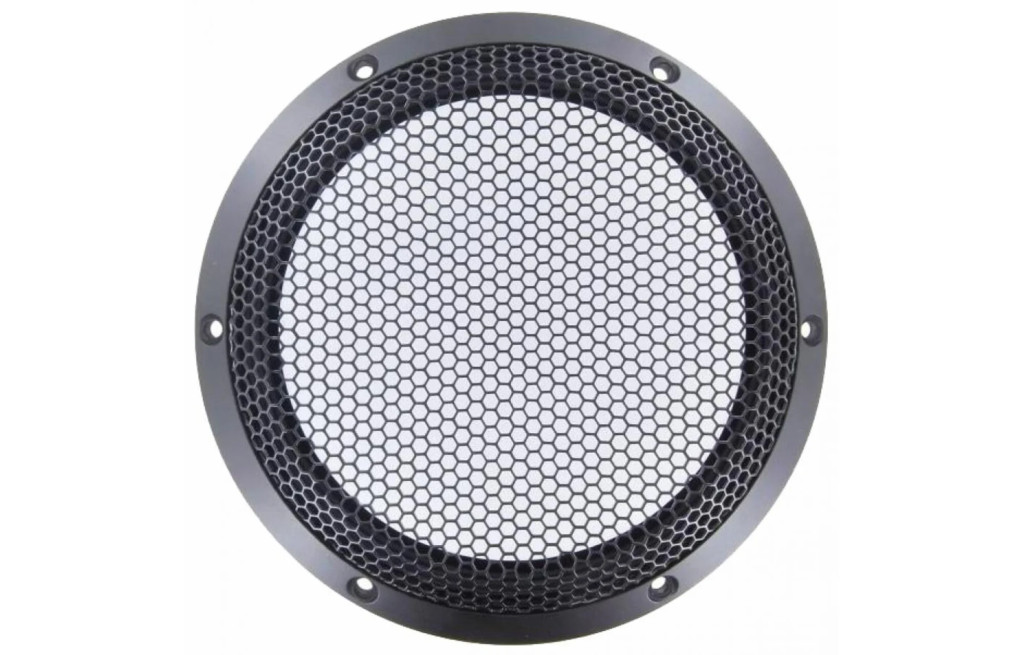

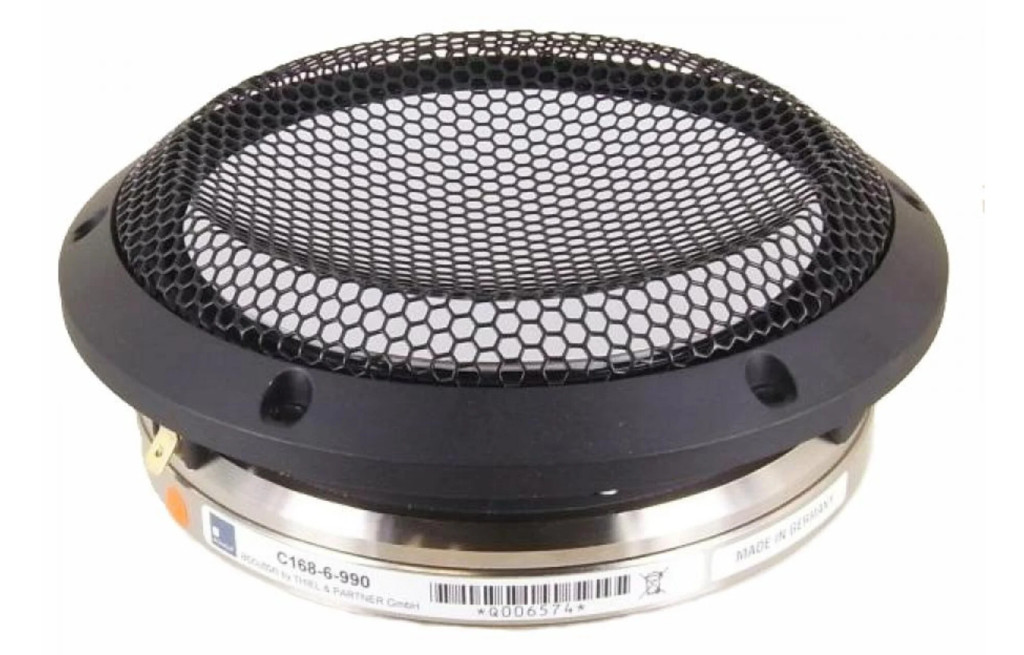

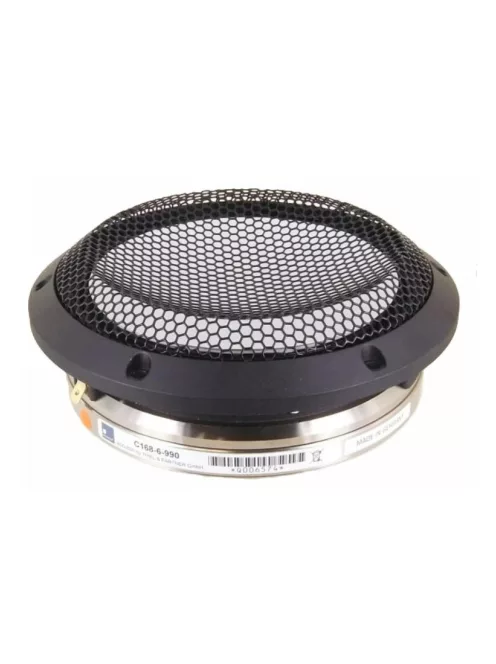

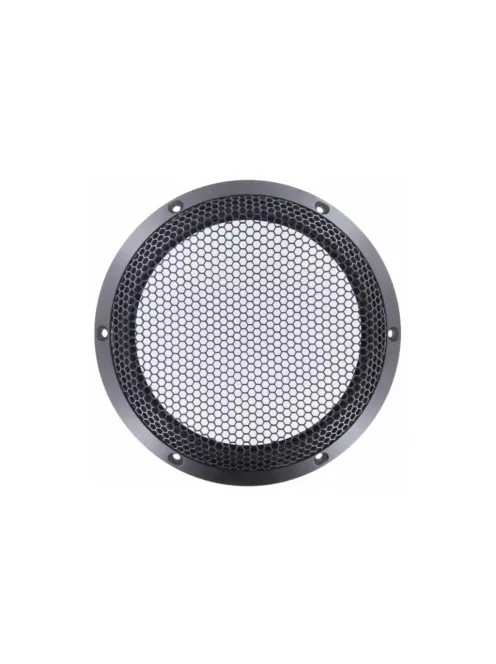

C168-6-990 6,5'' Cell Mid-range

The Accuton C168-6-990 CELL is a 6.5 inch midrange driver with ceramic dome. It is the first in an entirely new approach to Accuton speaker design. The driver features the 4D (Direct Dome Drive Design) concept, providing the shortest distance between voice-coil winding and dome. The driver has an ideal acoustical center and no reflections at the backside.

Highlights

full featured cell concept
ideal acoustical center
no reflections at the backside
Underhung motor design
200 HZ - 6000 HZ

Product details

Accuton C168-6-990 6,5'' Cell Mid-range

The Accuton C168-6-990 is a 7 inch midrange driver with a ceramic dome. It is the first in an entirely new approach to Accuton speaker design, featuring the 4D (Direct Dome Drive Design) concept, which provides the shortest distance between voice-coil winding and dome. The spider is not connected to the voice-coil former anymore, thus removing 15mm of unnecessary former length. The result is an extremely true reaction of the dome.

The low loss rubber surround is connected to the voice-coil former, preventing any kind of interaction with the dome. An open fabric spider centers the dome with a direct connection and high linearity. An ideal acoustical center has been achieved, which is identical with Accuton tweeters. Its novel designed underhung motor does not cover the back-side of the dome, eliminating the chance for reflections and energy storage.

Some of its main features include an ideal acoustical center, proprietary 4D concept, no rear reflections, and an underhung motor. In a 0.2 cubic foot (6 liters) box with 20% filling, your f3 is 250Hz and f6 is 150Hz. The impedance peak would be around 100Hz in this box
