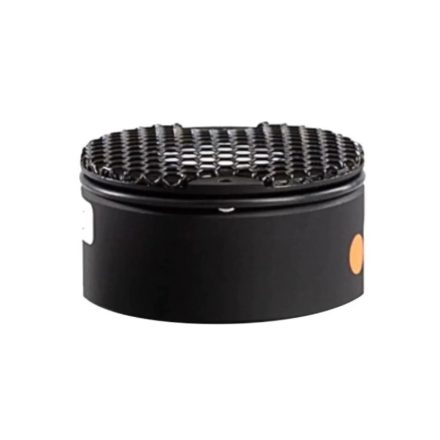

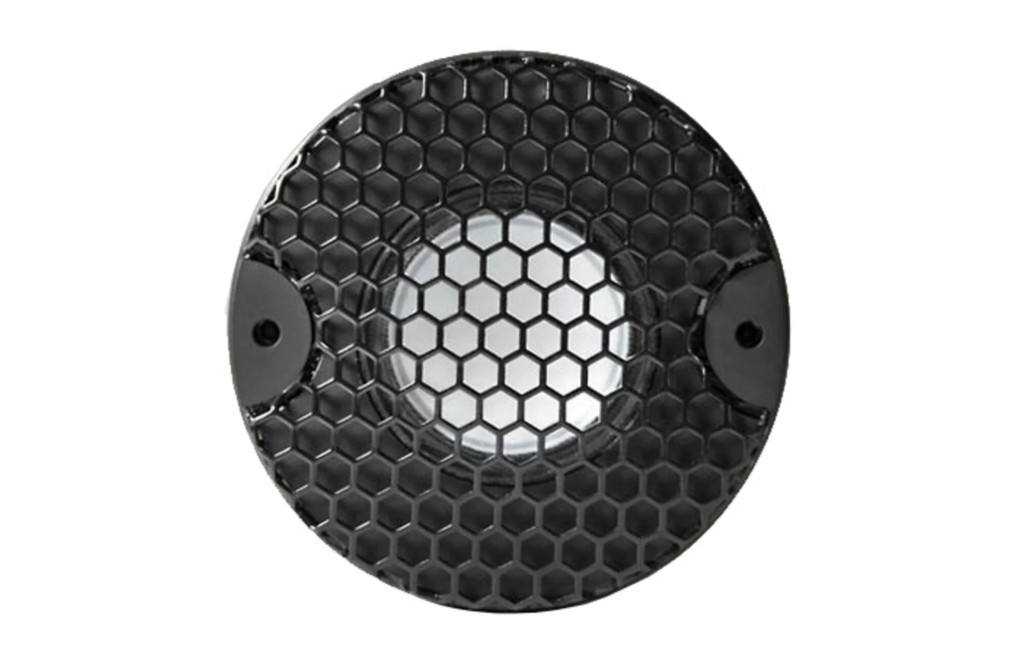

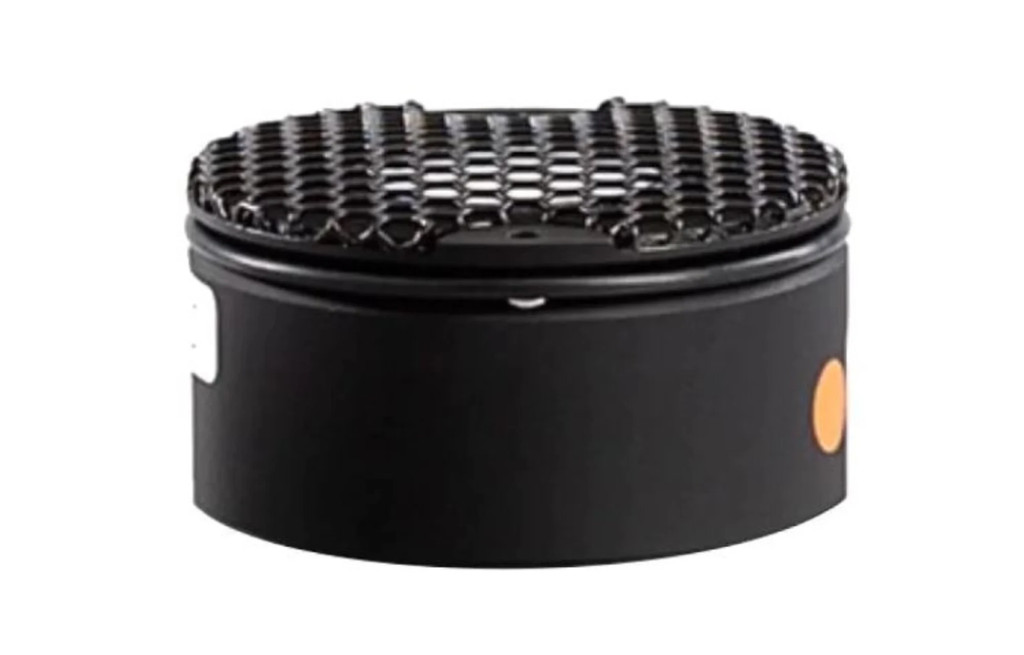

C25-6-158 1'' Ceramic Cell Tweeter

The C25-6-158 has an ultra-hard 25mm ceramic cone in a 58mm aluminum enclosure. A proprietary clamping technique allows easy mounting and adaptation to various front panel designs.

Highlights

full featured cell concept
underhung motor design
vented vc & pole piece
no ferrofluid filling
2000 HZ - 25000 HZ

Product details

Accuton C25-6-158 1'' Ceramic Cell Tweeter

The C25-6-158 is a 1 inch tweeter with ultra hard ceramic dome in a 58 mm body. A proprietary clamping technique provides easy mounting and adapting to individual frontplates. As the dome breakup is above the audible range and well damped, no dome cutouts are required.

A unique FEA optimized underhung motor design with vented titanium voice coil former and double neodymium magnet guarantees low energy storage, excellent heat transfer and high excursion capability for low power compression and ultra low distortion. The new designed soft fabric surround centers the moving parts with improved linearity.We recommend the C25-6-158 in an application above 2000 Hz.

Specifications

Power Handling (RMS)100 W
Impedance (Z)6 Ω
Resonant Frequency (Fs)905 Hz
DC Resistance (Re)5.69 Ohm
Mechanical Q (Qms)2.87
Electromagnetic Q (Qes)0.97
Total Q (Qts)0.73
Overall Outside Diameter57.6 mm
Cutout Diameter58 mm
