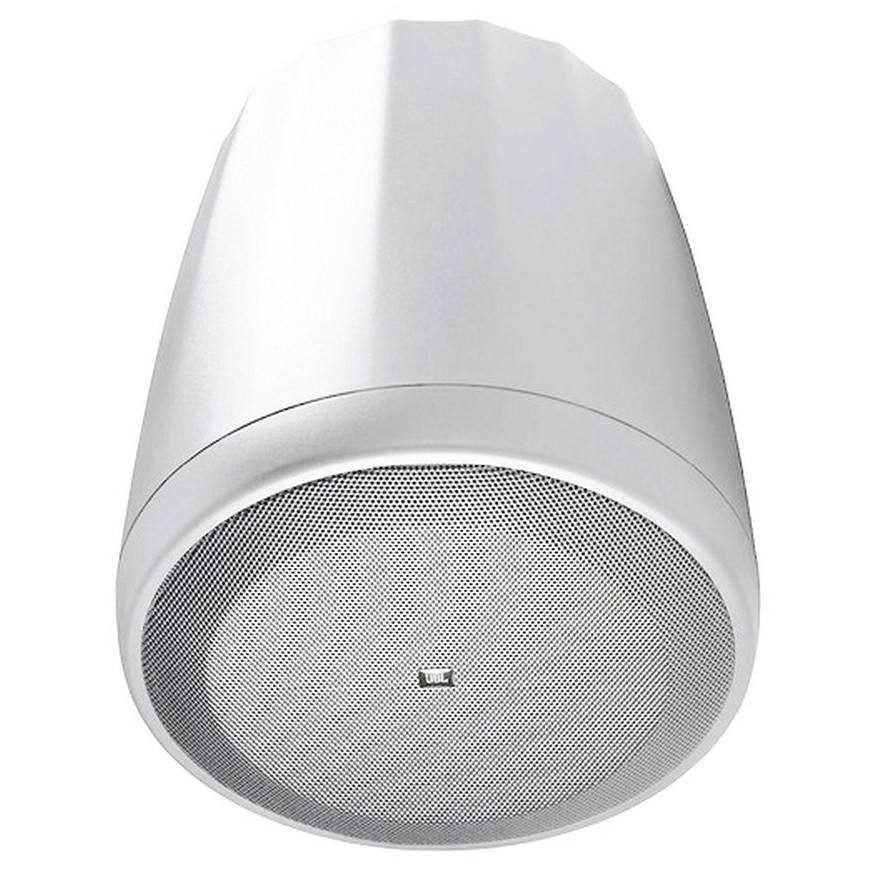

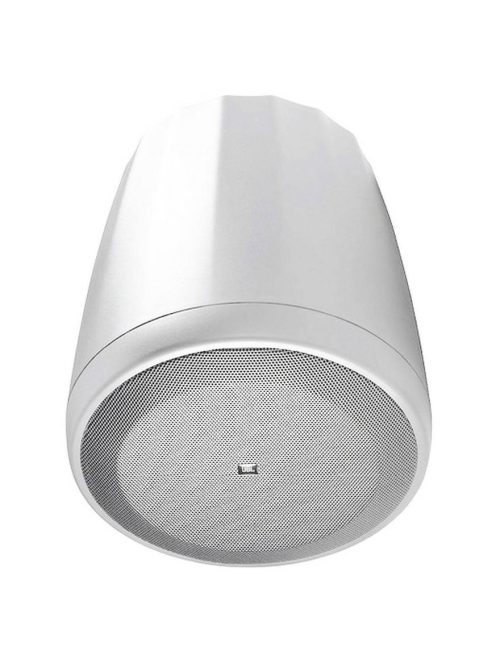

Control67P/T fehér színben

Frequency Response (-10 dB): 58 Hz – 18 kHz
Frequency Range (±3 dB): 78 Hz – 16 kHz
Power Capacity: 75 Watts Continuous Pink Noise Power (with 300 Watts peaks), 150 Watts Continuous Program Power
Nominal Sensitivity: 90 dB
Nominal Coverage Angle: 120° (+20°/-15°)
Rated Maximum SPL @ 1m: 109 dB continuous pink noise, 115 dB peak
Rated Impedance: 8 ohms
Transformer Taps: 70V: 60W, 30W, 15W & 7.5W 100V: 60W, 30W, 15W
LF Driver: 165 mm (6.5 in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former
HF Driver: 25 mm (1.0 in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former
Enclosure Material: High impact polystyrene
Grille: Zinc-plated steel grille with powder-coat finish, foam backing (removable
for painting)
Environmental Exceeds: Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.
Termination: Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
Safety Agency Ratings: Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
Dimensions: 312 mm (12.3 in) diameter x 330 mm (13.0 in) height to top of cabinet. 350 mm (13.8 in) to top of suspension bracket.
Net Weight (ea): 5.2 kg (11.5 lbs)
Shipping Weight (pair): 12.3 kg (27 lbs)
Included Accessories: Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
Optional Accessories: MTC-PC60 top panel / terminal cover
Colors: Available in black or white (-WH). Paintable.
