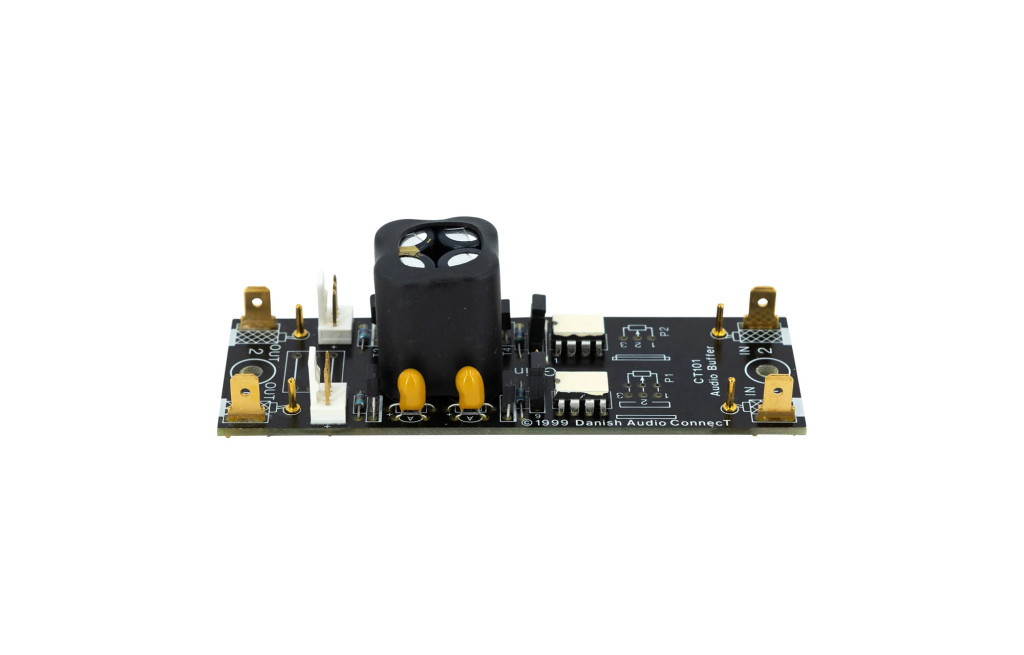

CT101 2-channel line stage preamplifier

The DACT CT101's compact yet powerful design encloses a symphony of high-quality components meticulously assembled to deliver unwavering performance. Its compact PCB layout minimizes signal path length, ensuring ultra-fast signal transmission and optimal signal integrity. Each channel is independently powered by a dedicated power supply, enabling dual-mono operation that further enhances stereo separation, clarity, and imaging.

Highlights

• Selectable gain of 0, 6, or 12dB
• Wide power supply voltage range (from 12V to 24V)
• Low supply current (less than 100mA per channel)
• Use of special active devices and SMD resistors for low distortion, large bandwidth, and superb sound
• Compact PCB for minimal signal path length
• True dual-mono when using separate power supplies for each channel
• SMD power supply decoupling capacitors
• Dual supply voltage regulators for each channel
• All connectors and PCB traces gold-plated
• Drives difficult loads / long cables

Product details

DACT CT101 2-channel line stage preamplifier

Experience the DACT CT101's versatility with its selectable gain options, catering to a wide range of listening preferences and system configurations. Choose from three gain settings: 0dB for delicate sources, 6dB for a balanced listening experience, or 12dB for driving demanding loudspeakers. The DACT CT101's wide power supply range of 12V to 24V ensures compatibility with a variety of power supplies, accommodating diverse configurations and ensuring optimal performance.

Partner the DACT CT101 with a DACT stepped attenuator for precise volume control and unlock the full range of its audio prowess. Or, combine it with a DACT input selector switch and balance control to create a comprehensive preamp that seamlessly integrates into your high-end audio system.
