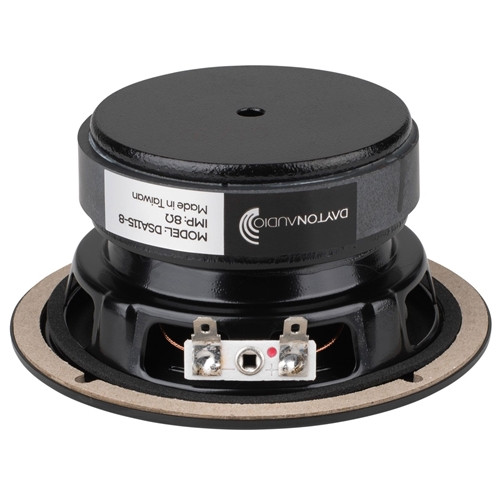

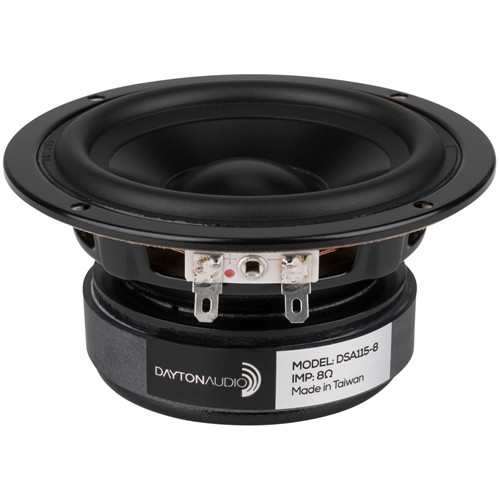

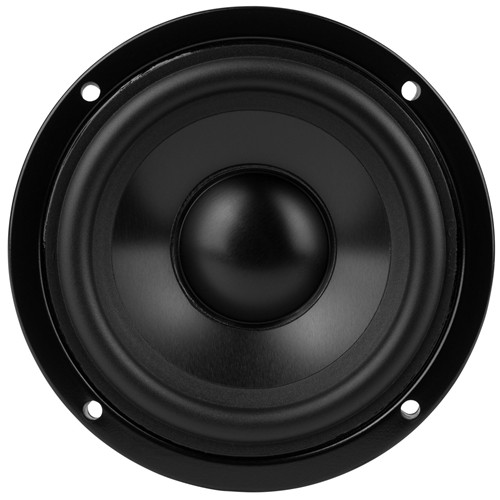

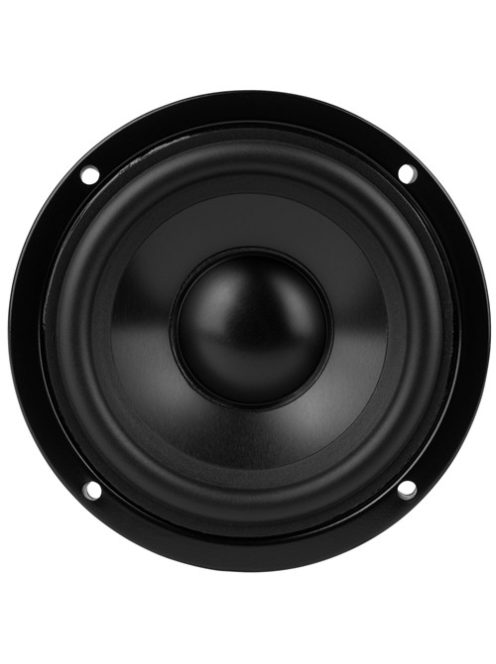

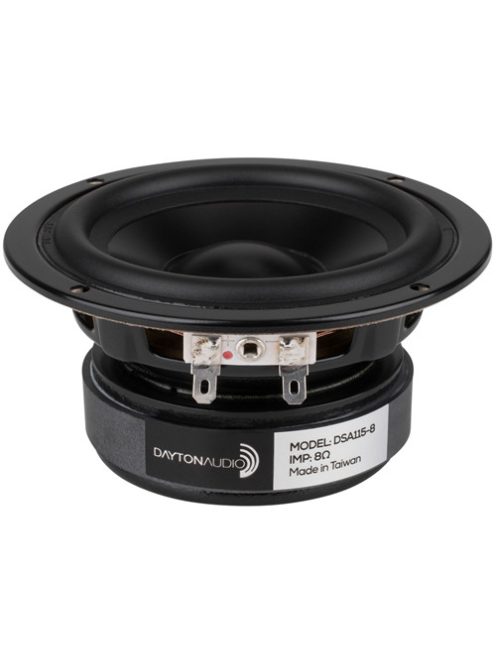

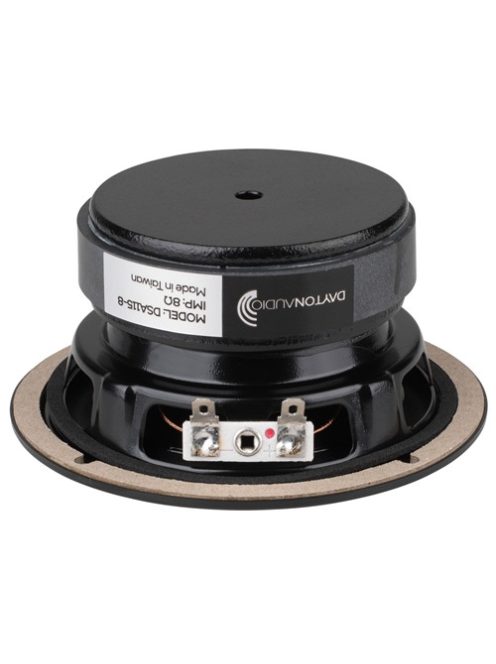

DSA115-8 4" Designer Series Aluminum Cone Woofer 8 Ohm
DSA115-8 4" Designer Series Aluminum Cone Woofer 8 Ohm
30.74 € excl. VAT

DSA115-8 4" Designer Series Aluminum Cone Woofer 8 Ohm

DSA115-8 4" Designer Series Aluminum Cone Woofer 8 Ohm
DSA115-8 4" Designer Series Aluminum Cone Woofer 8 Ohm
DSA115-8 4" Designer Series Aluminum Cone Woofer 8 Ohm
DSA115-8 4" Designer Series Aluminum Cone Woofer 8 Ohm
DSA115-8 4" Designer Series Aluminum Cone Woofer 8 Ohm
DSA115-8 4" Designer Series Aluminum Cone Woofer 8 Ohm
More than just a pretty speaker, the Dayton Audio Designer Series DSA115-8 4" woofer features an extremely neutral response and high Xmax capability.
Details
Shipping within (if available from supplier)
4-5 working days
Manufacturer
DaytonAudio
Guarantee
1 év
Further data
Orderable
30.74 € excl. VAT
Details

Product Highlights

  • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
  • Low distortion motor system with copper shorting ring
  • Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction
  • Optimized to yield the smallest possible box volume and lowest 3 dB down point
  • Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers
  • Vented pole piece for minimized power compression and maximized reliability
  • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators

Product Manuals / Spec Sheets / Downloads

Dayton Audio DSA115-8 Specification Sheet
Dayton Audio DSA115-8 Data Files

The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax.

These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

OPTIMUM CABINET SIZE *
Sealed Volume 0.06 ft.³
Sealed F3 127 Hz
Vented Volume 0.13 ft.³
Vented F3 70 Hz
* Enclosure volume/F3s based on BassBox "optimum" calculations

Speaker Series Designer Series
Model Number DSA115-8
List Price $27.99
Color Black
Unit of Measure Each
UPC 848791002397
Warranty - Parts 5 Years
Warranty - Labor 5 Years
Product Shipping Weight (lbs.) 1.85
Speaker Type Woofer
Nominal Diameter 4"
Power Handling (RMS) 35 watts
Power Handling (max) 70 watts
Continuous Program Power --
Impedance 8 ohms
Sensitivity 86.1 dB @ 2.83V/1m
Frequency Response

63 - 11

000 Hz
Voice Coil Diameter 25.4 mm
Magnet Weight 11 oz.
DC Resistance (Re) 5.9 ohms
Voice Coil Inductance (Le) 0.63 mH @ 1 kHz
Resonant Frequency (Fs) 63.25 Hz
Mechanical Q (Qms) 2
Electromagnetic Q (Qes) 0.53
Total Q (Qts) 0.42
Diaphragm Mass Inc. Airload (Mms) 6.7g
Moving Mass Of Diaphragm (Mmd) --
Mechanical Compliance of Suspension (Cms) 0.94 mm/N
Surface Area Of Cone (Sd) 54.1 cm²
Volume of Displacement (Vd) 22.2 cm³
BL Product (BL) 5.44 Tm
Compliance Equivalent Volume (Vas) 3.96 liters
Maximum Linear Excursion (Xmax) 4.1 mm
Drivers Mechanical Losses (Rms) --
Cone / Diaphragm Material Aluminum Cone
Entry / Exit Diameter --
Surround Material Rubber
Voice Coil Wire Material Copper
Voice Coil Former Aluminum
Basket/Frame Material Steel
Magnet Material Ferrite
Overall Outside Diameter 115.6"
Overall Depth 54.7"
Baffle Cutout Diameter 93.6"
# Mounting Holes 4
Mounting Hole Diameter --
Bolt Circle Diameter --
Product Weight --
Info
Régi cikkszám
PE 295-524
Article No.
DAY-DSA115-8
Weight
830 g/db
