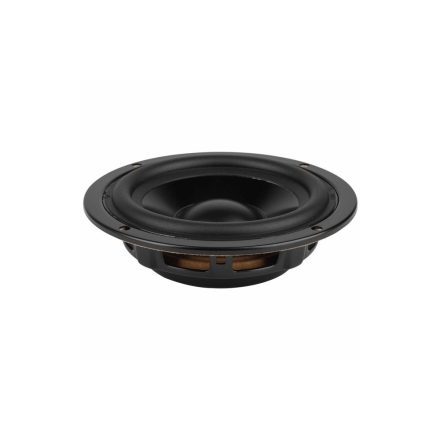

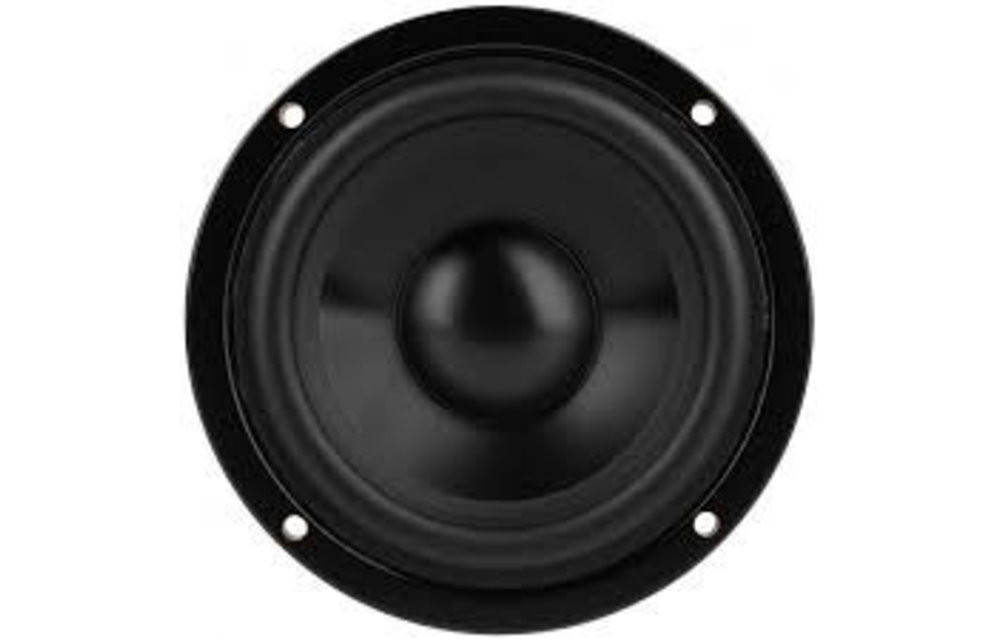

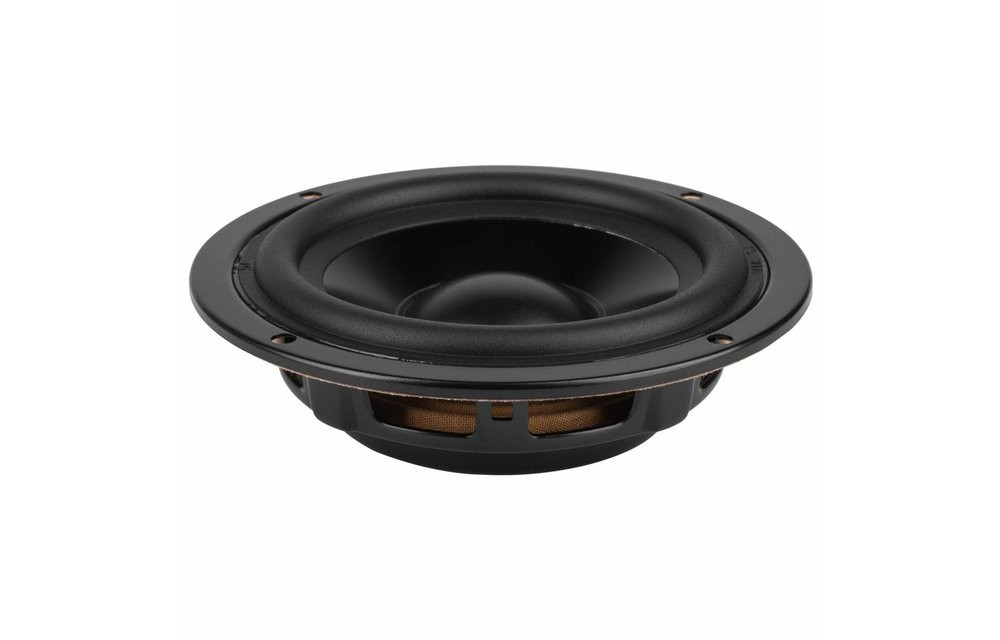

DSA115-PR 4" Designer Series Aluminum Cone Passive Radiator

The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. Built to be a perfect match for the Designer Series drivers, these passive radiators feature the same steel frame, rubber surround, and anodized aluminum cone making them visually identical.

Highlights

• Perfect match for Dayton Audio's aluminum cone Designer Series drivers
• Allows tuning small enclosures lower than using conventional ports
• Rear mounted screw allows easy mass adjustment for custom tuning
• Cosmetic frame edge looks great even when surface mounted

Product details

Dayton Audio DSA115-PR 4" Designer Series Aluminum Cone Passive Radiator

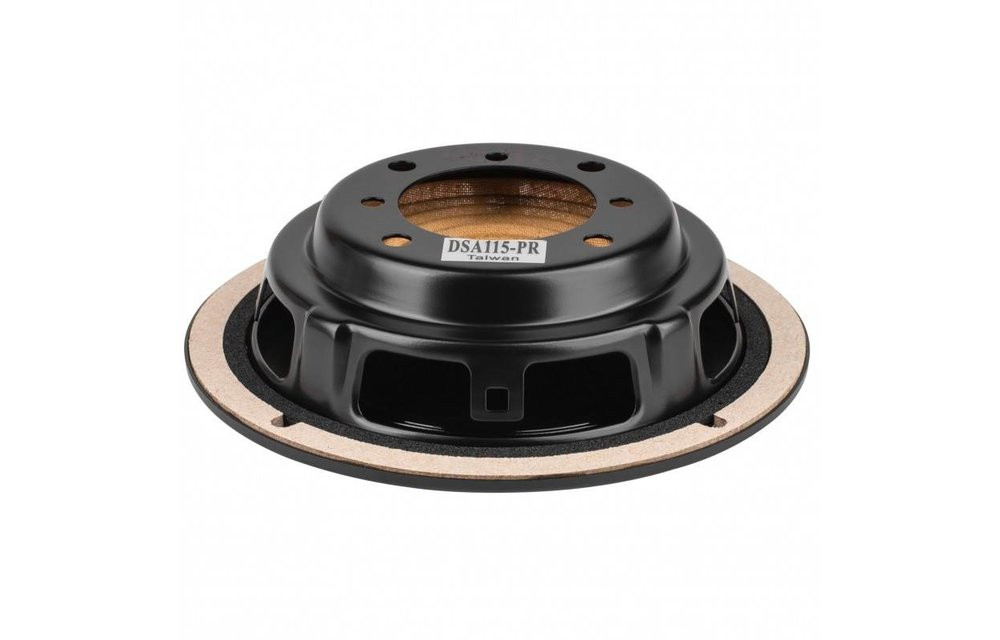

The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, these passives match Dayton Audio's Designer Series drives, with a black anodized aluminum cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from desktop two ways to portable battery powered speaker systems.

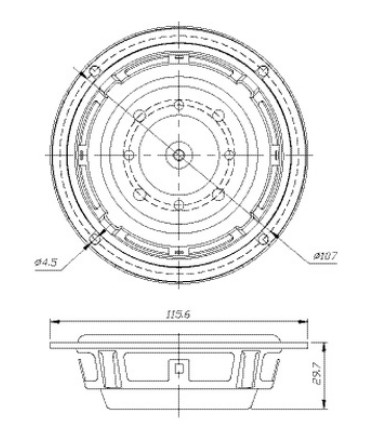

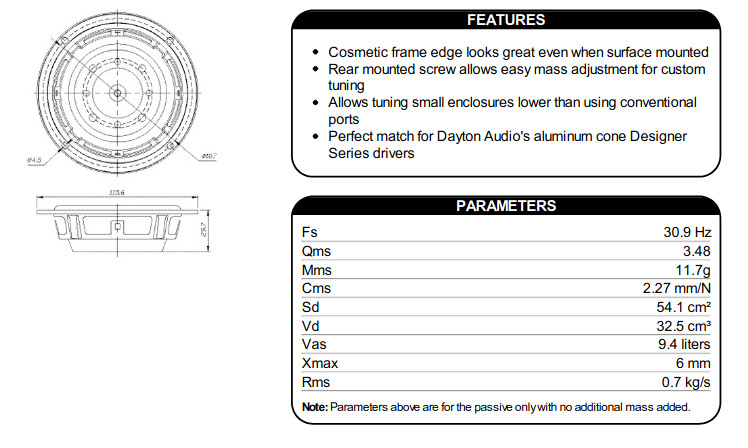

Specifications: • Fs: 30.9 Hz • Vas: 0.33 cu. ft. • Qms: 3.48 • Cms: 2.27 mm/N • Rms: 0.7 kg/s • Mms: 11.7 g • Sd: 54.1 sq. cm. • Xmax: 6 mm • Dimensions: Overall diameter: 4.55", Cutout diameter: 3.69", Depth: 1.17".

Note: Adding mass to the passive radiator will decrease Fs and increase Qms.

Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.

To calculate Vd: Sd x Xmax = Vd
