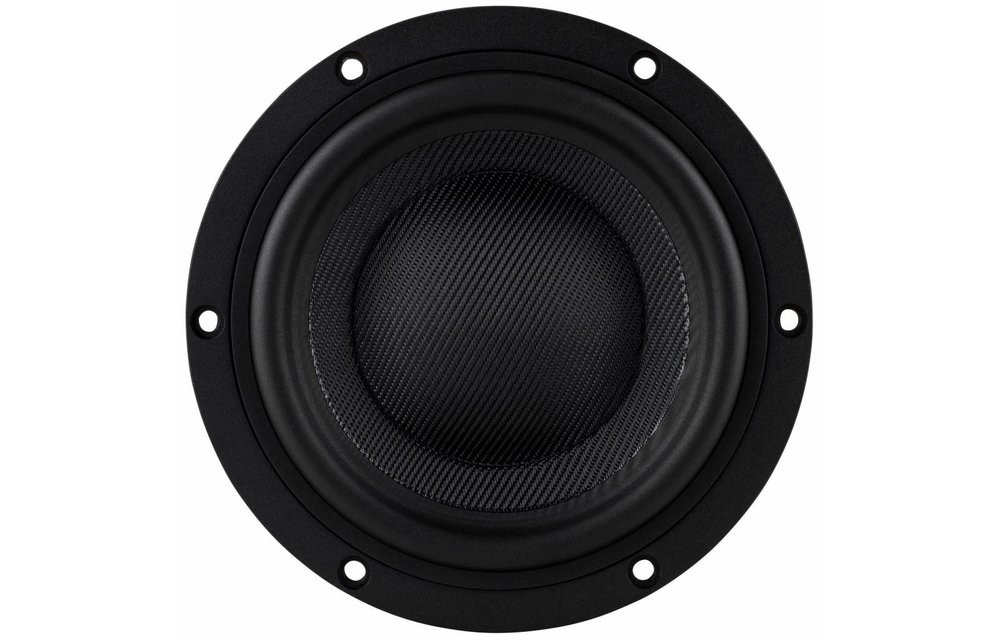

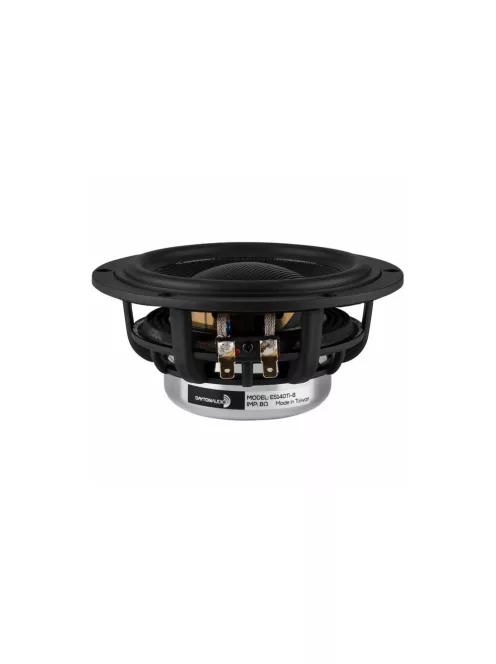

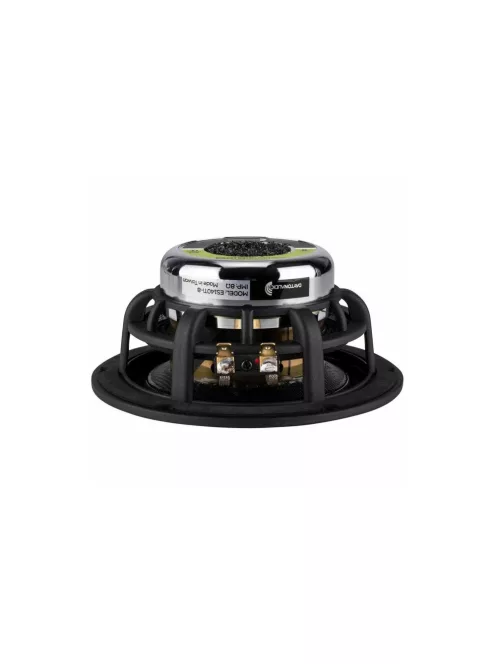

ES140Ti-8 5-1/2" Esoteric Series Woofer 8 Ohm

The Dayton Audio ES140Ti-8 is a high-technology 5-1/2" woofer featuring an FEA-optimized neodymium ring motor structure with dual copper shorting rings for ultra-low distortion. Its enormous 3" edge-wound voice coil on a titanium former provides high power handling and excellent transient response. 8 ohm impedance.

Highlights

• Dual copper shorting rings in the motor for reduced energy storage
• 3" edgewound voice coil on titanium former provides exceptional transient response

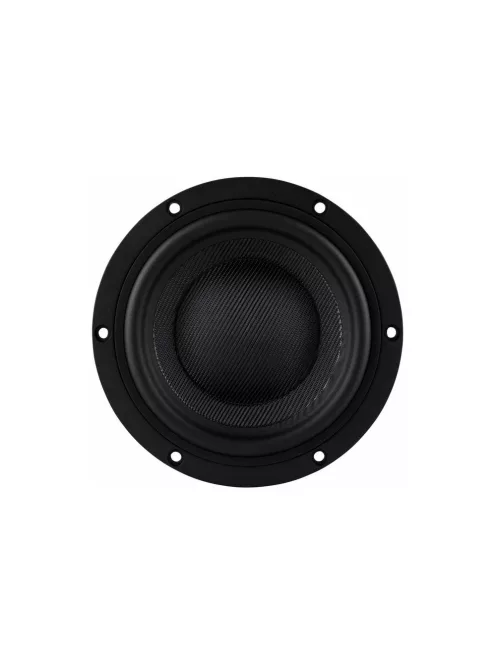

• Woven glass-fiber cone provides excellent stiffness for minimal cone flex
• High excursion suspension design with tethered tinsel leads and fully ventilated frame
• High-power, ultra-low-distortion design

Product Details

Dayton Audio ES140Ti-8 5-1/2" Esoteric Series Woofer 8 Ohm

Dayton Audio's Esoteric Series is the ultimate expression of Dayton Audio’s transducer engineering know-how and finesse. Featuring high-end materials and advanced engineering throughout, the Esoteric Series collection of drivers elevates the state of the art in driver design.

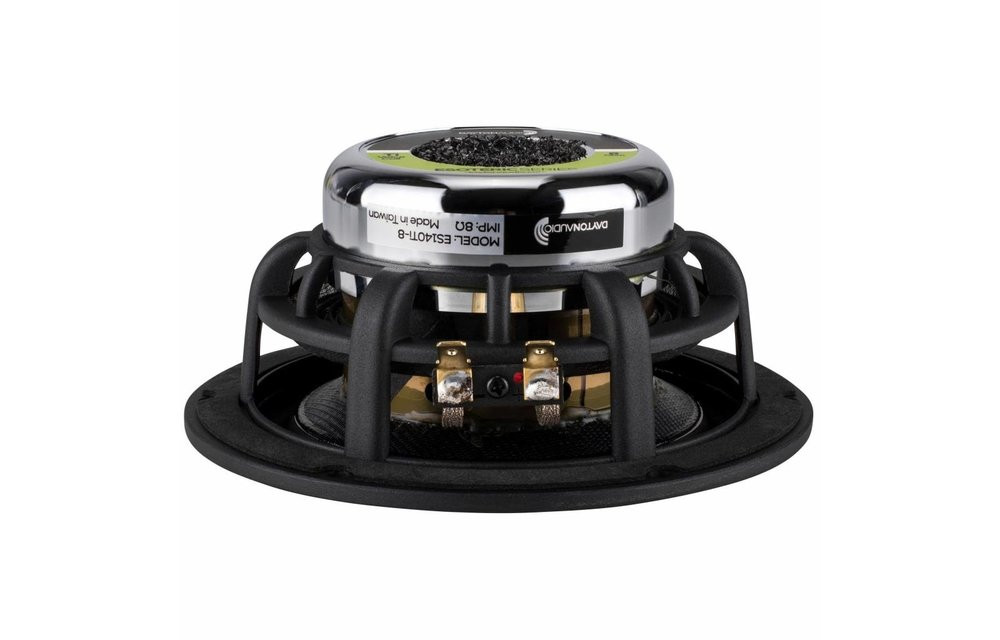

Unprecedented performance for a small woofer is packed into 5-1/2" ES140Ti-8, thanks to an FEA-optimized motor assembly using a large neodymium ring magnet and heavy dual copper shorting rings. Dayton Audio's Esoteric Series' woofer motor geometry is designed to provide a powerful, stable field with excellent saturation and symmetry, expanding the usable range of excursion.

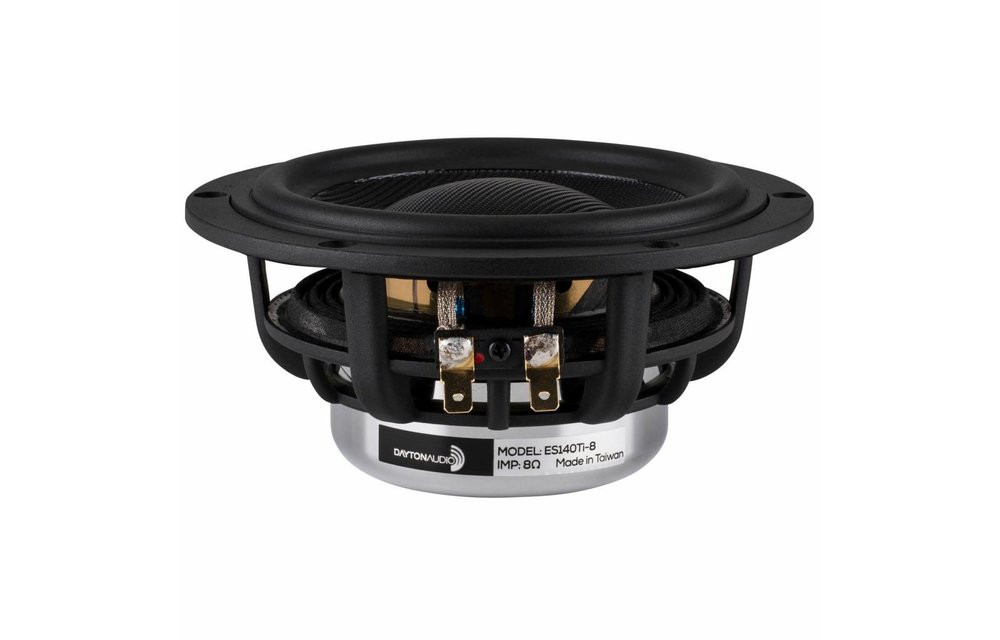

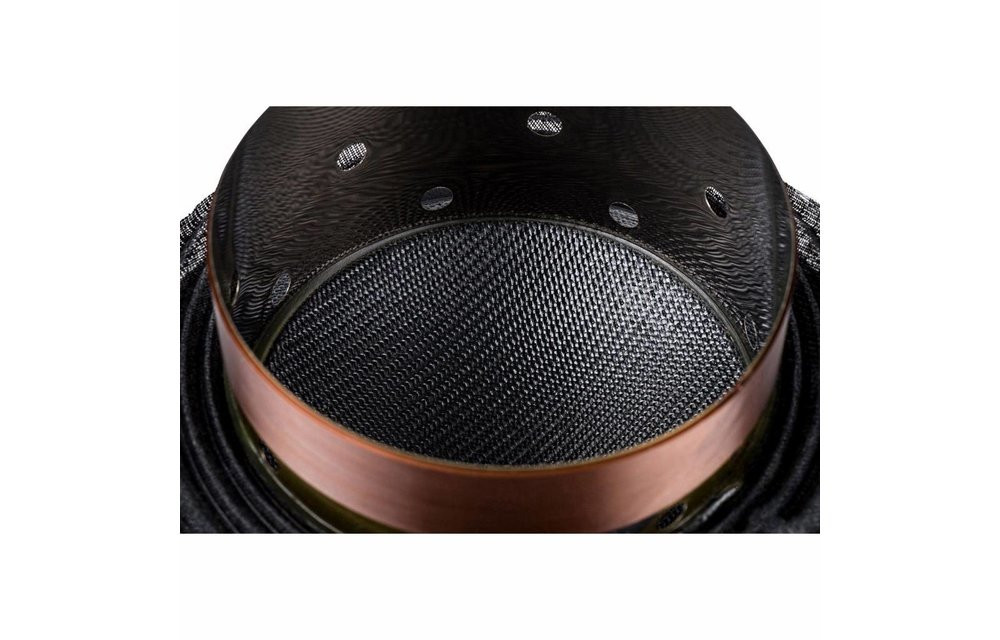

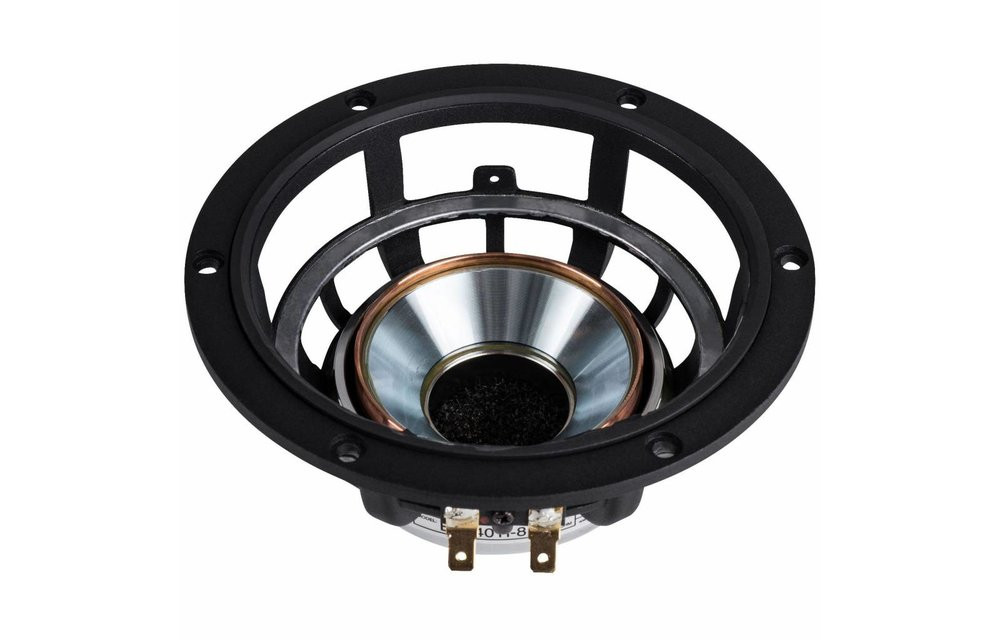

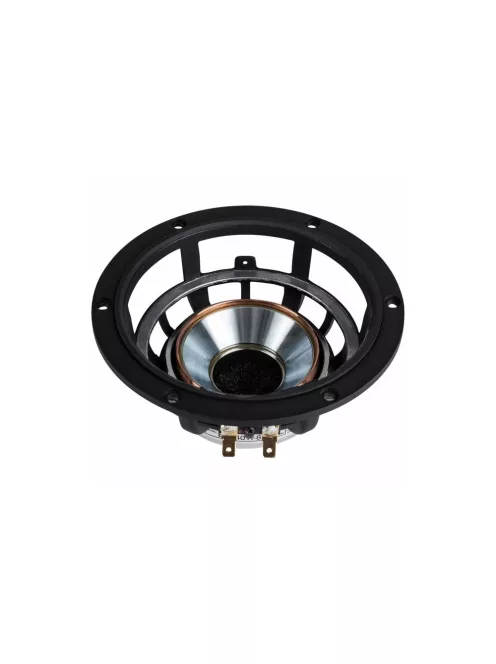

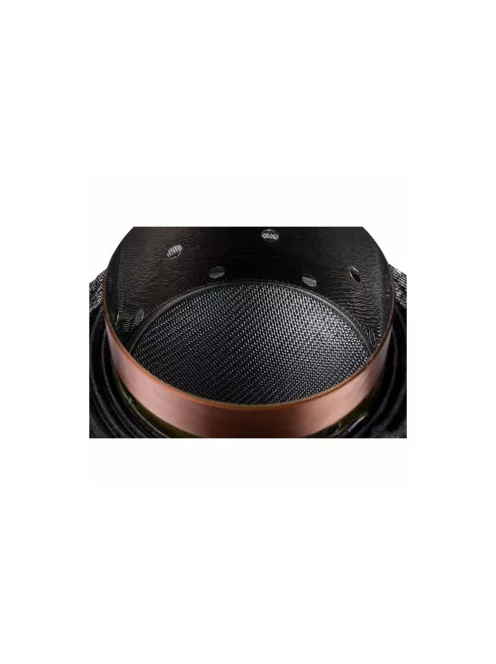

The huge 3" diameter voice coil is edgewound using rectangular copper-coated aluminum wire (CCAW) for maximal winding density within the coil profile, and the ventilated titanium voice coil former transfers energy to the cone with incredible speed while contributing added stiffness to the cone itself. A woven glass-fiber cone couples acoustic energy to the air with excellent stiffness and self-damping, while its shallow profile minimizes cavity resonance. The Klippel-optimized suspension is designed to allow high excursion of the cone without distortion, and the structure of the driver is supported by a fully ventilated cast aluminum frame for supreme mechanical stability without internal compression.

All of these elements combine to create a driver that breaks new ground with superb transient response and ultra-low distortion. By breaking free from established design conventions and rethinking how each part of the driver should behave, the ES140Ti-8 consistently delivers a musically accomplished performance, time after time. It’s an excellent choice as a woofer in a 2-way high-performance loudspeaker system, and the 8-ohm impedance makes it a natural choice for center channel MTM use as well.
