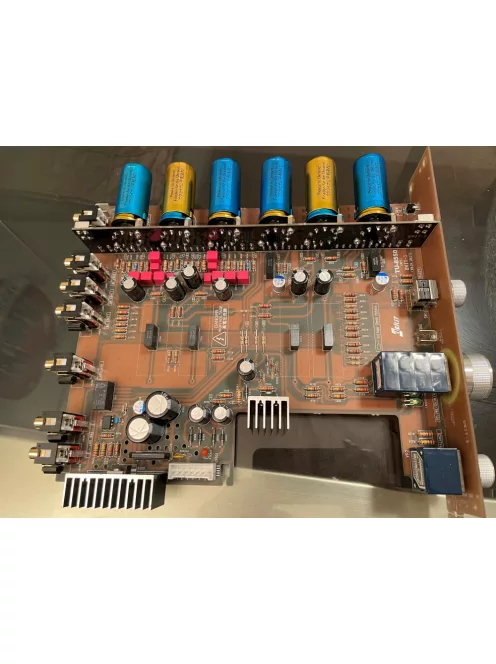

ELEKIT TU-8550

Manufacturer

hangtechnika

Further data

Orderable

Készre szerelve (plusz néhány nap)

Csőkészlettel együtt

Details

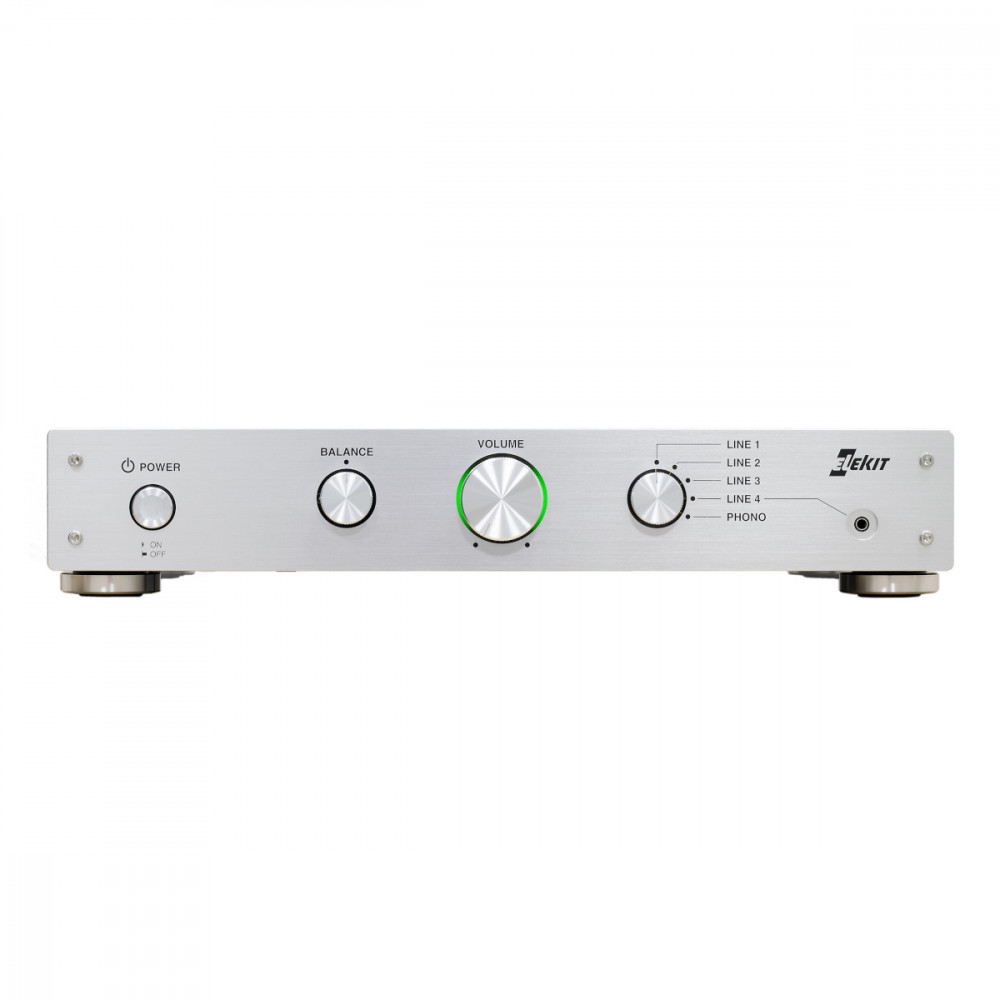

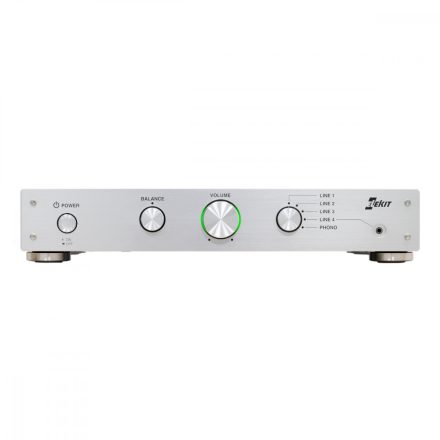

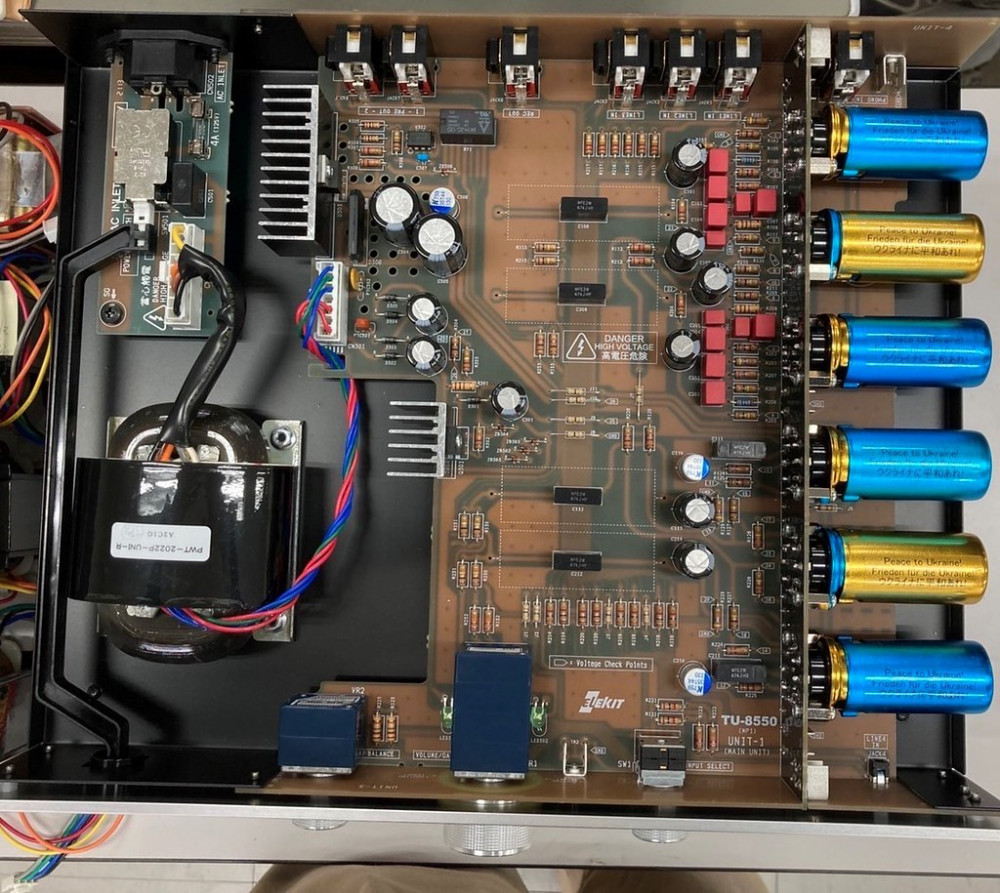

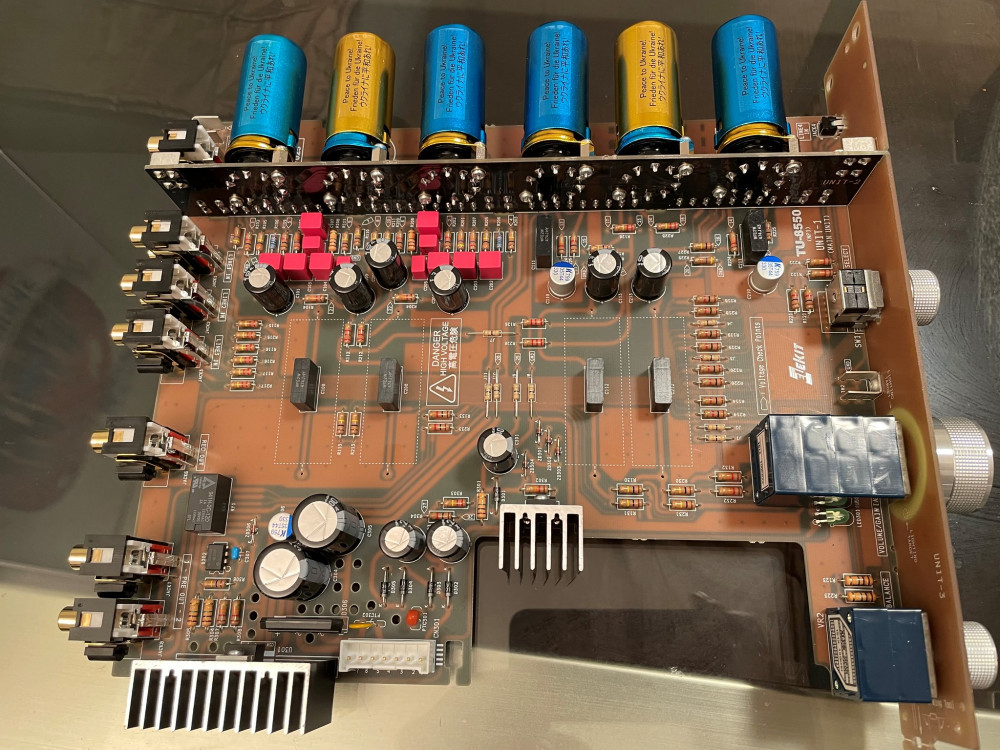

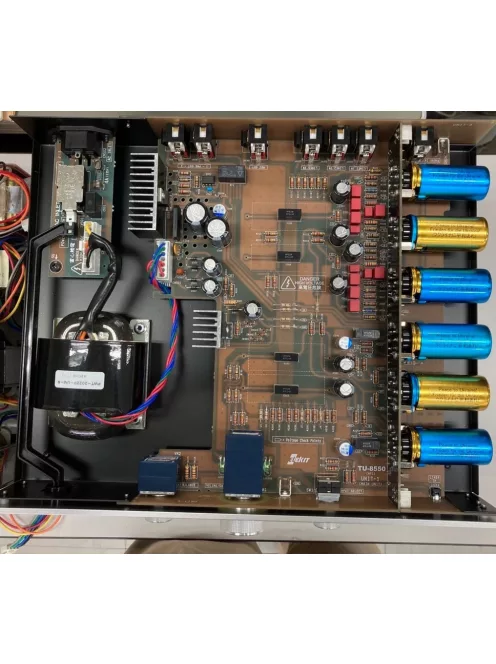

Newest addition to Elekit family – preamplifier kit with phono amp, in chassis with size matching to TU-8900 amp. Among other, it features a CR type RIAA equalizer circuit for straight-forward and smooth sound quality, quadral volume pot, four input lines and two outputs. And as usual, highest sound quality provided with six tubes.

Quadral volume for the flat amp diminishes residual noise upon low volume
Thorough elimination of hum noise
REC-OUT built-in

TECHNICAL SPECIFICATION

STOCK TUBES	JJ Electronics ECC82 (12AU7) x 2 pcs. JJ Electronics ECC83 (12AX7) x 4 pcs.

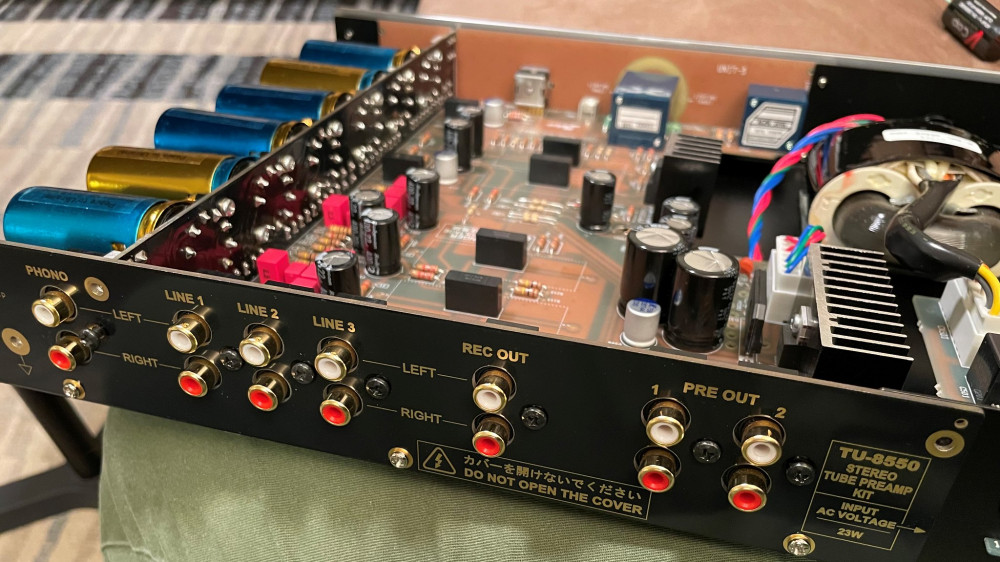

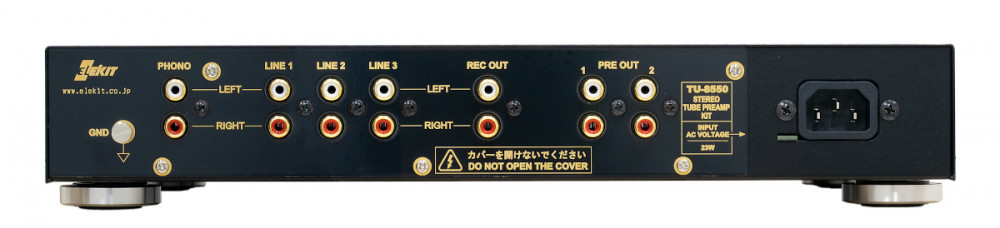

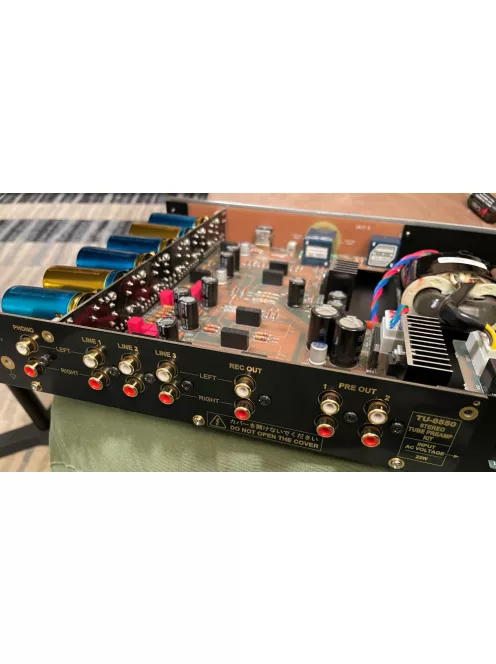

INPUT TERMINALS	RCA Jack 4 lines (LINE1 – 3 + PHONO) 3,5 mm stereo jack 1 line at front
OUTPUT TERMINALS	RCA Jack 2 lines (parallel outpu) REC OUT RCA Jack 1 line
POWER VOLTAGE	AC 100V 50/60Hz, IEC Standard inlet Selected from 100V, 115V, 200V and 230V upon assembly
POWER CONSUMPTION	23 W
DIMENSIONS	W 352 mm x H 66 mm x D 298 mm (exc. projections)
WEIGHT	Approx. 3,9 kg (assembled, exc. power cord)
LINE AMP STAGE
– MAX. OUTPUT VOLTAGE	20 V RMS (1 kHz)
– MAX GAIN	Approx. 17 dB (~7 times)
– FREQUENCY RESPONSE (-3 dB)	5 Hz – 200 kHz (-3 dB)
– S/N RATIO (IHF-A)	130 dB (sound level mid) 126 dB (sound level max)
– RESIDUAL NOISE (IHF-A)	15 μV (sound level max) 6,5 μV (sound level mid)
EQUALIZER AMP STAGE
– RIAA EQUALIZATION	+/- 0,5 dB tolerance (20 Hz – 20 kHz)
– CARTRIDGE	MM cartridge
– GAIN (1 kHz)	29 dB
– SN RATIO (IHF-A)	112 dB
– INPUT RESISTANCE	47 kΩ (MM cartridge)
– MAX. OUTPUT VOLTAGE	20 V RMS (1 kHz)
