Clear sound of solid-state amp and smoothing warm sound of tube amp – this company cubic amp enjoys the good aspects of those two different types of amplifiers.

Details
Shipping within (if available from supplier)
5-6 working days
Manufacturer
Elekit
Further data
Orderable
Details

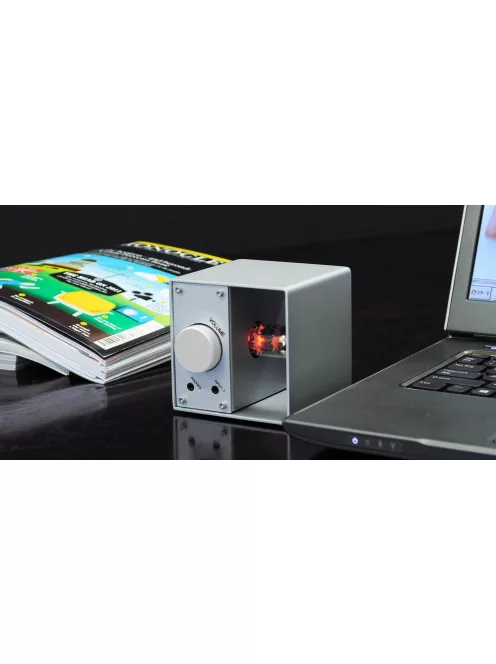

Clear sound of solid-state amp and smoothing warm sound of tube amp – this company cubic amp enjoys the good aspects of those two different types of amplifiers. Deck your desk with this sophisticated amp and its pleasant sound.

Features

  • Hybrid of vacuum tube input buffer + D-class speaker amp (AB-class headphone amp built-in)
  • DC-controlled electronic volume built-in the amplifier IC. Therefore the volume deflection between right and left channels at small sound volume is minimized.

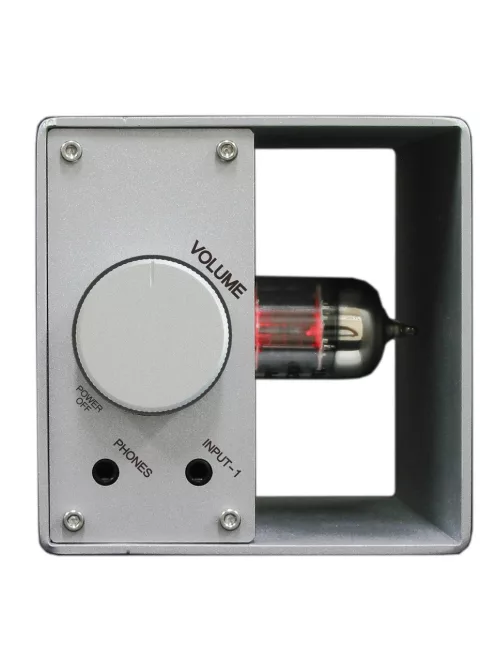

  • Headphone output
  • Built-in USB-DAC for computer connection
  • Interlocking the amp power ON/OFF with the PC USB power selectable

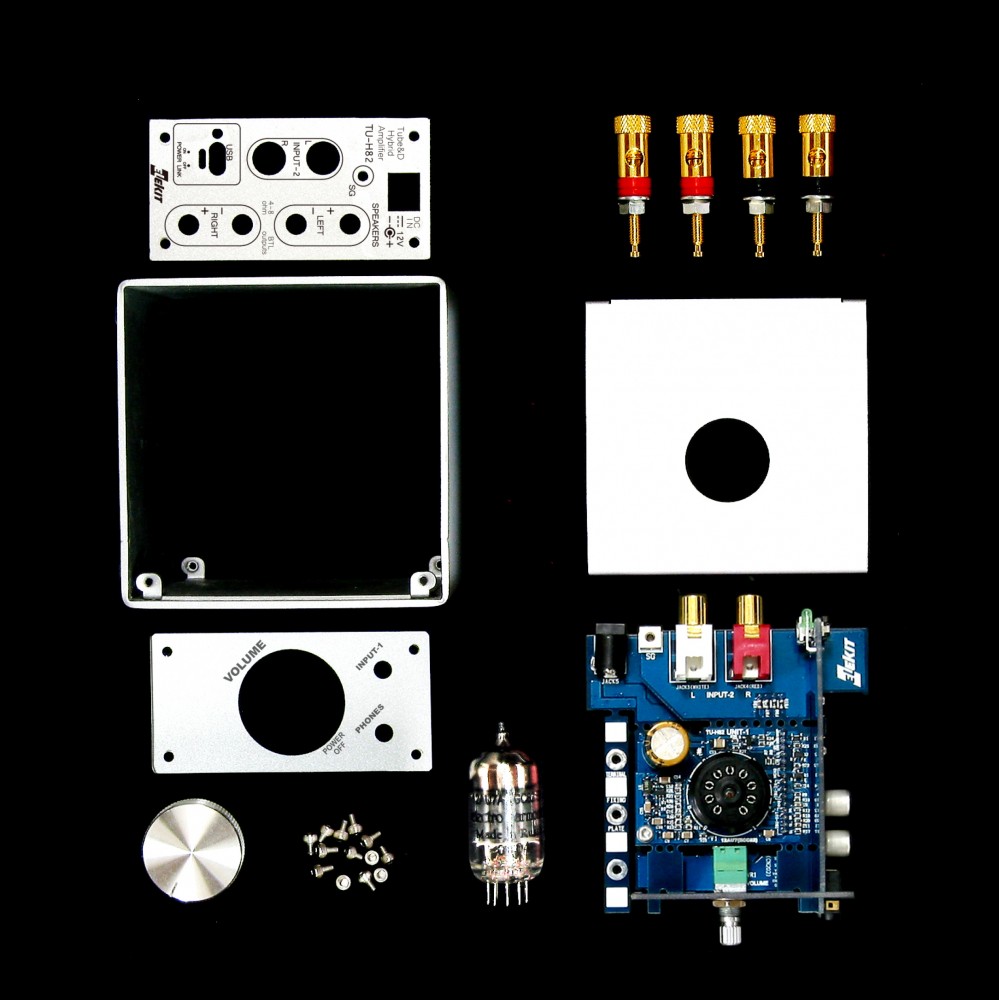

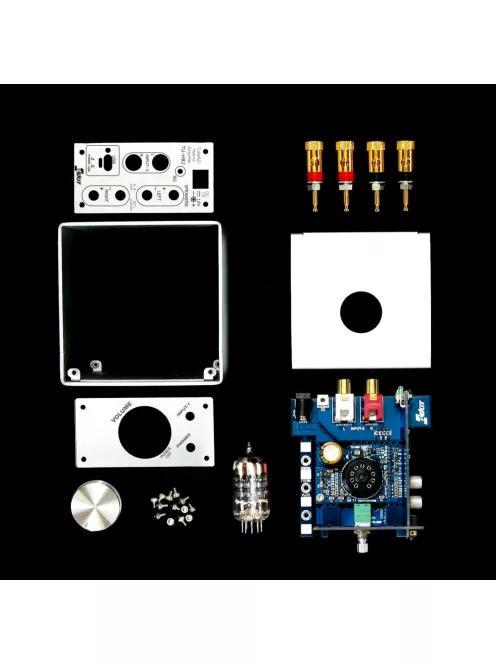

  • Assembly kit for users to experience the fun of DIY
  • PCB is preassembled, no soldering is required. For assembly, users will need a long-nose pliers and a screwdriver only. (A hex wrench is included.)
  • Kit includes ECC82 vacuum tube.

TECHNICAL SPECIFICATION

VACUUM TUBE ECC82 (12AU7) x 1

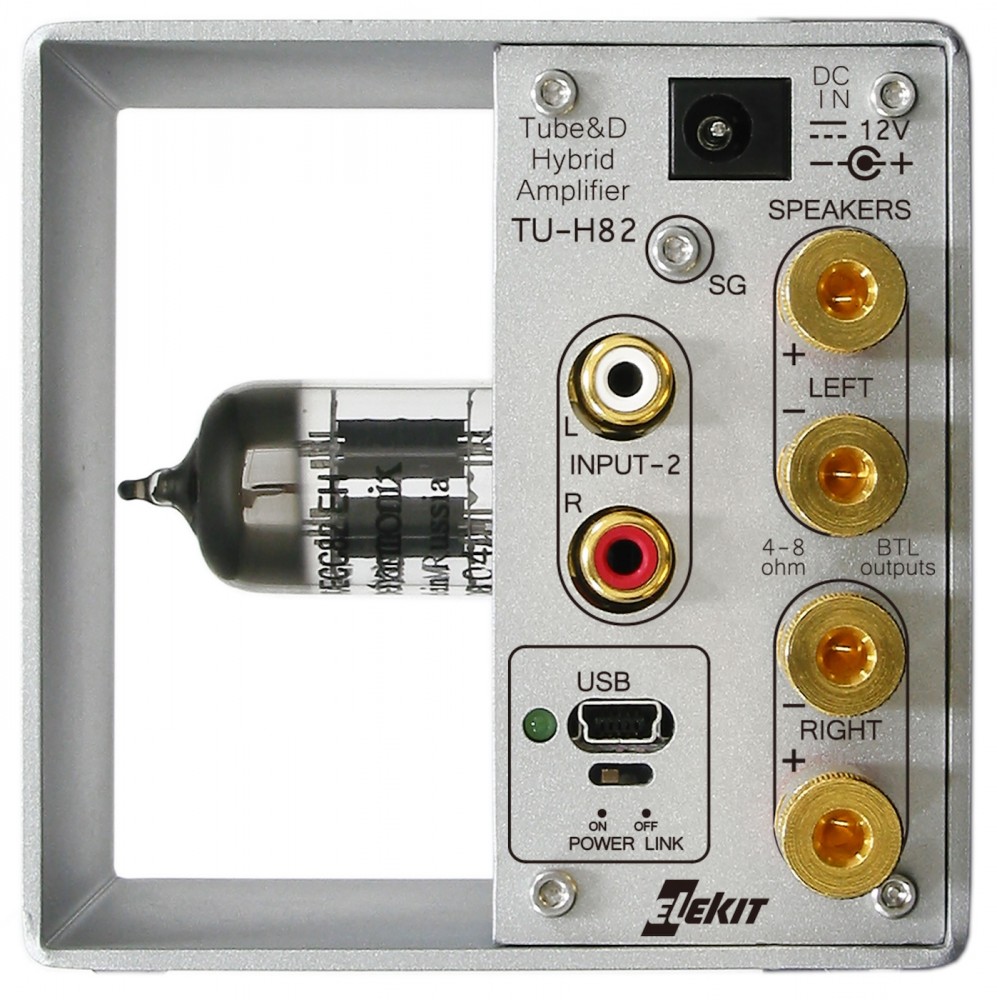

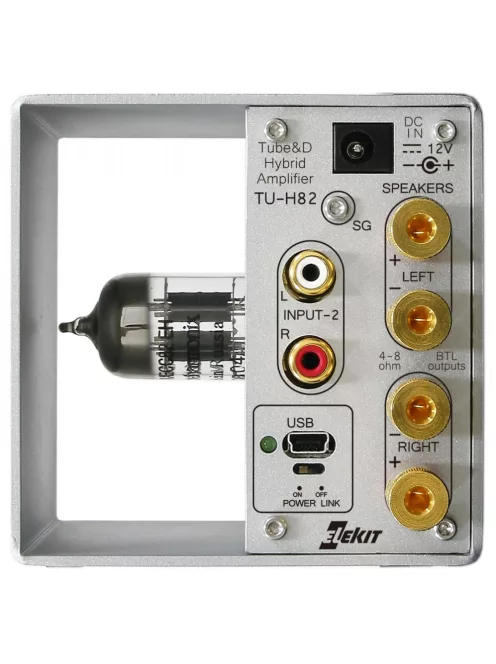

INPUT INPUT-1: 3.5 mm stereo mini jack (front), 170 mV
INPUT-2: RCA jack (rear), 470 mV
INPUT-3: USB mini-B connector (rear)
INPUT-1 and INPUT-2 are mixed
USB input is cut when INPUT-1 is connected
SPEAKERS 6 Ω – 8,2 W + 8,2 W
8 Ω – 6,5 W + 6,5 W
Gold plated binding terminals (banana plug usable)
HEADPHONES OUTPUT 16 Ω – 8 mW + 8 mW
FREQUENCY RESPONSE 20 – 25000 Hz, -3 dB, 6 Ω load
RESIDUAL NOISE 120 µV (IEC, 6 Ω load)
FREQUENCY RESPONSE 20 Hz – 50 kHz (-3 dB)
USB DAC 32 kHz / 44.1 kHz / 48 kHz (16bit)
WindowsXP or later, Mac OSX
POWER VOLTAGE Amplifier: 12V
AC Adapter: 100 – 240 V
POWER CONSUMPTION No signal: 0,2 A
Rated output: 2 A
DIMENSIONS W 88 mm x H 90 mm x D 117 mm (incl. projections)
W 88 mm x H 88 mm x D 88 mm (chassis only)
WEIGHT Approx. 790 g
Assembled, excl. AC adapter
Specification of the product are subject to change without prior notice. Colors of the product may look different than presented on pictures.
