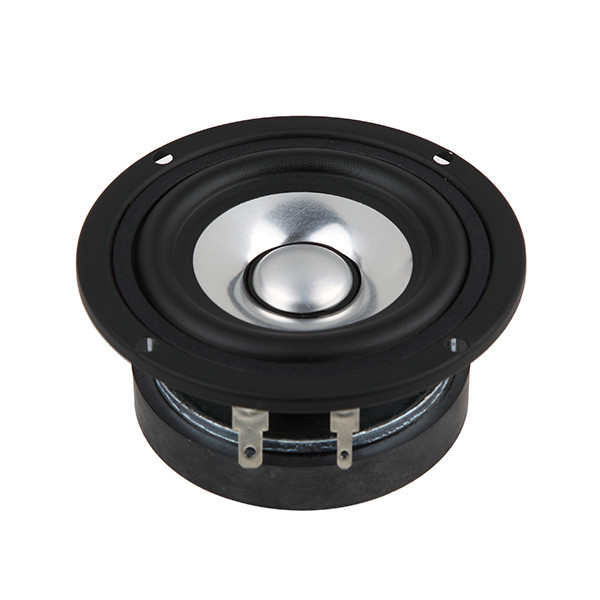

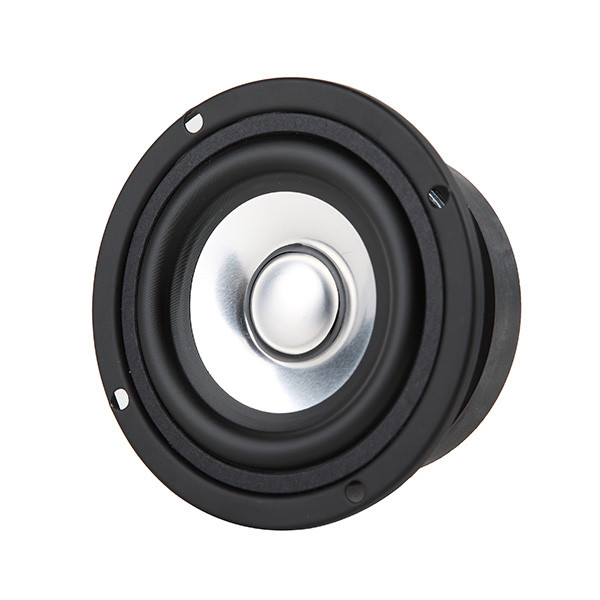

FE85 3" Full Range Speaker

Name: FE85 3" Full Range Speaker
Brand: Fountek
SKU: FOU-FE85
Price: 37.44 EUR
Availability: InStock

Fountek

Details

Shipping within (if available from supplier)

4-5 working days

Manufacturer

Fountek

Further data

Orderable

29.48 € excl. VAT

Details

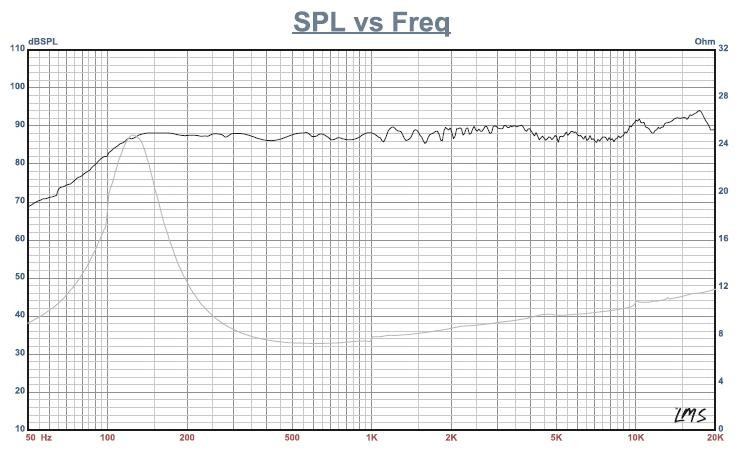

SPL: 85.7 dB

Frequency range: 100 - 25000 Hz

DC resistance: 6 Ω

Resonant frequency	f_S	125	Hz
Electrical Q	Q_ES	0.67
Mechanical Q	Q_MS	2.13
Total Q factor	Q_TS	0.52
Suspension equivalent air volume	V_AS	0.85	litres
DC resistance	R_E	6	Ω
Force factor	B·l	3.7	T·m
Suspension mechanical resistance	R_MS	0.8	N·s/m
Suspension mechanical compliance	C_MS	820	µm/N

Moving mass	M_MD	1.991	g
Moving mass (including airload)	M_MS	2.073	g
Surface of the diaphragm	S_D	27	cm²
Effective diaphragm diameter	Ø	5.9	cm
Maximum linear excursion	X_max	± 1.5	mm
Displacement volume at Xmax	V_D	4.1	cm³
Efficiency	η₀	0.24	%
Efficiency bandwidth product	EBP	186

Info

Article No.

FOU-FE85
