・Ring-shaped pure magnesium diaphragm
The newly developed ring-shaped pure magnesium
diaphragm has low squeal peculiar to metal,and
realizes penetrating ultra-high frequency reproduction
by adjusting the material thickness to optimize the
surface treatment.
・Brass horn and equalizer with platinum coating
Precision cut cylindrical shape solid brass horn and
equalizer are fitted. Platinum coated surface offers a
natural and high transparent sound.
・Alnico internal magnetic circuit
Installed 2 layers Alnico magnets obtain a strong
magnetic flux density,and the copper plated poll piece
reduces the current distortion realizing a high definition
audio reproduction.
・Gold plated copper speaker terminals and copper
silver alloy internal wiring
Input terminals use gold plated copper. An extra-thick
φ1.4mm copper silver alloy single wire is used for
internal wiring to reduces sound deteriorations.
・Tungsten diaphragm ring
Diaphragm ring to support the diaphragm is made of
tungsten sheet that has high damping effect to reduce
un-wanted vibrations and sound deteriorations.

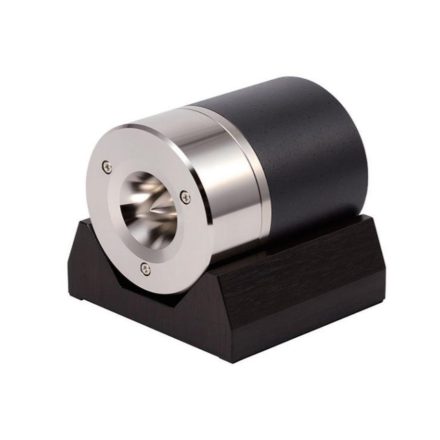

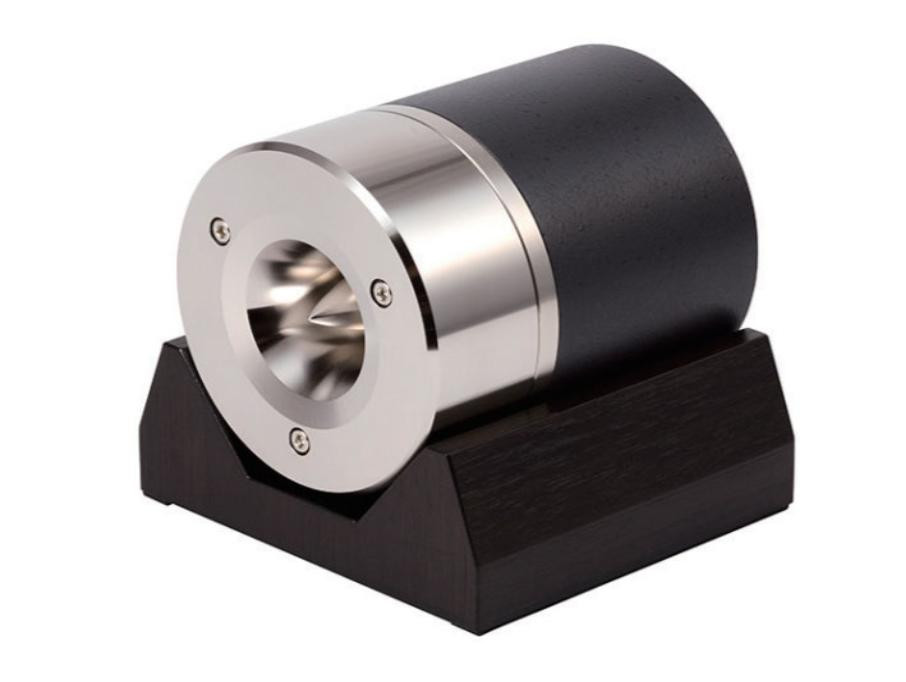

・Tweeter base with walnut veneer finish
A tweeter base comes as a standard accessory, which
firmly supports the heavy tweeter. The base is finished
in dark brown with beautiful and calm walnut veneer.
