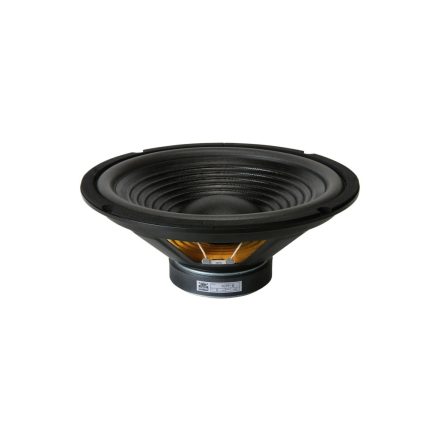

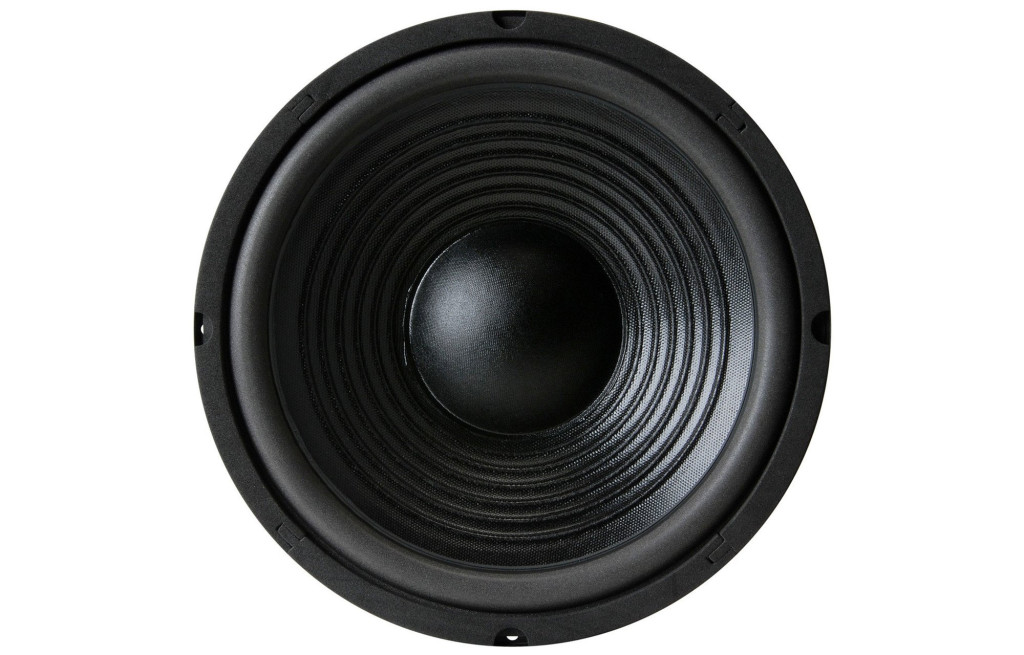

10PF-8 10" Paper Cone Foam Surround Woofer
10PF-8 10" Paper Cone Foam Surround Woofer
16.95 € excl. VAT

10PF-8 10" Paper Cone Foam Surround Woofer

10PF-8 10" Paper Cone Foam Surround Woofer
10PF-8 10" Paper Cone Foam Surround Woofer
10PF-8 10" Paper Cone Foam Surround Woofer
Shipping within (if available from supplier)
4-5 working days
Manufacturer
GRS
Orderable
16.95 € excl. VAT
Details

GRS 10PF-8 10" paper cone woofers are ideal replacement speakers for use in sealed-box loudspeaker systems in almost any application.



Highlights

  • Perfect for use in sealed-box home theater and music systems
  • Poly-laminated paper cone, treated foam surround, and polymer dust cap
  • Smooth frequency response with minimal cone breakup



Product details

GRS 10PF-8 10" Paper Cone Foam Surround Woofer



GRS 10PF-8 10" paper cone woofers are ideal replacement speakers for use in sealed-box loudspeaker systems in almost any application. Thanks to their carefully optimized parameters, GRS 10PF-8 10" poly-laminated paper cone woofers offer a high degree of compatibility when used as replacement speakers—they also provide excellent performance in new projects, too.



Article number10PF-8
EAN0844632088483
Woofer TypeMidwoofer
Nominal Diameter10"
Power Handling (RMS)110 Watts
Power Handling (max)220 Watts
Impedance (Z)8 ohms
Sensitivity (SPL at 1m / 2.83V)87 dB
Frequency Response40 to 5,000 Hz
Voice Coil Diameter1.5"
DC Resistance (Re)7.56 ohms
Voice Coil Inductance (Le)1.19 mH
Resonant Frequency (Fs)43 Hz
Mechanical Q (Qms)5.32
Electromagnetic Q (Qes)1.66
Total Q (Qts)1.27
Compliance Equivalent Volume (Vas)2.27 ft.³
Maximum Linear Excursion (Xmax)3 mm
Cone / Diaphragm MaterialTreated Paper
Magnet MaterialFerrite
Overall Outside Diameter10"
Overall Depth4.125"
Baffle Cutout Diameter9.25"
# Mounting Holes4
Sealed Volume1.87 ft.³
Sealed F345 Hz
Vented Volume21.49 ft.³
Vented F324 Hz
