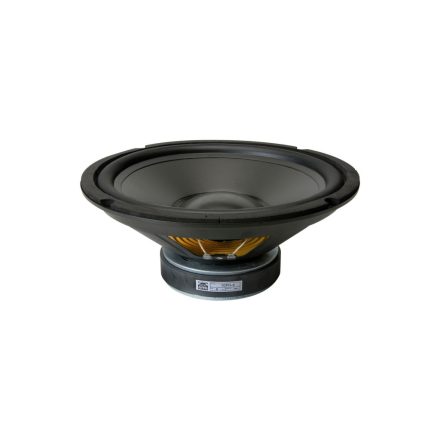

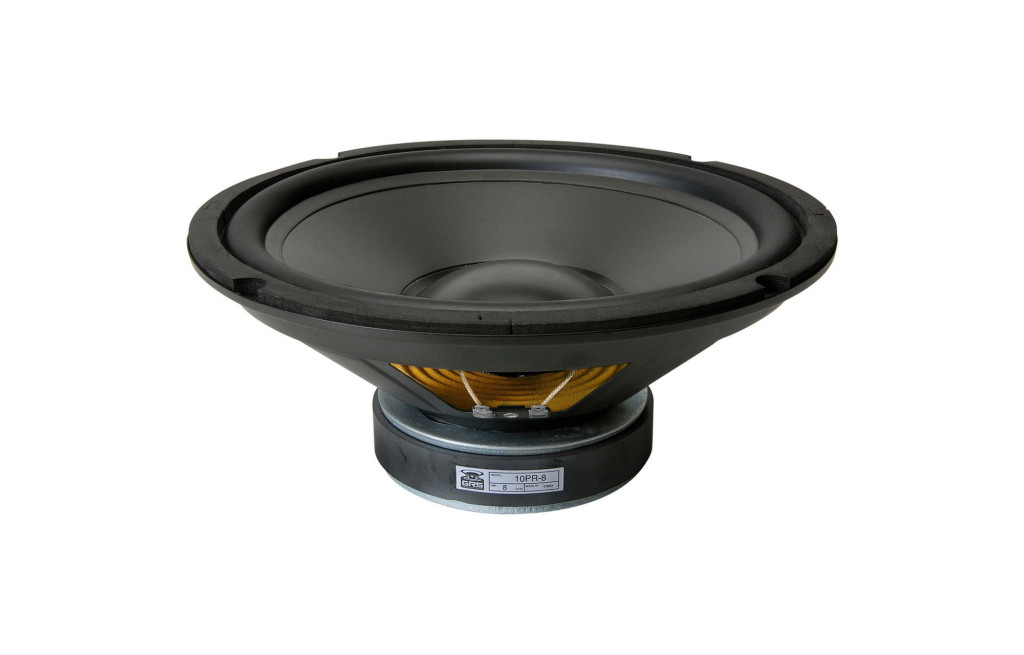

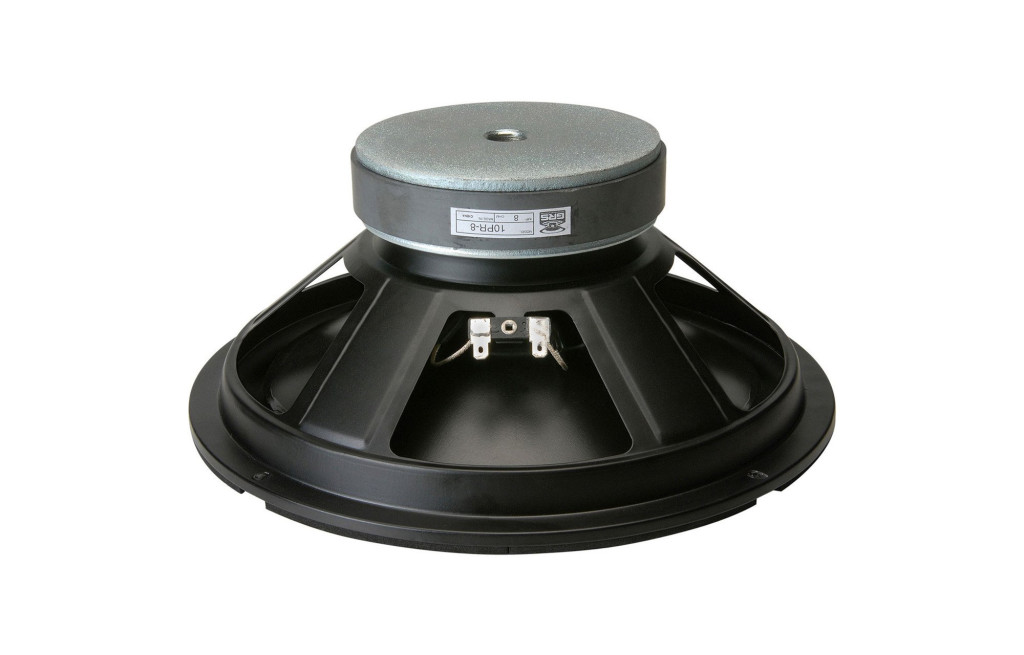

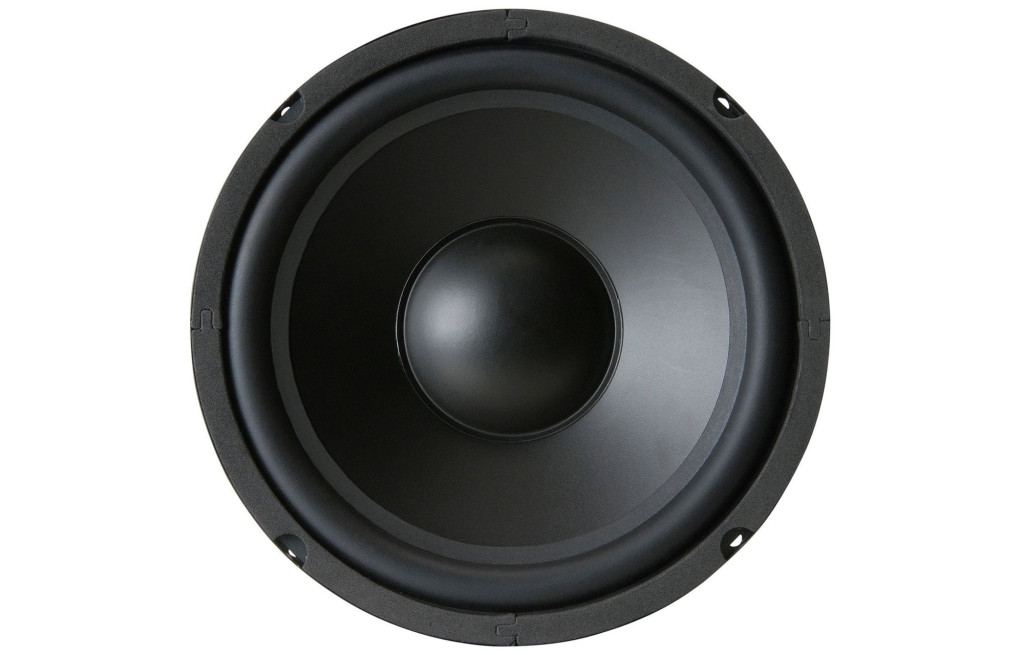

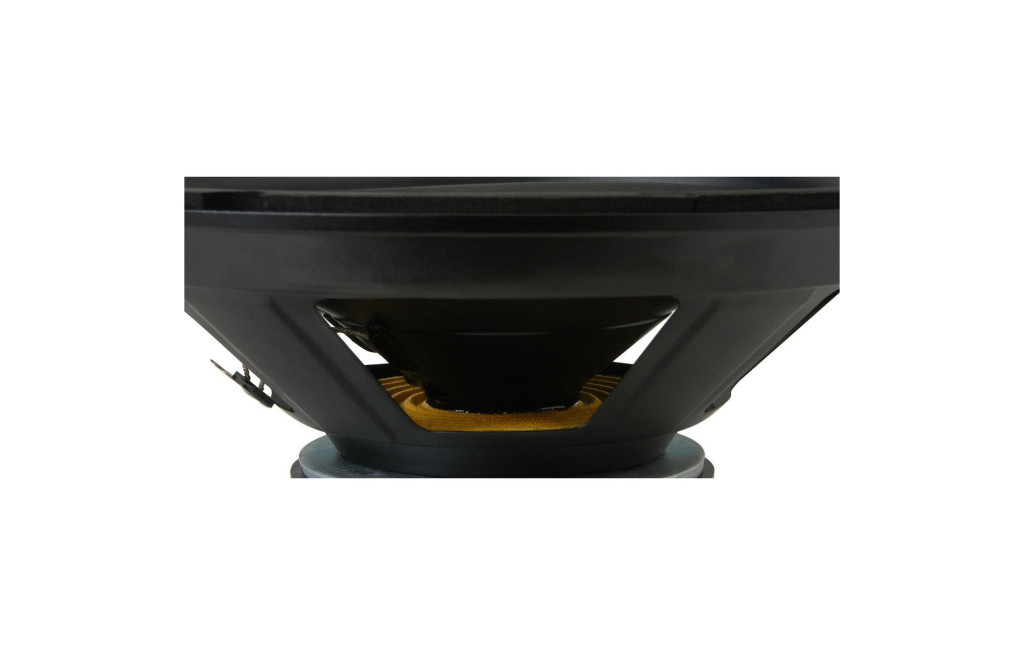

10PR-8 10" Poly Cone Rubber Surround Woofer
10PR-8 10" Poly Cone Rubber Surround Woofer
22.47 € excl. VAT

10PR-8 10" Poly Cone Rubber Surround Woofer

10PR-8 10" Poly Cone Rubber Surround Woofer
10PR-8 10" Poly Cone Rubber Surround Woofer
10PR-8 10" Poly Cone Rubber Surround Woofer
10PR-8 10" Poly Cone Rubber Surround Woofer
10PR-8 10" Poly Cone Rubber Surround Woofer
10PR-8 10" Poly Cone Rubber Surround Woofer
10PR-8 10" Poly Cone Rubber Surround Woofer
10PR-8 10" Poly Cone Rubber Surround Woofer
Shipping within (if available from supplier)
4-5 working days
Manufacturer
GRS
Further data
Orderable
22.47 € excl. VAT
Details

Many popular, classic 10" speaker designs can be replaced or upgraded with a GRS 10PR-8 poly cone woofer.



Highlights

  • Polypropylene cone for perfect balance of stiffness, mass, and self-damping
  • Butyl rubber surround ensures high excursion and long term durability
  • Stamped steel frame keeps components in perfect alignment
  • Optimized motor features high-energy ceramic ferrite magnet, vented pole piece



Product details

GRS 10PR-8 10" Poly Cone Rubber Surround Woofer



Many popular, classic 10" speaker designs can be replaced or upgraded with a GRS 10PR-8 poly cone woofer. Thanks to their carefully optimized parameters, GRS 10PR-8 10" polypropylene cone woofers with butyl rubber surrounds offer a high degree of compatibility when used as replacement speakers—they also provide excellent performance in new projects, too.



Article number10PR-8
EAN0844632088537
Woofer TypeMidwoofer
Nominal Diameter10"
Power Handling (RMS)80 Watts
Power Handling (max)115 Watts
Impedance (Z)8 ohms
Sensitivity (SPL at 1m / 2.83V)85 dB
Frequency Response35 to 3,000 Hz
Voice Coil Diameter1.5"
DC Resistance (Re)7.58 ohms
Voice Coil Inductance (Le)1.12 mH
Resonant Frequency (Fs)37 Hz
Mechanical Q (Qms)4.8
Electromagnetic Q (Qes)1.5
Total Q (Qts)1.14
Compliance Equivalent Volume (Vas)2.15 ft.³
Maximum Linear Excursion (Xmax)3 mm
Cone / Diaphragm MaterialPoly
Surround MaterialRubber
Magnet MaterialFerrite
Overall Outside Diameter10"
Overall Depth4.125"
Baffle Cutout Diameter9.25"
# Mounting Holes4
Sealed Volume2.11 ft.³
Sealed F339 Hz
Vented Volume16.5 ft.³
Vented F321 Hz
