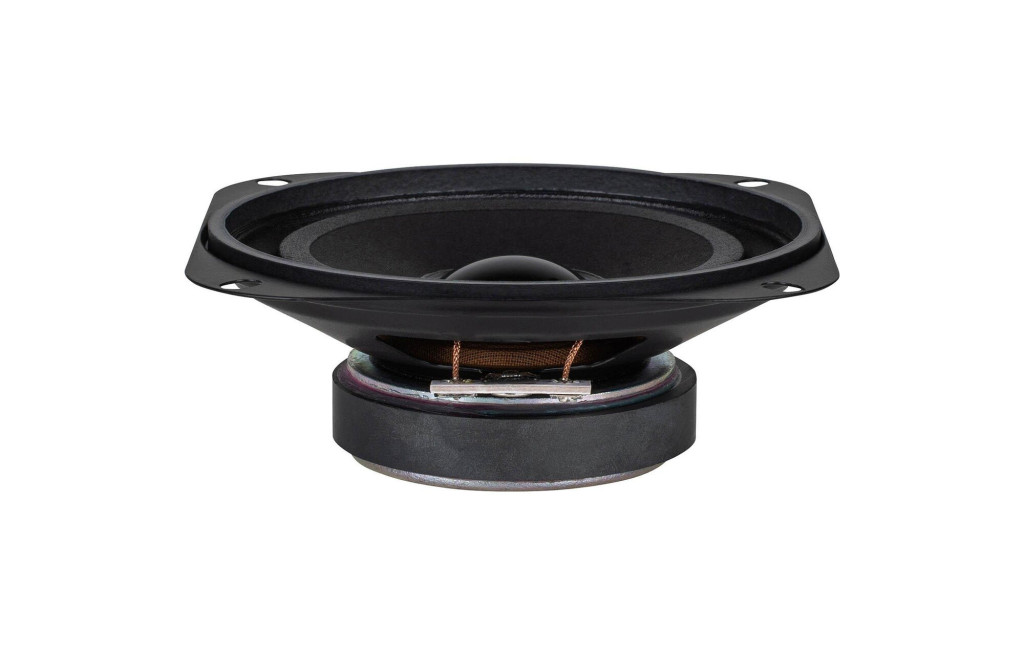

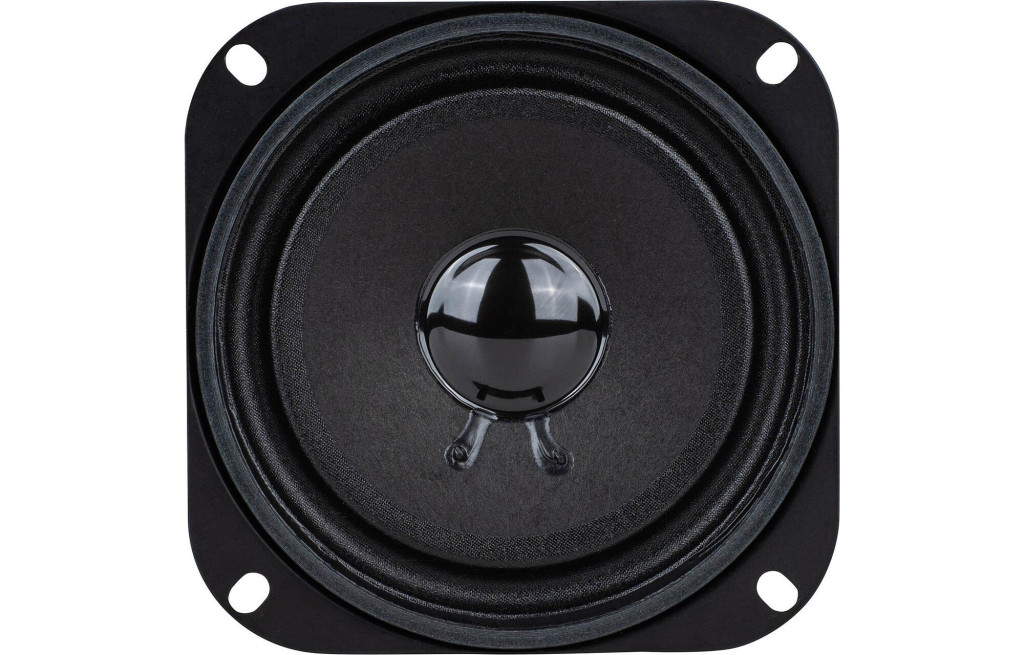

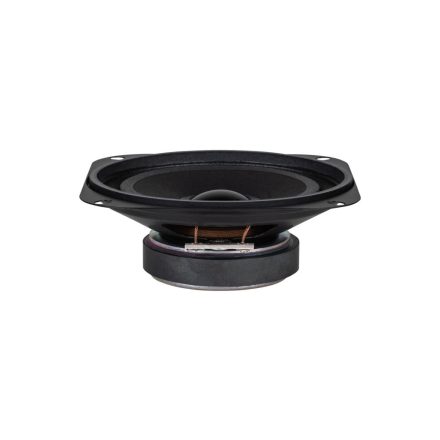

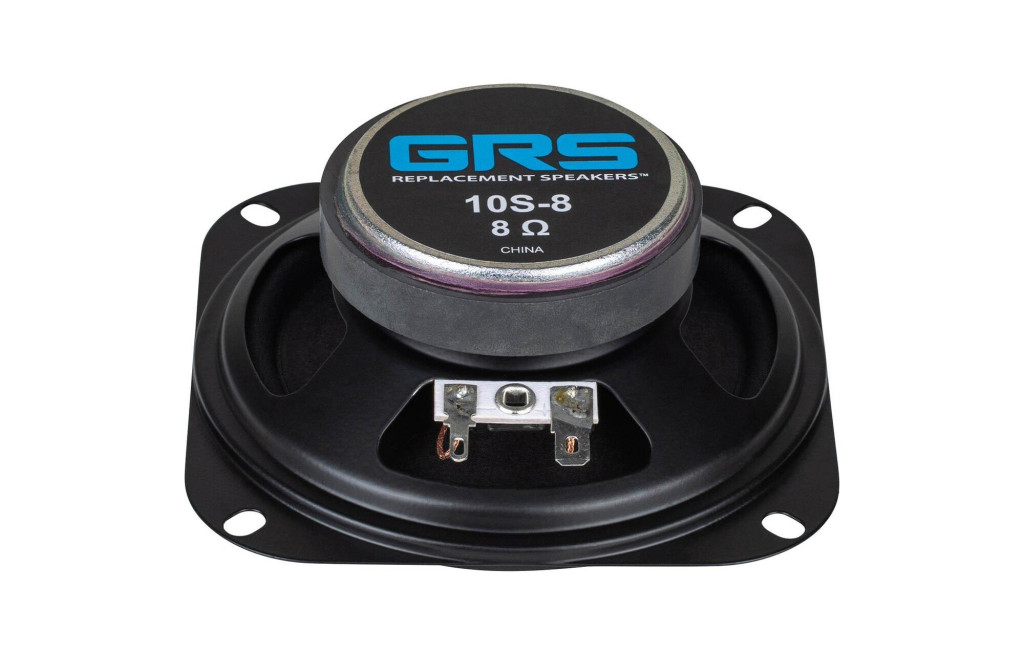

10S-8 4" Full-Range Driver 8 Ohm
10S-8 4" Full-Range Driver 8 Ohm
8.45 € excl. VAT

10S-8 4" Full-Range Driver 8 Ohm

10S-8 4" Full-Range Driver 8 Ohm
10S-8 4" Full-Range Driver 8 Ohm
10S-8 4" Full-Range Driver 8 Ohm
Shipping within (if available from supplier)
4-5 working days
Manufacturer
GRS
Orderable
8.45 € excl. VAT
Details

The GRS 10S-8 is a 10-inch full-range woofer with a paper cone and a ferrite magnet. It has a frequency response of 150 to 20,000 Hz, an impedance of 8 ohms, and a sensitivity of 90 dB. The mounting depth is 1.1 inches and the overall diameter is 10.2 inches.



Highlights

  • Good sound quality
  • Lightweight paper cone
  • Ferrite magnet for good power handling and bass response
  • 8-ohm impedance for compatibility with a wide range of amplifiers



Product details

GRS 10S-8 4" Full-Range Driver 8 Ohm



This woofer is designed for use in a variety of applications, including home audio, car audio, and professional audio. It can be used as a replacement driver for older speakers or as a component in a new speaker design.



The GRS 10S-8 has a number of features that make it a good choice for a variety of applications. The paper cone is lightweight and provides good sound quality. The ferrite magnet provides good power handling and bass response. The 8-ohm impedance makes it compatible with a wide range of amplifiers.



Article number10S-8
EAN0848864072883
Woofer TypeFull-range
Nominal Diameter4 "
Power Handling (RMS)25 Watts
Impedance (Z)8 Ω
Sensitivity (SPL at 1m / 2.83V)87 dB
Frequency Response150 - 20.000 Hz
Voice Coil Diameter15 mm
DC Resistance (Re)7.2 Ω
Voice Coil Inductance (Le)0.21 mH
Resonant Frequency (Fs)151 Hz
Mechanical Q (Qms)7.68
Electromagnetic Q (Qes)2.10
Total Q (Qts)1.65
Diaphragm Mass Inc. Airload (Mms)2.4 g
Mechanical Compliance of Suspension (Cms)0.46 mm/N
Surface Area of Cone (Sd)52.5 cm²
Volume of Displacement (Vd)8 cm³
BL Product (BL)2.8 Tm
Compliance Equivalent Volume (Vas)1.79 Liters
Maximum Linear Excursion (Xmax)1.5 mm
Overall Outside Diameter94.4 mm
Overall Depth39.7 mm
# Mounting Holes4
Mounting Hole Diameter4 mm
