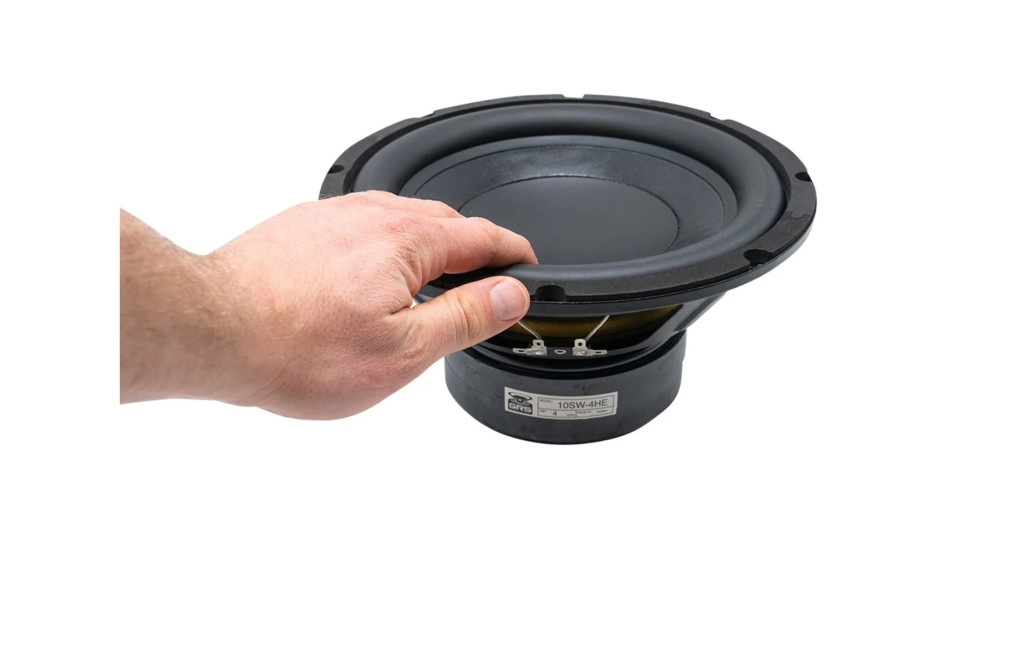

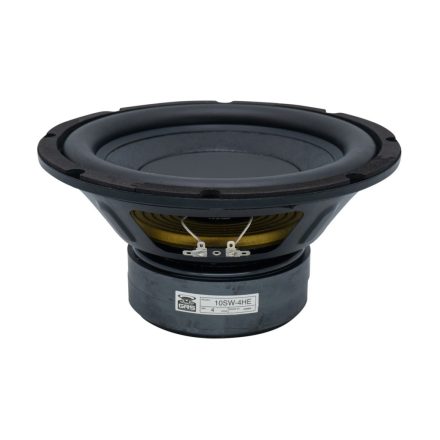

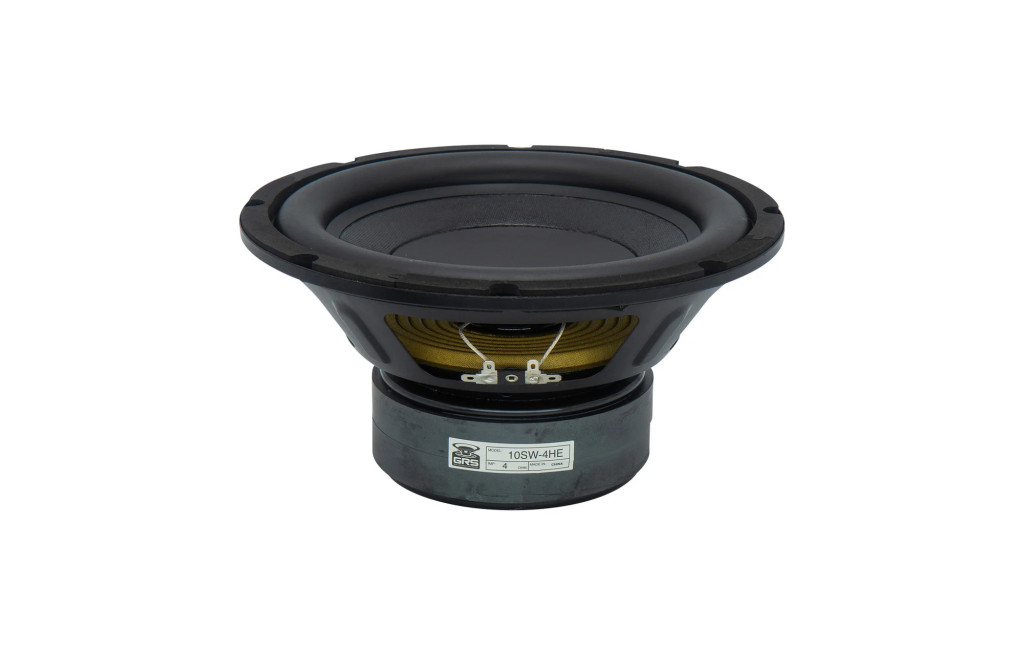

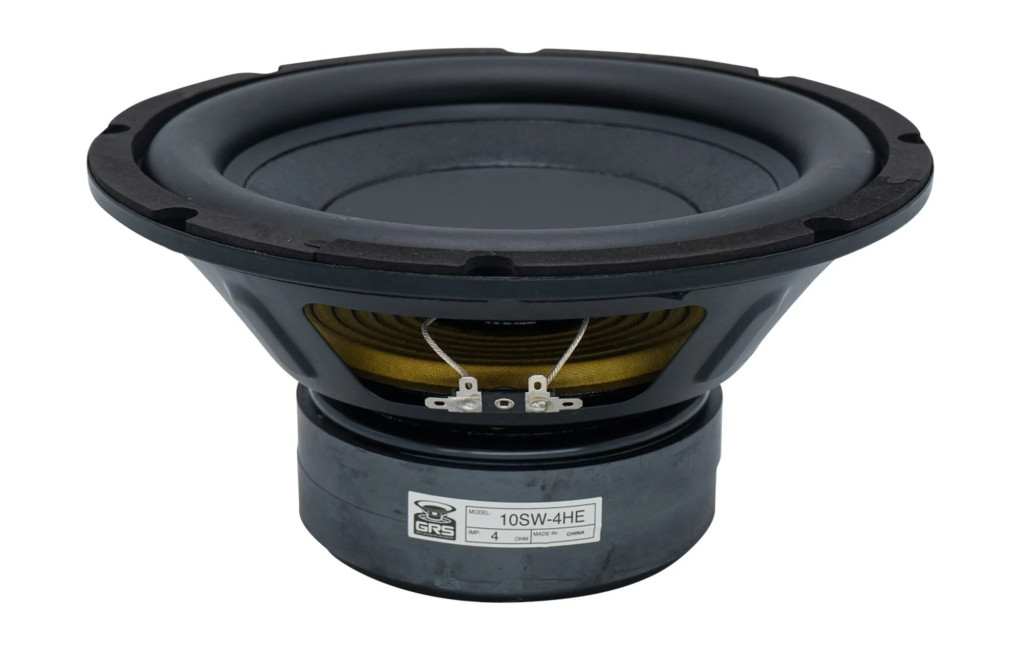

The GRS 10SW-4HE 10” high excursion subwoofer from GRS is an ideal replacement driver for existing subwoofer systems or an excellent choice for new economical designs. Capable of producing powerful bass response in both sealed and vented designs, the 10SW-4HE is suitable as a drop-in replacement for most existing 10” subwoofers.
Key Specs:
- Nominal Diameter: 10"
- Power Handling (RMS): 200W
- Power Handling (MAX): 400W
- Impedance: 4 Ω
- Frequency Response: 26-500Hz
- Sensitivity: 87.5dB 2.83V/1m
- Voice Coil Diameter: 2"
- Maximum Linear Excursion: 11mm
Frequency Response & Impedance Curve
The GRS 10SW-4HE has a bass-centric response from 20Hz up to 800Hz and is highly efficient within its passband. This efficiency and a low QTS lends itself well to both vented and sealed subwoofers for incredibly deep bass from an 10-inch driver.

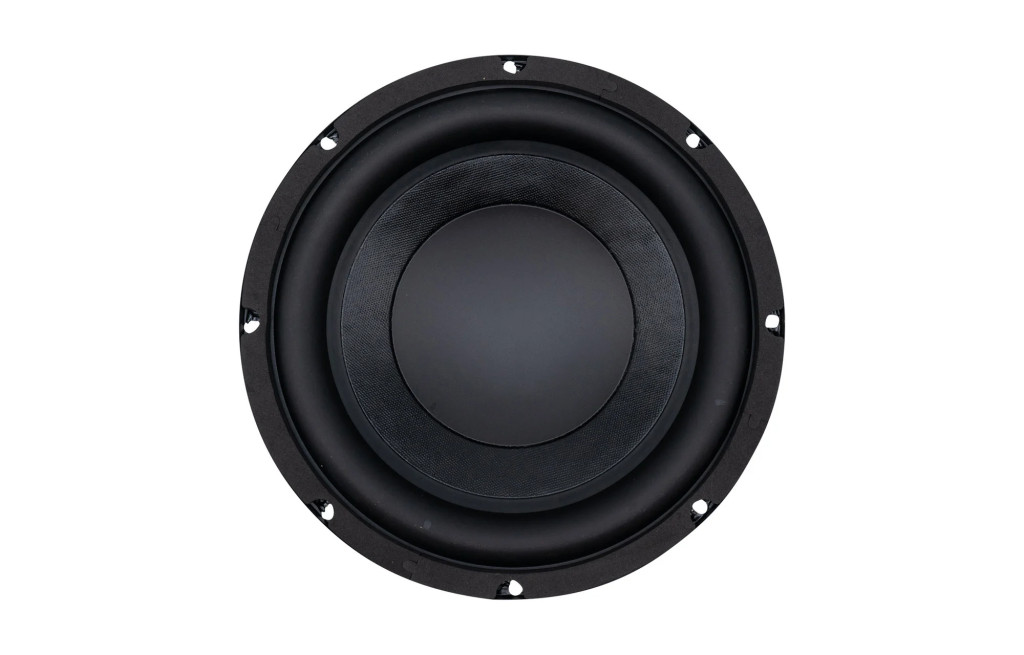

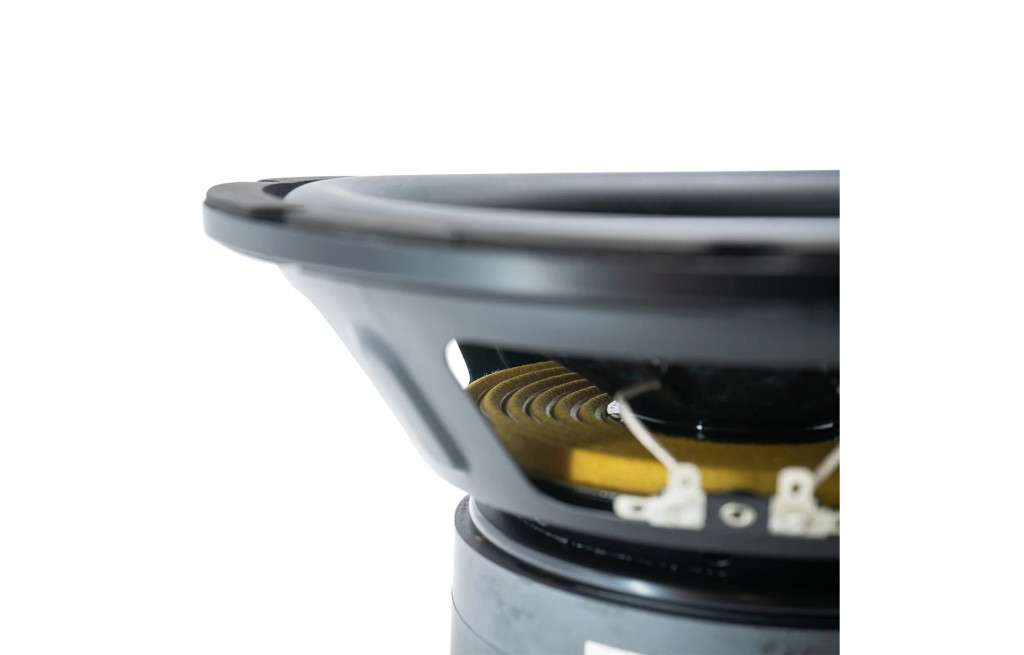

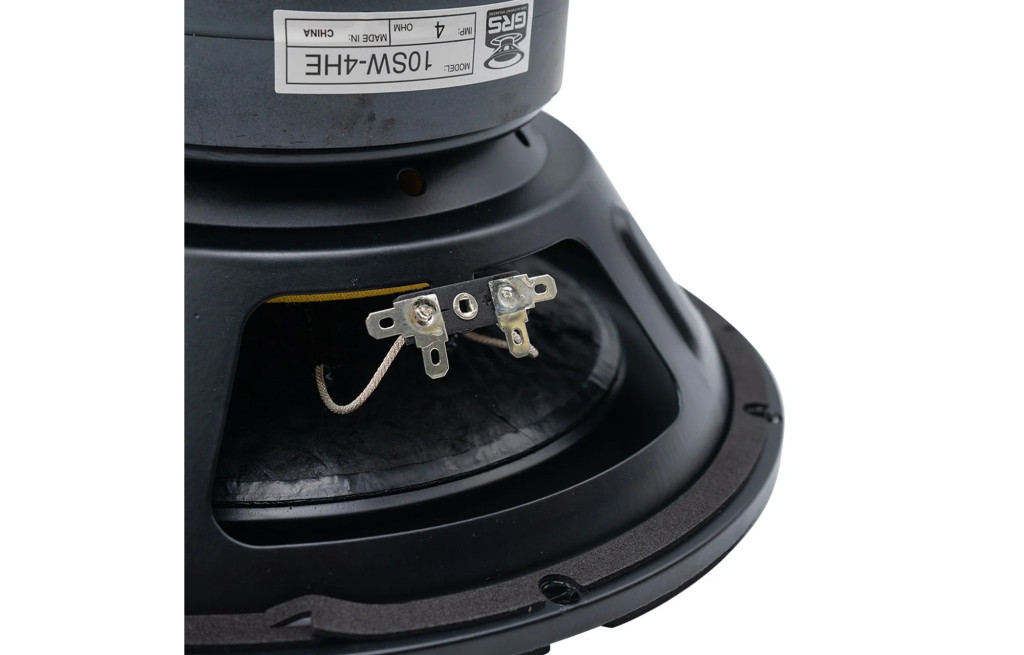

Extensive venting through the frame, pole piece, and magnetic gap dissipates excess heat to keep power compression to a minimum, even when driven hard for long periods. The rigid paper cone is supported by a large diameter spider and rubber surround to keep excursion linear while providing reliable performance. With a high temperature 2” voice coil wound on a thick aluminum former the 10SW-4HE can comfortably handle up to 200 watts RMS of power.
Article number10SW-4HE
EAN0848864070476
Woofer TypeSubwoofer
Nominal Diameter10"
Power Handling (RMS)200 Watts
Power Handling (max)400 Watts
Impedance (Z)4Ω
Sensitivity (SPL at 1m / 2.83V)87.5 dB
Frequency Response26 to 500 Hz
Voice Coil Diameter2"
DC Resistance (Re)3.8Ω
Voice Coil Inductance (Le)3mH
Resonant Frequency (Fs)25.2 Hz
Mechanical Q (Qms)4
Total Q (Qts)0.5
Diaphragm Mass Inc. Airload (Mms)110.7g
Mechanical Compliance of Suspension (Cms)0.36mm/N
Surface Area of Cone (Sd)346.4cm²
BL Product (BL)10.8T·m
Compliance Equivalent Volume (Vas)2.14ft³
Maximum Linear Excursion (Xmax)11 mm
Cone / Diaphragm MaterialCoated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter10.11"
Overall Depth5.15"
Baffle Cutout Diameter9.18"
Bolt Circle Diameter9.64
# Mounting Holes8
Sealed Volume1ft³
Sealed F343Hz
Vented Volume2ft³
Vented F325Hz
