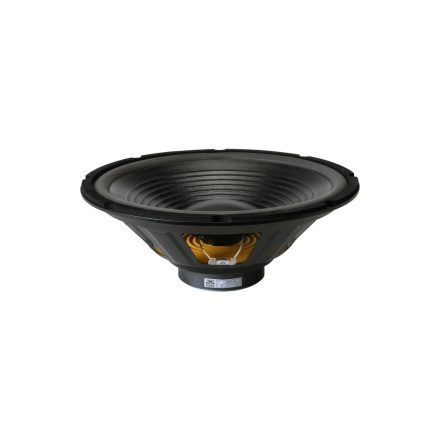

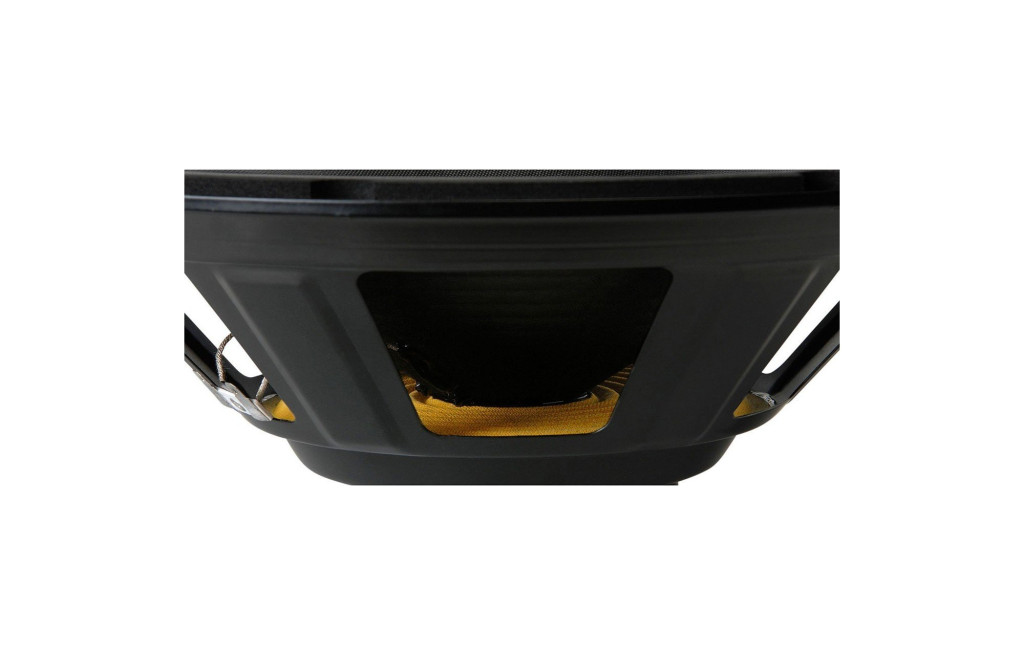

12PF-8 12" Paper Cone Foam Surround Woofer

21.20 € excl. VAT

12PF-8 12" Paper Cone Foam Surround Woofer

Name: 12PF-8 12" Paper Cone Foam Surround Woofer
Brand: GRS
SKU: GRS-12PF-8
Price: 26.92 EUR
Availability: InStock

Shipping within (if available from supplier)

4-5 working days

Manufacturer

GRS

Further data

Orderable

21.20 € excl. VAT

Details

GRS 12PF-8 12" poly-laminated paper cone woofers are perfect for use in sealed-box home theater and music systems.

Highlights

Perfect for use in sealed-box home theater and music systems
Poly-laminated paper cone, treated foam surround, and polymer dust cap
Smooth frequency response with minimal cone breakup

Product details

GRS 12PF-8 12" Paper Cone Foam Surround Woofer

GRS 12PF-8 12" poly-laminated paper cone woofers are perfect for use in sealed-box home theater and music systems. Thanks to their carefully optimized parameters, GRS 12PF-8 12" poly-laminated paper cone woofers offer a high degree of compatibility when used as replacement speakers—they also provide excellent performance in new projects, too.

Article number12PF-8

EAN0844632088490

Woofer TypeMidwoofer

Nominal Diameter12"

Power Handling (RMS)120 Watts

Power Handling (max)240 Watts

Impedance (Z)8 ohms

Sensitivity (SPL at 1m / 2.83V)87 dB

Frequency Response35 to 5,000 Hz

Voice Coil Diameter1.5"

DC Resistance (Re)7.56 ohms

Voice Coil Inductance (Le)1.15 mH

Resonant Frequency (Fs)35 Hz

Mechanical Q (Qms)5.97

Electromagnetic Q (Qes)2.08

Total Q (Qts)1.54

Compliance Equivalent Volume (Vas)5.28 ft.³

Maximum Linear Excursion (Xmax)3.5 mm

Cone / Diaphragm MaterialTreated Paper

Magnet MaterialFerrite

Overall Outside Diameter12"

Overall Depth4.69"

Baffle Cutout Diameter11.0625"

# Mounting Holes8

Sealed Volume2.92 ft.³

Sealed F340 Hz

Vented Volume73 ft.³

Vented F319 Hz
