The GRS 12PT-8 12” professional paper cone woofer will deliver high output low frequency response without breaking the bank. Packed with features like a 3” voice coil, inductance reducing copper cap, under spider venting, and gap vents; this driver is built for high performance, low distortion, and incredible reliability. Whether you need a drop-in replacement for a damaged DJ speaker or you are designing a high output 2 or 3-way system, the 12PT-8 is the perfect driver for budget builds.
Highlights

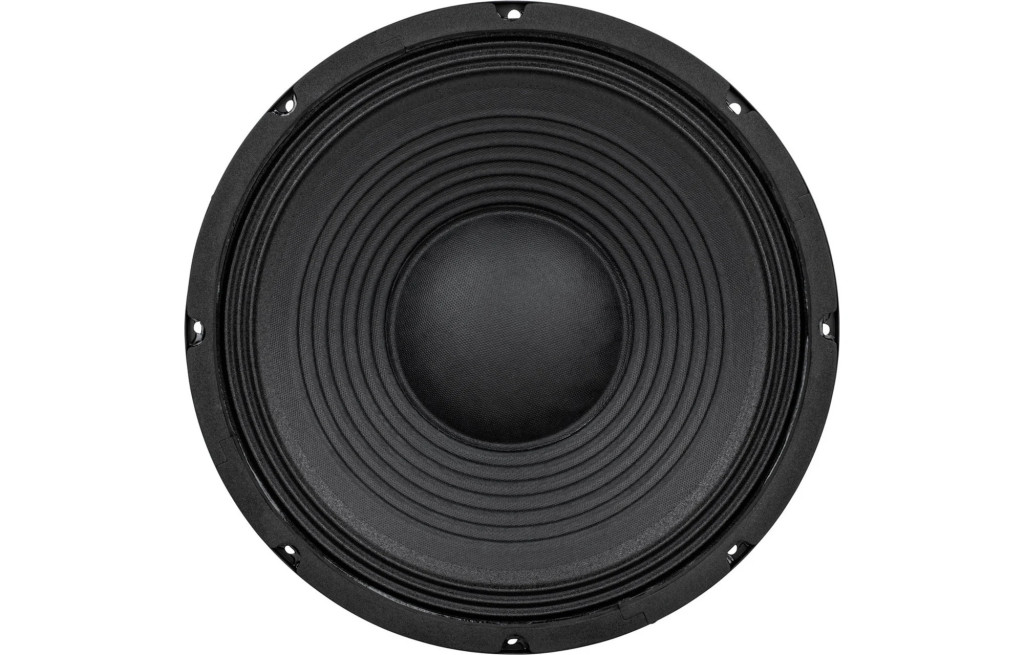

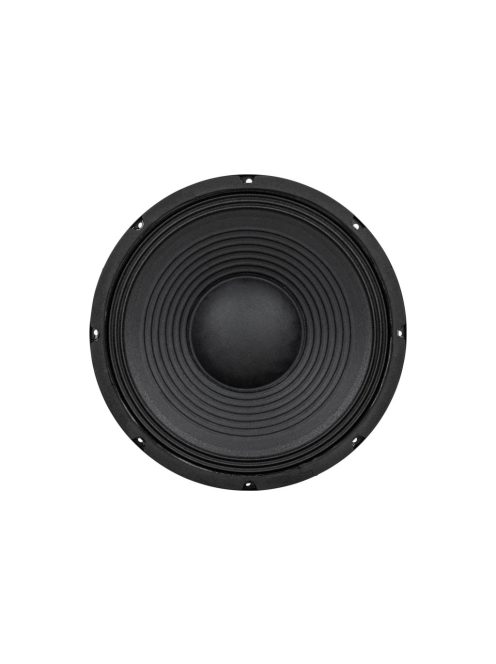

- Lightweight ribbed paper cone allows high efficiency with minimal resonance
- Smooth on and off axis response up to 2,000 Hz for use in high output 2 or 3-way designs
- 3” diameter voice coil on heat resistant Kapton former easily handles up to 350 watts RMS
- Extensive venting keeps cool air flowing across the voice coil to minimize power compression

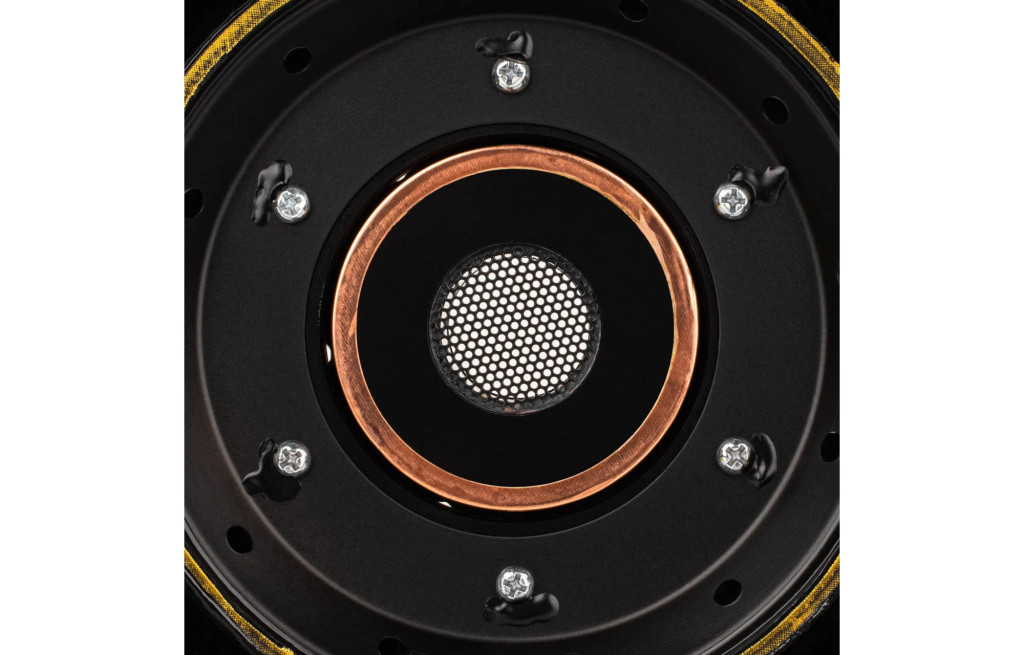

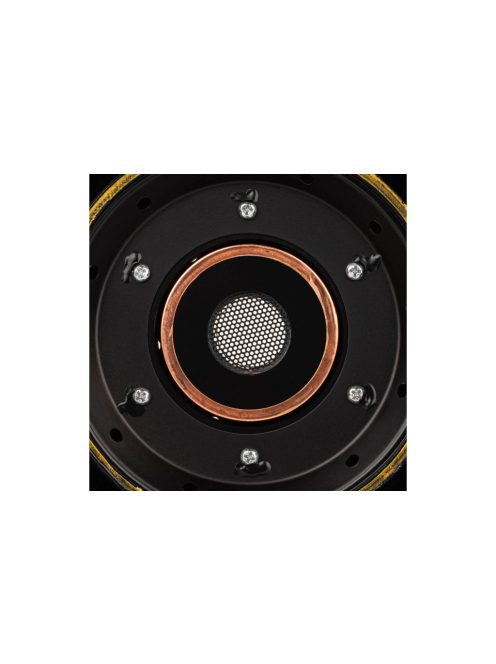

- Inductance lowering copper cap reduces distortion and extends high frequency response

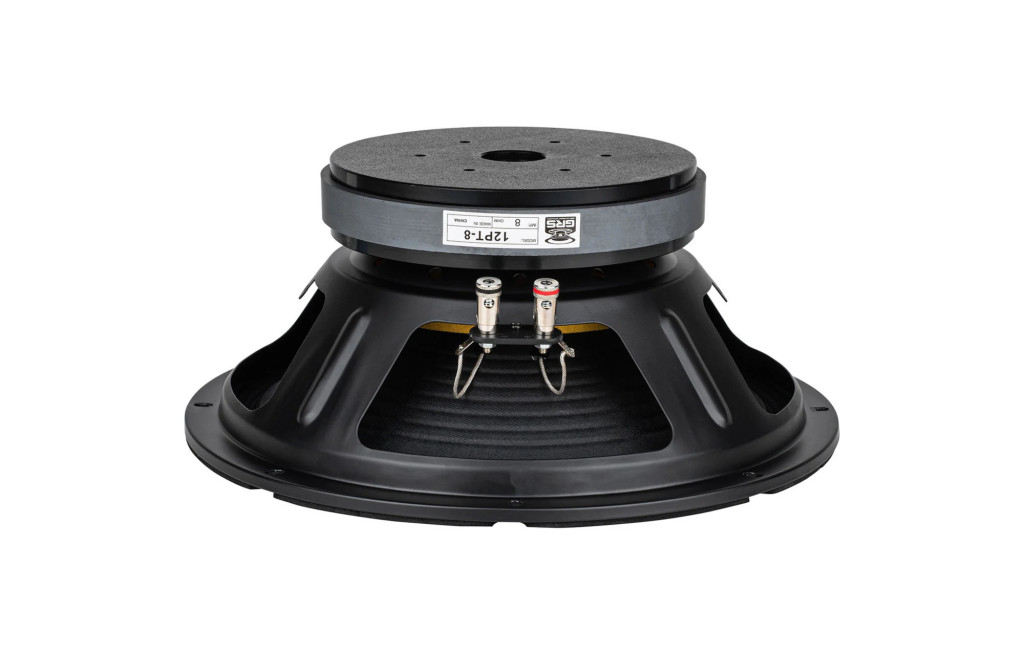

- Spring-loaded push-button terminals makes wire connections quick and easy
- Foam front gasket ensures an airtight seal for rear mount installations
Product details

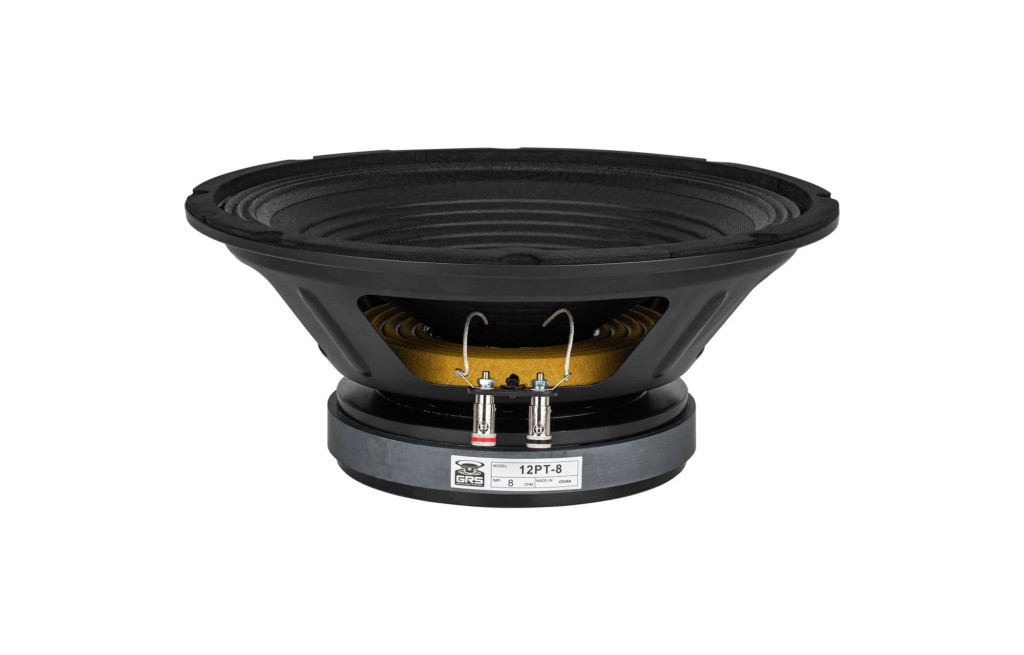

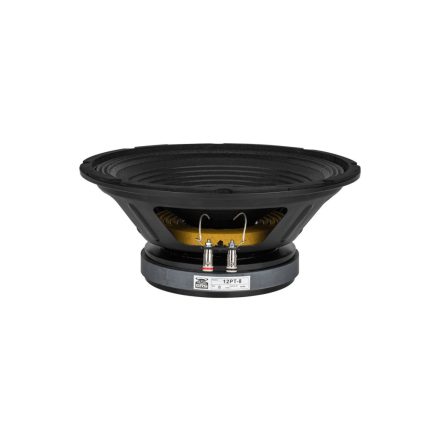

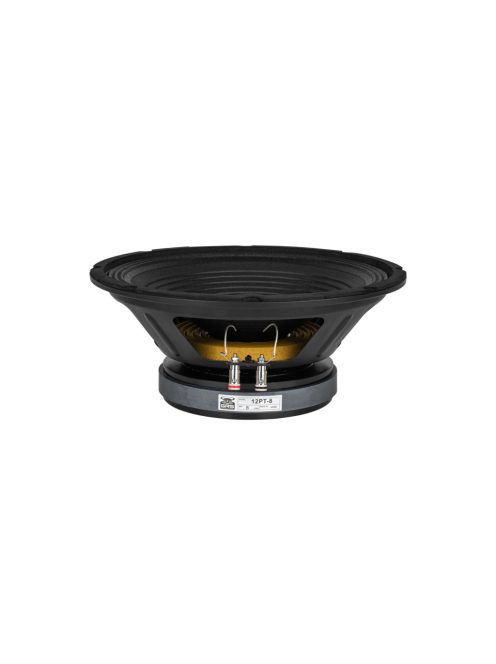

GRS 12PT-8 12" Paper Cone Professional Woofer with 3" Voice Coil 8 Ohm
Engineered for high output with smooth frequency response, the 12PT-8 12” professional woofer is ideal for use in large low-cost sound systems. Packed with features you would expect from much more expensive drivers, the 12PT-8 is built for low distortion and reliability even when pushed to its limit. The lightweight reinforced paper cone has excellent damping properties, minimizing unwanted resonances, and the ribbed surface controls cone breakup to ensure smooth response all the way up to 2,000 Hz. Driving the cone is a 3” diameter dual-layer voice coil that is wound on a heat resistant polyimide former to handle up to 350 watt RMS. Extensive venting through frame, pole piece, and magnetic gap cools the voice coil to prevent thermal runaway and lower power compression during long sessions at high power. With a copper cap on the pole piece keeping inductance under control, you can ensure that the 12PT-8 will provide low distortion throughout its useable bandwidth. Whether you need a drop-in replacement for a worn out DJ speaker, or are designing high output 2 or 3-way system, the 12PT-8 is the ideal choice if you want high output and natural response without spending a fortune.
Article number12PT-8
EAN0848864066820
Nominal Diameter12"
Power Handling (RMS)350 Watts
Power Handling (max)700 Watts
Impedance (Z)8Ω
Sensitivity (SPL at 1m / 2.83V)93 dB
Frequency Response35 to 7,000Hz
DC Resistance (Re)7.6Ω
Voice Coil Inductance (Le)1.9mH
Resonant Frequency (Fs)35 Hz
Mechanical Q (Qms)12.1
Electromagnetic Q (Qes)0.4
Total Q (Qts)0.39
Diaphragm Mass Inc. Airload (Mms)73g
Mechanical Compliance of Suspension (Cms)0.28mm/N
Surface Area of Cone (Sd)530.9cm²
BL Product (BL)17.4T·m
Compliance Equivalent Volume (Vas)3.96ft³
Maximum Linear Excursion (Xmax)7.8 mm
Cone / Diaphragm MaterialPaper / Glass Fiber
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter12.2"
Overall Depth5.11"
Baffle Cutout Diameter10.9"
Bolt Circle Diameter11.61
# Mounting Holes8
Sealed Volume1.2ft³
Sealed F371Hz
Vented Volume2.8ft³
Vented F341Hz
