12SW-4HE Subwoofer
12SW-4HE Subwoofer
71.32 € excl. VAT

12SW-4HE Subwoofer

12SW-4HE Subwoofer
12SW-4HE Subwoofer
12SW-4HE Subwoofer
Shipping within (if available from supplier)
4-5 working days
Manufacturer
GRS
Orderable
71.32 € excl. VAT
Details

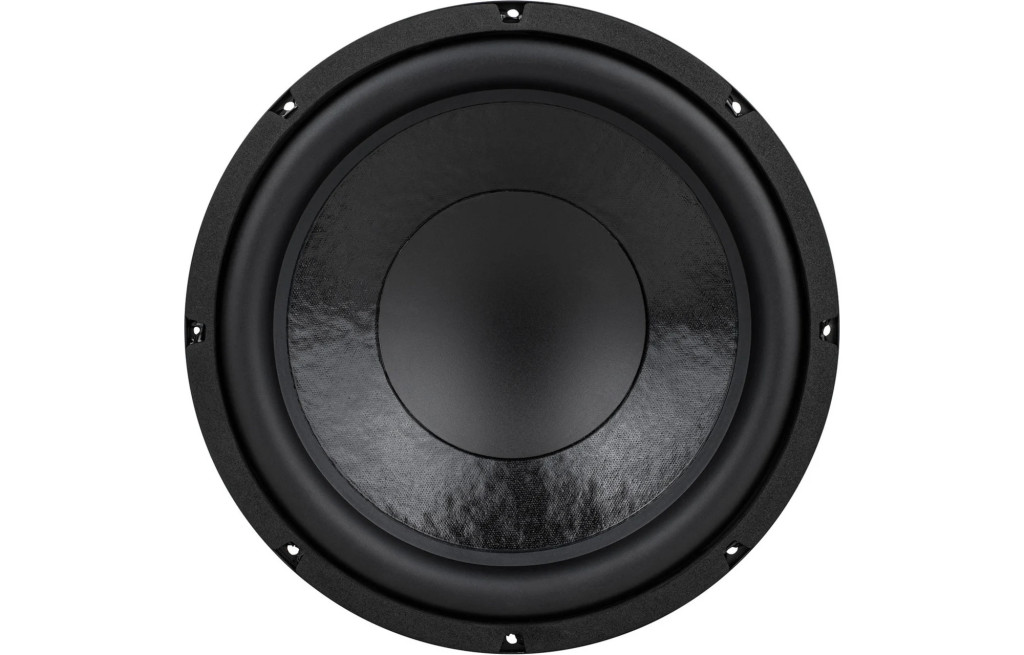

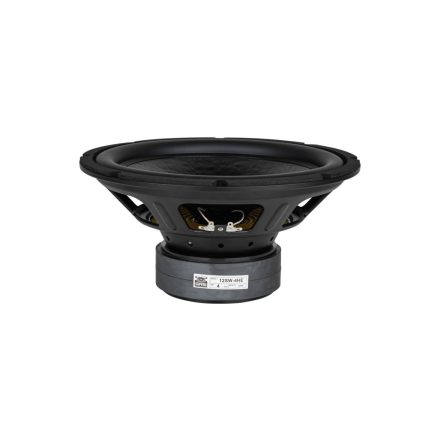

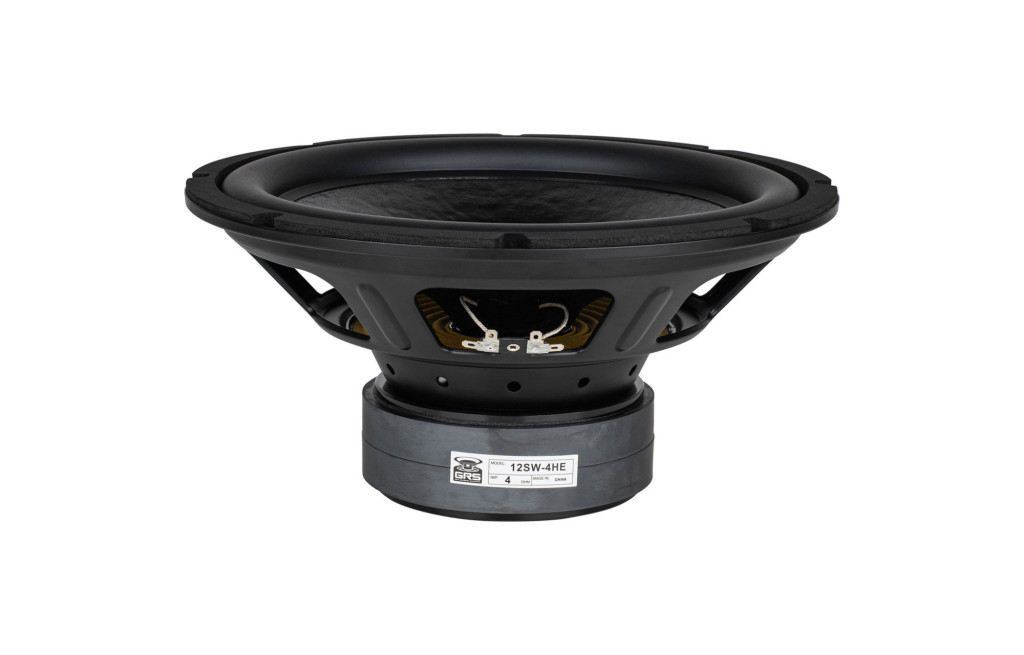

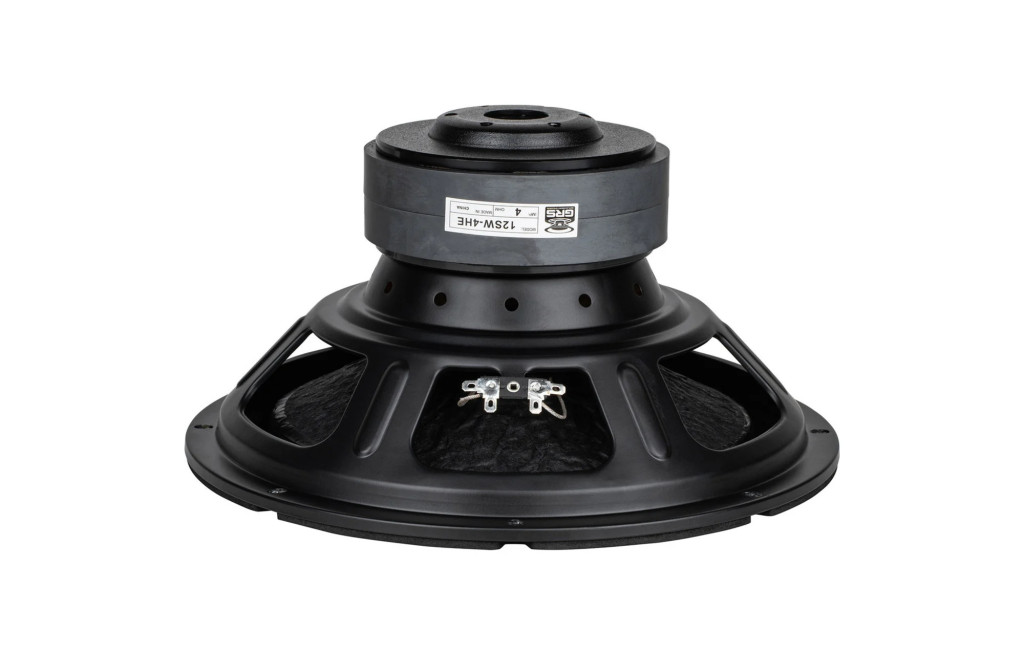

The versatile 12SW-4HE 12” high excursion subwoofer from GRS is designed to produce excellent low frequency extension in a variety of designs. Suitable for both sealed and vented enclosures, this driver the ideal replacement or upgrade for your existing subwoofers with worn out or blown drivers. Featuring extensive venting, rubber surround, high temperature voice coil, low Fs, and 12.5 mm of excursion the 12SW-4HE is built for remarkable bass response on a budget.



Highlights

  • High excursion and low Fs to produce powerful low frequency output
  • 4-layer 2” voice coil on a thick aluminum former to handle up to 250 watts RMS
  • Venting under the spider, through the pole piece, and in the magnetic gap for excellent heat dissipation
  • Durable reinforced paper cone with rubber surround produces reliable and consistent performance
  • Extended frame and bumped back plate allow ample clearance for high excursion



Product details

GRS 12SW-4HE 12" Paper Cone Rubber Surround High Excursion Subwoofer 4 Ohm



Engineered for extended low frequency response and flexibility, the 12SW-4HE 12” high excursion subwoofer from GRS is an ideal replacement driver for existing subwoofer systems or an excellent choice for new economical designs. Capable of producing powerful bass response in both sealed and vented designs, the 12SW-4HE is suitable as a drop-in replacement for most existing 12” subwoofers. The rigid paper cone is supported by a large diameter spider and rubber surround to keep excursion linear while providing reliable performance. An extended frame and bumped back plate allow ample mechanical clearance to avoid damage when driven to high excursion. With a high temperature 2” voice coil wound on a thick aluminum former the 12SW-4HE can comfortably handle up to 250 watts RMS of power. Extensive venting through the frame, pole piece, and magnetic gap dissipates excess heat to keep power compression to a minimum, even when driven hard for long periods. Capable of incredible low frequency extension, the GRS 12SW-4HE is the perfect driver for true bass on a budget.



Article number12SW-4HE
EAN0848864066851
Woofer TypeHigh Excursion Subwoofer
Nominal Diameter12"
Power Handling (RMS)250 Watts
Power Handling (max)500 Watts
Impedance (Z)4 Ohms
Sensitivity (SPL at 1m / 2.83V)84.5 dB
Frequency Response20 to 500Hz
Voice Coil Diameter2"
DC Resistance (Re)3.9Ω
Voice Coil Inductance (Le)3.5mH
Resonant Frequency (Fs)22 Hz
Mechanical Q (Qms)4.08
Electromagnetic Q (Qes)0.48
Total Q (Qts)0.43
Diaphragm Mass Inc. Airload (Mms)237g
Mechanical Compliance of Suspension (Cms)0.22mm/N
Surface Area of Cone (Sd)507.3cm²
BL Product (BL)16.2T·m
Compliance Equivalent Volume (Vas)2.84ft³
Maximum Linear Excursion (Xmax)12.5 mm
Cone / Diaphragm MaterialPaper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter12.125"
Overall Depth6.3"
Baffle Cutout Diameter11"
Bolt Circle Diameter11.6
# Mounting Holes8
Sealed Volume1.2ft³
Sealed F340Hz
Vented Volume2.9ft³
Vented F322Hz
