The GRS 5SBM-8 5" sealed back midrange speaker is a perfect replacement for many popular 3-way and 4-way loudspeaker systems produced during the last couple of decades.
Highlights
- Fully enclosed steel chassis does not require a separate enclosure
- Paper cone with paper surround for efficiency and extended range
- 12 oz. ferrite magnet provides superior motor strength and high power handling capacity
- Integral metal screen protects moving parts
Product Details

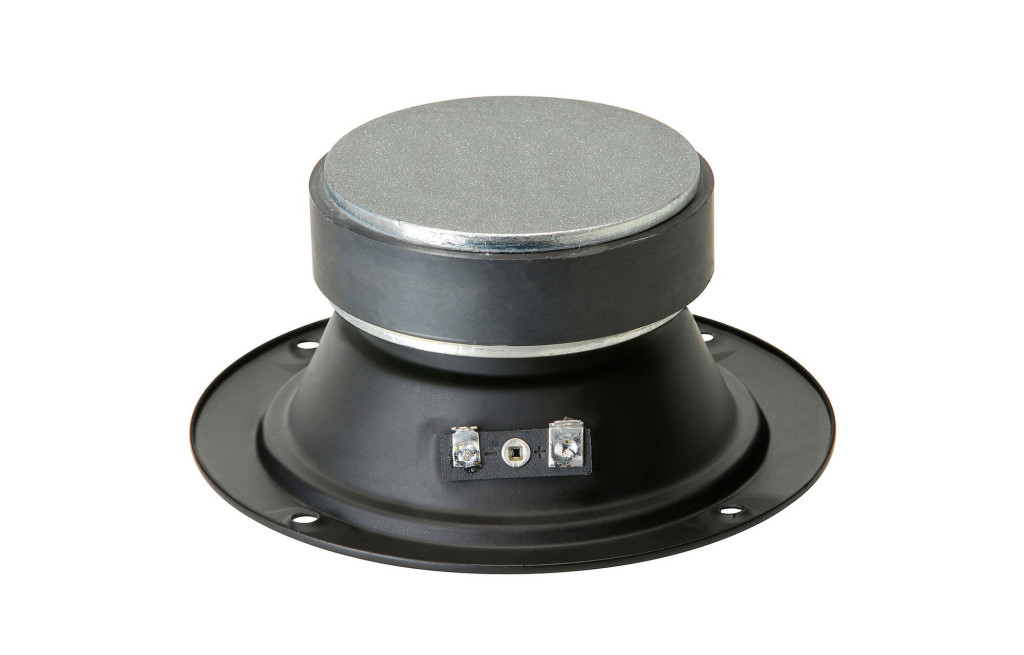

GRS 5SBM-8 5" Sealed Back Midrange
The GRS 5SBM-8 5" sealed back midrange speaker is a perfect replacement for many popular 3-way and 4-way loudspeaker systems produced during the last couple of decades. The driver's enclosed chassis eliminates the need to provide a separate sub-enclosure; the 5SBM-8 is a drop-in alternative driver for many applications, as well as providing excellent performance in new projects, too.
Article number5SBM-8
EAN0844632091230
Woofer TypeMidwoofer
Nominal Diameter5"
Power Handling (RMS)30 Watts
Power Handling (max)55 Watts
Impedance (Z)8 ohms
Sensitivity (SPL at 1m / 2.83V)89 dB
Frequency Response600 to 10,000 Hz
Voice Coil Diameter0.75"
DC Resistance (Re)7.6 ohms
Resonant Frequency (Fs)470 Hz
Cone / Diaphragm MaterialPaper
Magnet MaterialFerrite
Overall Outside Diameter5.13"
Overall Depth2.25"
Baffle Cutout Diameter4.13"
# Mounting Holes4
