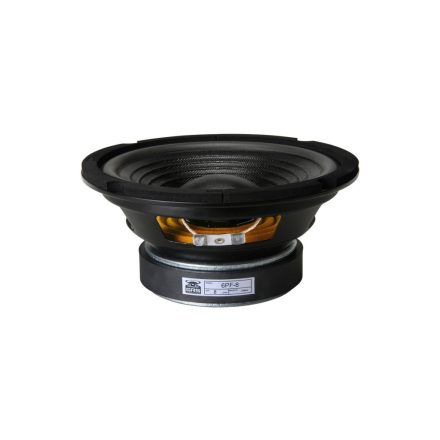

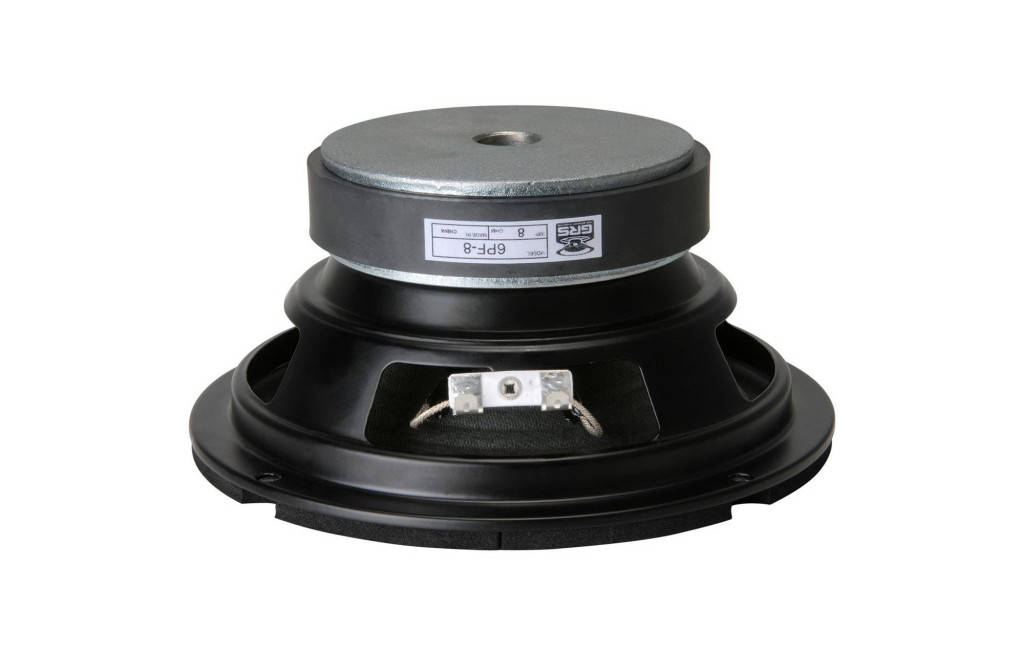

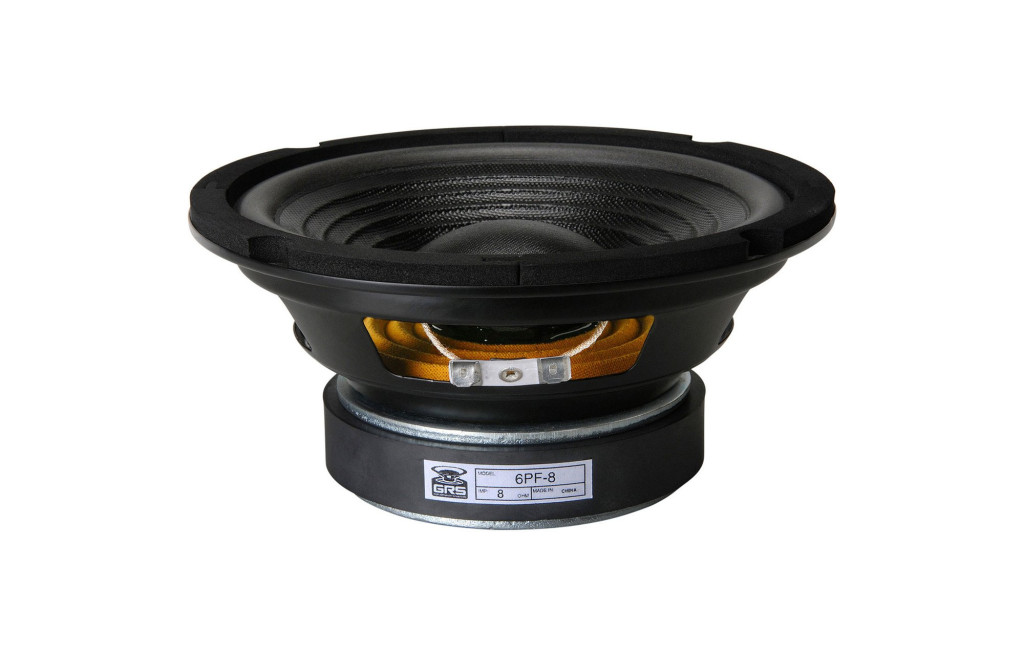

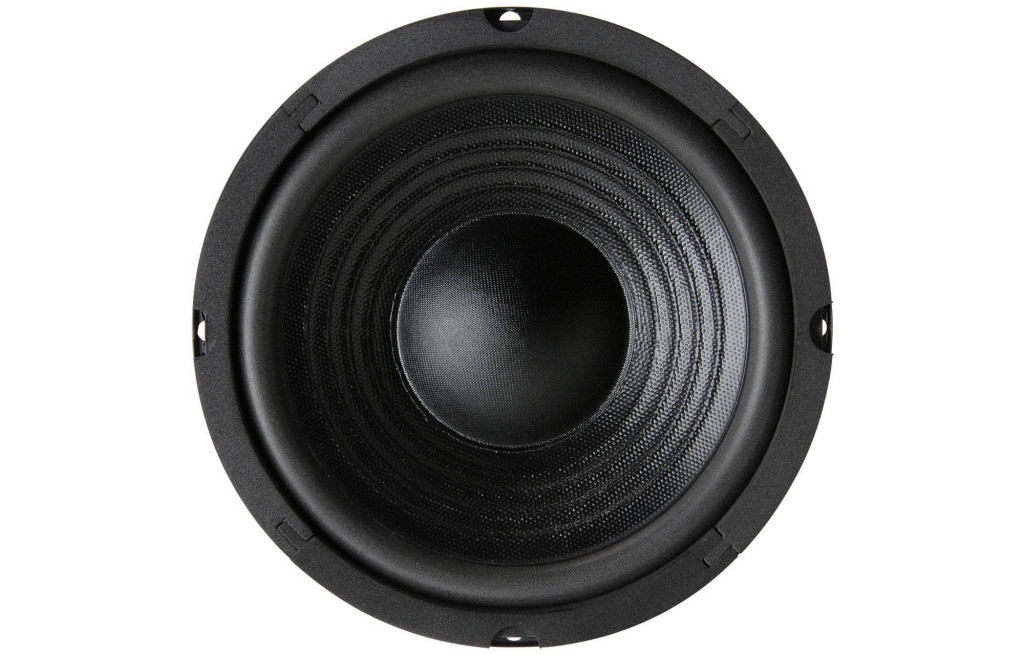

6PF-8 6-1/2" Paper Cone Foam Surround Woofer
6PF-8 6-1/2" Paper Cone Foam Surround Woofer
12.70 € excl. VAT

6PF-8 6-1/2" Paper Cone Foam Surround Woofer

6PF-8 6-1/2" Paper Cone Foam Surround Woofer
6PF-8 6-1/2" Paper Cone Foam Surround Woofer
6PF-8 6-1/2" Paper Cone Foam Surround Woofer
6PF-8 6-1/2" Paper Cone Foam Surround Woofer
6PF-8 6-1/2" Paper Cone Foam Surround Woofer
6PF-8 6-1/2" Paper Cone Foam Surround Woofer
Shipping within (if available from supplier)
4-5 working days
Manufacturer
GRS
Further data
Orderable
12.70 € excl. VAT
Details

All the sound you need, and without spending a bundle! The GRS 6PF-8 paper cone 6" woofer is the answer to your replacement speaker needs.



Highlights

  • Perfect for use in sealed-box home theater and music systems
  • Poly-laminated paper cone, treated foam surround, and polymer dust cap
  • Smooth frequency response with minimal cone breakup



Product details

GRS 6PF-8 6-1/2" Paper Cone Foam Surround Woofer



All the sound you need thanks to their carefully optimized parameters, the GRS 6PF-8 6-1/2" poly-laminated paper cone woofers offer a high degree of compatibility when used as replacement speakers—they also provide excellent performance in new projects, too.



Article number6PF-8
EAN0844632088469
Woofer TypeMidwoofer
Nominal Diameter6-1/2"
Power Handling (RMS)90 Watts
Power Handling (max)180 Watts
Impedance (Z)8 ohms
Sensitivity (SPL at 1m / 2.83V)87 dB
Frequency Response70 to 8,000 Hz
Voice Coil Diameter1.5"
DC Resistance (Re)7.59 ohms
Voice Coil Inductance (Le)1.09 mH
Resonant Frequency (Fs)82 Hz
Mechanical Q (Qms)3.67
Electromagnetic Q (Qes)1.3
Total Q (Qts)0.95
Compliance Equivalent Volume (Vas)0.25 ft.³
Maximum Linear Excursion (Xmax)3 mm
Cone / Diaphragm MaterialTreated Paper
Magnet MaterialFerrite
Overall Outside Diameter6.5"
Overall Depth3.0625"
Baffle Cutout Diameter5.625"
# Mounting Holes4
Sealed Volume0.34 ft.³
Sealed F386 Hz
Vented Volume1.35 ft.³
Vented F347 Hz
