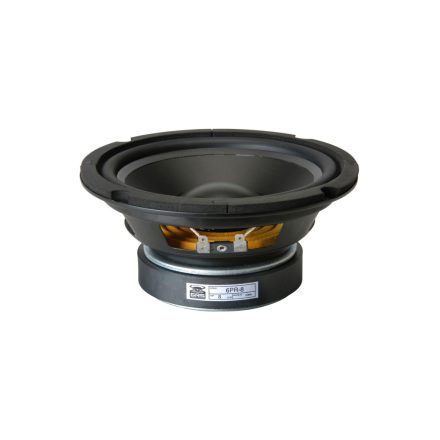

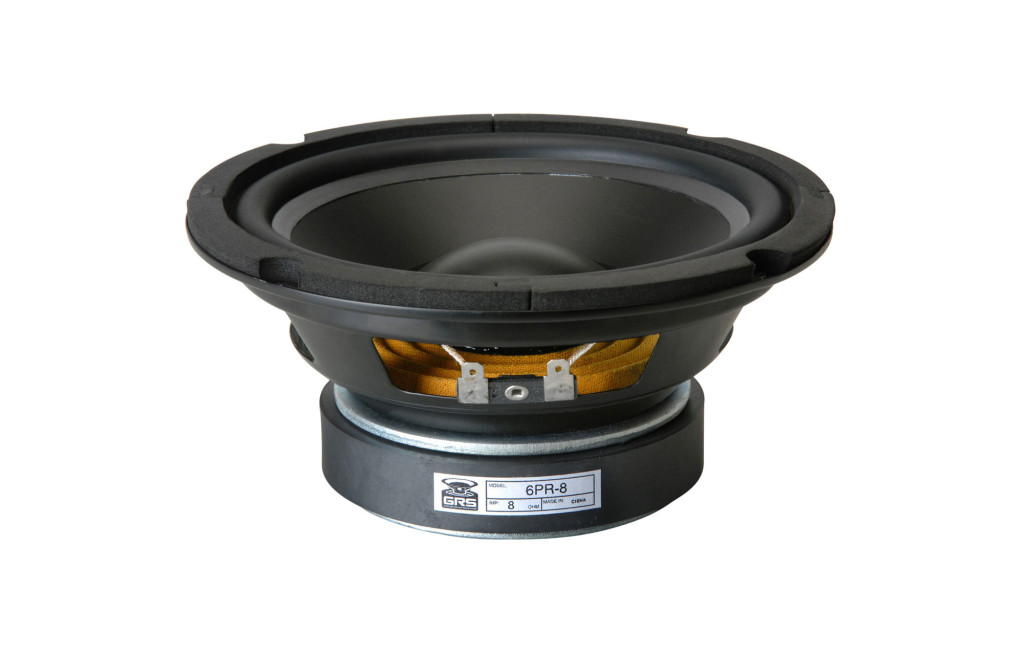

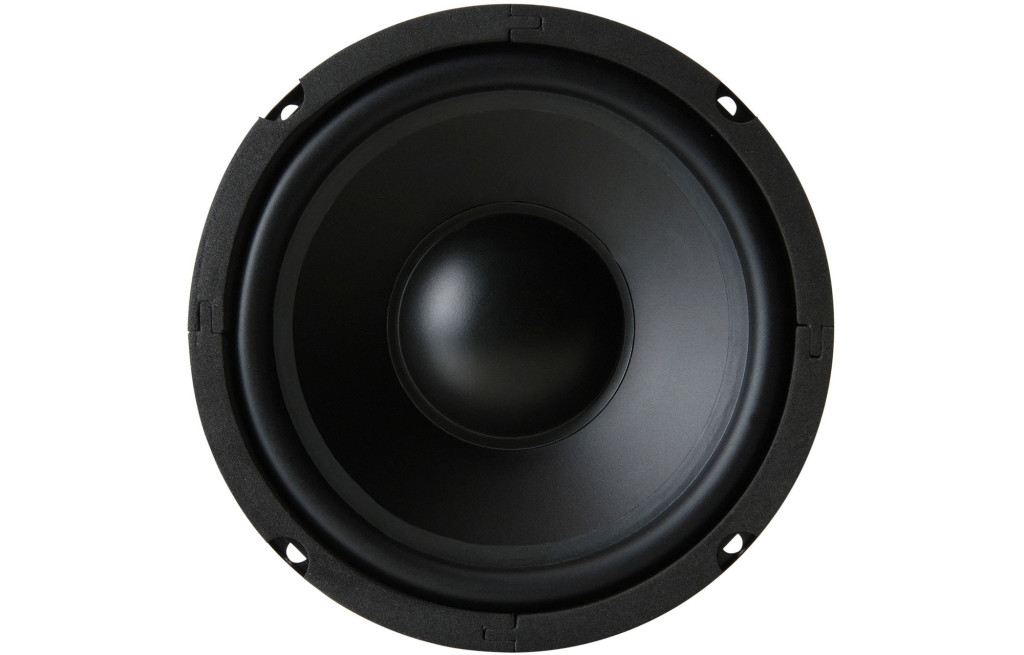

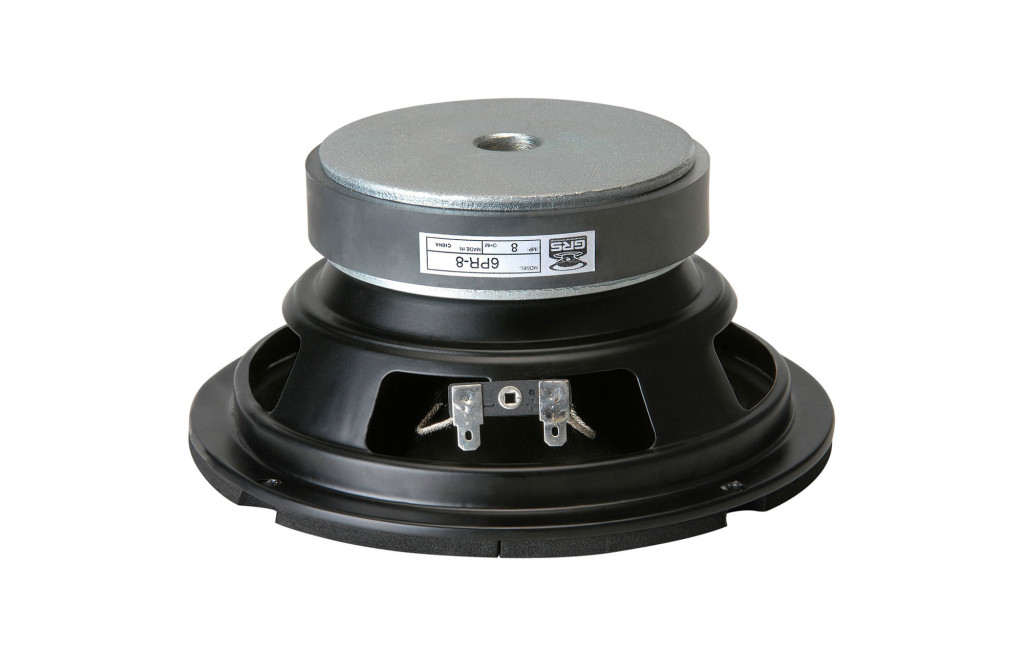

6PR-8 6-1/2" Poly Cone Rubber Surround Woofer

12.45 € excl. VAT

6PR-8 6-1/2" Poly Cone Rubber Surround Woofer

Name: 6PR-8 6-1/2" Poly Cone Rubber Surround Woofer
Brand: GRS
SKU: GRS-6PR-8
Price: 15.81 EUR
Availability: InStock

Shipping within (if available from supplier)

4-5 working days

Manufacturer

GRS

Further data

Orderable

12.45 € excl. VAT

Details

GRS 6PR-8 6-1/2" polypropylene cone woofers with butyl rubber surrounds are great replacement speakers, but also provide excellent performance in new projects.

Highlights

Polypropylene cone for perfect balance of stiffness, mass, and self-damping
Butyl rubber surround ensures high excursion and long term durability
Stamped steel frame keeps components in perfect alignment
Optimized motor features high-energy ceramic ferrite magnet, vented pole piece

Product details

GRS 6PR-8 6-1/2" Poly Cone Rubber Surround Woofer

GRS 6PR-8 6-1/2" polypropylene cone woofers with butyl rubber surrounds are great replacement speakers, but also provide excellent performance in new projects.

Article number6PR-8

EAN0844632088513

Woofer TypeMidwoofer

Nominal Diameter6-1/2"

Power Handling (RMS)60 Watts

Power Handling (max)85 Watts

Impedance (Z)8 ohms

Sensitivity (SPL at 1m / 2.83V)85 dB

Frequency Response60 to 8,000 Hz

Voice Coil Diameter1.5"

DC Resistance (Re)7.55 ohms

Voice Coil Inductance (Le)1.11 mH

Resonant Frequency (Fs)75 Hz

Mechanical Q (Qms)4.32

Electromagnetic Q (Qes)1.34

Total Q (Qts)1.02

Compliance Equivalent Volume (Vas)0.24 ft.³

Maximum Linear Excursion (Xmax)3 mm

Cone / Diaphragm MaterialPoly

Surround MaterialRubber

Magnet MaterialFerrite

Overall Outside Diameter6.5"

Overall Depth3.0625"

Baffle Cutout Diameter5.625"

# Mounting Holes4

Sealed Volume0.29 ft.³

Sealed F378 Hz

Vented Volume1.48 ft.³

Vented F343 Hz
