8FR-8 Full-Range 8" Speaker Pioneer Type B20FU20-51FW

17.80 € excl. VAT

8FR-8 Full-Range 8" Speaker Pioneer Type B20FU20-51FW

Name: 8FR-8 Full-Range 8" Speaker Pioneer Type B20FU20-51FW
Brand: GRS
SKU: GRS-8FR-8
Price: 22.61 EUR
Availability: InStock

Shipping within (if available from supplier)

4-5 working days

Manufacturer

GRS

Further data

Orderable

17.80 € excl. VAT

Details

The GRS 8FR-8 full-range 8" speaker is engineered to withstand rigorous commercial use, but will also deliver great results when used in point-source hi-fi applications.

Highlights

Replacement for Pioneer B20FU20-51FW
GRS quality construction
1 year warranty
Superb multipurpose speaker for DIY projects

Product details

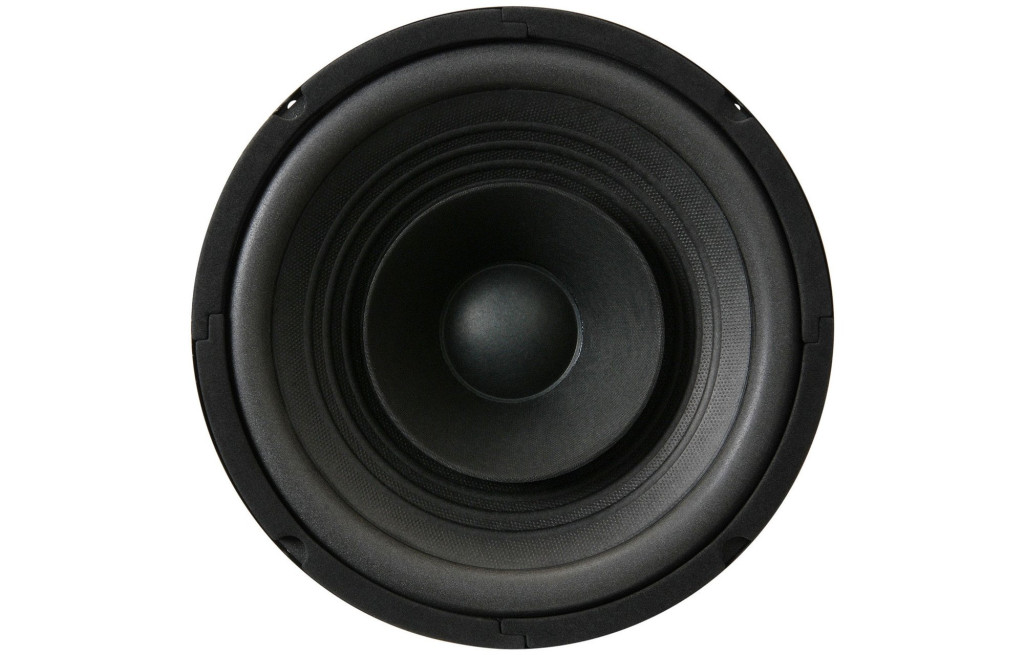

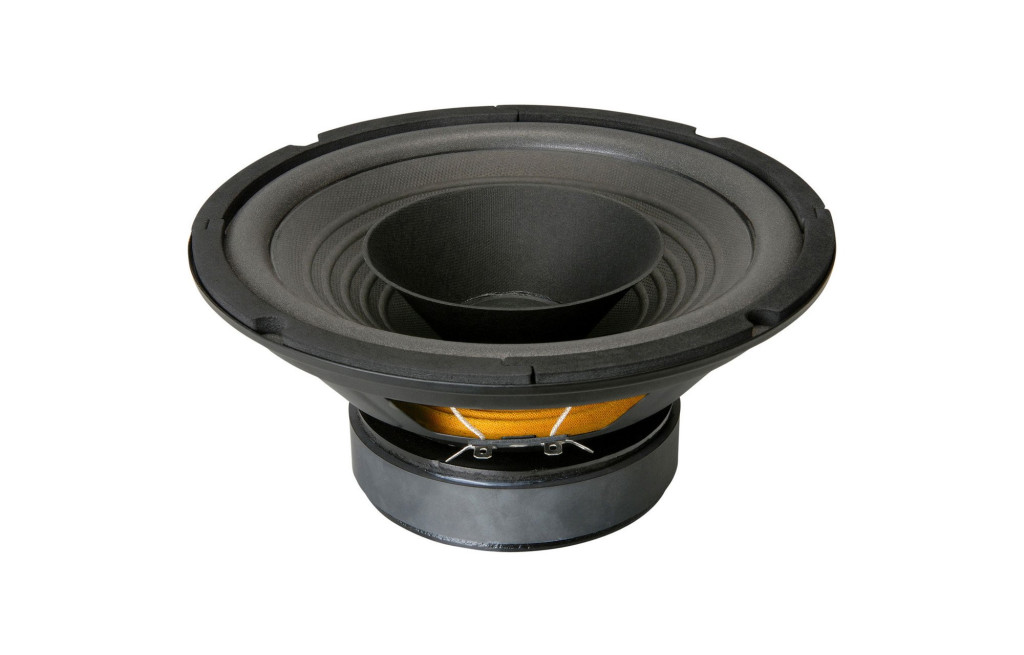

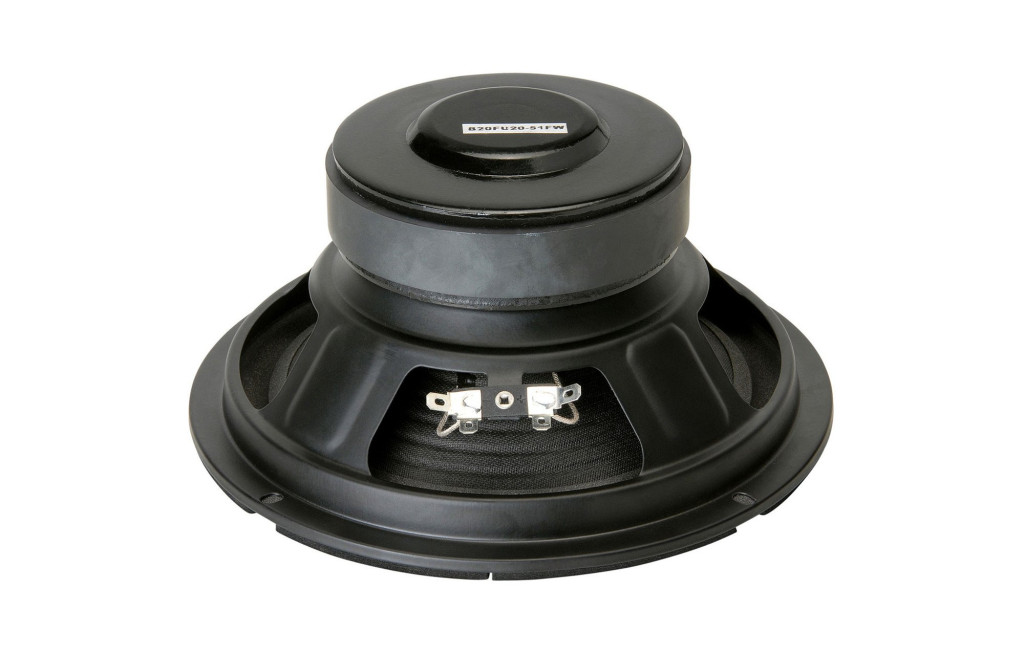

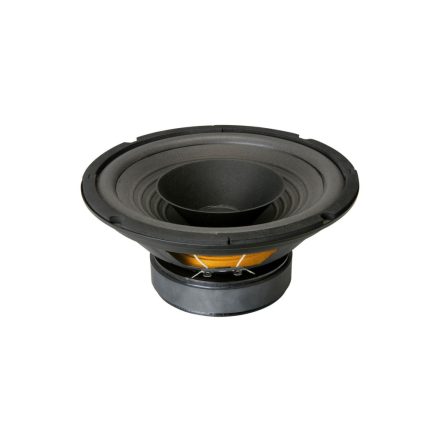

GRS 8FR-8 Full-Range 8" Speaker Pioneer Type B20FU20-51FW

The GRS 8FR-8 full-range 8" speaker features a paper cone with poly foam surround. A whizzer cone extends high frequency response and dispersion. Engineered to withstand rigorous commercial use, this driver will also deliver great results when used in point-source hi-fi applications. Affordable pricing makes it perfect for DIY applications. Ideal replacement for the Pioneer B20FU20-51FW (also known in DIY communities as the BOFU)

Article number8FR-8

EAN0844632089800

Woofer TypeFull-range

Nominal Diameter8"

Power Handling (RMS)60 Watts

Power Handling (max)85 Watts

Impedance (Z)8 ohms

Sensitivity (SPL at 1m / 2.83V)91 dB

Frequency Response39 to 16,000 Hz

Voice Coil Diameter1.5"

DC Resistance (Re)7.02 ohms

Voice Coil Inductance (Le)1.28 mH

Resonant Frequency (Fs)39 Hz

Mechanical Q (Qms)2.94

Electromagnetic Q (Qes)0.46

Total Q (Qts)0.4

Compliance Equivalent Volume (Vas)2.26 ft.³

Maximum Linear Excursion (Xmax)3 mm

Cone / Diaphragm MaterialPaper

Magnet MaterialFerrite

Overall Outside Diameter8"

Overall Depth3.875"

Baffle Cutout Diameter7.25"

# Mounting Holes4

Sealed Volume0.71 ft.³

Sealed F378 Hz

Vented Volume1.76 ft.³

Vented F343 Hz
