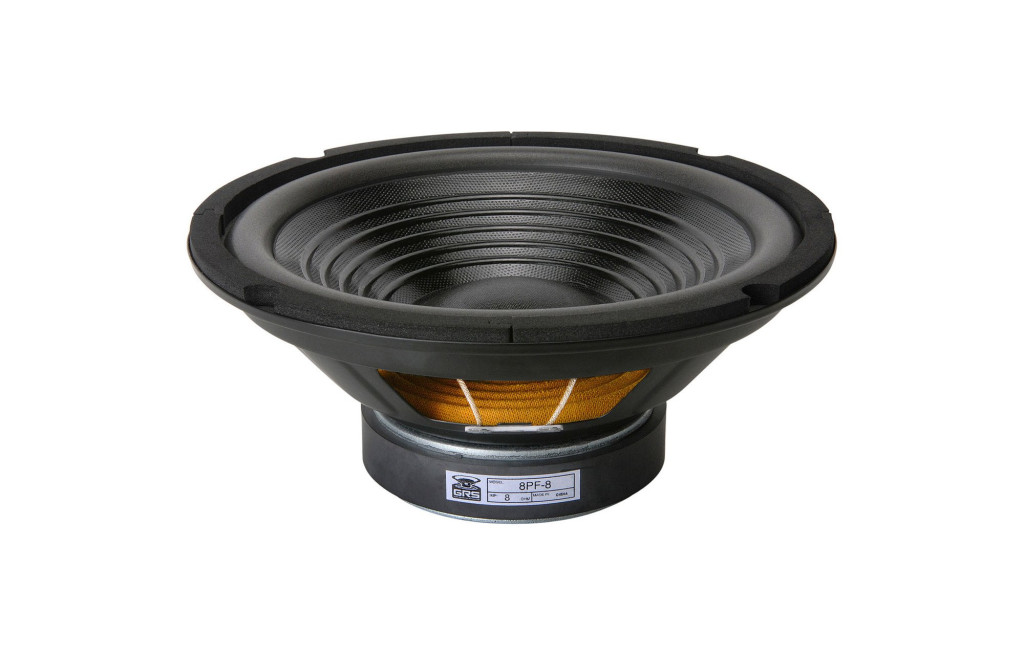

8PF-8 8" Paper Cone Foam Surround Woofer

13.55 € excl. VAT

8PF-8 8" Paper Cone Foam Surround Woofer

Name: 8PF-8 8" Paper Cone Foam Surround Woofer
Brand: GRS
SKU: GRS-8PF-8
Price: 17.21 EUR
Availability: InStock

Shipping within (if available from supplier)

4-5 working days

Manufacturer

GRS

Further data

Orderable

13.55 € excl. VAT

Details

If you are looking for a low-cost, high-performance 8" replacement speaker, check out the GRS 8PF-8!

Highlights

Perfect for use in sealed-box home theater and music systems
Poly-laminated paper cone, treated foam surround, and polymer dust cap
Smooth frequency response with minimal cone breakup

Product details

GRS 8PF-8 8" Paper Cone Foam Surround Woofer

If you are looking for a low-cost, high-performance 8" replacement speaker, check out the GRS 8PF-8! Thanks to their carefully optimized parameters, GRS 8PF-8 8" poly-laminated paper cone woofers offer a high degree of compatibility when used as replacement speakers—they also provide excellent performance in new projects, too.

Article number8PF-8

EAN0844632088476

Woofer TypeMidwoofer

Nominal Diameter8"

Power Handling (RMS)100 Watts

Power Handling (max)200 Watts

Impedance (Z)8 ohms

Sensitivity (SPL at 1m / 2.83V)87 dB

Frequency Response55 to 6,000 Hz

Voice Coil Diameter1.5"

DC Resistance (Re)7.59 ohms

Voice Coil Inductance (Le)1.11 mH

Resonant Frequency (Fs)51 Hz

Mechanical Q (Qms)4.58

Electromagnetic Q (Qes)1.17

Total Q (Qts)0.93

Compliance Equivalent Volume (Vas)0.95 ft.³

Maximum Linear Excursion (Xmax)3 mm

Cone / Diaphragm MaterialPaper

Magnet MaterialFerrite

Overall Outside Diameter8"

Overall Depth3.44"

Baffle Cutout Diameter7.32"

# Mounting Holes4

Sealed Volume1.3 ft.³

Sealed F354 Hz

Vented Volume4.91 ft.³

Vented F330 Hz

Info

Article No.

GRS-8PF-8
