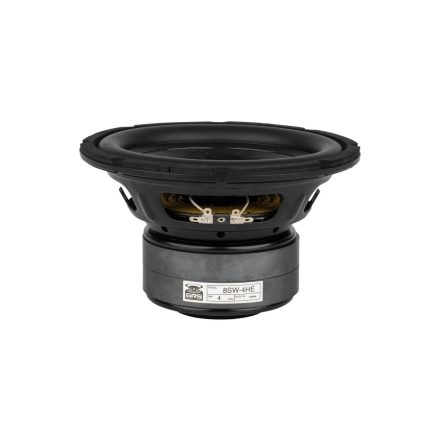

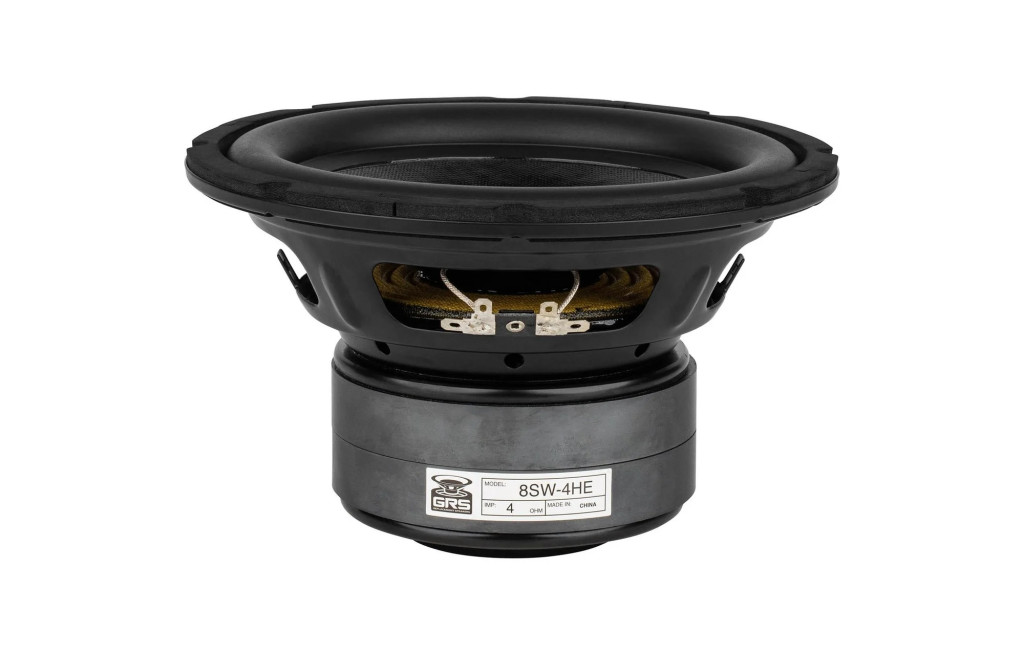

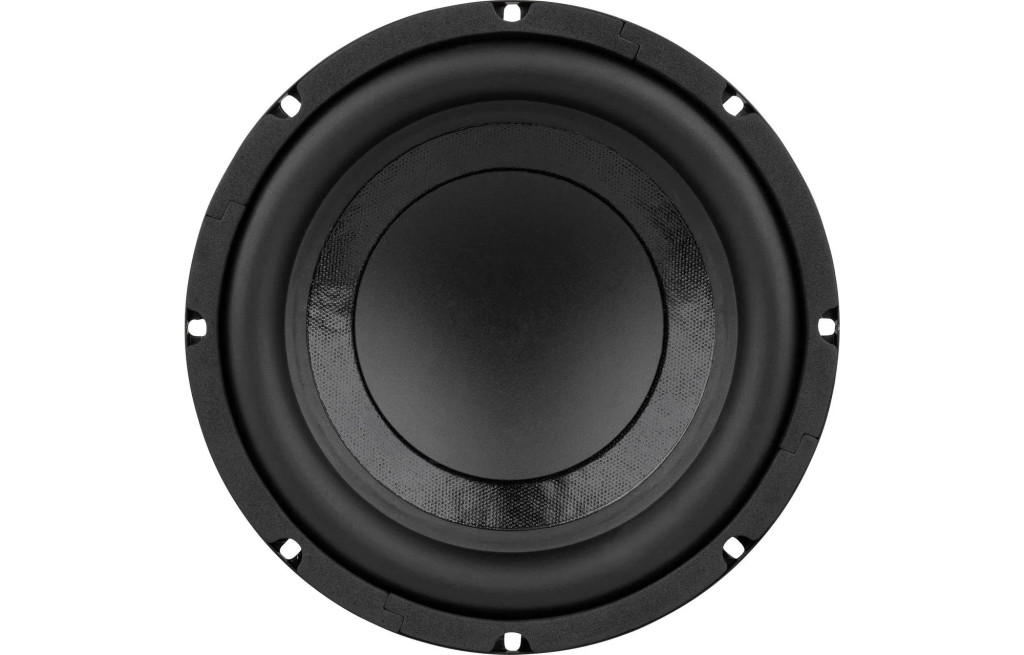

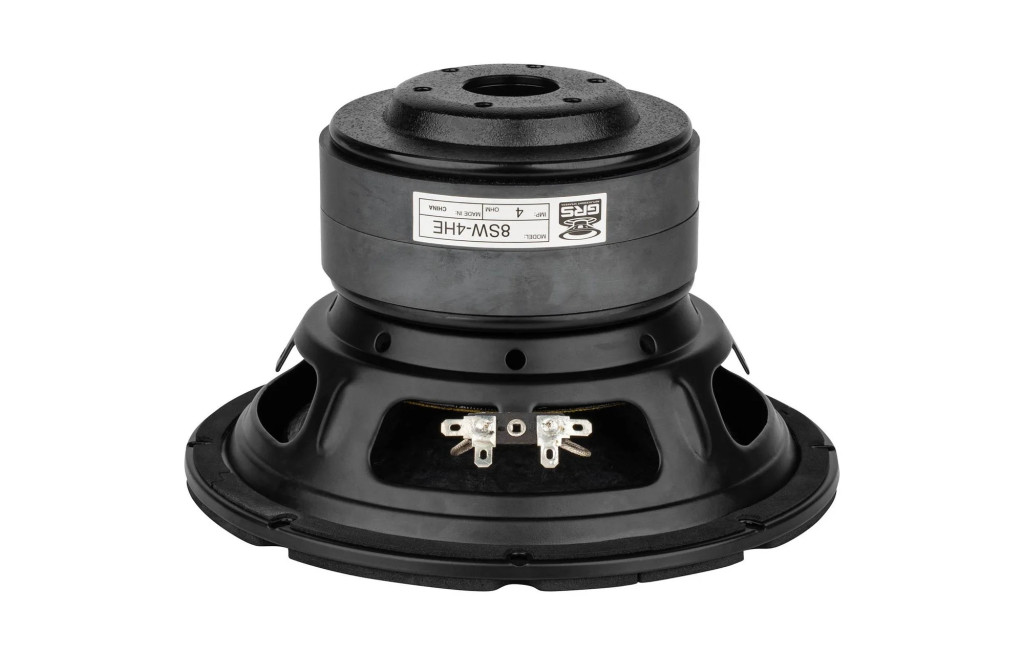

8SW-4HE-8 Paper Cone Rubber Surround High-Excursion Subwoofer 4 Ohm
8SW-4HE-8 Paper Cone Rubber Surround High-Excursion Subwoofer 4 Ohm
59.43 € excl. VAT

8SW-4HE-8 Paper Cone Rubber Surround High-Excursion Subwoofer 4 Ohm

8SW-4HE-8 Paper Cone Rubber Surround High-Excursion Subwoofer 4 Ohm
8SW-4HE-8 Paper Cone Rubber Surround High-Excursion Subwoofer 4 Ohm
8SW-4HE-8 Paper Cone Rubber Surround High-Excursion Subwoofer 4 Ohm
8SW-4HE-8 Paper Cone Rubber Surround High-Excursion Subwoofer 4 Ohm
8SW-4HE-8 Paper Cone Rubber Surround High-Excursion Subwoofer 4 Ohm
8SW-4HE-8 Paper Cone Rubber Surround High-Excursion Subwoofer 4 Ohm
Shipping within (if available from supplier)
4-5 working days
Manufacturer
GRS
Further data
Orderable
59.43 € excl. VAT
Details

The versatile 8SW-4HE 8” high excursion subwoofer from GRS is designed to produce excellent low frequency extension in a variety of designs. Suitable for both sealed and vented enclosures, this driver the ideal replacement or upgrade for your existing subwoofers with worn out or blown drivers. Featuring extensive venting, rubber surround, high temperature voice coil, low Fs, and 10.5 mm of excursion the 8SW-4HE is built for remarkable bass response on a budget.



Highlights

  • High excursion and low Fs to produce powerful low frequency output
  • 2” voice coil on a thick aluminum former to handle up to 150 watts RMS
  • Venting under the spider, through the pole piece, and in the magnetic gap for excellent heat dissipation
  • Durable reinforced paper cone with rubber surround produces reliable and consistent performance
  • Extended frame and bumped back plate allow ample clearance for high excursion



Product details

GRS 8SW-4HE 8" High Excursion Subwoofer 4 Ohm



The GRS 8SW-4HE 8” high excursion subwoofer from GRS is an ideal replacement driver for existing subwoofer systems or an excellent choice for new economical designs. Capable of producing powerful bass response in both sealed and vented designs, the 8SW-4HE is suitable as a drop-in replacement for most existing 8” subwoofers.



Key Specs:

  • Nominal Diameter: 8"
  • Power Handling (RMS): 150W
  • Power Handling (MAX): 300W
  • Impedance: 4 Ω
  • Frequency Response: 30-700Hz
  • Sensitivity: 85dB 2.83V/1m
  • Voice Coil Diameter: 2"
  • Maximum Linear Excursion: 10.8mm



Frequency Response & Impedance Curve

the GRS 8SW-4HE has a bass-centric response from 30Hz up to 700Hz and is highly efficient within its passband. This efficiency and a low QTS lends itself well to both vented and sealed subwoofers for incredibly deep bass from an 8-inch driver.



Extensive venting through the frame, pole piece, and magnetic gap dissipates excess heat to keep power compression to a minimum, even when driven hard for long periods. The rigid paper cone is supported by a large diameter spider and rubber surround to keep excursion linear while providing reliable performance. With a high temperature 2” voice coil wound on a thick aluminum former the 8SW-4HE can comfortably handle up to 150 watts RMS of power.



Article number8SW-4HE-8
EAN0848864070469
Woofer TypeSubwoofer
Nominal Diameter8"
Power Handling (RMS)150 Watts
Power Handling (max)300 Watts
Impedance (Z)4Ω
Sensitivity (SPL at 1m / 2.83V)85 dB
Frequency Response30 to 700HzHz
Voice Coil Diameter2"
Magnet Weight1,6 Kg
DC Resistance (Re)3.8Ω
Voice Coil Inductance (Le)2.7mH
Resonant Frequency (Fs)24.9 Hz
Mechanical Q (Qms)4.42
Electromagnetic Q (Qes)0.51
Total Q (Qts)0.45
Diaphragm Mass Inc. Airload (Mms)93.7g
Mechanical Compliance of Suspension (Cms)0.44mm/N
Surface Area of Cone (Sd)227cm²
BL Product (BL)10.5T·m
Compliance Equivalent Volume (Vas)1.12ft³
Maximum Linear Excursion (Xmax)10.8 mm
Cone / Diaphragm MaterialCoated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter8.22"
Overall Depth4.6"
Baffle Cutout Diameter7.125"
Bolt Circle Diameter7.8
# Mounting Holes8
Sealed Volume0.5ft³
Sealed F346Hz
Vented Volume1ft³
Vented F327Hz
