The GRS NRT25-8, leveraging Neo-Radial Technology (NRT), delivers expansive, low-distortion sound from a compact 1" titanium diaphragm. Designed with the DIY enthusiast in mind, this driver features a small footprint perfect for array configurations, a high-force motor for controlled performance, and extensive venting that lowers the frequency range to 450Hz, offering a versatile spectrum of crossover possibilities for tailor-made audio solutions.
Highlights
- Full-range, 1” underhung driver with 2.5 mm of Xmax
- Neodymium Radial motor design for extremely low distortion
- Extreme ventilation for great power handling and improved bass response
- Small frame size for reduced center-to-center distance and reduced comb filtering when used in arrays
Product details

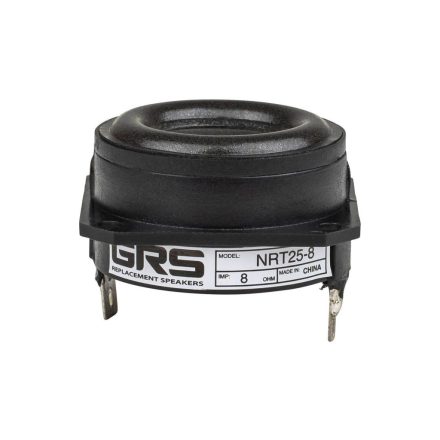

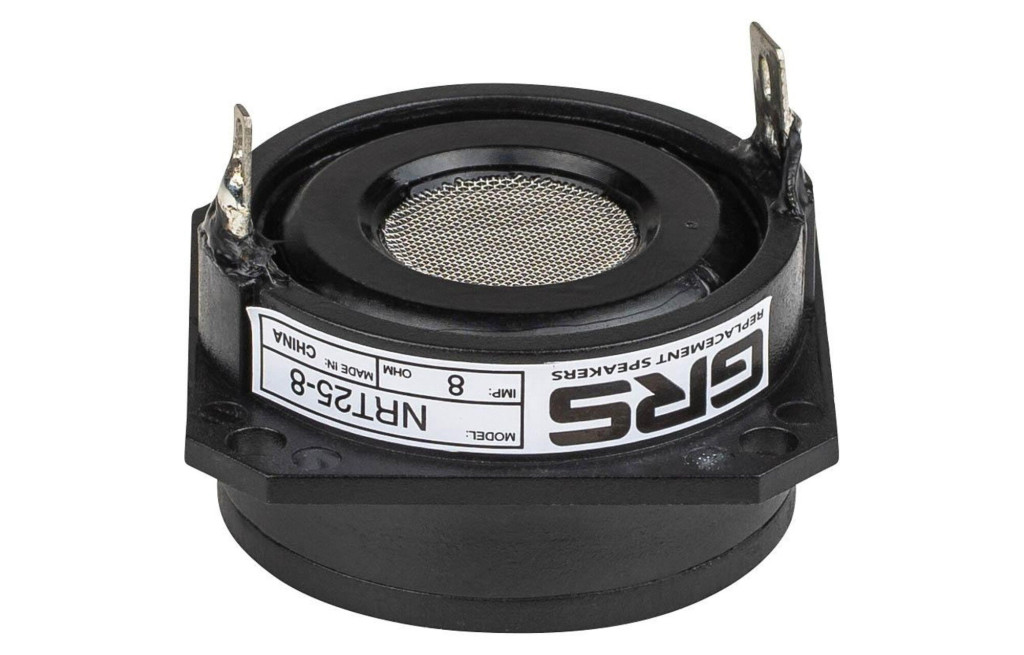

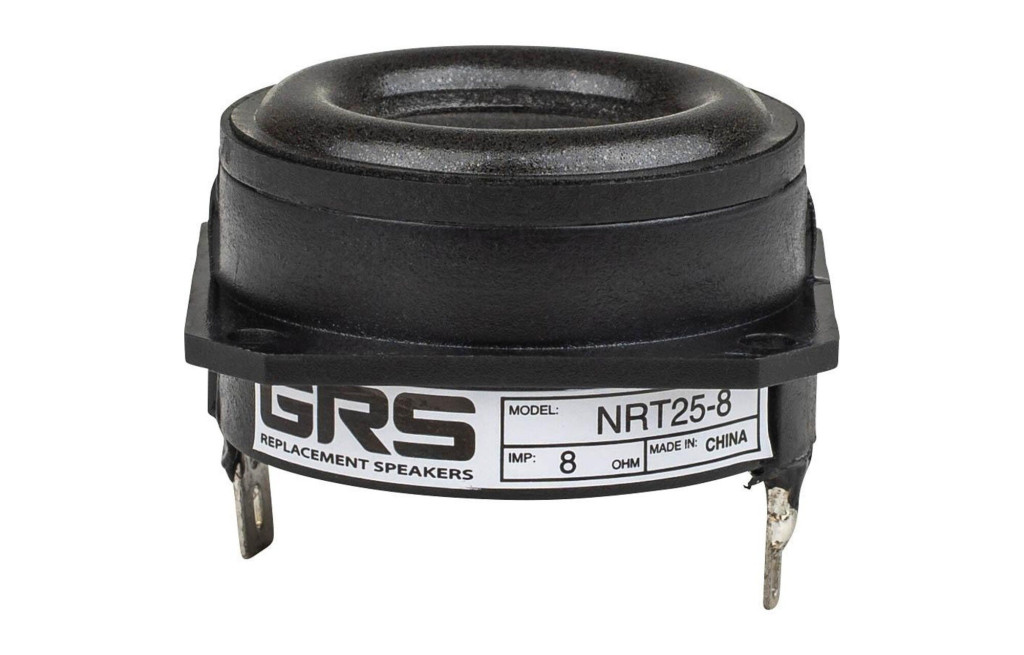

GRS NRT25-8 1" Extended Range Driver 8 Ohm
NRT (Neo-Radial Technology) harnesses the power of radially aligned neodymium magnets to deliver high-fidelity audio through a uniformly magnetic field, ensuring superior speaker sensitivity and acoustic precision
Redefining Audio Performance
The GRS NRT25-8, leveraging Neo-Radial Technology (NRT), delivers expansive, low-distortion sound from a compact 1" titanium diaphragm. Designed with the DIY enthusiast in mind, this driver features a small footprint perfect for array configurations, a high-force motor for controlled performance, and extensive venting that lowers the frequency range to 450Hz, offering a versatile spectrum of crossover possibilities for tailor-made audio solutions.

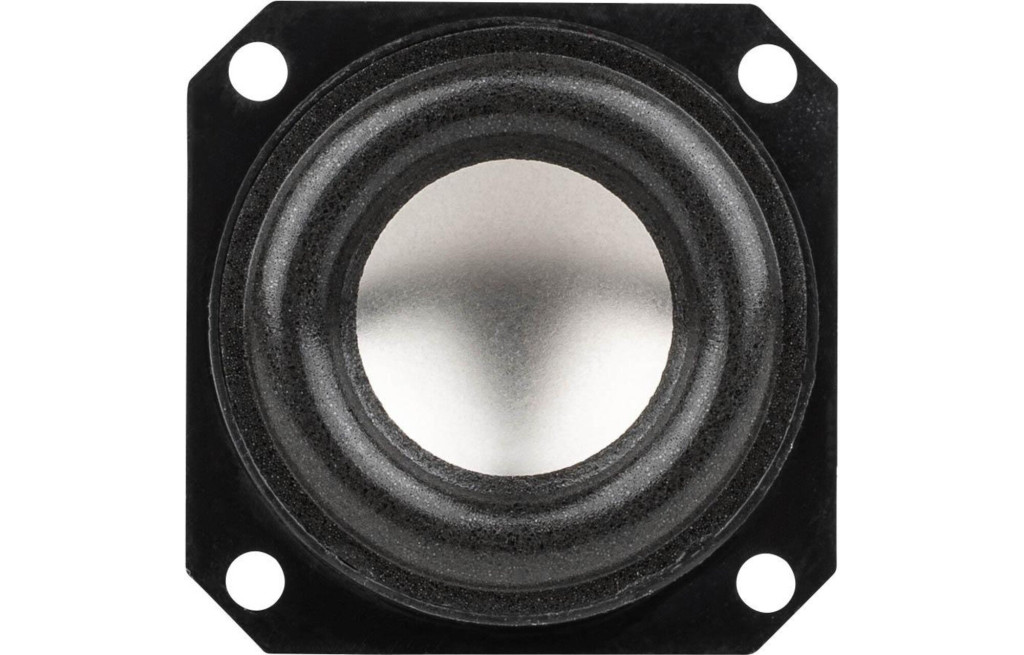

1" Titanium Diaphragm
Prized for its exceptional stiffness-to-weight ratio; the rigidity of the titanium cone ensures minimal distortion, even at high output levels, while maintaining a clear and detailed sound across a wide frequency range.

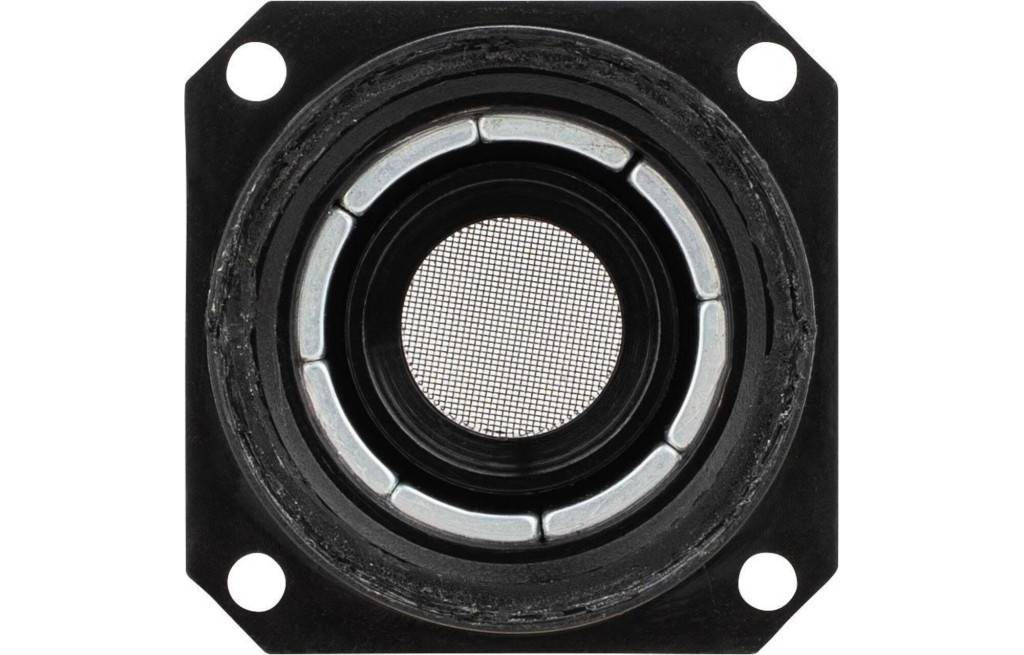

NRT Neo-Radial Technology
A breakthrough in speaker design; this innovation results in exceptional linearity and a higher sensitivity in speaker output. The unique configuration allows for an increased excursion capability, providing deep, resonant bass and a broader dynamic range from a 1" driver

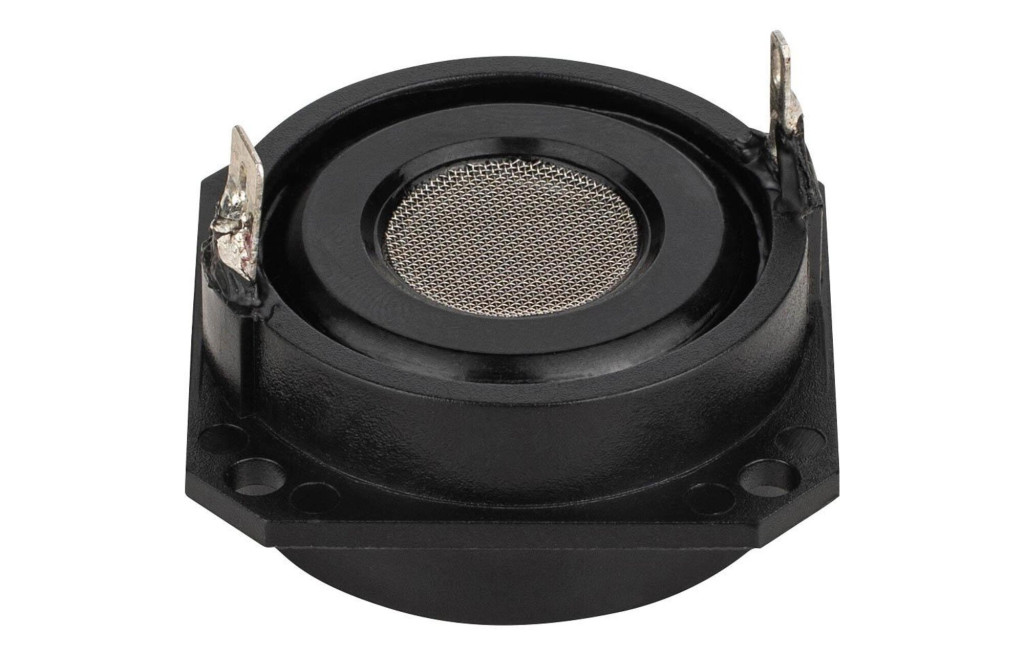

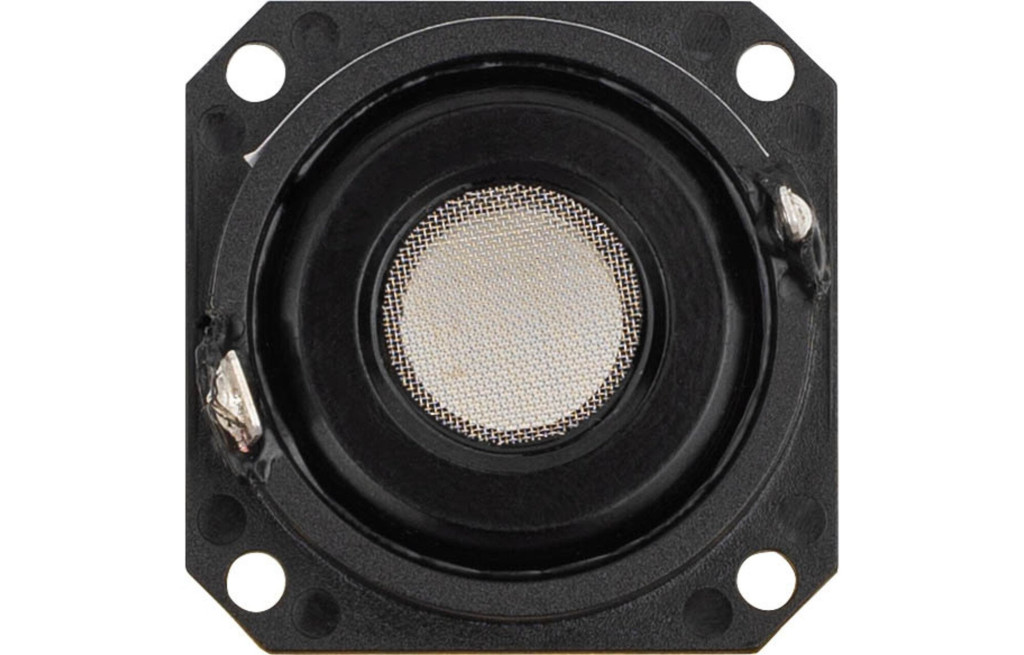

Extreme Ventilation
By allowing air to move freely behind the diaphragm, this ventilation method reduces air pressure build-up that can restrict the cone's movement, especially at lower frequencies. The result is a more natural and extended bass reproduction,
Frequency Response
Engineered for acoustic excellence, this speaker driver delivers a powerful bass response from a 1" driver that resonates with its depth and clarity. With a frequency sweet spot that extends from 400 Hz to a soaring 20 kHz, experience the brilliance of consistent, high-fidelity audio.
Specifications:
- Impedance: 8 Ohms
- Size: 1"
- Cone Material: Titanium
- Surround Material: Foam
- Frequency Range: 400Hz - 20,000Hz
- Sensitivity: 75dbSPL @ 2.83V/1m
Impedance Curve
The driver’s optimized impedance ensures that the speaker operates consistently across a wide spectrum of frequencies, revealing a perfect harmony between power and performance. This simplicity in impedance response translates to a simple crossover configuration with no need to accommodate for losses from electrical interactions.
Article numberNRT25-8
EAN0848864072494
Woofer TypeExtended Range Woofer
Power Handling (RMS)5 Watts
Impedance (Z)8 Ω
Sensitivity (SPL at 1m / 2.83V)75.7 dB
Frequency Response250 - 15.000 Hz
Voice Coil Inductance (Le)0.08 mH
Resonant Frequency (Fs)380 Hz
Mechanical Q (Qms)2.41
Electromagnetic Q (Qes)2.90
Total Q (Qts)1.32
Diaphragm Mass Inc. Airload (Mms)0.46 g
Mechanical Compliance of Suspension (Cms)0.38 mm/N
Surface Area of Cone (Sd)3.76 cm²
BL Product (BL)1.62 Tm
Compliance Equivalent Volume (Vas)0.01 Liters
Overall Outside Diameter42.8 mm
Overall Depth19.9 mm
# Mounting Holes4
Mounting Hole Diameter3.4 mm
