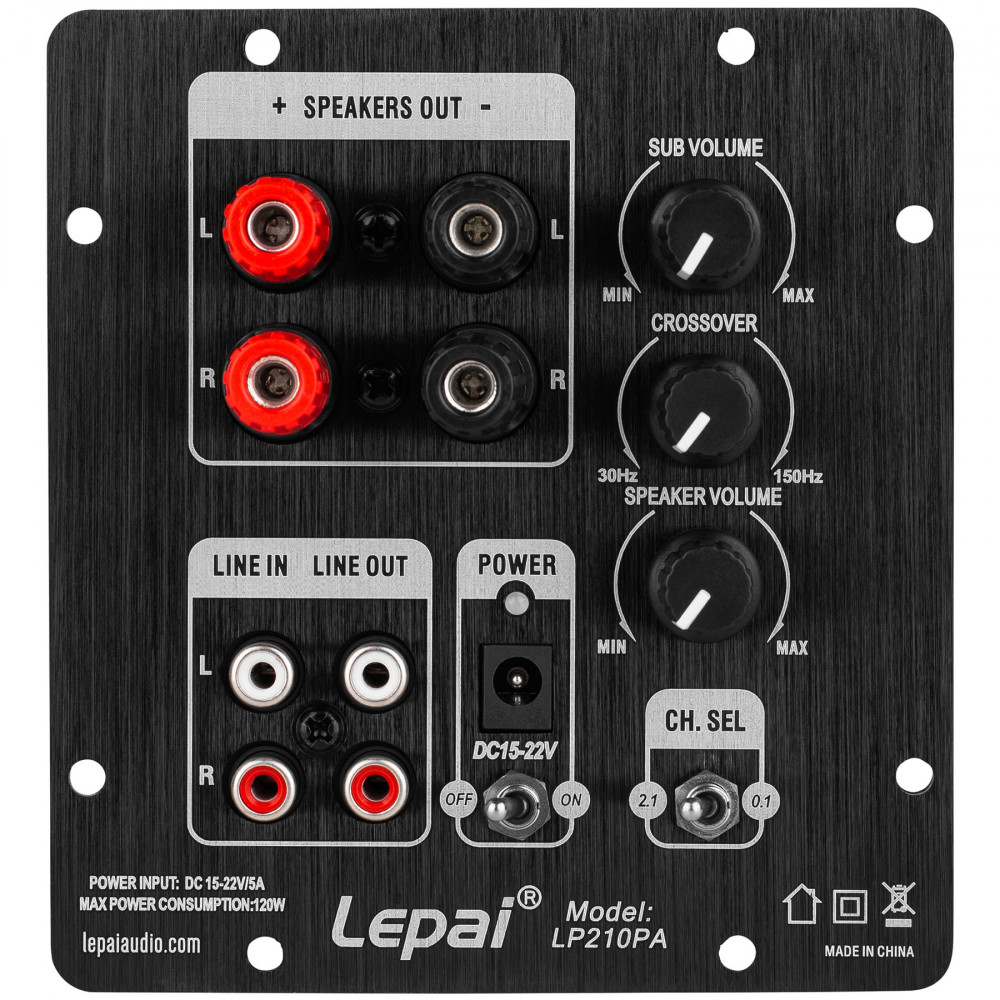

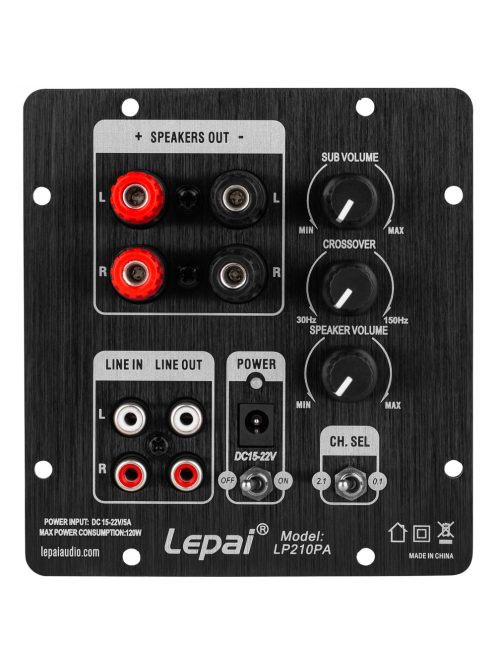

LP210PA 2x30W + 60W 2.1 Channel Mini Plate Amplifier TPA3118

Highlights

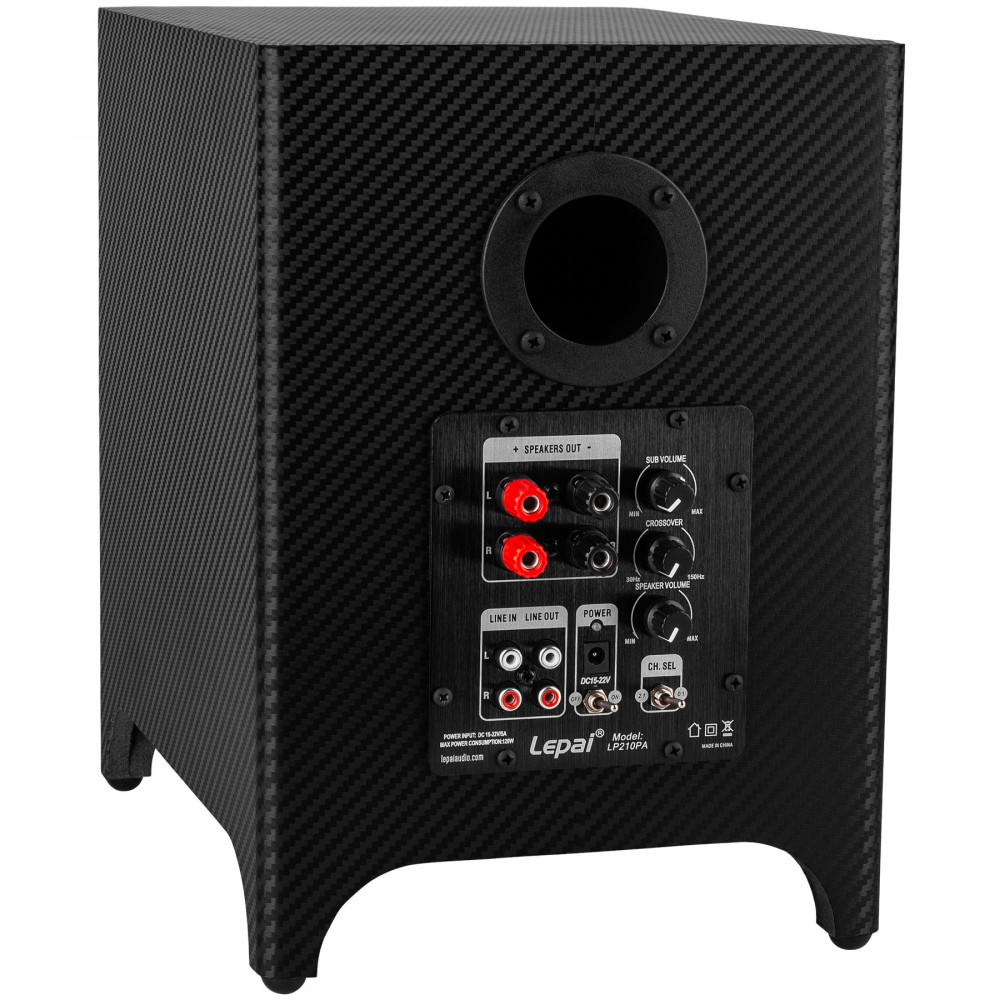

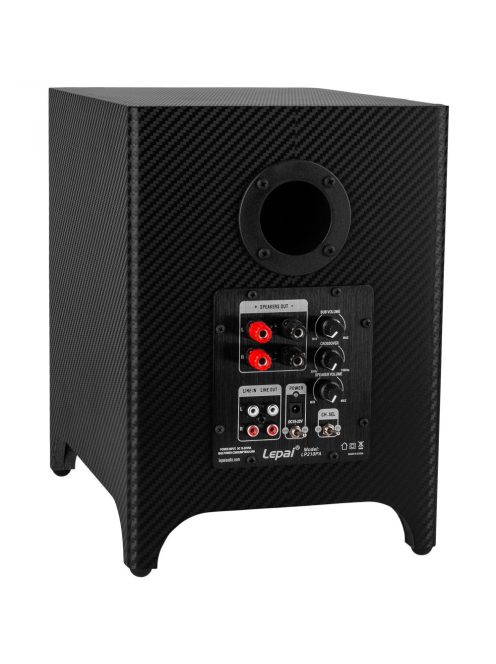

Compact size (4.5" x 5" x 1") for installation into the smallest subwoofer enclosures
Satellite outout includes 6 dB per octave high pass at 100 Hz
Perfect for use in office, bedroom, or even portable speaker systems
Defeatable full range output for use as just a subwoofer amplifier
The full range speaker output uses high quality binding posts for easy connection

Rated power output: 2 x 30 watts + 1 x 60 watts
Minimum load: 4 ohms
Amplifier classification: Class D

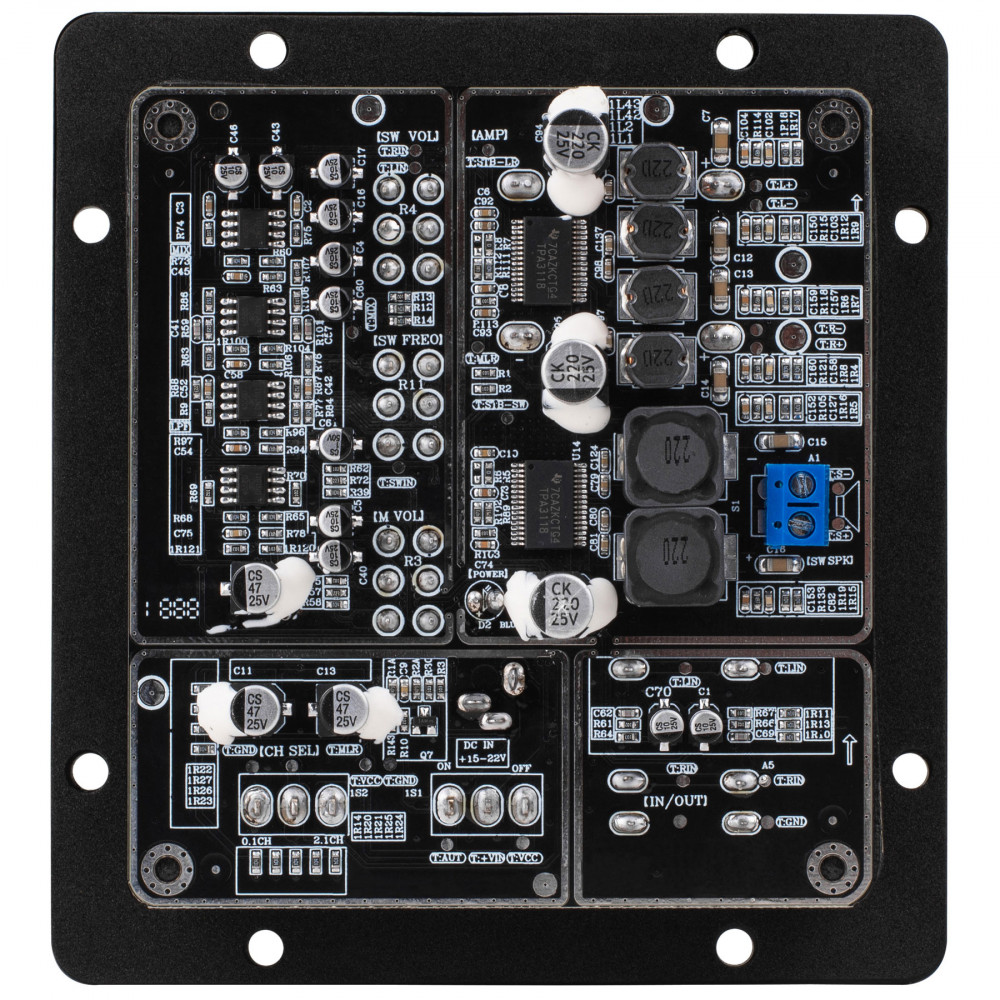

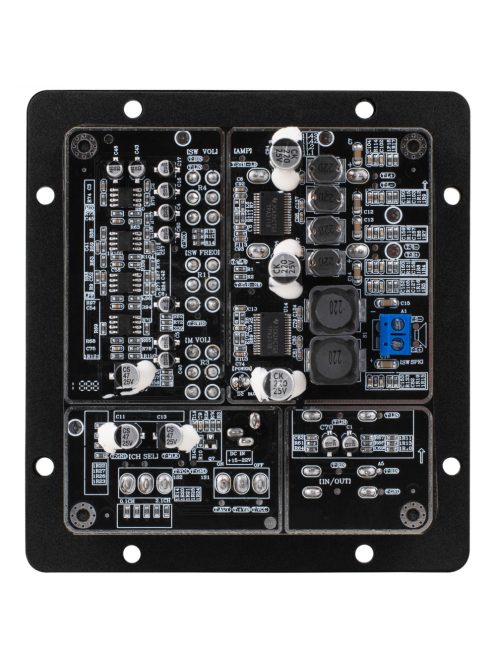

Circuit topology: TPA3118 based
Frequency response: 20 - 20,000 Hz
Input sensitivity: 245 mV
Speaker output channels: 3
Dimensions (H x W x D): 159 x 114 x 102 mm
Cutout dimensions: 104.76 x 95.25 mm
