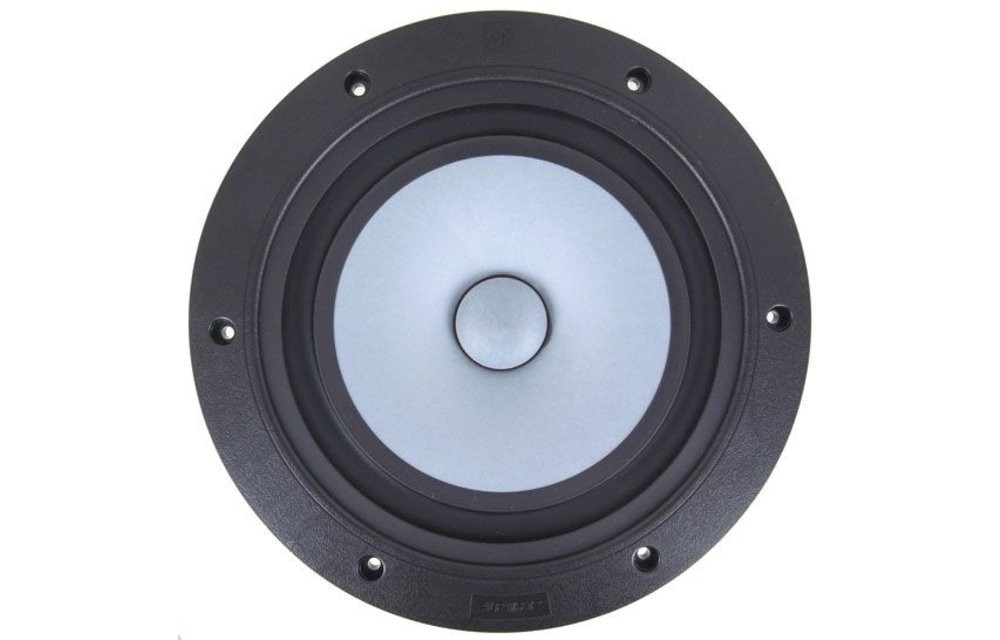

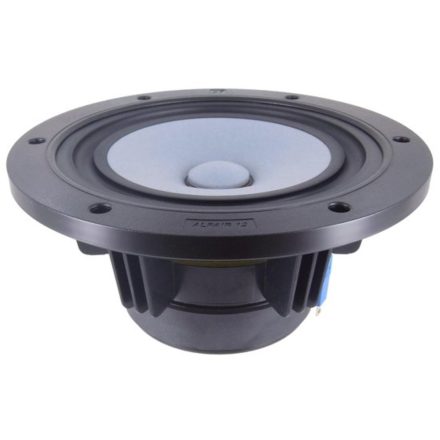

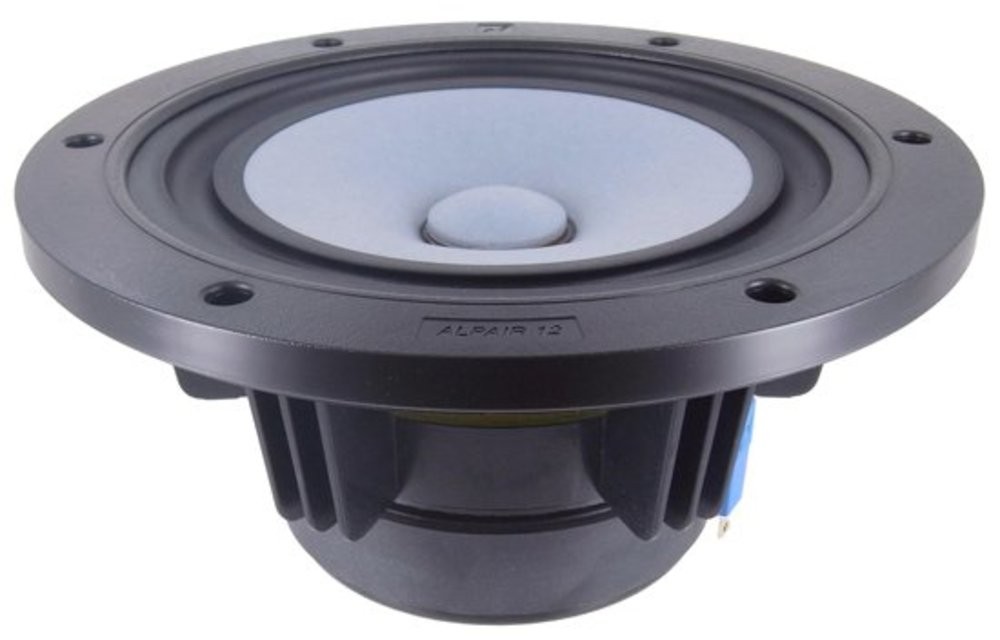

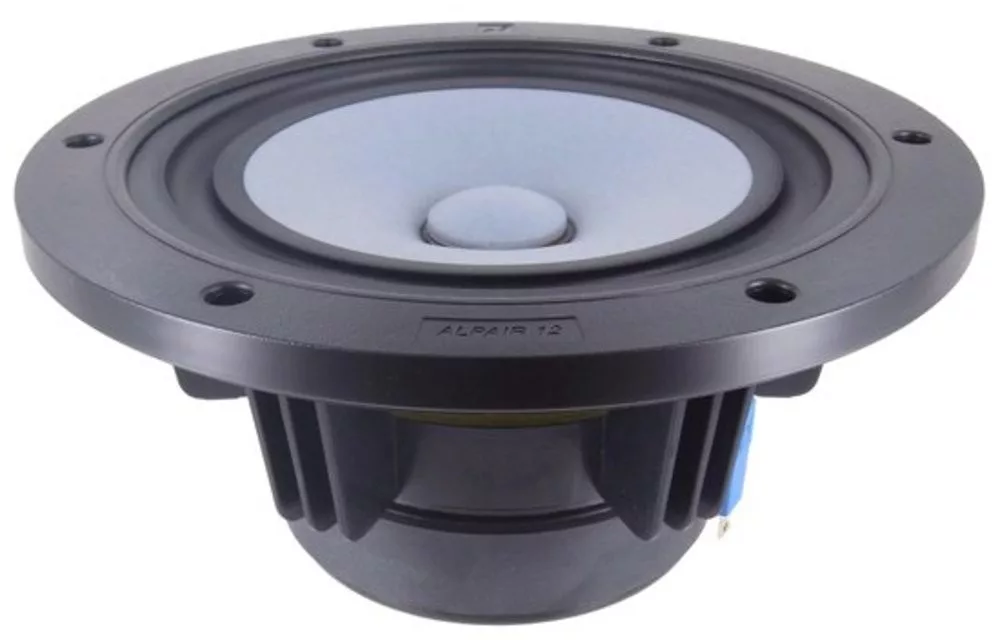

Markaudio Alpair-12P 8" Paper Cone Full Range
Markaudio Alpair-12P 8" Paper Cone Full Range
118.75 € excl. VAT

Markaudio Alpair-12P 8" Paper Cone Full Range

Markaudio Alpair-12P 8" Paper Cone Full Range
Markaudio Alpair-12P 8" Paper Cone Full Range
Markaudio Alpair-12P 8" Paper Cone Full Range
Markaudio
Shipping within (if available from supplier)
4-5 working days
Manufacturer
Markaudio
Orderable
118.75 € excl. VAT
Details
Woofer Type : Full-range
Nominal Diameter : 8"
Power Handling (RMS) : 30 Watts
Impedance (Z) : 8 ohms
Sensitivity : 92dB 2.83V/1m
DC Resistance (Re) : 7 ohms
Resonant Frequency (Fs) : 46 Hz
Mechanical Q (Qms) : 1.45
Electromagnetic Q (Qes) : 0.42
Total Q (Qts) : 0.32
Diaphragm Mass Inc. Airload (Mms) : 15.8g
Mechanical Compliance of Suspension (Cms) : 0.75 mm/N
Surface Area of Cone (Sd) : 143.14 cm²
BL Product (BL) : 8.75 Tm
Compliance Equivalent Volume (Vas) : 0.8 ft.³
Maximum Linear Excursion (Xmax) : 9 mm
Overall Outside Diameter : 8.15"
Overall Depth : 3.79"
Baffle Cutout Diameter : 7.32"
# Mounting Holes : 6
Info
Article No.
MAR-ALPAIR-12P
