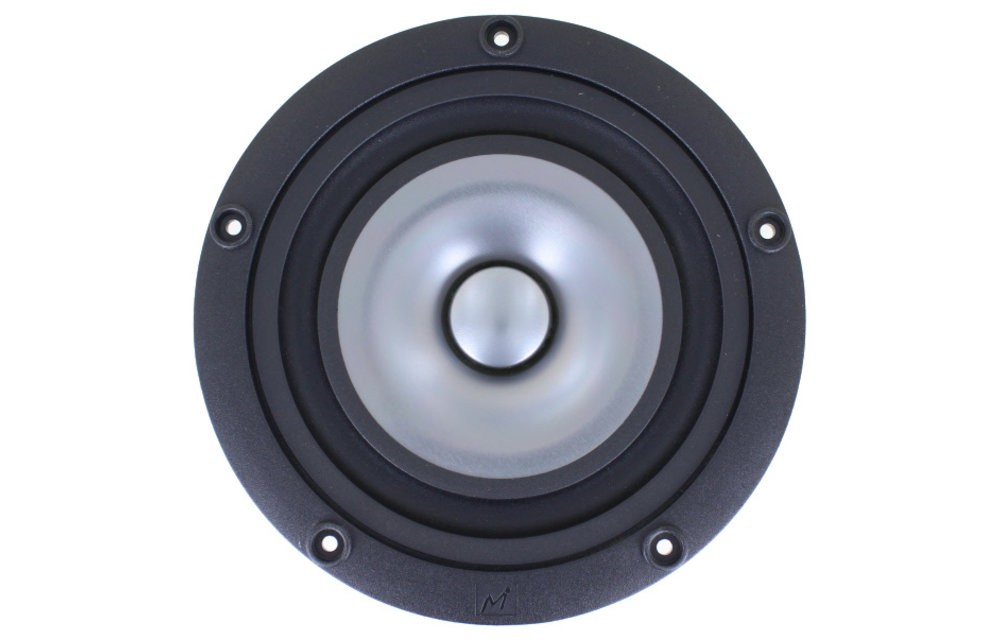

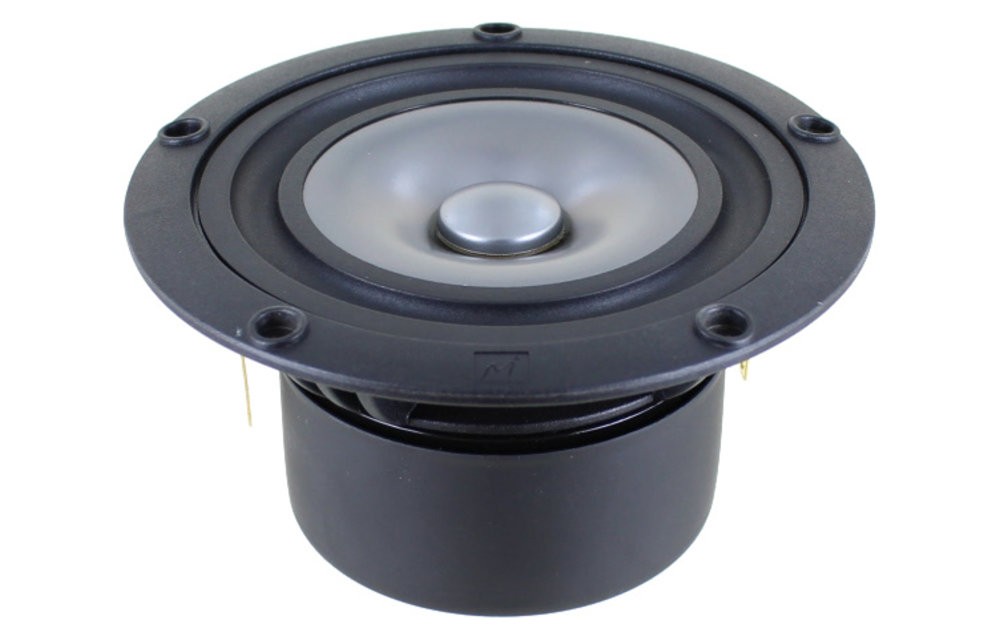

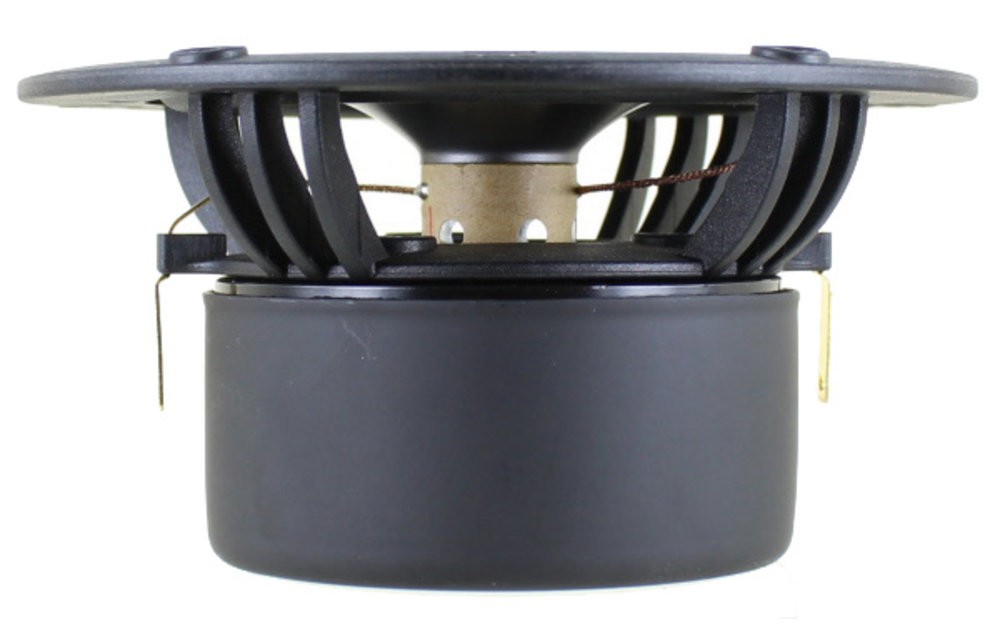

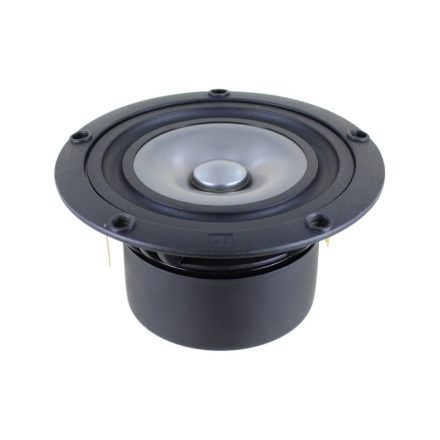

Markaudio Alpair-7MS Grey 4" Full Range Woofer
Markaudio Alpair-7MS Grey 4" Full Range Woofer
59.36 € excl. VAT

Markaudio Alpair-7MS Grey 4" Full Range Woofer

Markaudio Alpair-7MS Grey 4" Full Range Woofer
Markaudio Alpair-7MS Grey 4" Full Range Woofer
Markaudio Alpair-7MS Grey 4" Full Range Woofer
Markaudio Alpair-7MS Grey 4" Full Range Woofer
Markaudio Alpair-7MS Grey 4" Full Range Woofer
Markaudio Alpair-7MS Grey 4" Full Range Woofer
Markaudio
Details
Shipping within (if available from supplier)
4-5 working days
Manufacturer
Markaudio
Further data
Orderable
59.36 € excl. VAT
Details
Woofer Type : Full-range
Nominal Diameter : 4"
Power Handling (RMS) : 15 Watts
Impedance (Z) : 8 ohms
Sensitivity : 86.3 dB 2.83V/1m
Frequency Response : 70 to 30,000 Hz
DC Resistance (Re) : 7.2 ohms
Resonant Frequency (Fs) : 75 Hz
Mechanical Q (Qms) : 2.35
Electromagnetic Q (Qes) : 0.74
Total Q (Qts) : 0.57
Diaphragm Mass Inc. Airload (Mms) : 3.3g
Mechanical Compliance of Suspension (Cms) : 1.384 mm/N
Surface Area of Cone (Sd) : 50.27 cm²
BL Product (BL) : 3.9 Tm
Compliance Equivalent Volume (Vas) : 0.175 ft.³
Maximum Linear Excursion (Xmax) : 4.5 mm
Overall Outside Diameter : 4.41"
Overall Depth : 2.44"
Baffle Cutout Diameter : 3.90"
# Mounting Holes : 5
Info
Article No.
MAR-ALPAIR-7MS-GREY
