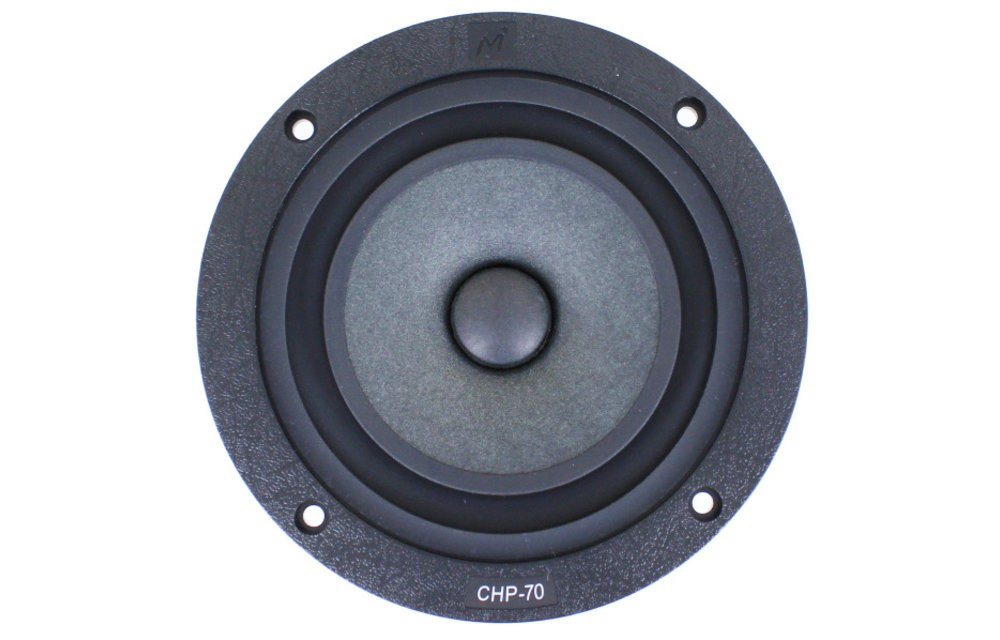

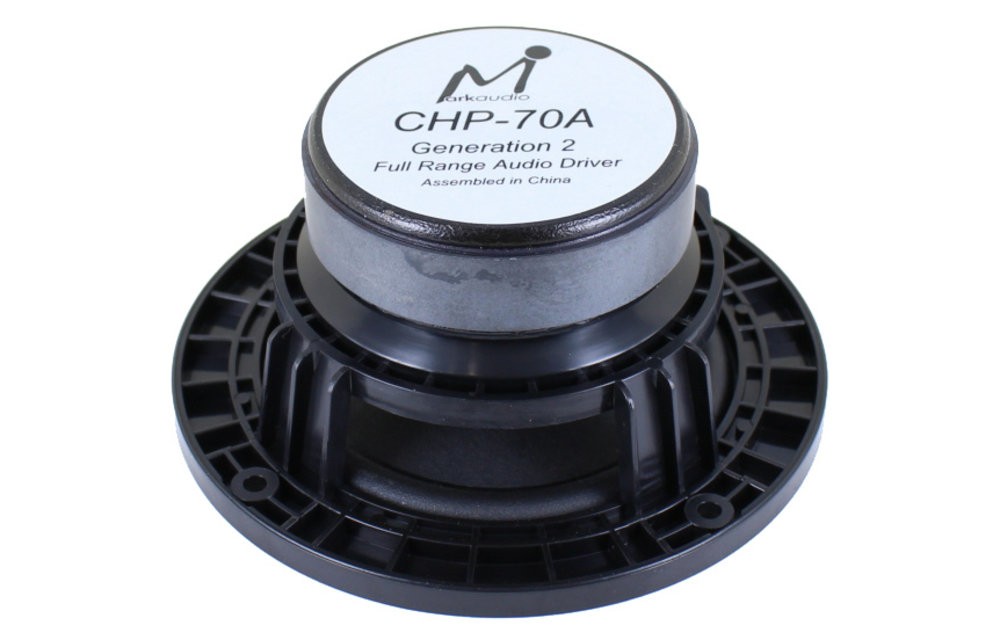

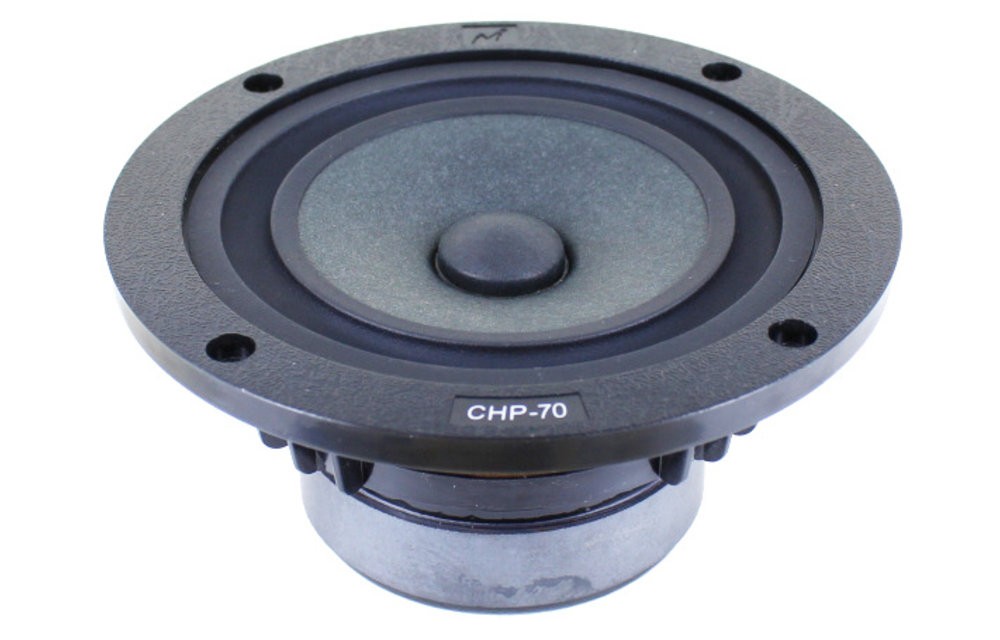

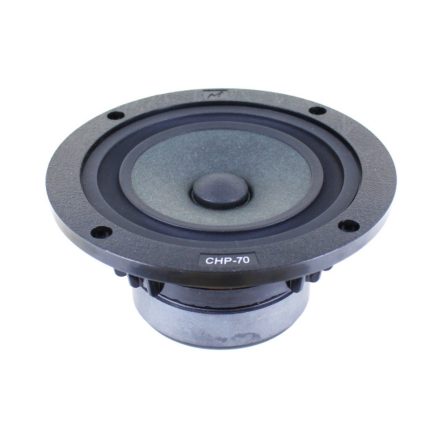

Markaudio CHP-70 Black 4" Full Range Paper Woofer
Markaudio CHP-70 Black 4" Full Range Paper Woofer
38.14 € excl. VAT

Markaudio CHP-70 Black 4" Full Range Paper Woofer

Markaudio CHP-70 Black 4" Full Range Paper Woofer
Markaudio CHP-70 Black 4" Full Range Paper Woofer
Markaudio CHP-70 Black 4" Full Range Paper Woofer
Markaudio CHP-70 Black 4" Full Range Paper Woofer
Markaudio CHP-70 Black 4" Full Range Paper Woofer
Markaudio CHP-70 Black 4" Full Range Paper Woofer
Markaudio
Details
Shipping within (if available from supplier)
4-5 working days
Manufacturer
Markaudio
Further data
Orderable
38.14 € excl. VAT
Details
Woofer Type : Full-range
Nominal Diameter : 4"
Power Handling (RMS) : 20 Watts
Impedance (Z) : 8 ohms
Sensitivity : 86.5 dB 2.83V/1m
Voice Coil Diameter : 0.78"
DC Resistance (Re) : 7.2 ohms
Resonant Frequency (Fs) : 50.2 Hz
Mechanical Q (Qms) : 2.3
Electromagnetic Q (Qes) : 0.76
Total Q (Qts) : 0.52
Diaphragm Mass Inc. Airload (Mms) : 3.7g
Mechanical Compliance of Suspension (Cms) : 1.31 mm/N
Surface Area of Cone (Sd) : 50.2 cm²
BL Product (BL) : 4.2 Tm
Compliance Equivalent Volume (Vas) : 0.16 ft.³
Maximum Linear Excursion (Xmax) : 4 mm
Cone / Diaphragm Material : Paper
Overall Outside Diameter : 4.88"
Overall Depth : 2.2"
Baffle Cutout Diameter : 4.41"
# Mounting Holes : 4
Info
Article No.
MAR-CHP-70-BLACK
