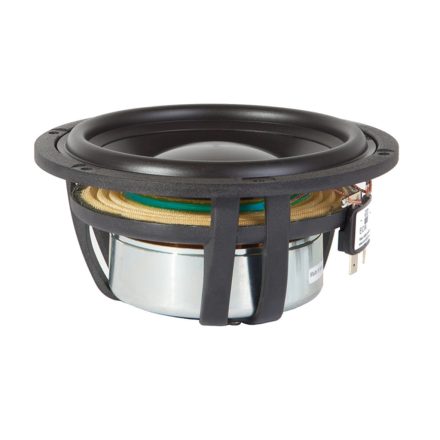

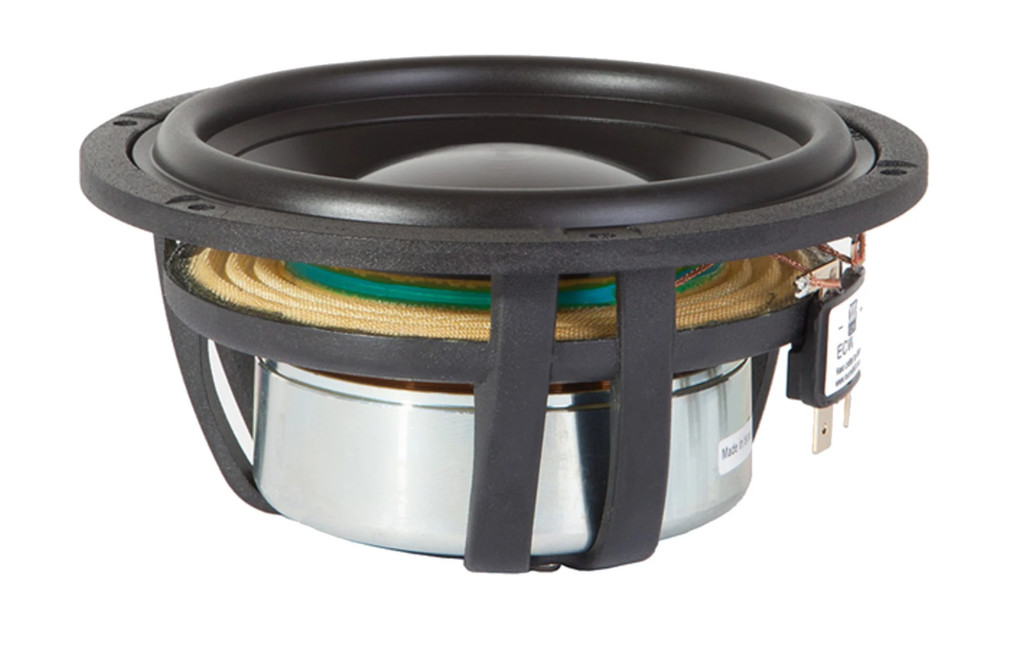

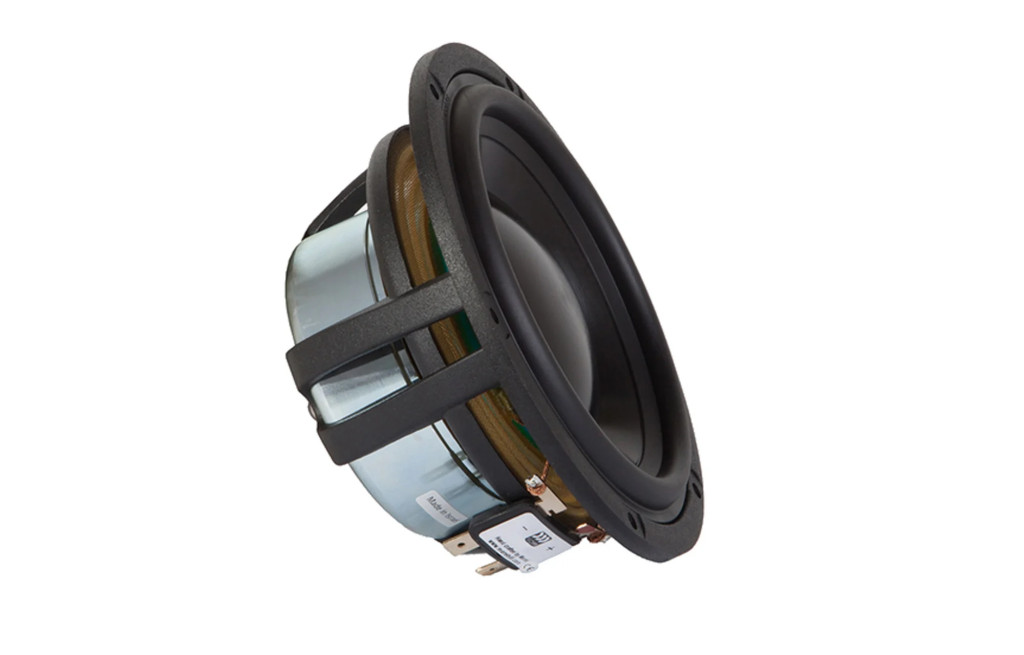

Elite Coppersleeve ECW 536 5" Woofer
Elite Coppersleeve ECW 536 5" Woofer
246.34 € excl. VAT

Elite Coppersleeve ECW 536 5" Woofer

Elite Coppersleeve ECW 536 5" Woofer
Elite Coppersleeve ECW 536 5" Woofer
Elite Coppersleeve ECW 536 5" Woofer
Elite Coppersleeve ECW 536 5" Woofer
Elite Coppersleeve ECW 536 5" Woofer
Elite Coppersleeve ECW 536 5" Woofer
Shipping within (if available from supplier)
4-5 working days
Manufacturer
Morel
Further data
Orderable
246.34 € excl. VAT
Details

Morel Elite Coppersleeve Series woofers feature large diameter voice coils, open yet strong frames, advanced composite cones, and carefully engineered magnetic circuits.



Highlights

  • DPC (Damped Polymer Composite) cone material
  • Large diameter Hexatech™ aluminum voice coil
  • Copper insulated pole piece reduces inductance
  • Hybrid™ neodymium/ferrite magnet
  • Uniflow™ chassis removes air restrictions
  • High power handling
  • High xmax, low Qts, low Fs



Product details

Morel Elite Coppersleeve ECW 536 5" Woofer



Morel Elite Coppersleeve Series woofers feature large diameter voice coils, open yet strong frames, advanced composite cones, and carefully engineered magnetic circuits. A copper sleeve over the pole piece reduces inductance and extends high frequency response. Suitable for the most demanding audio reproduction systems.



Article numberECW536
EAN0844622075226
Woofer SeriesMorel Elite series
Woofer TypeMidwoofer
Nominal Diameter5.5"
Power Handling (RMS)150 Watts
Power Handling (max)1,000 Watts
Impedance (Z)6 ohms
Sensitivity (SPL at 1m / 2.83V)86 dB
Frequency Response40 to 4,500 Hz
Voice Coil Diameter3"
DC Resistance (Re)4.5 ohms
Voice Coil Inductance (Le)0.28 mH
Resonant Frequency (Fs)45 Hz
Mechanical Q (Qms)1.55
Electromagnetic Q (Qes)0.39
Total Q (Qts)0.31
Diaphragm Mass Inc. Airload (Mms)14.8g
Mechanical Compliance of Suspension (Cms)0.86 mm/N
Surface Area of Cone (Sd)88 cm²
BL Product (BL)6.83 Tm
Compliance Equivalent Volume (Vas)0.39 ft.³
Maximum Linear Excursion (Xmax)5.5 mm
Cone / Diaphragm MaterialPoly Composite
Surround MaterialRubber
Voice Coil Wire MaterialAluminum
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium
Overall Outside Diameter5.63"
Overall Depth2.56"
Baffle Cutout Diameter4.77"
# Mounting Holes6
Mounting Hole Diameter4.2 mm
Sealed Volume0.05 ft.³
Sealed F3124 Hz
Vented Volume0.13 ft.³
Vented F378 Hz
