PowerSlim 6 Carbon Slim 6" Woofer 6 Ohm

203.86 € excl. VAT

PowerSlim 6 Carbon Slim 6" Woofer 6 Ohm

Name: PowerSlim 6 Carbon Slim 6" Woofer 6 Ohm
Brand: Morel
SKU: MOR-PowerSlim6-Carbon
Price: 258.91 EUR
Availability: InStock

Shipping within (if available from supplier)

4-5 working days

Manufacturer

Morel

Further data

Orderable

203.86 € excl. VAT

Details

Morel's PowerSlim 6 Carbon woofer is perfect to mount in situations where most drivers just will not fit. With just over 1/2" mounting depth, this driver can allow you to produce hi-fidelity audio from installations you never thought possible.

Highlights

Extremely shallow mounting depth of 0.65" for use in difficult locations
Large 2.1" voice coil for high power handling and linearity
Neodymium magnet keeps size and weight to a minimum
Dome diaphragm delivers incredible off axis response

Product details

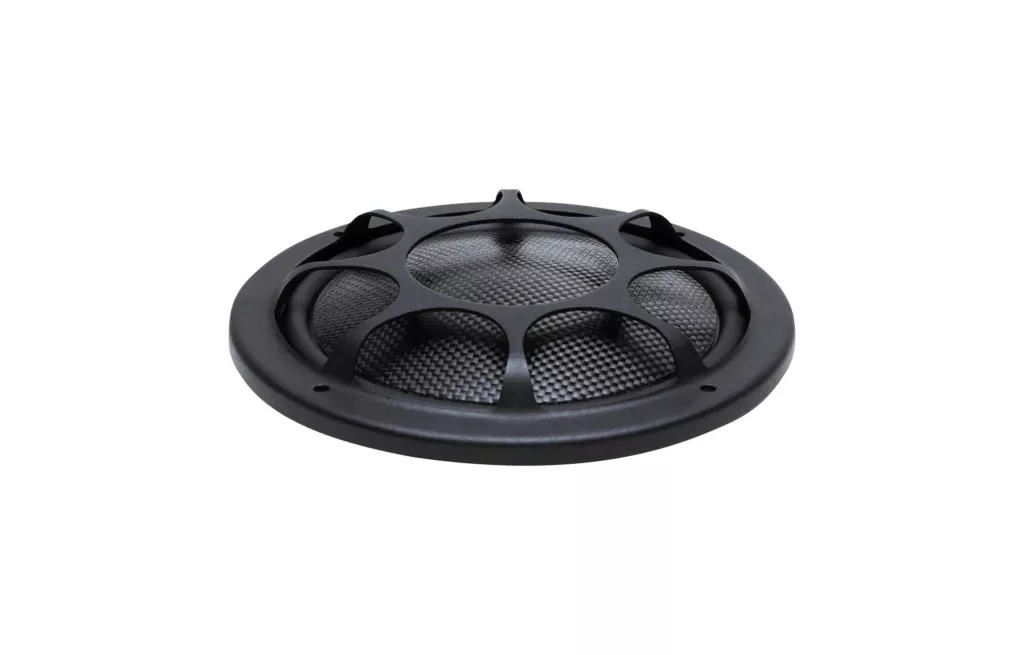

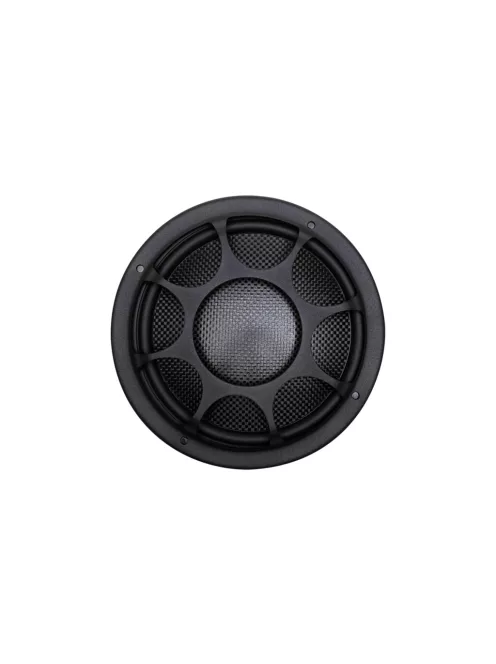

Morel PowerSlim 6 Carbon Slim 6" Woofer 6 Ohm

With just over 1/2" of mounting depth, the PowerSlim 6 Carbon will fit where no other driver will. By using a unique 6" carbon fiber dome diaphragm, Morel has managed to move the voice coil and magnet towards the front of the driver creating a one of a kind woofer. Thanks to the dome diaphragm, this driver also has remarkable on and off axis response up to 4,000 Hz making this driver ideal for use in 2-way speaker designs.

The PowerSlim6 Carbon is also built to last. It features a die-cast aluminum chassis that is both lightweight and rigid, and it is protected by a dustcap and rubber surround. The subwoofer is also equipped with a Progressive Field Symmetry spider, which helps to improve its linearity and reduce distortion.

In terms of performance, the PowerSlim6 Carbon is capable of delivering up to 70 watts of RMS power and 140 watts of peak power. This makes it a good choice for a variety of applications, including car audio, home theater, and professional sound reinforcement.

Article numberPowerSlim6 Carbon

EAN0848864057101

Woofer TypeUltra Slim Mid-Woofer

Nominal Diameter160 mm, 6,3 inch

Power Handling (RMS)80 Watt

Power Handling (max)180 Watt (10 ms)

Impedance (Z)4 Ohm

Sensitivity (SPL at 1m / 2.83V)84 dB

Frequency Responseto 4.000 Hz

Voice Coil Diameter54 mm

DC Resistance (Re)0.17 mH

Resonant Frequency (Fs)66 Hz

Mechanical Q (Qms)2.47

Electromagnetic Q (Qes)1.55

Total Q (Qts)0.95

Diaphragm Mass Inc. Airload (Mms)20 g

Mechanical Compliance of Suspension (Cms)0.28 mm/N

Surface Area of Cone (Sd)141 cm2

BL Product (BL)4.64 T.m

Compliance Equivalent Volume (Vas)7.7 Liters

Maximum Linear Excursion (Xmax)2.75 mm

Driver's Mechanical Losses (Rms)3.37 ΩM

Cone / Diaphragm MaterialComposite Paper

Voice Coil Wire MaterialHexatech™ Aluminum

Voice Coil FormerAluminum

Overall Outside Diameter160 mm, 6.3 inch

Overall Depth16.7 mm, 0,65 inch

Baffle Cutout Diameter134 mm

# Mounting Holes4

Mounting Hole Diameter3 mm
