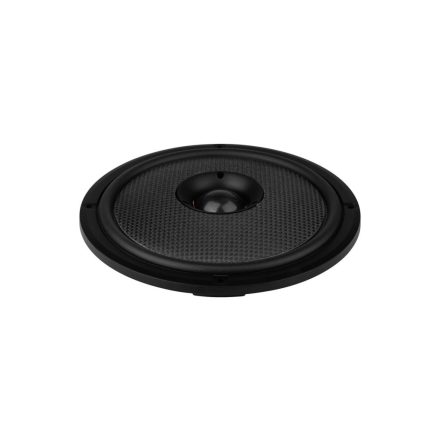

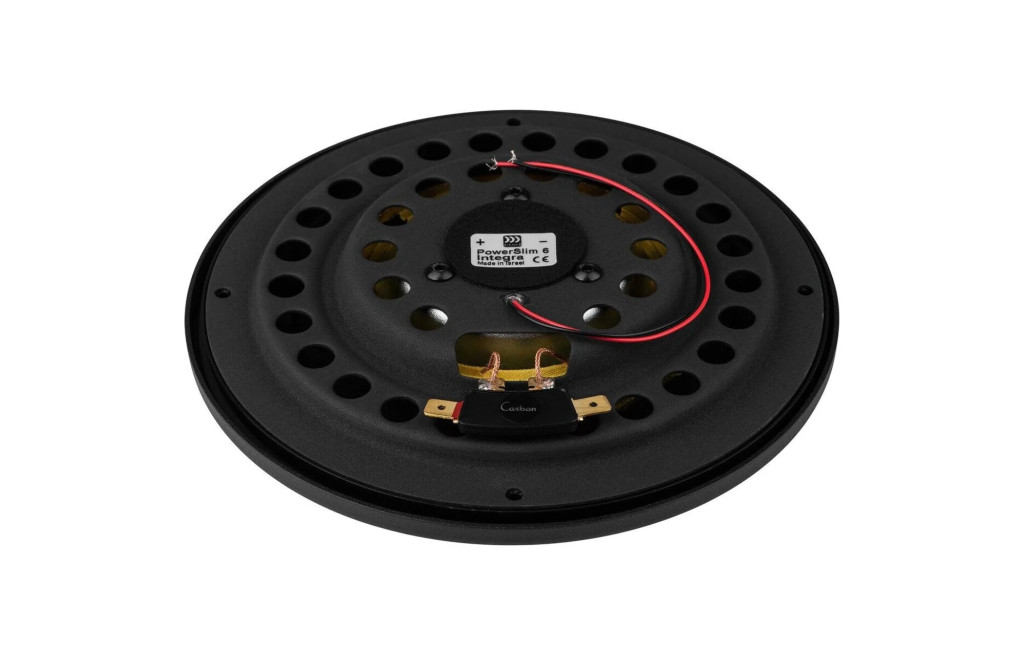

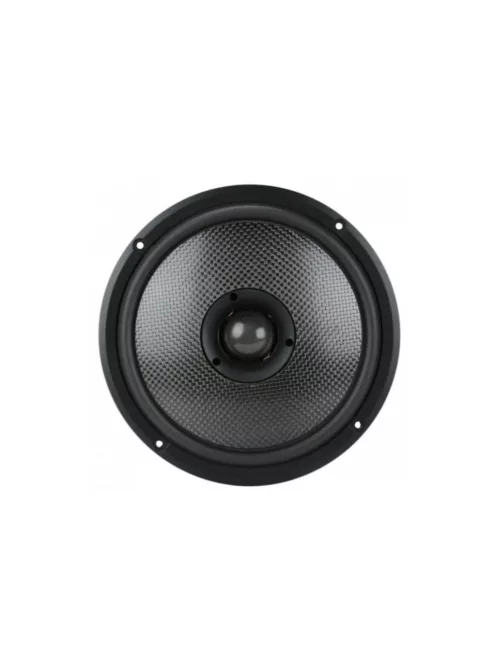

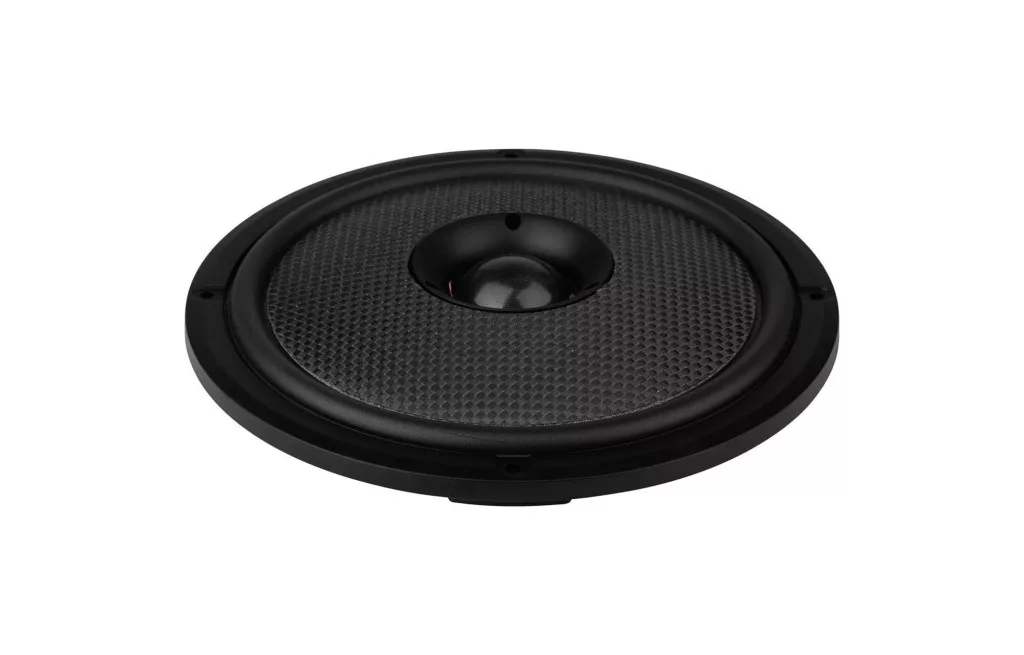

Morel PowerSlim 6 Integra Slim 6" Coaxial Driver
The Integra point-source speaker designs are one of many technologies synonymous with the Morel brand. Morel's Integra design provides audible acoustical benefits and unsurpassed installation flexibility. Let’s look at how the unique point-source design benefits music enthusiasts of all genres. Its design leverages Morel’s craftsmanship and engineering technology employing some of Morel’s renowned traits along with some new ones.
The Z.P.I (Zero Point Integra) patent pending, single magnet dual motor drive technology combines a phase aligned tweeter in the center of the woofer to offer a natural sound reproduction and better tonal balance throughout the audible frequency range. The “Grand-dome” convex shaped cone made of highly damped sandwich hybrid carbon fiber provides wide-dispersion and excellent on and off-axis response qualities.
The woofer’s External Voice Coil (EVC™) motor features a highly efficient neodymium magnetic system and 2.1" diameter voice coil to enable high power handling and linear movement for superior resolution to other designs. Additionally an all a new handcrafted 1.1" Acuflex™ soft dome tweeter was developed to deliver a smooth, natural sound signature for the entire system.
Article numberPowerSlim6 Integra
EAN0848864057118
Woofer TypeUltra Slim Mid-Woofer
Nominal Diameter160 mm, 6.3 inch
Power Handling (RMS)70 Watt
Power Handling (max)160 Watt (10 ms)
Impedance (Z)6 Ohm
Sensitivity (SPL at 1m / 2.83V)89 dB
Voice Coil Diameter54 mm
DC Resistance (Re)4 Ohm
Resonant Frequency (Fs)75 Hz
Mechanical Q (Qms)3.16
Electromagnetic Q (Qes)0.98
Total Q (Qts)0.75
Diaphragm Mass Inc. Airload (Mms)12.46 g
Mechanical Compliance of Suspension (Cms)0.35 mm/N
Surface Area of Cone (Sd)113 cm2
BL Product (BL)4.24 T
Compliance Equivalent Volume (Vas)6.27 Liters
Maximum Linear Excursion (Xmax)6.5 mm
Driver's Mechanical Losses (Rms)1.88 Ohm/M
Cone / Diaphragm MaterialCarbon sandwich 3 layer cone
Voice Coil Wire MaterialHexatech™ Aluminum
Voice Coil FormerAluminium
Overall Outside Diameter160 mm, 6.3 Inch

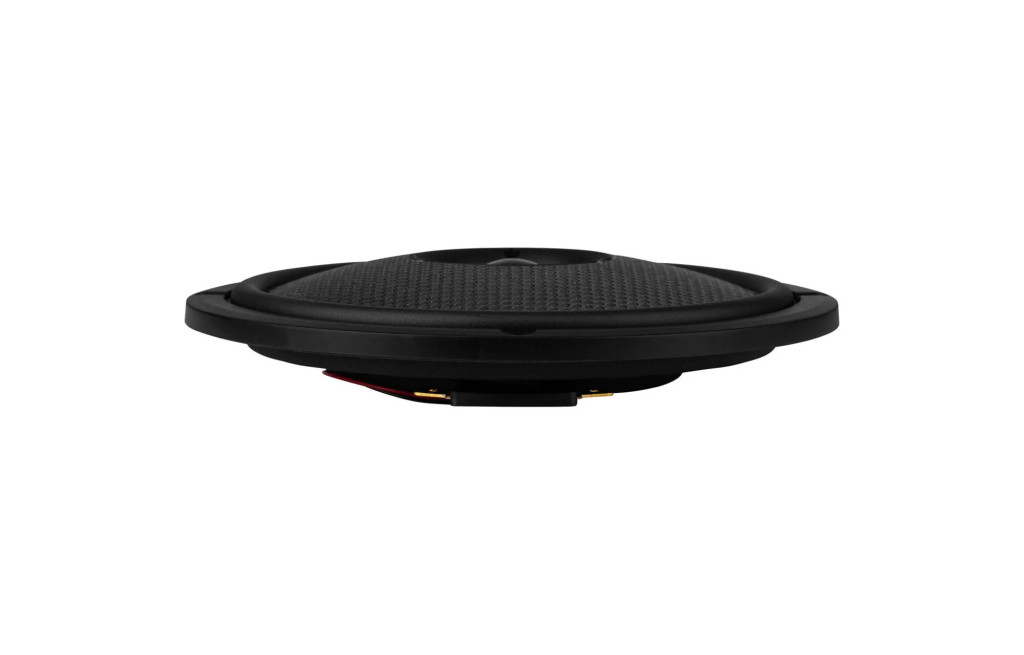

Overall Depth16.7 mm, 0,65 inch
Baffle Cutout Diameter134 mm
# Mounting Holes4
Mounting Hole Diameter3 mm
