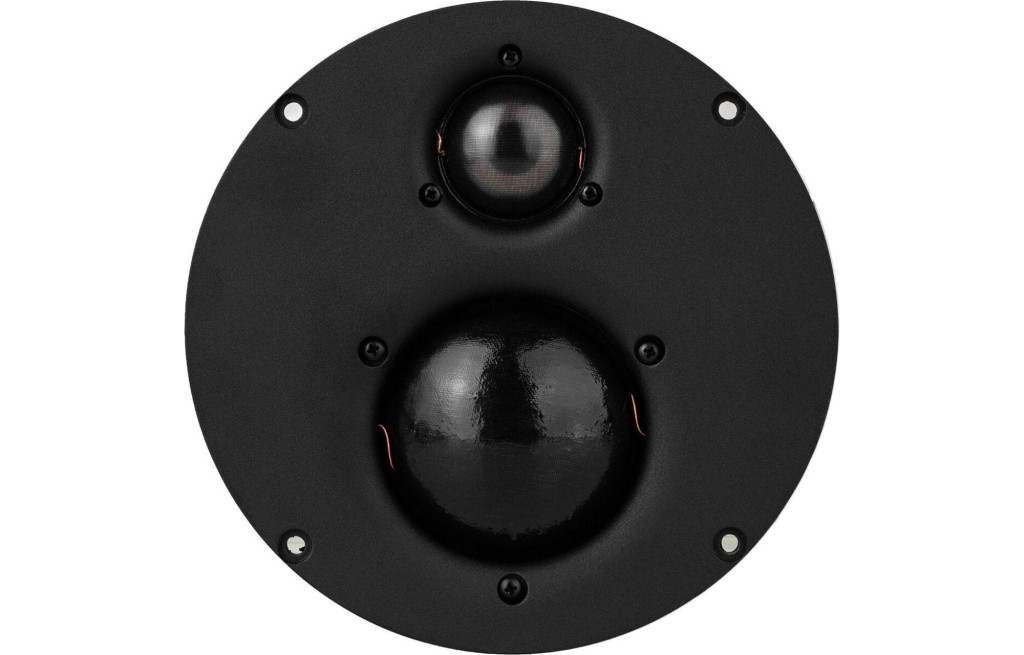

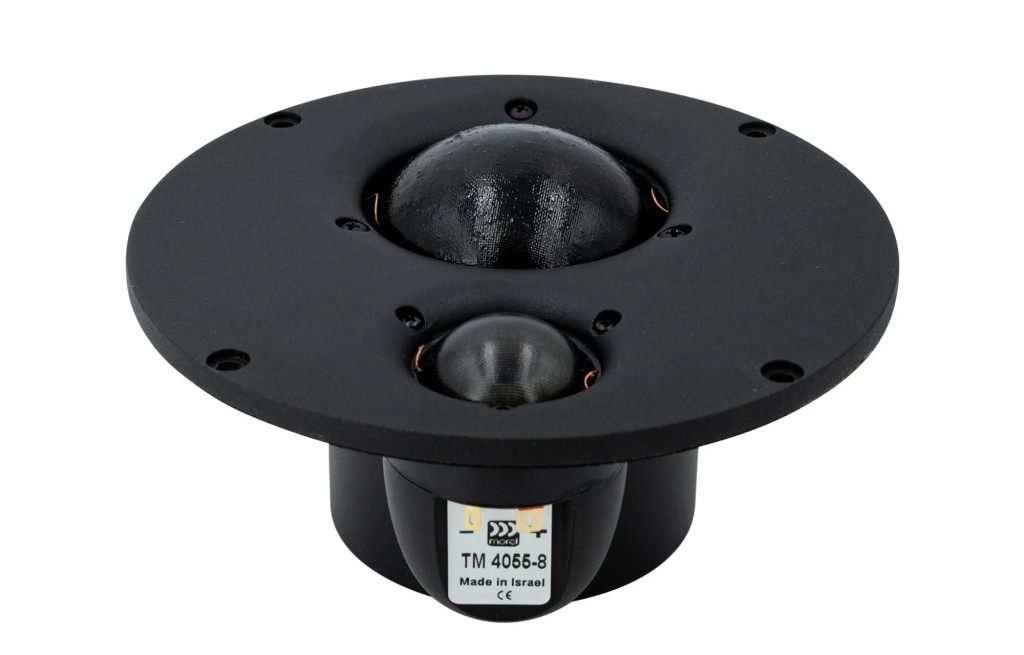

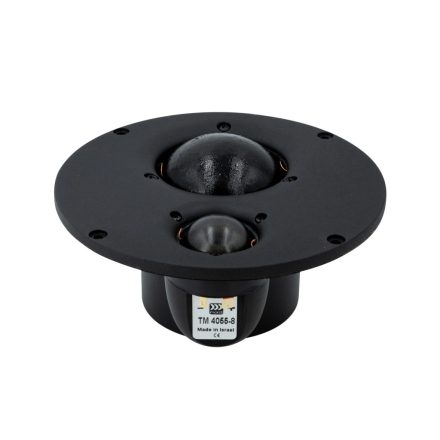

TM4055-8 2" Midrange and 1-1/8" Tweeter Speaker Plate

The Morel TM4055-8, lovingly referred to as the TweeMid, is an exquisite pairing of a 2" dome midrange, and a 1-1/8" dome tweeter on an easy to install plate. These drivers are designed to be paired in close proximity to each other, and offer a very flat summed response with excellent on and off axis response.

Highlights

• Optimized proximity of tweeter and midrange
• Excellent on and off-axis response
• Easily allows for horizontal or vertical installation
• Fits cut outs for Morel 5" woofers

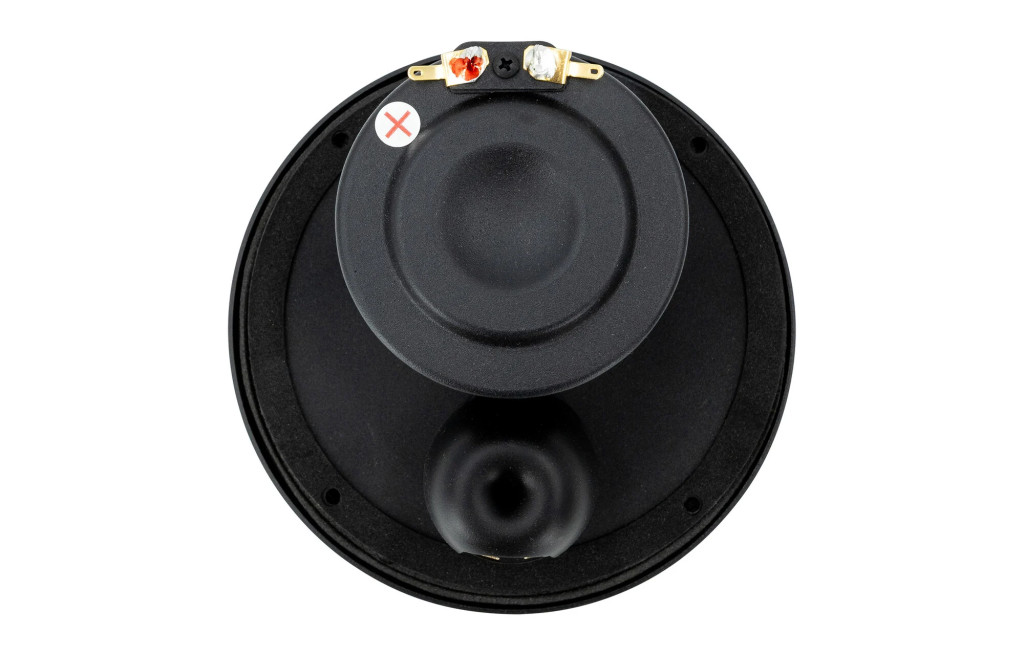

• Internally damped, aluminum rear chamber
• 2.1" Acuflex™ hand coated soft dome midrange

Product details

Morel TM4055-8 2" Midrange and 1-1/8" Tweeter Speaker Plate

The Morel TM4055-8, lovingly referred to as the TweeMid, is an exquisite pairing of a 2" dome midrange, and a 1-1/8" dome tweeter on an easy to install plate. These drivers designed to be paired in close proximity to each other and offer a very flat summed response with excellent on and off axis response. The hand coated Acuflex soft dome midrange provides a fantastic blend of articulation and relatively low resonant frequency. The excellent on and off axis response makes choosing a mounting location less imperative than most drivers.

2" Midrange:

Specifications: • Power handling: 200 watts RMS/1000 watts max • VCdia: 2.1" • Le: 0.17 mH • Impedance: 8 ohms • Re: 6.5 ohms • Frequency response: 365-4,200 Hz • Fs: 365 Hz • SPL: 86.5 dB 2.83V/1m • Vas: 0.03 cu. ft. (0.08 liters) • Qms: 0.84 • Qes: 1.32 • Qts: 0.51 • Xmax: 1.0 mm

1-1/8" Tweeter:

Specifications: • Power handling: 120 watts RMS/1000 watts max • VCdia: 1" • Le: 0.07 mH @ 10 kHz • Impedance: 8 ohms • Re: 5.42 ohms • Frequency response: 640-20,000 Hz • Fs: 640 Hz • SPL: 86.5 dB 2.83V/1m • Qms: 1.28 • Qes: 1.55 • Qts: 0.70.
