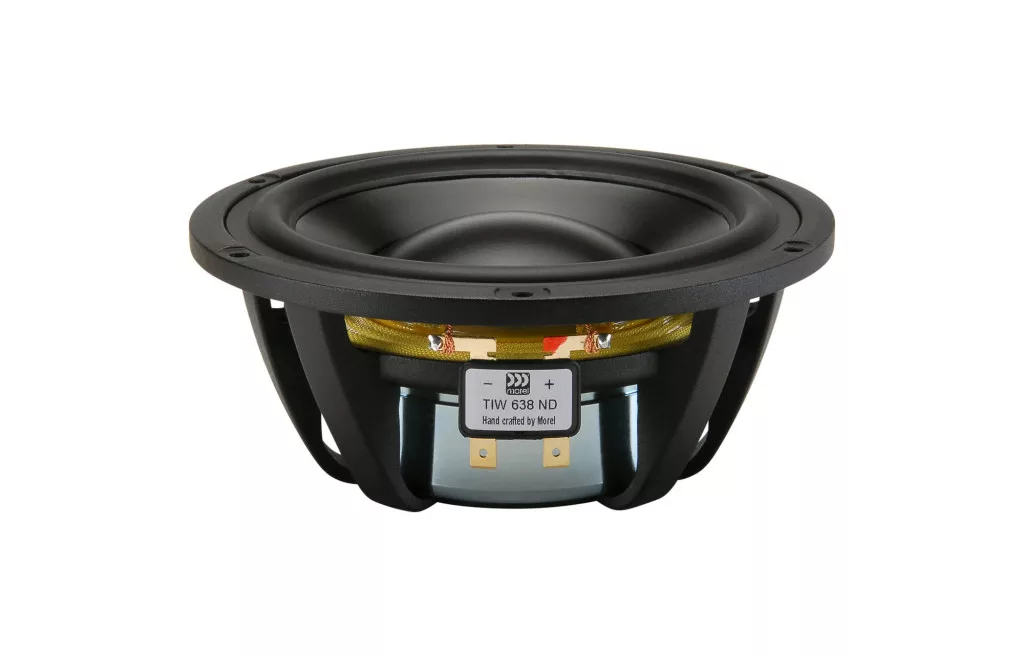

TiW 638Nd Titanium Series Hybrid 6" Woofer 8 Ohm
TiW 638Nd Titanium Series Hybrid 6" Woofer 8 Ohm
220.86 € excl. VAT

TiW 638Nd Titanium Series Hybrid 6" Woofer 8 Ohm

TiW 638Nd Titanium Series Hybrid 6" Woofer 8 Ohm
TiW 638Nd Titanium Series Hybrid 6" Woofer 8 Ohm
TiW 638Nd Titanium Series Hybrid 6" Woofer 8 Ohm
Shipping within (if available from supplier)
4-5 working days
Manufacturer
Morel
Orderable
220.86 € excl. VAT
Details

For serious speaker builders that demand the world's best drivers, look no further than Morel's Titanium Advanced woofer series. The 6" TiW 638Nd features a 3" Hexatech voice coil on a titanium bobbin for ultra-quick transient response and a Uniflow chassis for reduced power compression.



Highlights

  • Open Uniflow aluminum diecast chassis for reduced reflections
  • Hybrid neodymium/ferrite magnet ferrite system
  • Titanium coil bobbin for low energy storage
  • 3" Hexatech aluminum voice coil
  • High 1,000W instantaneous power handling



Product details

Morel TiW 638Nd Titanium Series Hybrid 6" Woofer 8 Ohm



Since 1975, Morel has been on an ever-evolving quest to create the perfect, ultimate loudspeaker. This dedication is apparent in every product they produce: tweeters, midranges, woofers, and finished systems that serve the Hi-Fi, home theater, and car audio markets. Morel systems are today sold in more than 55 countries around the globe. Their products are made with exceptional care; each is assembled by hand and extensively tested, undergoing seven different quality assurance steps, to ensure only the highest standards are met.



Morel Titanium Advanced Series

The Titanium Advanced woofer series from Morel is the latest leap forward in woofer design. Huge 3" Hexatech™ aluminum voice coils (that use hexagonal shaped wire for high sensitivity and power handling) are wound onto titanium bobbins for amazingly low energy storage, resulting in lightning quick transients for superior attack and decay transients. Qms is also raised and allows for a wider range of enclosure options. Three magnetic systems are available: dual ferrite, Hybrid™ neodymium/ferrite, and Hybrid™ neodymium/ferrite with a Coppersleeve Neolin™ motor. Each is available in 4 and 8 ohm impedance.



Uniflow­™ Aluminum Diecast Chassis

All of this wouldn't mean anything if the air swept by the driver got trapped in the motor or frame. Morel designed the Uniflow chassis to be as open and sonically transparent as possible. An over-sized vent on the pole piece, a frame-suspended spider, and exposed voice coil combine to virtually eliminate reflections and output-robbing power compression. The Uniflow chassis also allows for the use of an over-sized spider for complete control of the over-sized voice coil.



The 6" TiW 638Nd woofer features a Hybrid neodymium/ferrite magnet system, 8-ohm impedance, and a unique, one-piece DPC (Damped Polymer Composite) cone that offers flat frequency response from 40 Hz to 4,500 Hz on-axis, and from 40 Hz to 4,000 Hz off-axis. Its large voice coil allows it to handle 10 ms peak power transients of up to 1,000 watts when used correctly.



Article numberTiW 638Nd
EAN0848864001975
Woofer SeriesMorel Titanium Former series
Woofer TypeMidwoofer
Nominal Diameter6"
Power Handling (RMS)150 Watts
Power Handling (max)1000 Watts
Impedance (Z)8 ohms
Sensitivity (SPL at 1m / 2.83V)87 dB
Frequency Response40 to 4,500 Hz
Voice Coil Diameter3"
DC Resistance (Re)5.4 ohms
Voice Coil Inductance (Le)0.53 mH
Resonant Frequency (Fs)36 Hz
Mechanical Q (Qms)3.4
Electromagnetic Q (Qes)0.39
Total Q (Qts)0.35
Diaphragm Mass Inc. Airload (Mms)17 gr
Mechanical Compliance of Suspension (Cms)1.07 mm/N
Surface Area of Cone (Sd)119 cm²
BL Product (BL)7.70 Tm
Compliance Equivalent Volume (Vas)0.74 ft.³
Maximum Linear Excursion (Xmax)5.25 mm
Cone / Diaphragm MaterialPoly Composite
Surround MaterialRubber
Voice Coil Wire MaterialAluminum
Voice Coil FormerTitanium
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium
Overall Outside Diameter6.3"
Overall Depth2.72"
Baffle Cutout Diameter5.51"
# Mounting Holes6
Sealed Volume0.17 ft.³
Sealed F382 Hz
Vented Volume0.37 ft.³
Vented F348 Hz
