HDS-P830860 5-1/4" PPB Cone Woofer
HDS-P830860 5-1/4" PPB Cone Woofer
48.04 € excl. VAT

HDS-P830860 5-1/4" PPB Cone Woofer

HDS-P830860 5-1/4" PPB Cone Woofer
HDS-P830860 5-1/4" PPB Cone Woofer
HDS-P830860 5-1/4" PPB Cone Woofer
HDS-P830860 5-1/4" PPB Cone Woofer
HDS-P830860 5-1/4" PPB Cone Woofer
HDS-P830860 5-1/4" PPB Cone Woofer
HDS-P830860 5-1/4" PPB Cone Woofer
HDS-P830860 5-1/4" PPB Cone Woofer
HDS-P830860 5-1/4" PPB Cone Woofer
HDS-P830860 5-1/4" PPB Cone Woofer
Peerless
Details
Shipping within (if available from supplier)
4-5 working days
Manufacturer
PeerlessbyTymphany
Further data
Orderable
48.04 € excl. VAT
Details
Woofer Type: Midwoofer
Nominal Diameter: 5-1/4"
Power Handling (RMS): 30 Watts
Power Handling (max): 60 Watts
Impedance (Z): 8 Ohms
Sensitivity: 85.8 dB 1W/1m

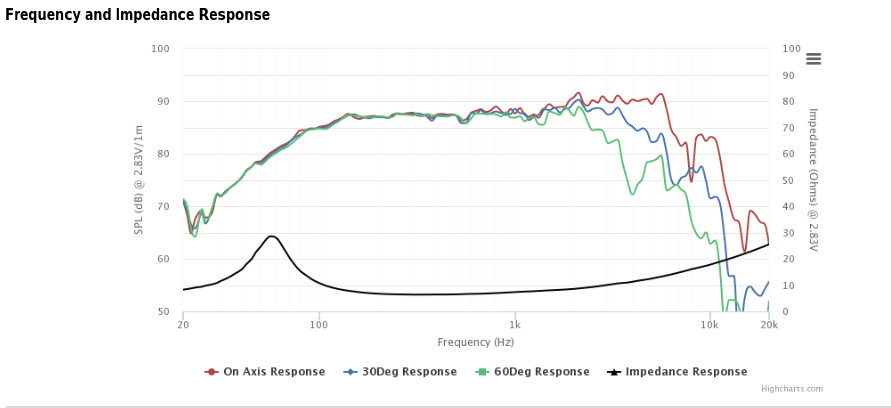

Frequency Response: 60 to 5,000 Hz
Voice Coil Diameter: 1"
DC Resistance (Re): 5.9 ohms
Voice Coil Inductance (Le): 0.27 mH
Resonant Frequency (Fs): 62 Hz
Mechanical Q (Qms): 2.21
Electromagnetic Q (Qes): 0.59
Total Q (Qts): 0.47
Diaphragm Mass Inc. Airload (Mms): 9g
Mechanical Compliance of Suspension (Cms): 0.74 mm/N
Surface Area of Cone (Sd): 89.9 cm²
BL Product (BL): 5.9 Tm
Compliance Equivalent Volume (Vas): 0.3 ft.³
Maximum Linear Excursion (Xmax): 3.5 mm
Cone / Diaphragm Material: Poly
Surround Material: Rubber
Basket / Frame Material: Cast Aluminum
Magnet Material: Ferrite

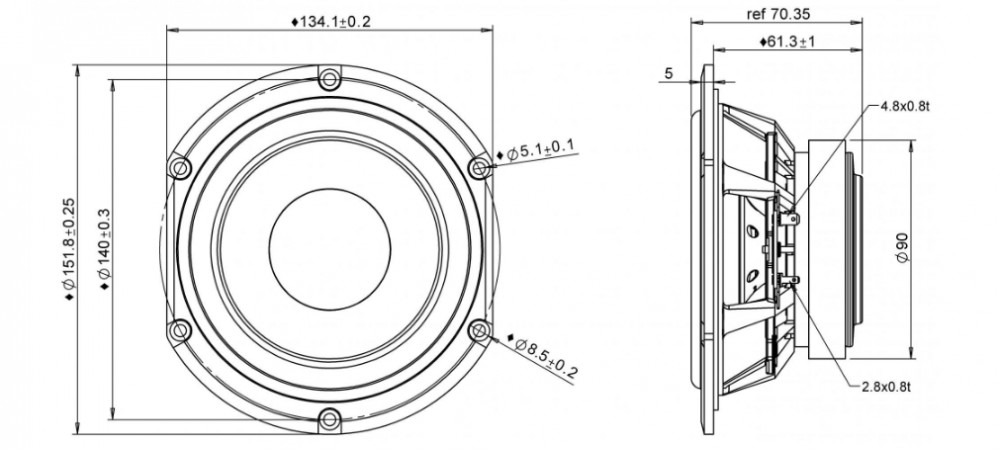

Overall Outside Diameter: 5.99"
Overall Depth: 2.76"
Baffle Cutout Diameter: 4.72"
# Mounting Holes: 6
