HDS-P830990 6-1/2" GFC Cone HDS Woofer
HDS-P830990 6-1/2" GFC Cone HDS Woofer
67.43 € excl. VAT

HDS-P830990 6-1/2" GFC Cone HDS Woofer

HDS-P830990 6-1/2" GFC Cone HDS Woofer
HDS-P830990 6-1/2" GFC Cone HDS Woofer
HDS-P830990 6-1/2" GFC Cone HDS Woofer
HDS-P830990 6-1/2" GFC Cone HDS Woofer
HDS-P830990 6-1/2" GFC Cone HDS Woofer
HDS-P830990 6-1/2" GFC Cone HDS Woofer
HDS-P830990 6-1/2" GFC Cone HDS Woofer
HDS-P830990 6-1/2" GFC Cone HDS Woofer
HDS-P830990 6-1/2" GFC Cone HDS Woofer
HDS-P830990 6-1/2" GFC Cone HDS Woofer
Peerless
Details
Shipping within (if available from supplier)
4-5 working days
Manufacturer
PeerlessbyTymphany
Further data
Orderable
67.43 € excl. VAT
Details
Woofer Type: Midwoofer
Nominal Diameter: 6-1/2"
Power Handling (RMS): 50 Watts
Power Handling (max): 100 Watts
Impedance (Z): 8 Ohms
Sensitivity: 88.4 dB 2.83V/1m

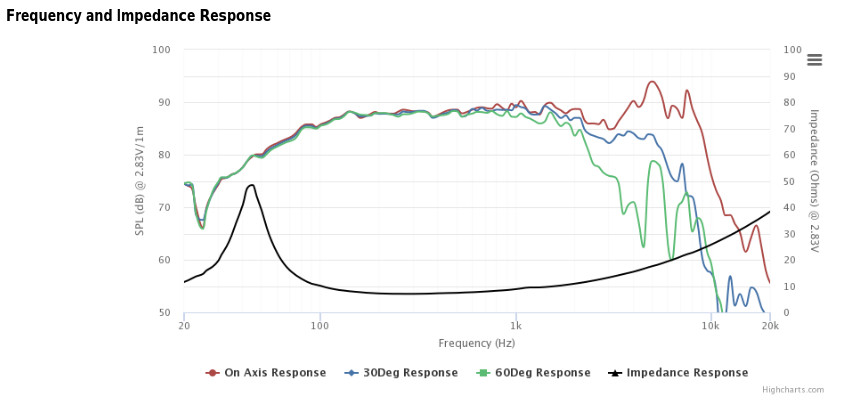

Frequency Response: 40 to 3,000Hz
Voice Coil Diameter: 1.25"
DC Resistance (Re): 6.2 ohms
Voice Coil Inductance (Le): 0.42 mH
Resonant Frequency (Fs): 46 Hz
Mechanical Q (Qms): 3.1
Electromagnetic Q (Qes): 0.44
Total Q (Qts): 0.39
Diaphragm Mass Inc. Airload (Mms): 16.97g
Mechanical Compliance of Suspension (Cms): 0.7 mm/N
Surface Area of Cone (Sd): 143.1 cm²
BL Product (BL): 8.32 Tm
Compliance Equivalent Volume (Vas): 0.71 ft.³
Maximum Linear Excursion (Xmax): 5.34 mm
Cone / Diaphragm Material: Fiberglass
Surround Material: Rubber
Basket / Frame Material: Cast Aluminum
Magnet Material: Ferrite

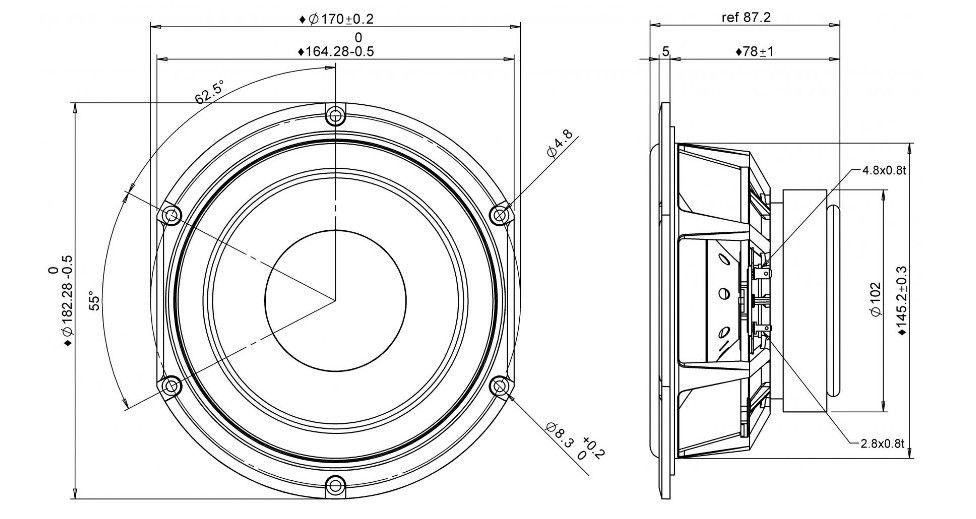

Overall Outside Diameter: 6.69"
Overall Depth: 3.47"
Baffle Cutout Diameter: 5.75"
# Mounting Holes: 6
