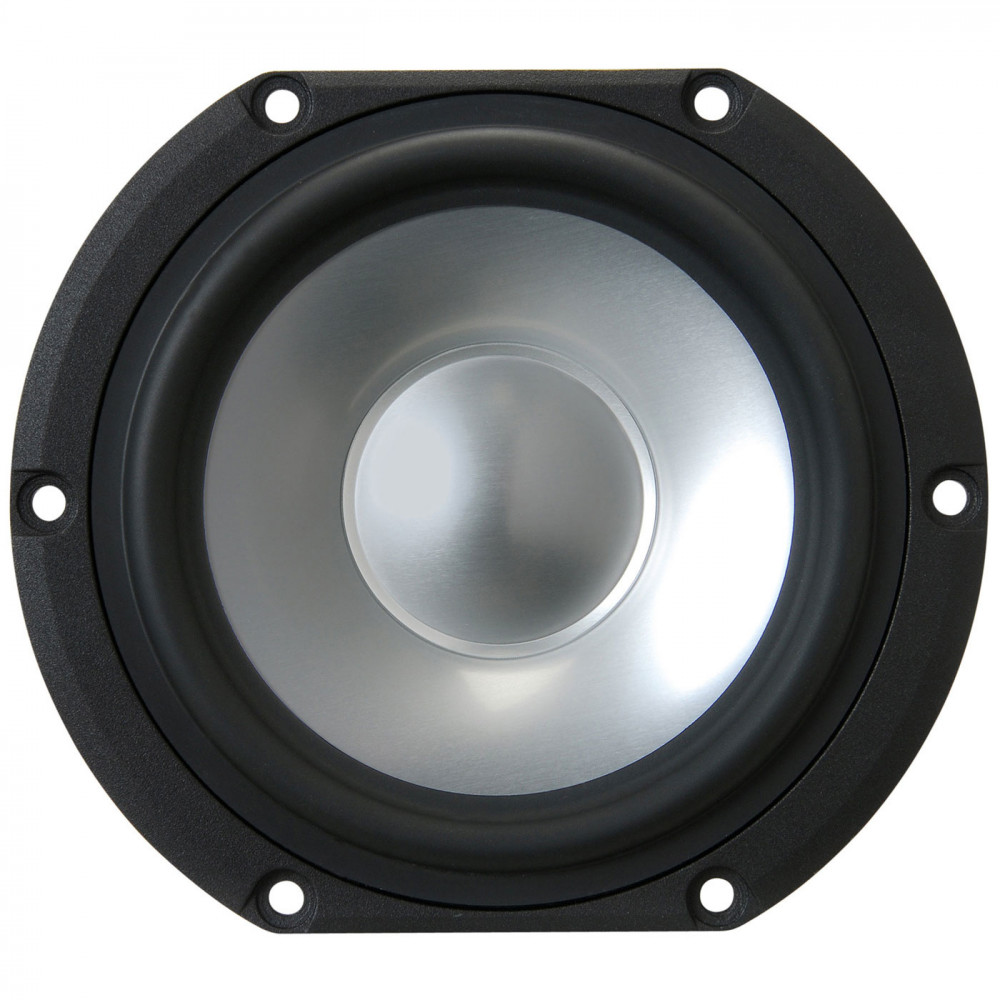

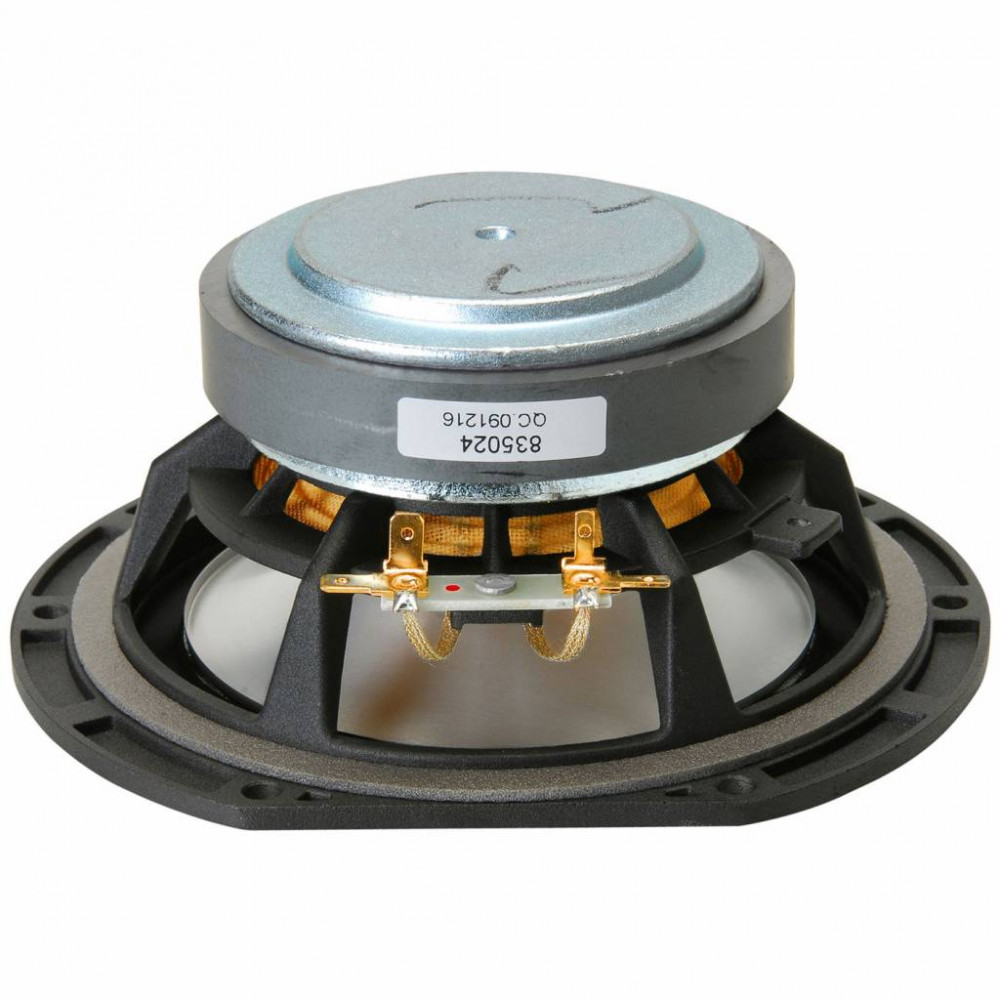

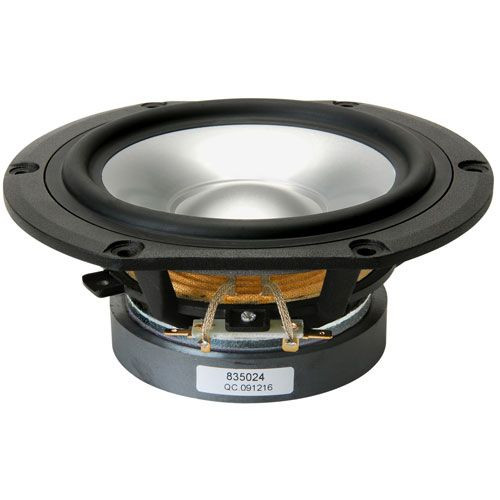

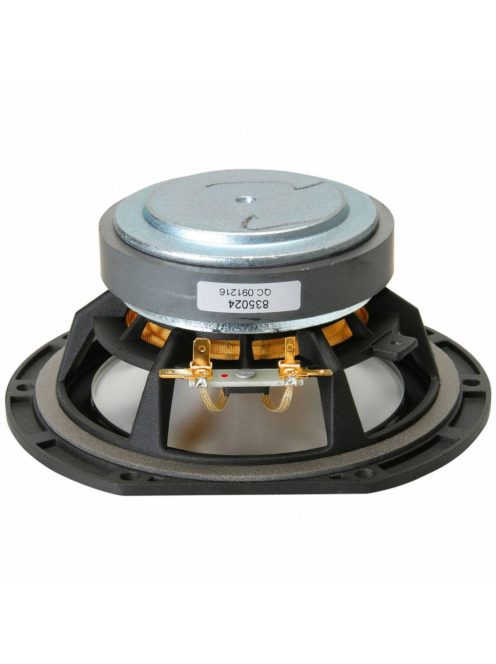

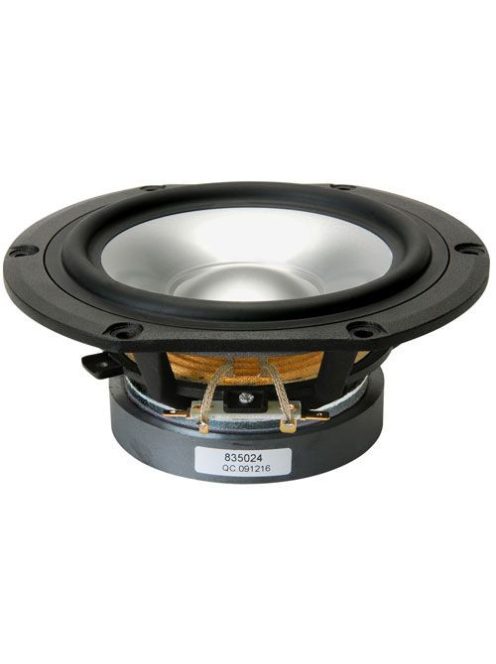

HDS-P835024 5-1/4" Aluminum Cone HDS Woofer
HDS-P835024 5-1/4" Aluminum Cone HDS Woofer
50.57 € excl. VAT

HDS-P835024 5-1/4" Aluminum Cone HDS Woofer

HDS-P835024 5-1/4" Aluminum Cone HDS Woofer
HDS-P835024 5-1/4" Aluminum Cone HDS Woofer
HDS-P835024 5-1/4" Aluminum Cone HDS Woofer
HDS-P835024 5-1/4" Aluminum Cone HDS Woofer
HDS-P835024 5-1/4" Aluminum Cone HDS Woofer
HDS-P835024 5-1/4" Aluminum Cone HDS Woofer
HDS-P835024 5-1/4" Aluminum Cone HDS Woofer
HDS-P835024 5-1/4" Aluminum Cone HDS Woofer
HDS-P835024 5-1/4" Aluminum Cone HDS Woofer
HDS-P835024 5-1/4" Aluminum Cone HDS Woofer
Peerless
Details
Shipping within (if available from supplier)
4-5 working days
Manufacturer
PeerlessbyTymphany
Further data
Orderable
50.57 € excl. VAT
Details
Woofer Type: Midwoofer
Nominal Diameter: 5-1/4"
Power Handling (RMS): 30 Watts
Power Handling (max): 60 Watts
Impedance (Z): 8 Ohms
Sensitivity: 86.1 dB 2.83V/1m

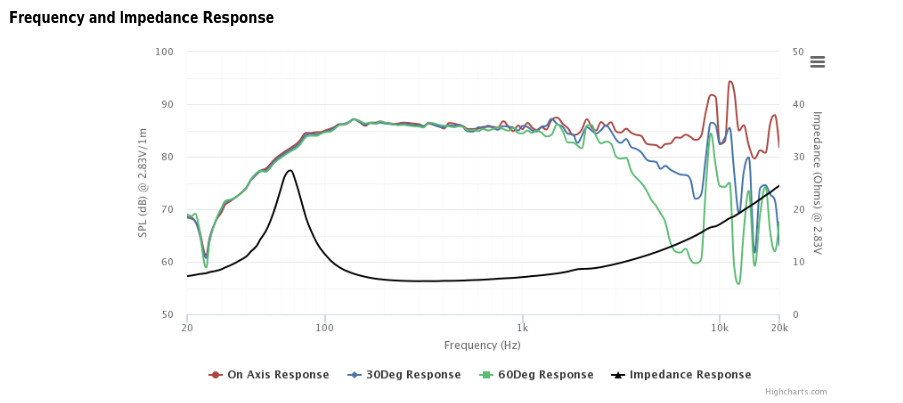

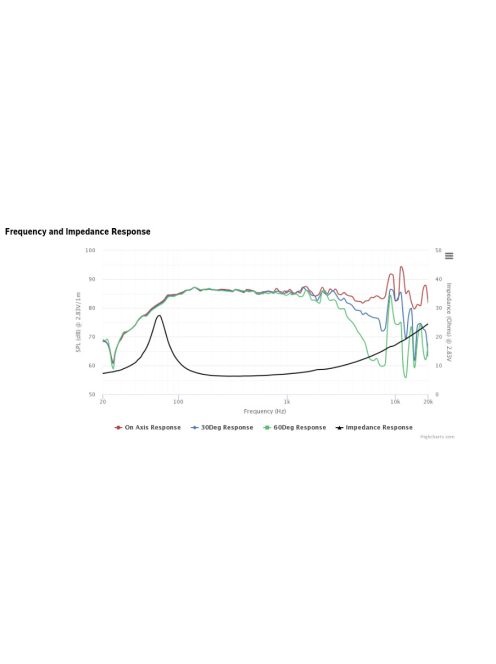

Frequency Response: 60 to 5,000Hz
Voice Coil Diameter: 1"
DC Resistance (Re): 5.9 ohms
Voice Coil Inductance (Le): 0.24 mH
Resonant Frequency (Fs): 72 Hz
Mechanical Q (Qms): 3.18
Electromagnetic Q (Qes): 0.82
Total Q (Qts): 0.65
Diaphragm Mass Inc. Airload (Mms): 10.6g
Mechanical Compliance of Suspension (Cms): 0.46 mm/N
Surface Area of Cone (Sd): 91.6 cm²
BL Product (BL): 5.88 Tm
Compliance Equivalent Volume (Vas): 0.19 ft.³
Maximum Linear Excursion (Xmax): 3.5 mm
Cone / Diaphragm Material: Aluminum
Surround Material: Rubber
Basket / Frame Material: Cast Aluminum
Magnet Material: Ferrite

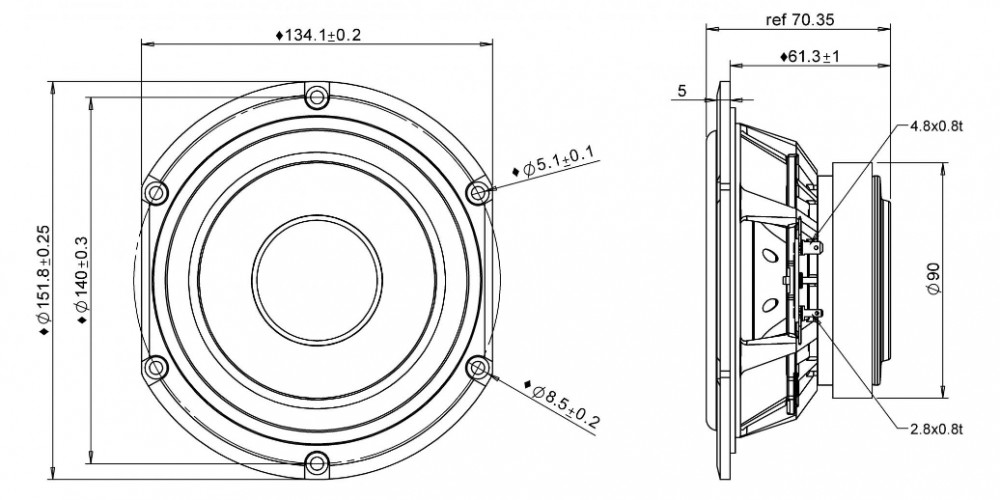

Overall Outside Diameter: 6"
Overall Depth: 2.77"
Baffle Cutout Diameter: 4.75"
# Mounting Holes: 6
