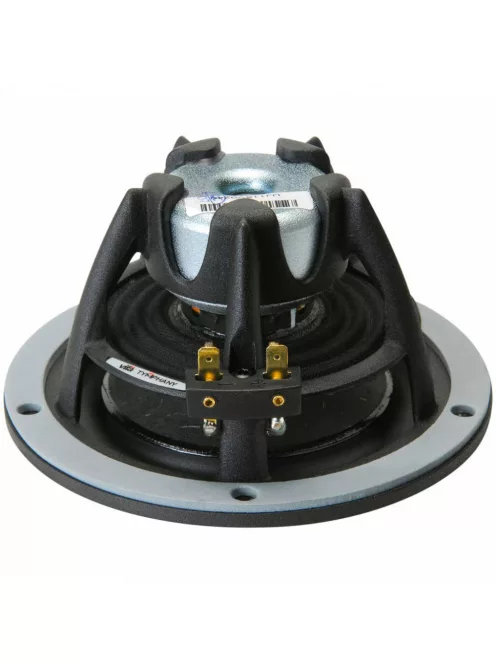

NE123W-08 4" Full Range Woofer

75.87 € excl. VAT

NE123W-08 4" Full Range Woofer

Name: NE123W-08 4" Full Range Woofer
Brand: PeerlessbyTymphany
SKU: PEE-NE123W-08
Price: 96.35 EUR
Availability: InStock

Peerless

Details

Shipping within (if available from supplier)

4-5 working days

Manufacturer

PeerlessbyTymphany

Further data

Orderable

75.87 € excl. VAT

Details

Woofer Type: Full Range Woofer

Nominal Diameter: 4"

Power Handling (RMS): 45 Watts

Power Handling (max): 90 Watts

Impedance (Z): 8 ohms

Sensitivity: 86.2 dB 1W/1m

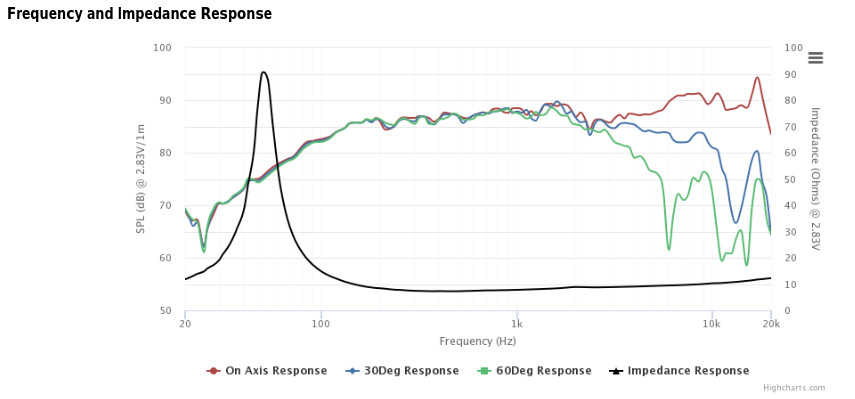

Frequency Response: 60 to 8,000 Hz

Voice Coil Diameter: 1.28"

DC Resistance (Re): 6.3 ohms

Voice Coil Inductance (Le): 0.06 mH

Resonant Frequency (Fs): 61 Hz

Mechanical Q (Qms): 4.98

Electromagnetic Q (Qes): 0.37

Total Q (Qts): 0.35

Diaphragm Mass Inc. Airload (Mms): 4.7g

Mechanical Compliance of Suspension (Cms): 1.43 mm/N

Surface Area of Cone (Sd): 54.1 cm²

BL Product (BL): 5.53 Tm

Compliance Equivalent Volume (Vas): 0.21 ft.³

Maximum Linear Excursion (Xmax): 3.1 mm

Cone / Diaphragm Material: Wood Fiber

Surround Material: Rubber

Basket / Frame Material: Cast Aluminum

Magnet Material: Neodymium

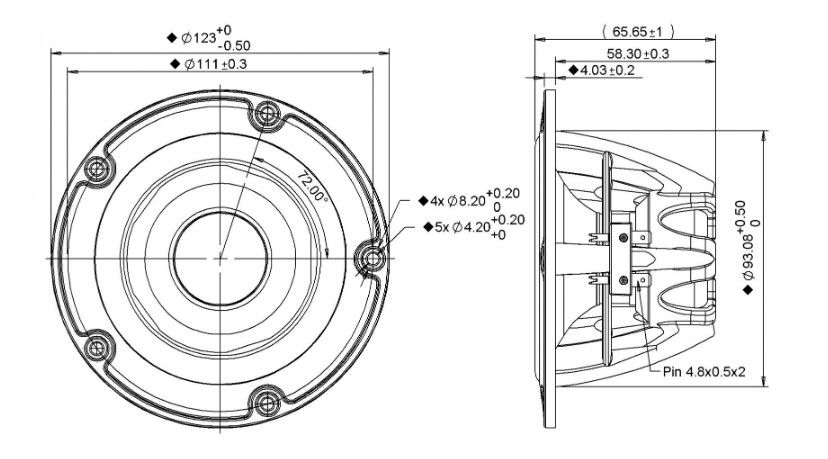

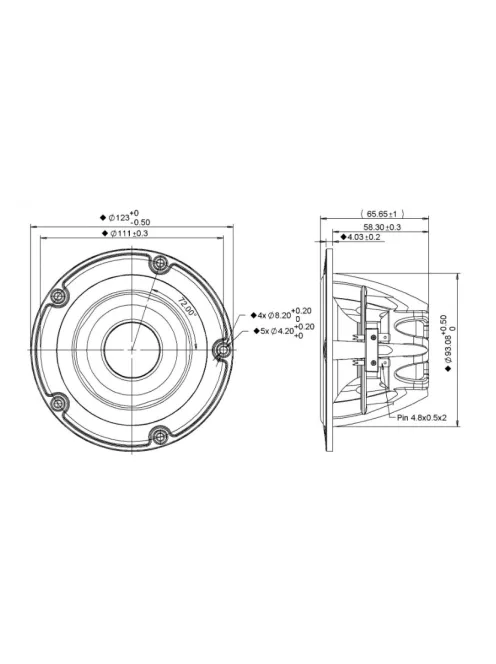

Overall Outside Diameter: 4.84"

Overall Depth: 2.58"

Baffle Cutout Diameter: 3.86"

# Mounting Holes: 5
