NE149W-08 5-1/4" Woofer
NE149W-08 5-1/4" Woofer
101.17 € excl. VAT

NE149W-08 5-1/4" Woofer

NE149W-08 5-1/4" Woofer
NE149W-08 5-1/4" Woofer
NE149W-08 5-1/4" Woofer
NE149W-08 5-1/4" Woofer
NE149W-08 5-1/4" Woofer
NE149W-08 5-1/4" Woofer
NE149W-08 5-1/4" Woofer
NE149W-08 5-1/4" Woofer
NE149W-08 5-1/4" Woofer
NE149W-08 5-1/4" Woofer
Peerless
Details
Shipping within (if available from supplier)
4-5 working days
Manufacturer
PeerlessbyTymphany
Further data
Orderable
101.17 € excl. VAT
Details
Woofer Type: Woofer
Nominal Diameter: 5-1/4"
Power Handling (RMS): 60 Watts
Power Handling (max): 120 Watts
Impedance (Z): 8 ohms
Sensitivity: 86 dB 1W/1m

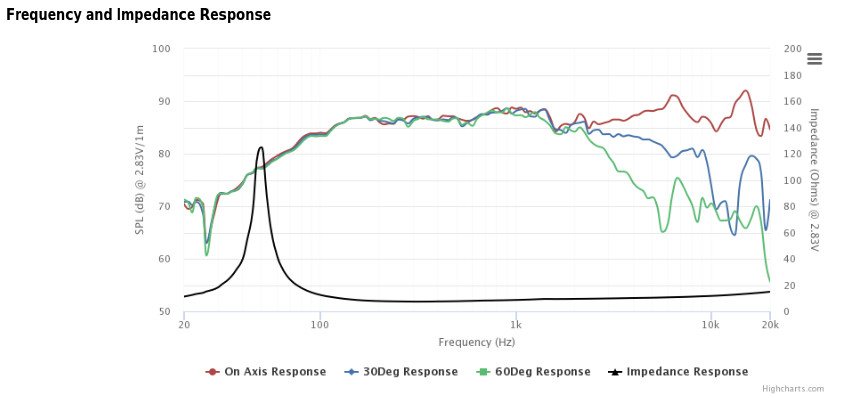

Frequency Response: 50 to 5,000 Hz
Voice Coil Diameter: 1.5"
DC Resistance (Re): 6.3 ohms
Voice Coil Inductance (Le): 0.08 mH
Resonant Frequency (Fs): 54 Hz
Mechanical Q (Qms): 8.19
Electromagnetic Q (Qes): 0.4
Total Q (Qts): 0.38
Diaphragm Mass Inc. Airload (Mms): 10.3g
Mechanical Compliance of Suspension (Cms): 0.84 mm/N
Surface Area of Cone (Sd): 85 cm²
BL Product (BL): 7.42 Tm
Compliance Equivalent Volume (Vas): 0.3 ft.³
Maximum Linear Excursion (Xmax): 5 mm
Cone / Diaphragm Material: Wood Fiber
Surround Material: Rubber
Magnet Material: Neodymium

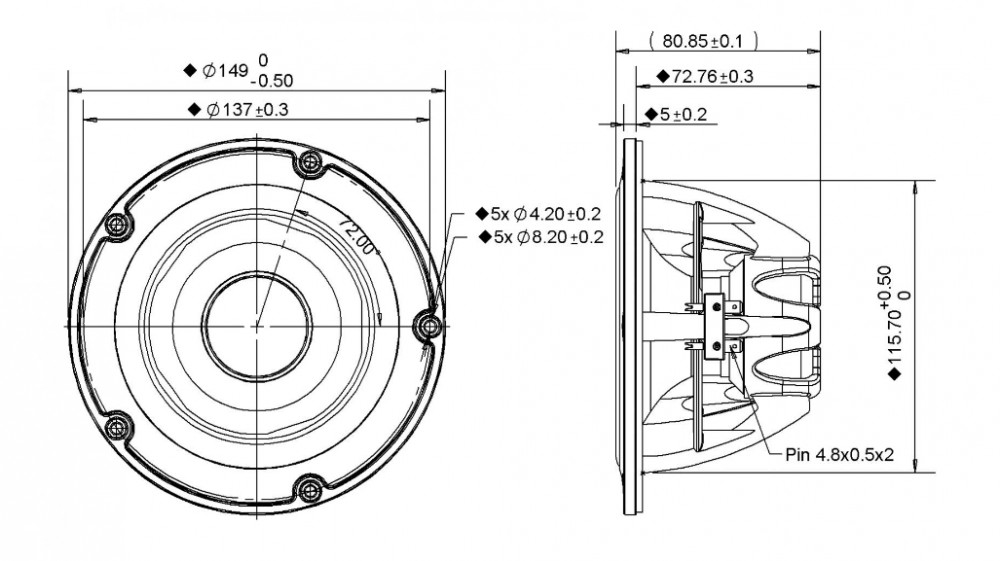

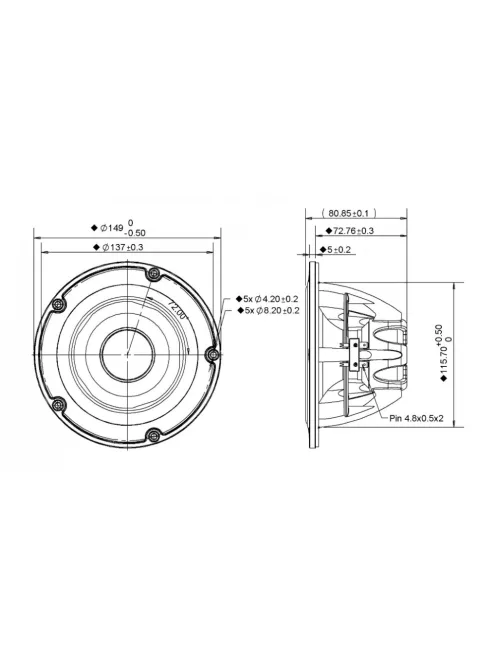

Overall Outside Diameter: 5.39"
Overall Depth: 3.18"
Baffle Cutout Diameter: 4.92"
# Mounting Holes: 5
