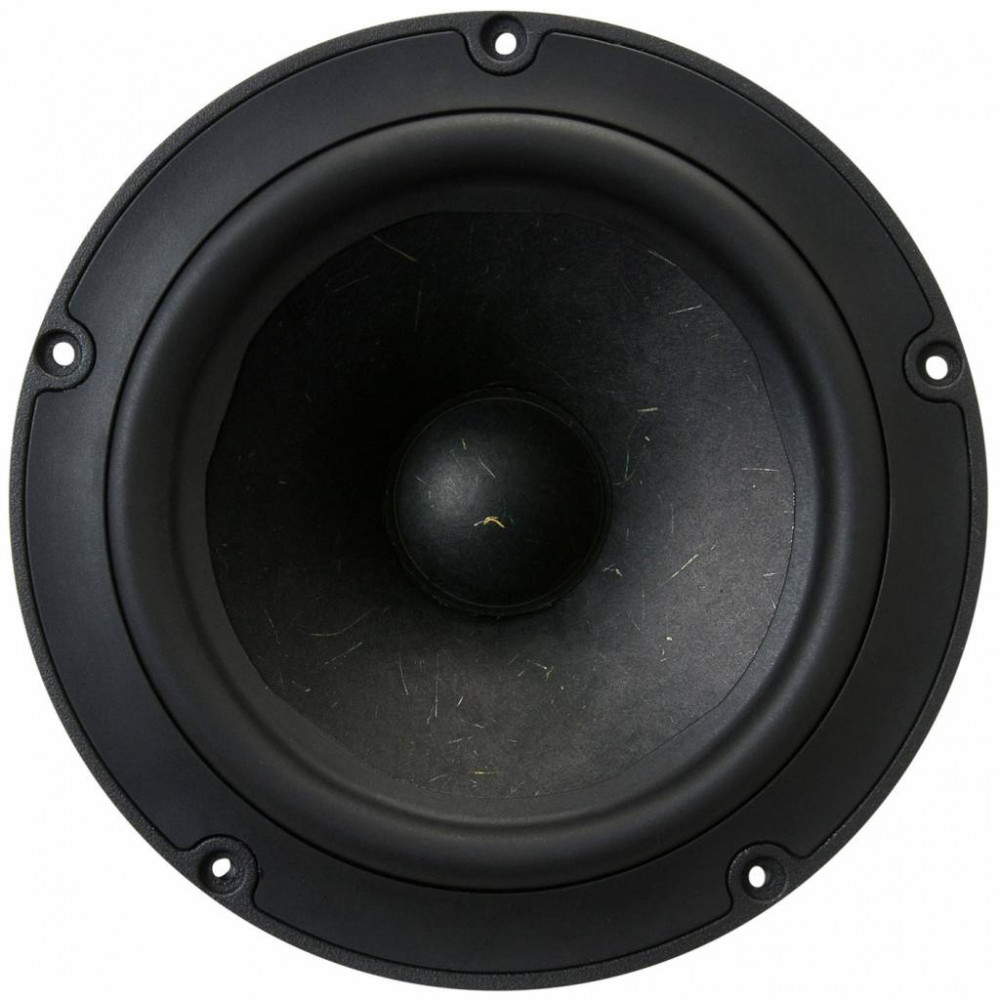

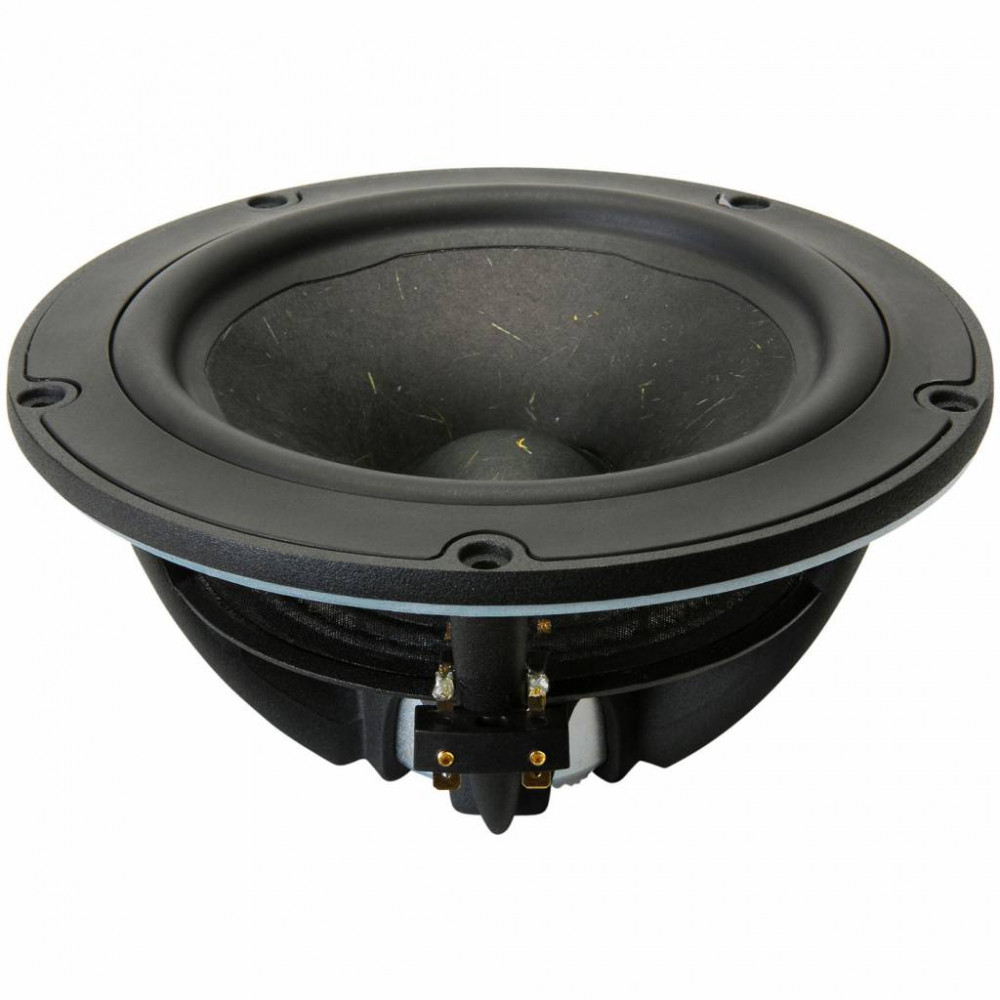

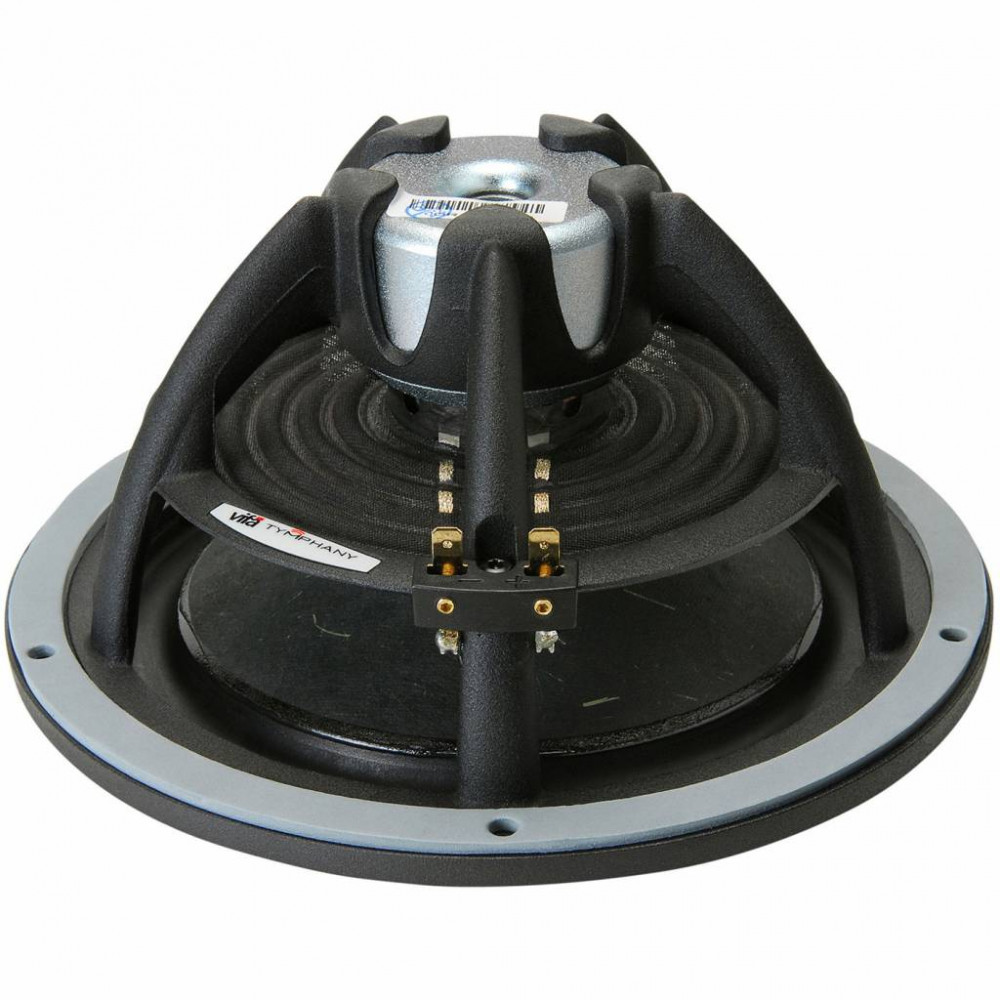

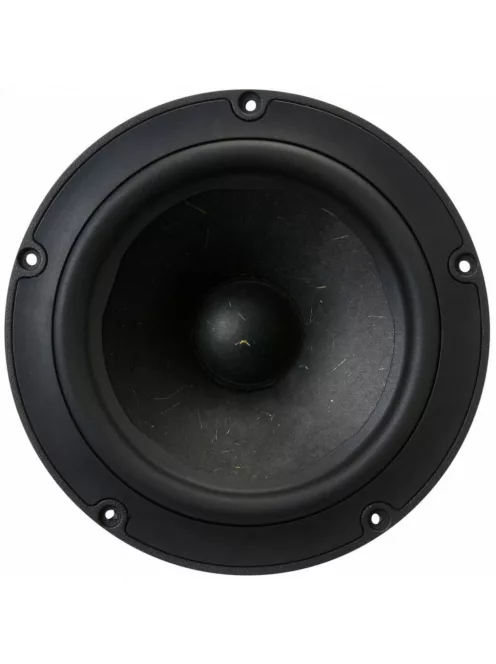

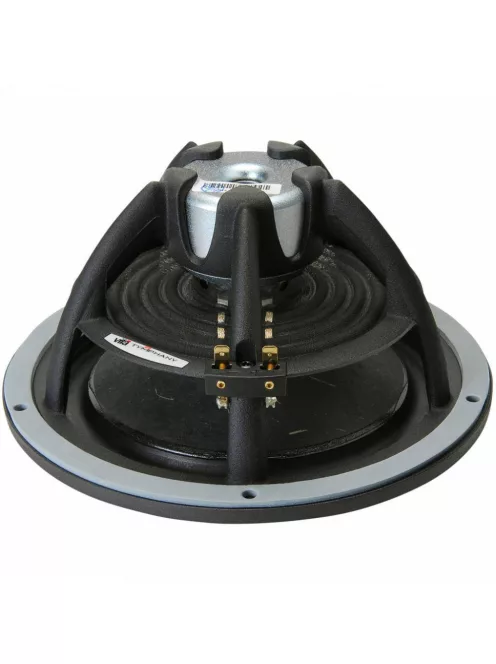

NE180W-08 6-1/2" Woofer
NE180W-08 6-1/2" Woofer
101.17 € excl. VAT

NE180W-08 6-1/2" Woofer

NE180W-08 6-1/2" Woofer
NE180W-08 6-1/2" Woofer
NE180W-08 6-1/2" Woofer
NE180W-08 6-1/2" Woofer
NE180W-08 6-1/2" Woofer
NE180W-08 6-1/2" Woofer
NE180W-08 6-1/2" Woofer
NE180W-08 6-1/2" Woofer
NE180W-08 6-1/2" Woofer
NE180W-08 6-1/2" Woofer
Peerless
Details
Shipping within (if available from supplier)
4-5 working days
Manufacturer
PeerlessbyTymphany
Further data
Orderable
101.17 € excl. VAT
Details
Woofer Type: Woofer
Nominal Diameter: 6-1/2"
Power Handling (RMS): 80 Watts
Power Handling (max): 160 Watts
Impedance (Z): 8 ohms
Sensitivity: 87.4 dB 2.83V/1m

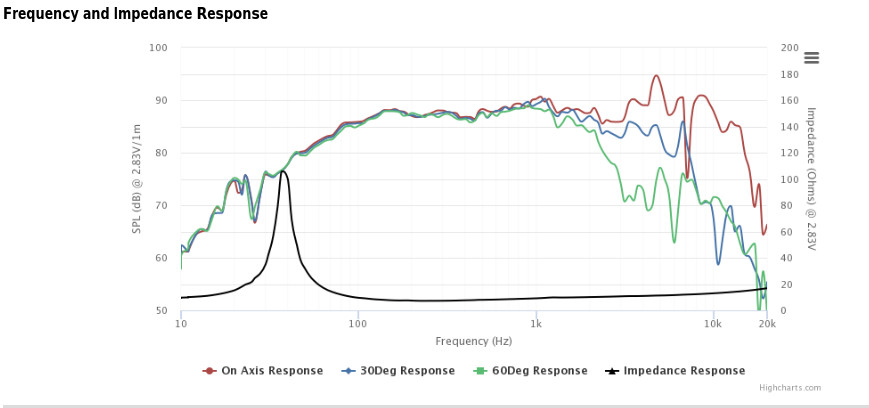

Frequency Response: 40 to 4,000 Hz
Voice Coil Diameter: 1.5"
DC Resistance (Re): 6.2 ohms
Voice Coil Inductance (Le): 0.12 mH
Resonant Frequency (Fs): 42 Hz
Mechanical Q (Qms): 7.4
Electromagnetic Q (Qes): 0.41
Total Q (Qts): 0.39
Diaphragm Mass Inc. Airload (Mms): 16.39g
Mechanical Compliance of Suspension (Cms): 0.86 mm/N
Surface Area of Cone (Sd): 136.9 cm²
BL Product (BL): 8.17 Tm
Compliance Equivalent Volume (Vas): 0.8 ft.³
Maximum Linear Excursion (Xmax): 5 mm
Cone / Diaphragm Material: Wood Fiber
Surround Material: Rubber
Basket / Frame Material: Cast Aluminum
Magnet Material: Neodymium

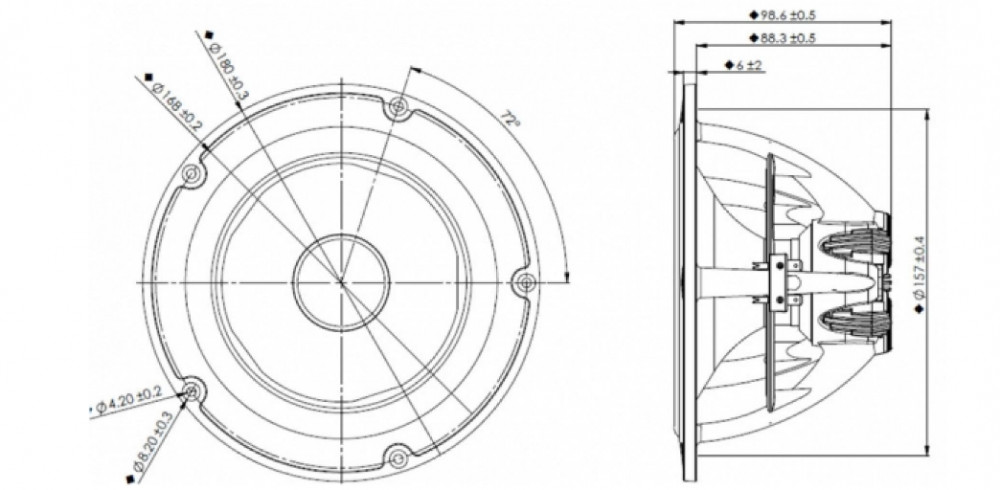

Overall Outside Diameter: 7.09"
Overall Depth: 3.65"
Baffle Cutout Diameter: 6.18"
# Mounting Holes: 5
Info
Article No.
PEE-NE180W-08
