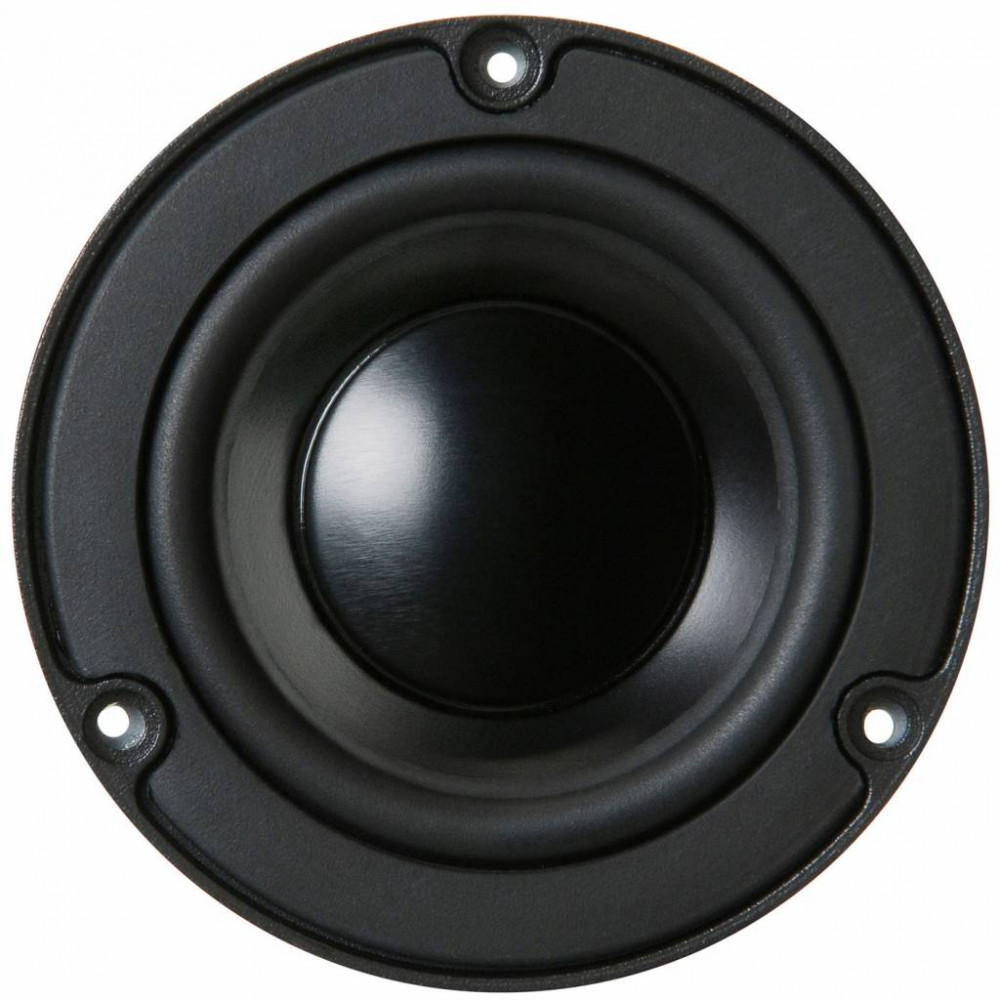

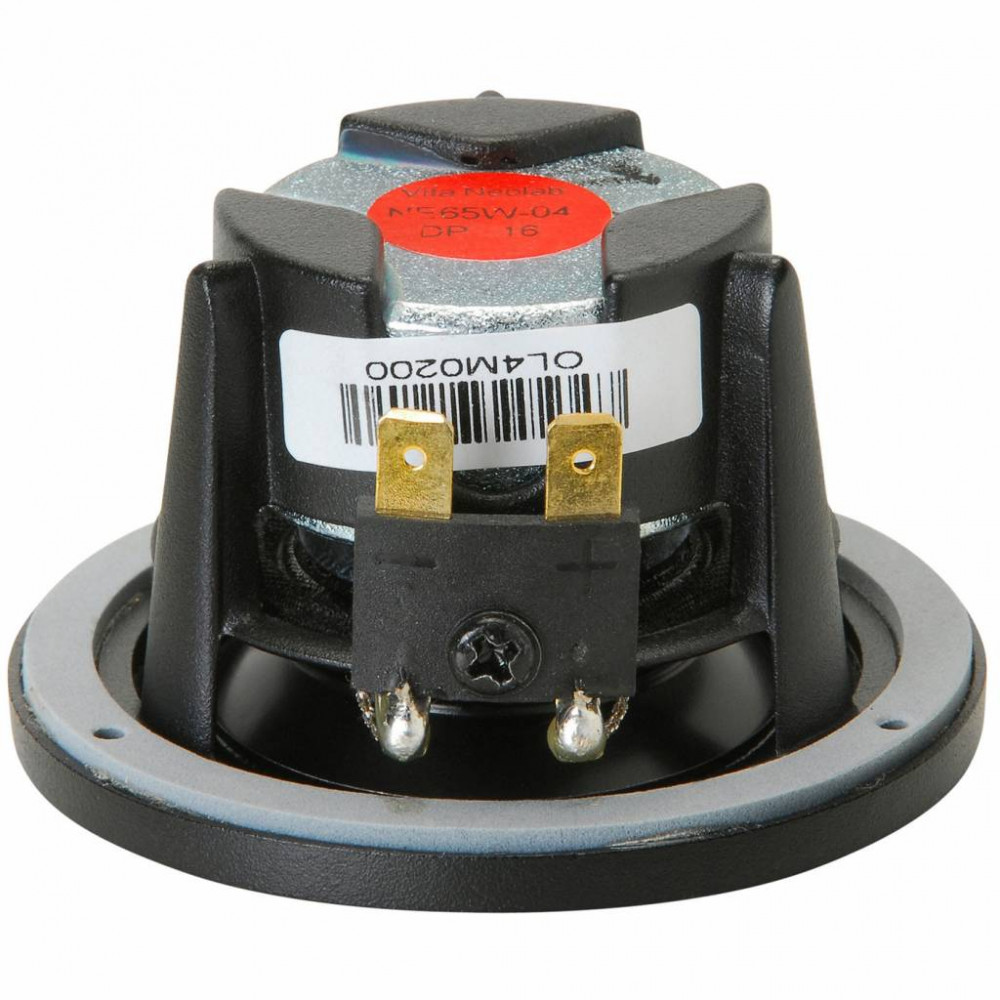

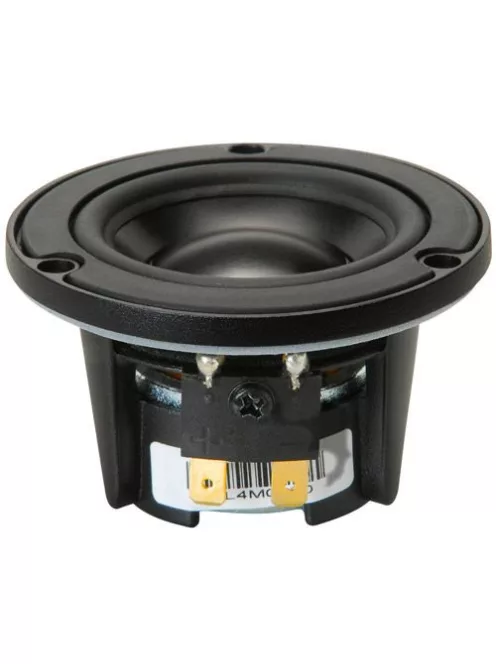

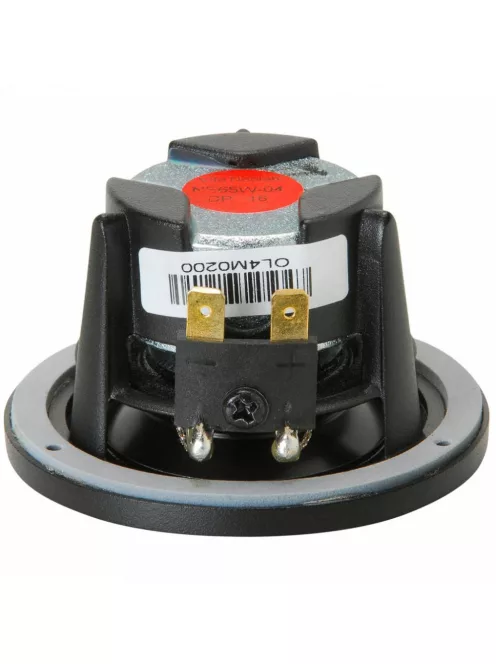

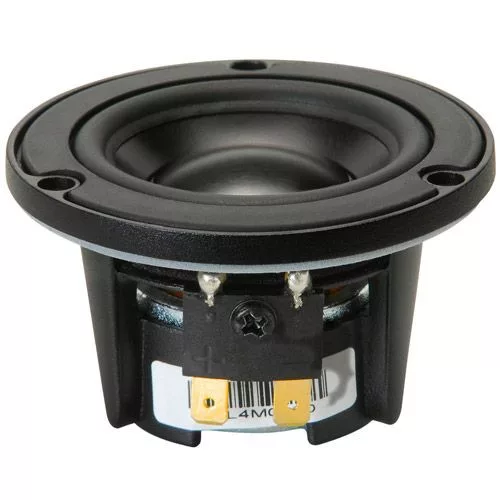

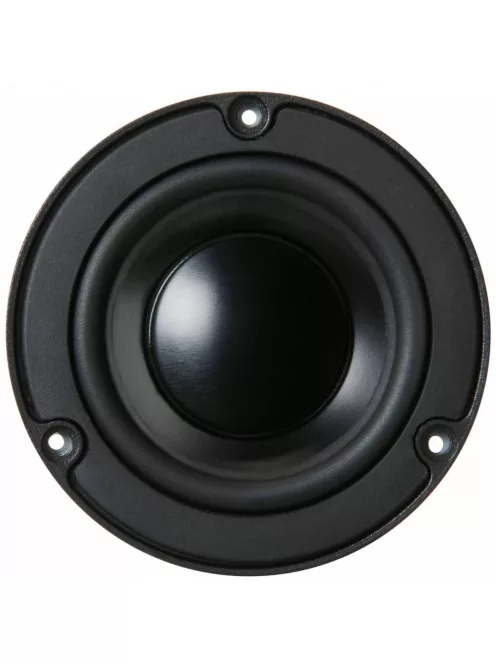

NE65W-04 2" Full Range Woofer
NE65W-04 2" Full Range Woofer
35.38 € excl. VAT

NE65W-04 2" Full Range Woofer

NE65W-04 2" Full Range Woofer
NE65W-04 2" Full Range Woofer
NE65W-04 2" Full Range Woofer
NE65W-04 2" Full Range Woofer
NE65W-04 2" Full Range Woofer
NE65W-04 2" Full Range Woofer
NE65W-04 2" Full Range Woofer
NE65W-04 2" Full Range Woofer
NE65W-04 2" Full Range Woofer
NE65W-04 2" Full Range Woofer
Peerless
Details
Shipping within (if available from supplier)
4-5 working days
Manufacturer
PeerlessbyTymphany
Further data
Orderable
35.38 € excl. VAT
Details
Woofer Type: Full-range
Nominal Diameter: 2"
Power Handling (RMS): 20 Watts
Power Handling (max): 40 Watts
Impedance (Z): 4 ohms
Sensitivity: 82.2 dB 1W/1m

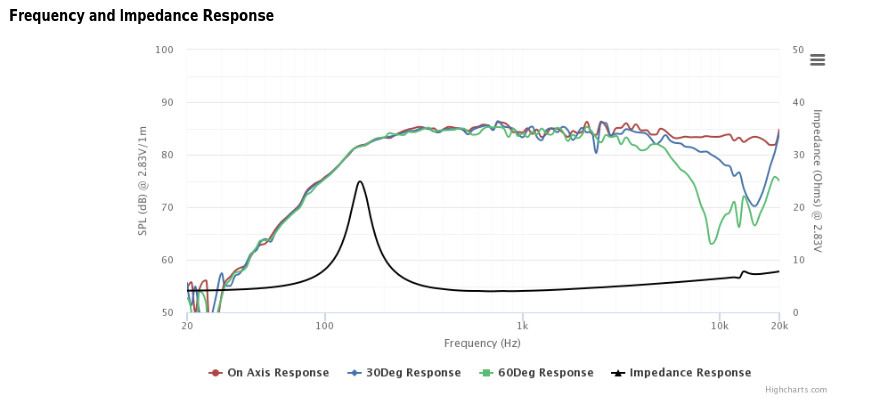

Frequency Response: 150 to 18,000 Hz
Voice Coil Diameter: 1"
DC Resistance (Re): 3.7 ohms
Voice Coil Inductance (Le): 0.04 mH
Resonant Frequency (Fs): 166 Hz
Mechanical Q (Qms): 5
Electromagnetic Q (Qes): 0.74
Total Q (Qts): 0.65
Diaphragm Mass Inc. Airload (Mms): 1.58g
Mechanical Compliance of Suspension (Cms): 0.58 mm/N
Surface Area of Cone (Sd): 14.7 cm²
BL Product (BL): 2.85 Tm
Compliance Equivalent Volume (Vas): 0.006ft.³
Maximum Linear Excursion (Xmax): 1.65 mm
Cone / Diaphragm Material: Aluminum
Surround Material: Rubber
Basket / Frame Material: Cast Aluminum
Magnet Material: Neodymium

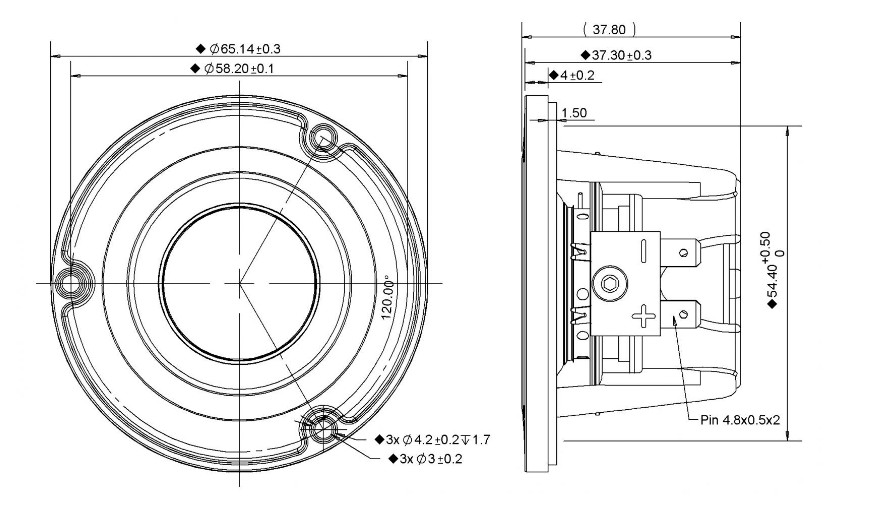

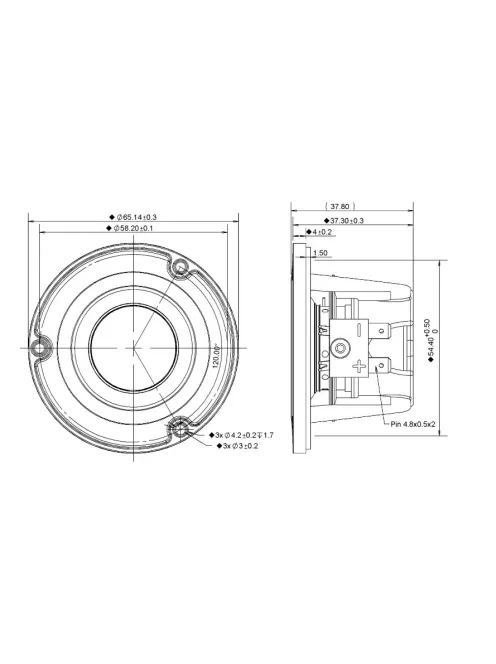

Overall Outside Diameter: 2.56"
Overall Depth: 1.47"
Baffle Cutout Diameter: 1.83"
# Mounting Holes: 3
Info
Article No.
PEE-NE65W-04
