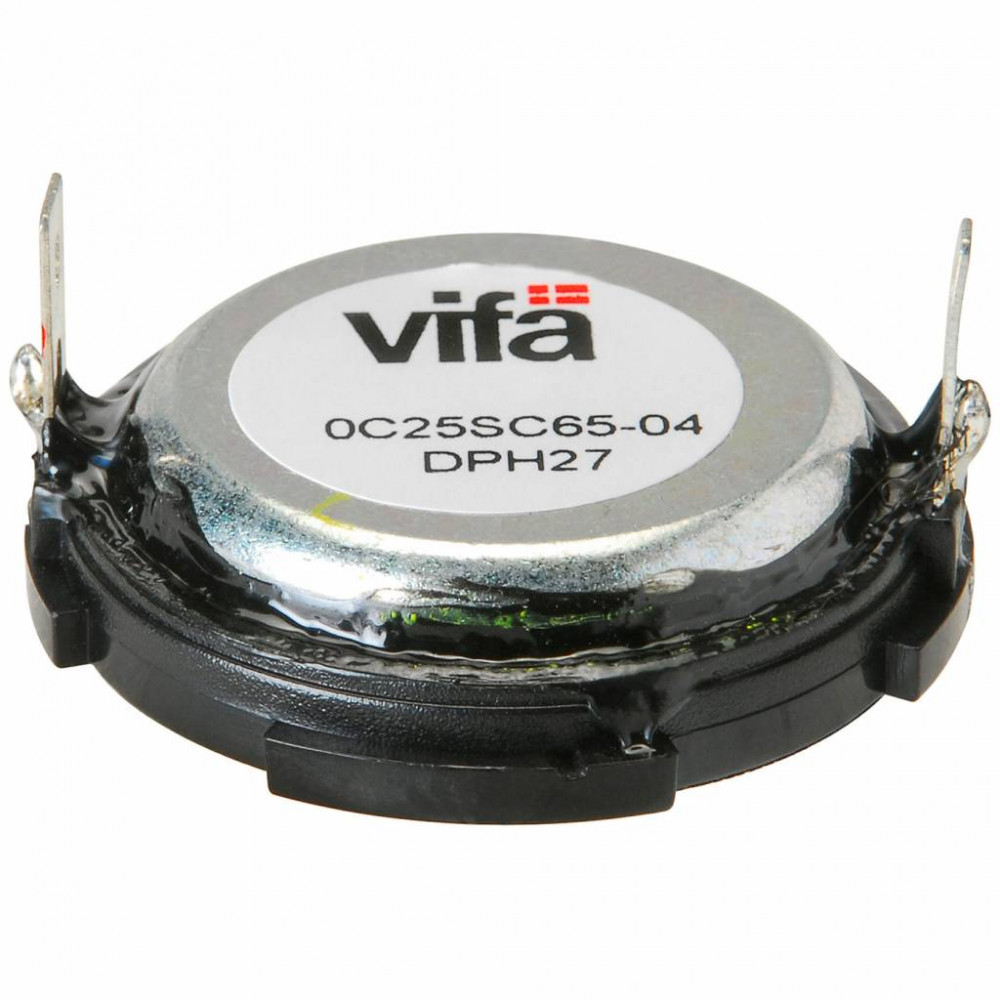

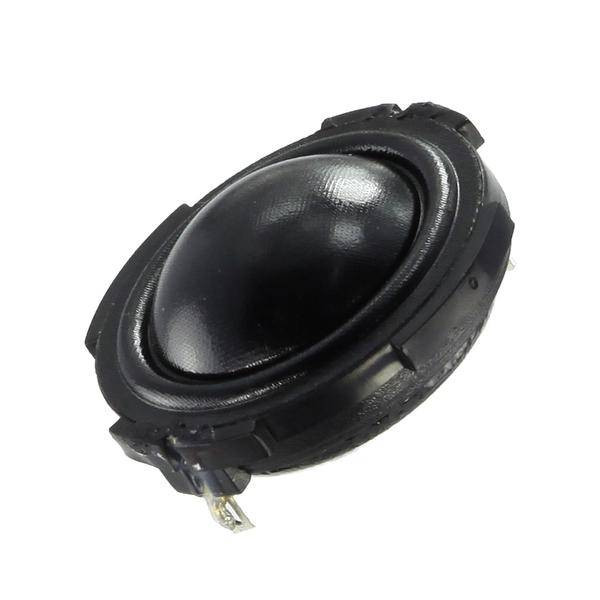

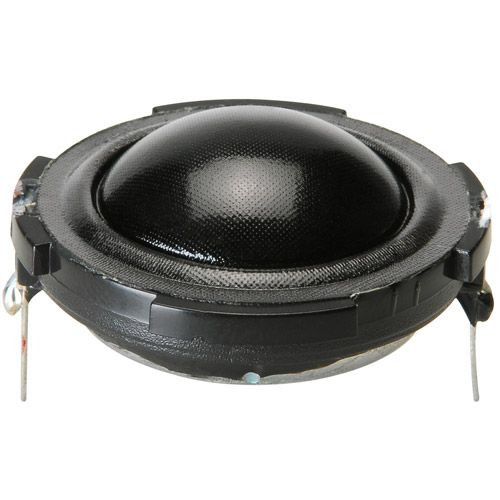

OC25SC65-04 1" Textile Dome Tweeter
OC25SC65-04 1" Textile Dome Tweeter
23.15 € excl. VAT

OC25SC65-04 1" Textile Dome Tweeter

OC25SC65-04 1" Textile Dome Tweeter
OC25SC65-04 1" Textile Dome Tweeter
OC25SC65-04 1" Textile Dome Tweeter
OC25SC65-04 1" Textile Dome Tweeter
OC25SC65-04 1" Textile Dome Tweeter
Peerless
Manufacturer
PeerlessbyTymphany
In stock
23.15 € excl. VAT
Details
Tweeter Type: Soft Dome
Cone / Dome Diameter: 1"
Power Handling (RMS): 25 Watts
Impedance (Z): 4 ohms
Sensitivity: 90 dB 1W/1m
Frequency Response: 2500 to 28,000 Hz
Resonant Frequency (Fs): 1,520 Hz
DC Resistance (Re): 3.20 ohms
Voice Coil Inductance (Le): 0.02 mH
Mechanical Q (Qms): 2.43
Electromagnetic Q (Qes): 3.00
Total Q (Qts): 1.30
Info
Article No.
PEE-OC25SC65-04
