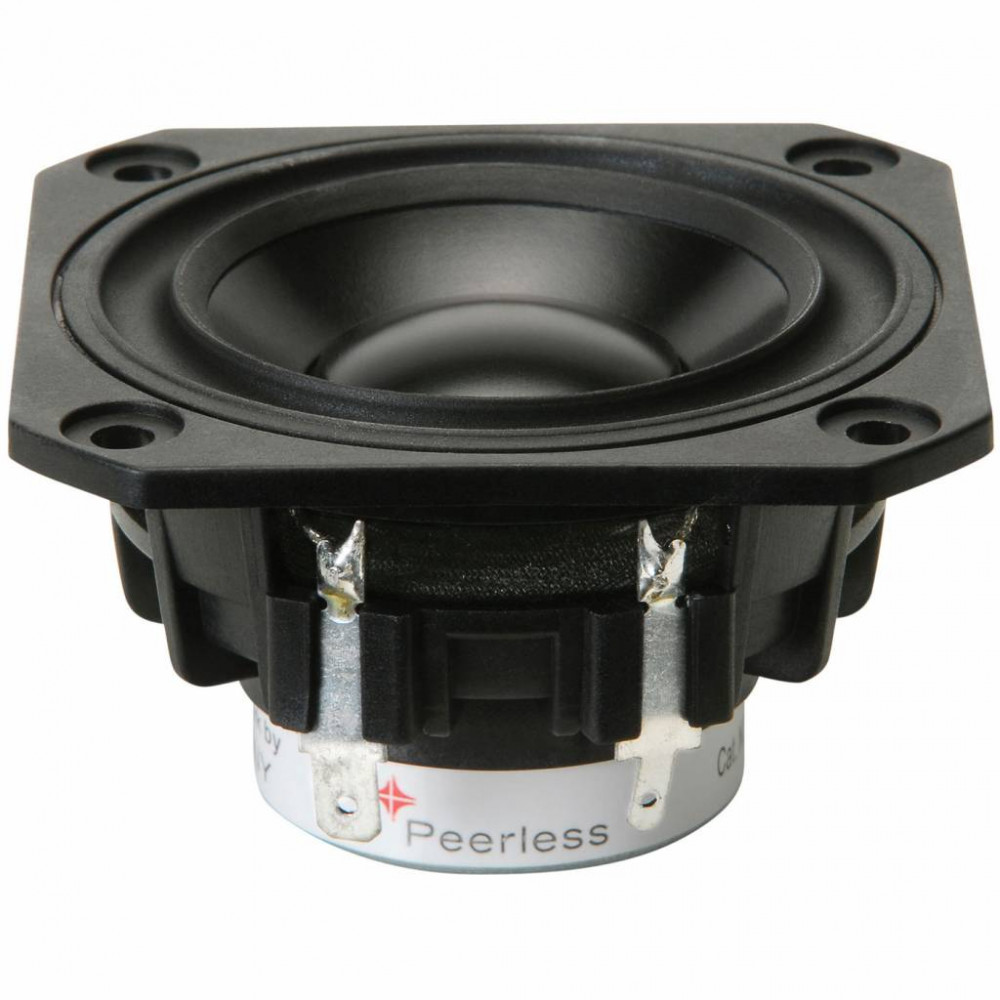

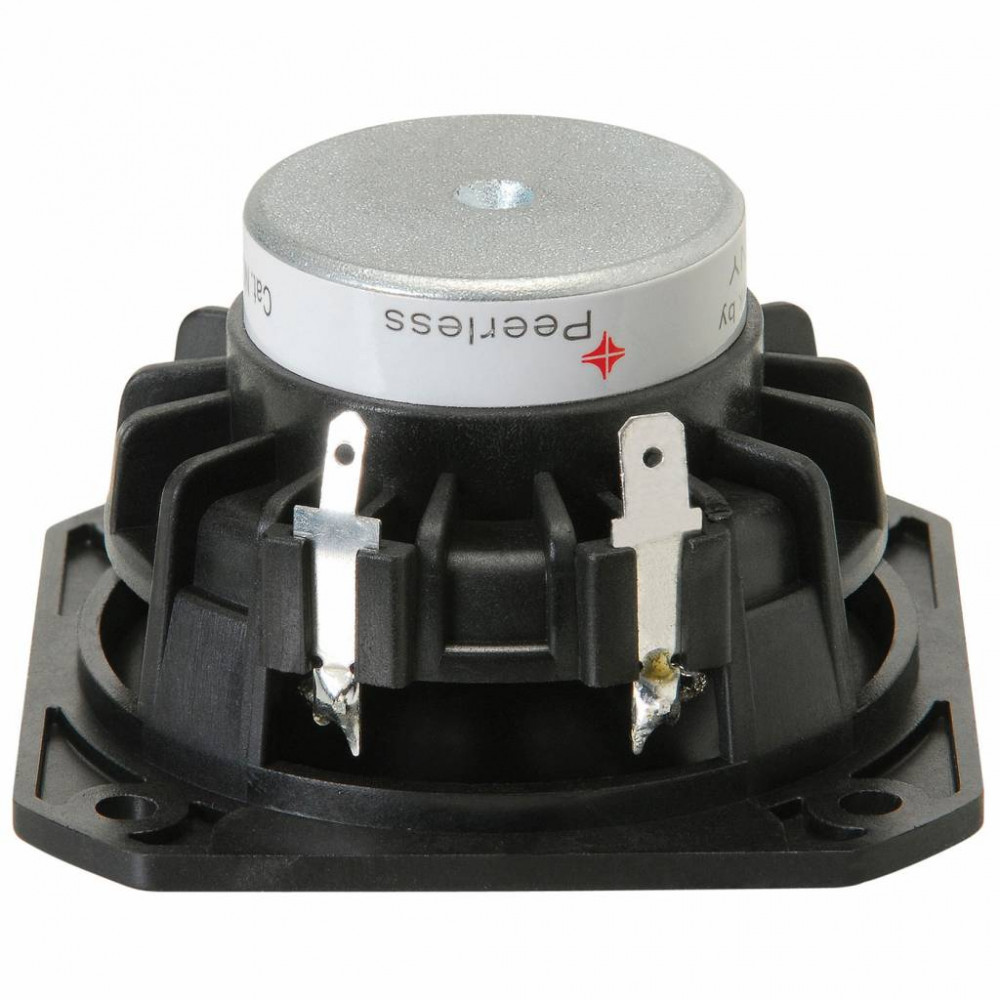

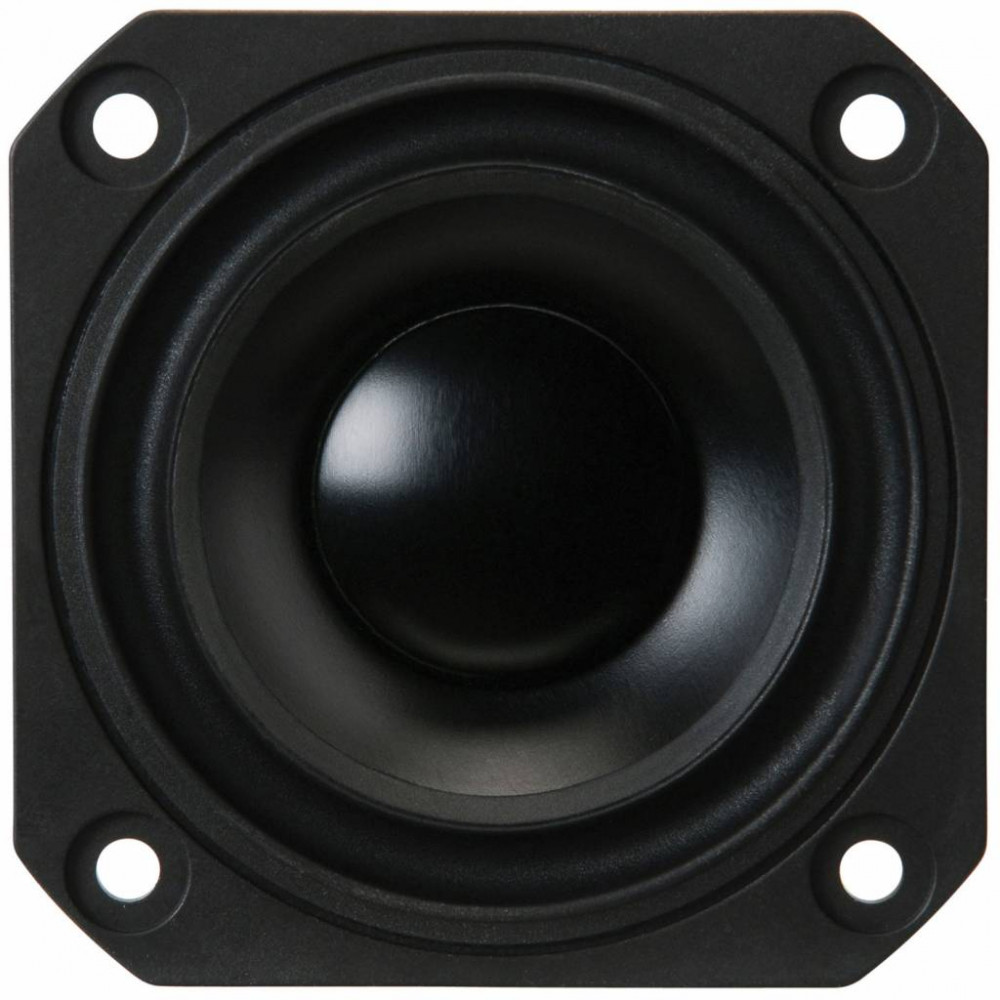

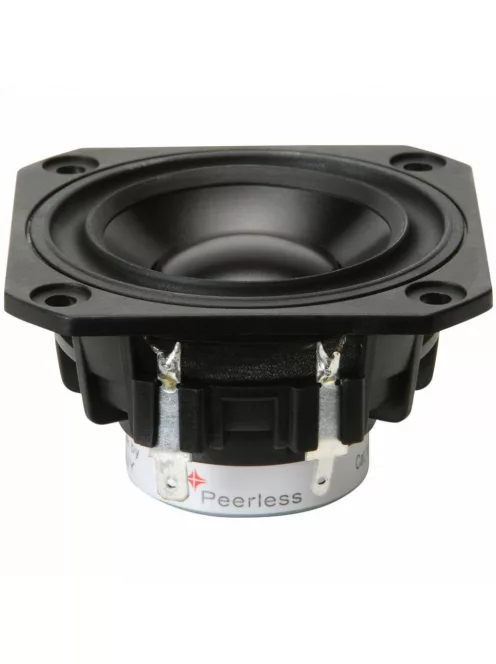

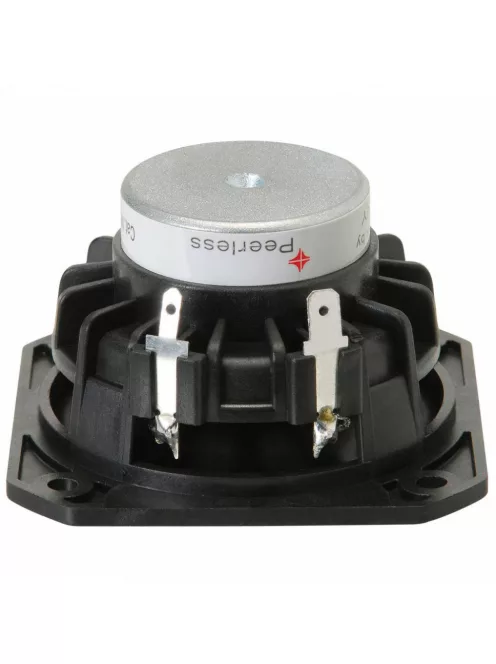

PLS-P830985 2-1/2" Full Range Woofer

25.68 € excl. VAT

PLS-P830985 2-1/2" Full Range Woofer

Name: PLS-P830985 2-1/2" Full Range Woofer
Brand: PeerlessbyTymphany
SKU: PEE-PLS-P830985
Price: 32.62 EUR
Availability: InStock

Peerless

Details

Shipping within (if available from supplier)

4-5 working days

Manufacturer

PeerlessbyTymphany

Further data

Orderable

25.68 € excl. VAT

Details

Woofer Type: Full Range Woofer

Nominal Diameter: 2-1/2"

Power Handling (RMS): 30 Watts

Power Handling (max): 60 Watts

Impedance (Z): 4 ohms

Sensitivity: 86.5 dB 2.83V/1m

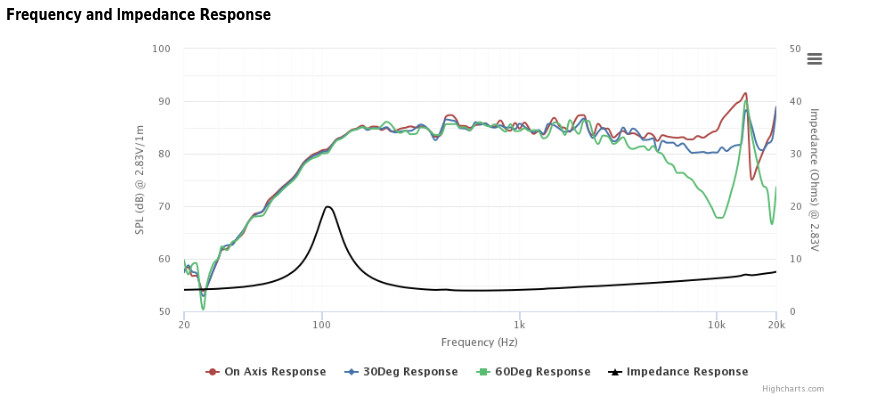

Frequency Response: 90 to 20,000Hz

Voice Coil Diameter: 1"

DC Resistance (Re): 3.7 ohms

Voice Coil Inductance (Le): 0.03 mH

Resonant Frequency (Fs): 101.2 Hz

Mechanical Q (Qms): 4.08

Electromagnetic Q (Qes): 0.75

Total Q (Qts): 0.63

Diaphragm Mass Inc. Airload (Mms): 1.9g

Mechanical Compliance of Suspension (Cms): 1.27 mm/N

Surface Area of Cone (Sd): 22 cm²

BL Product (BL): 2.7 Tm

Compliance Equivalent Volume (Vas): 0.02 ft.³

Maximum Linear Excursion (Xmax): 2 mm

Cone / Diaphragm Material: Aluminum

Surround Material: Rubber

Basket / Frame Material: Polymer

Magnet Material: Neodymium

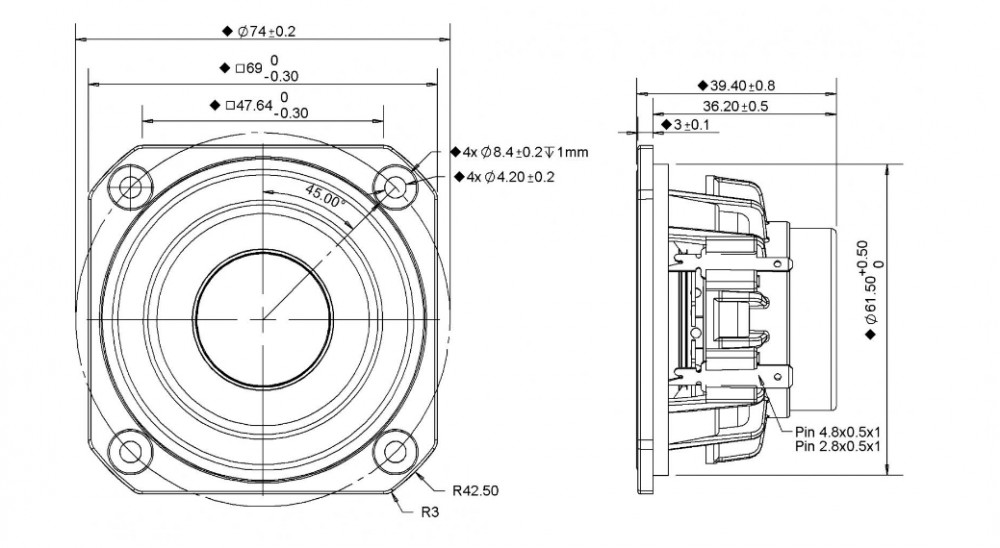

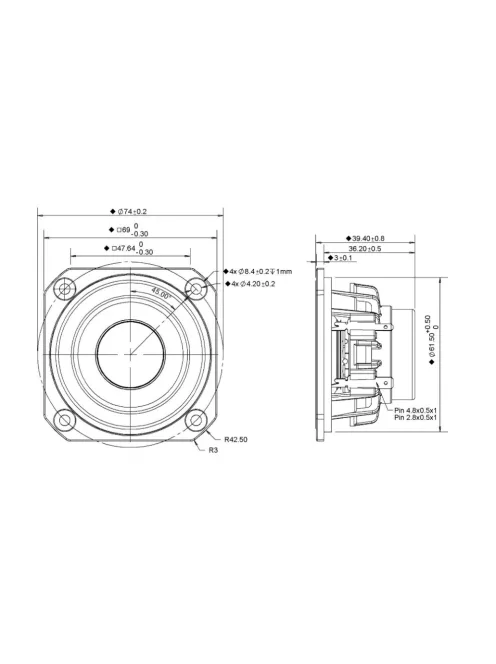

Overall Outside Diameter: 2.75"

Overall Depth: 2.15"

Baffle Cutout Diameter: 2.42"

# Mounting Holes: 4
