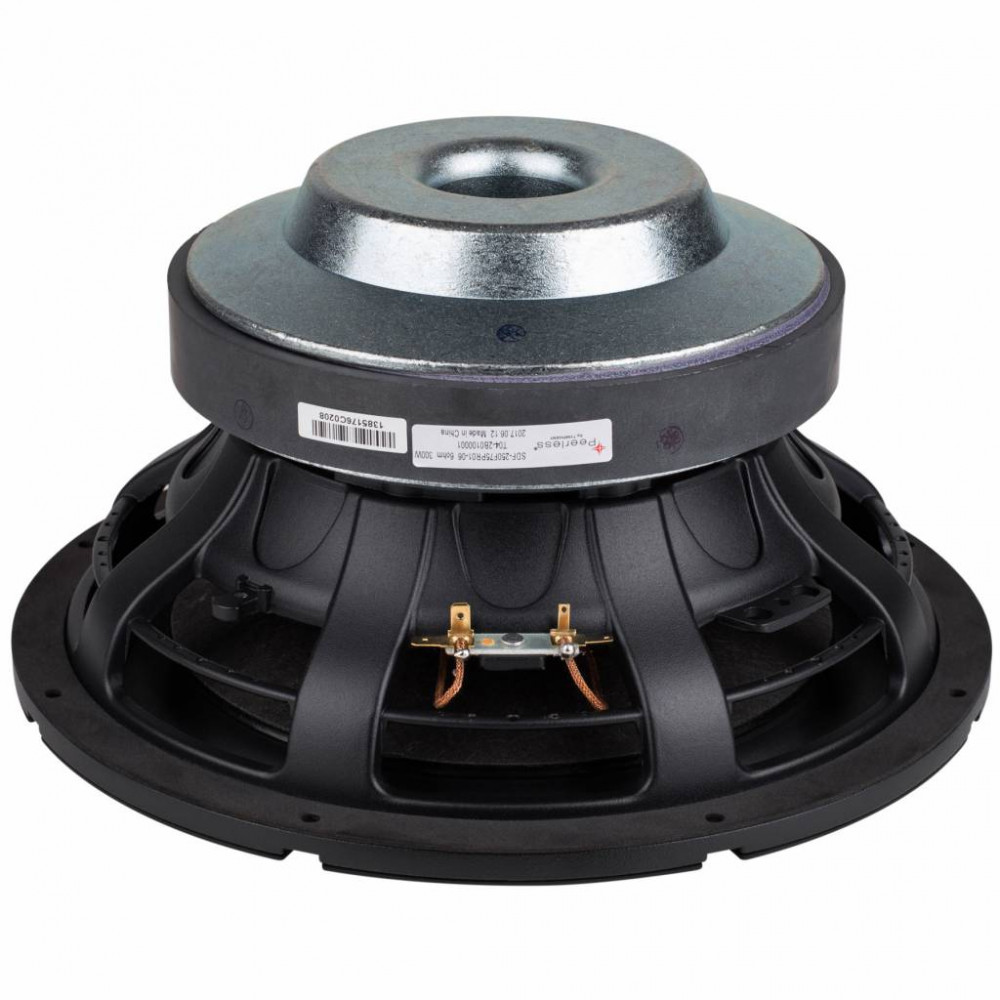

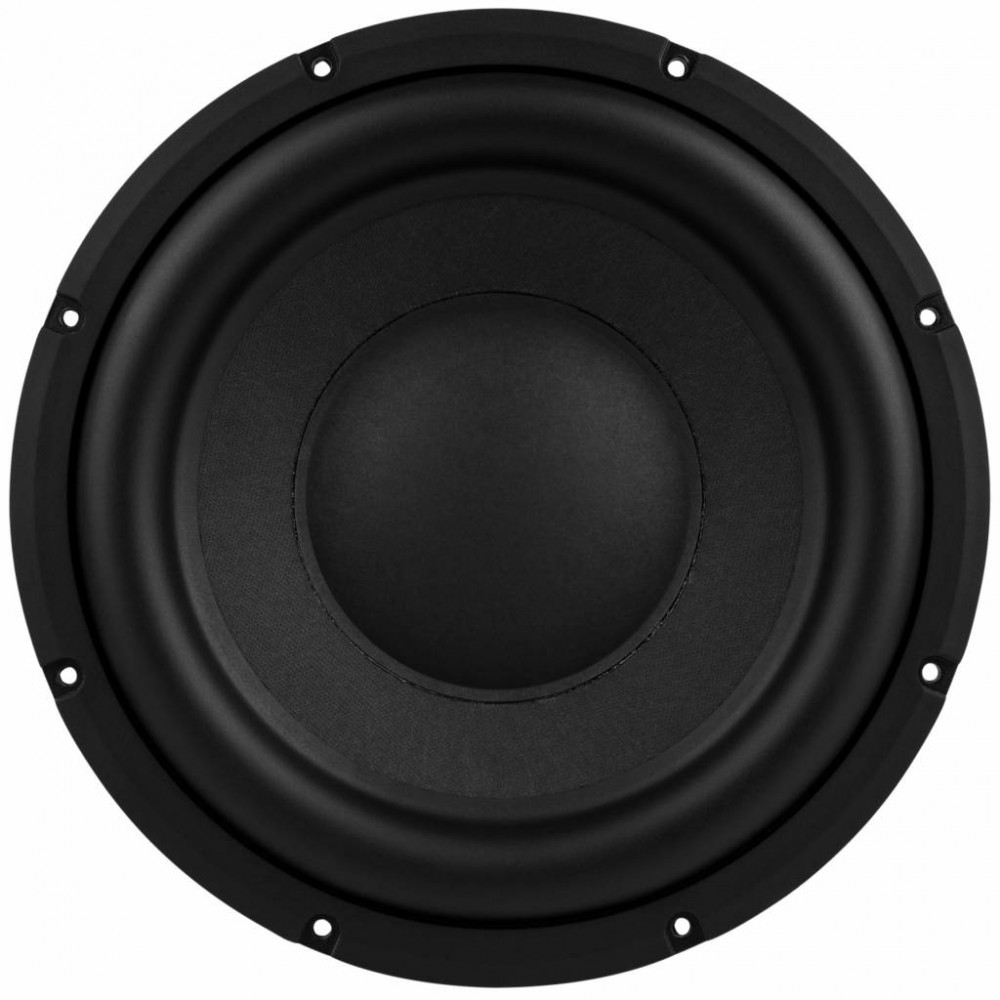

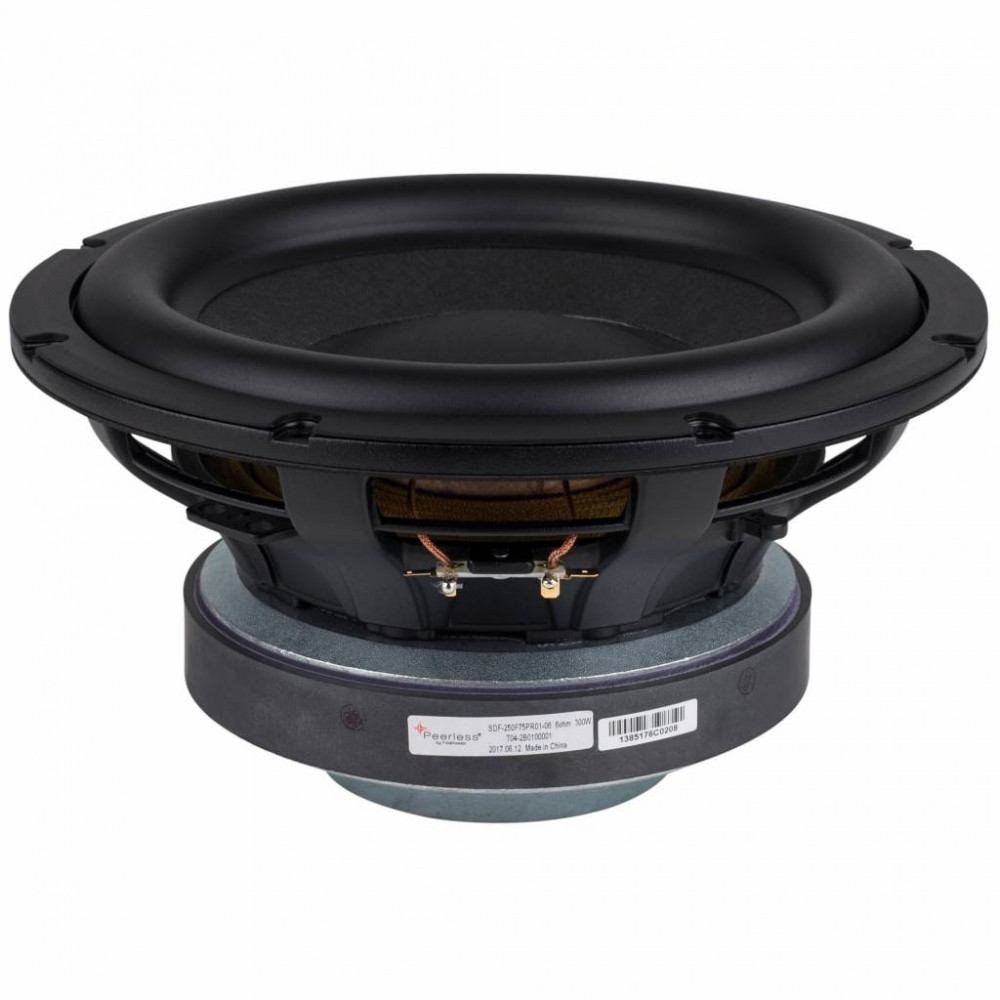

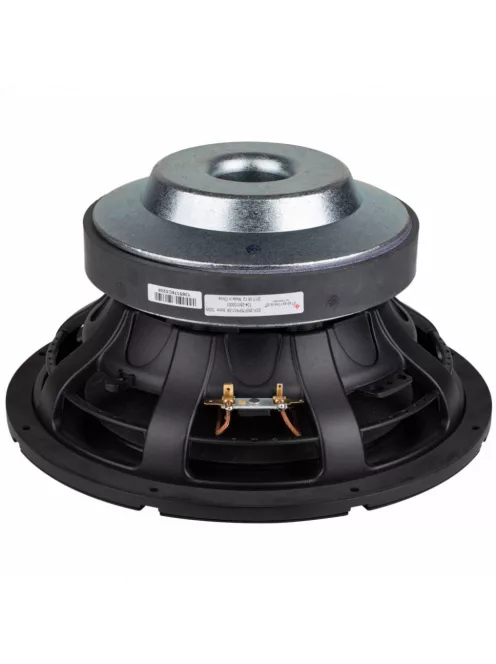

SDF-250F75PR01-06 10" Paper Cone Subwoofer

202.39 € excl. VAT

SDF-250F75PR01-06 10" Paper Cone Subwoofer

Name: SDF-250F75PR01-06 10" Paper Cone Subwoofer
Brand: PeerlessbyTymphany
SKU: PEE-SDF-250F75PR01-06
Price: 257.03 EUR
Availability: InStock

Peerless

Details

Shipping within (if available from supplier)

4-5 working days

Manufacturer

PeerlessbyTymphany

Further data

Orderable

202.39 € excl. VAT

Details

Woofer Type: Subwoofer

Nominal Diameter: 10"

Power Handling (RMS): 300 Watts

Power Handling (max): 600 Watts

Impedance (Z): 6 ohms

Sensitivity: 89.39 dB 2.83V/1m

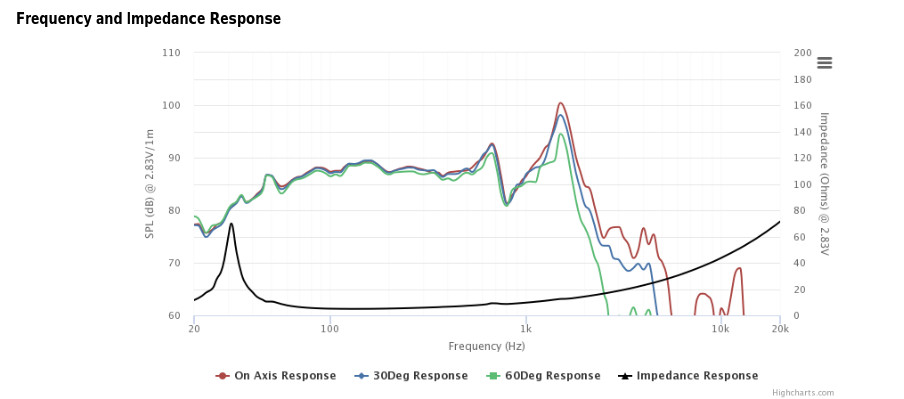

Frequency Response: 25 to 400 Hz

Voice Coil Diameter: 3"

DC Resistance (Re): 4.39 ohms

Voice Coil Inductance (Le): 1.02 mH

Resonant Frequency (Fs): 33.5 Hz

Mechanical Q (Qms): 11.7

Electromagnetic Q (Qes): 0.48

Total Q (Qts): 0.46

Diaphragm Mass Inc. Airload (Mms): 103.5g

Mechanical Compliance of Suspension (Cms): 0.218 mm/N

Surface Area of Cone (Sd): 352.6 cm²

BL Product (BL): 14.12 Tm

Compliance Equivalent Volume (Vas): 1.359 ft.³

Maximum Linear Excursion (Xmax): 12.6 mm

Cone / Diaphragm Material: Paper

Surround Material: Rubber

Voice Coil Wire Material: Copper

Basket / Frame Material: Cast Aluminum

Magnet Material: Ferrite

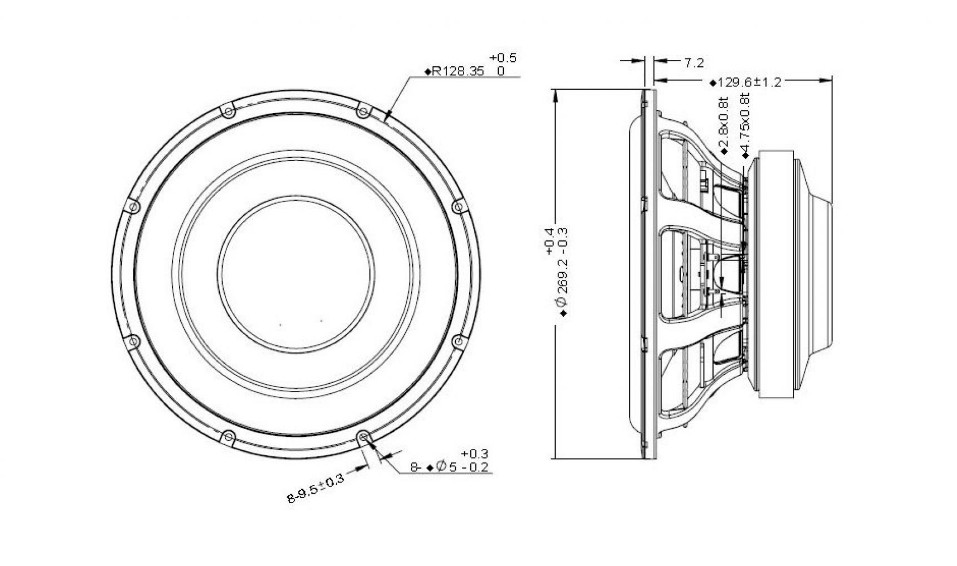

Overall Outside Diameter: 10.6"

Overall Depth: 5.35"

Baffle Cutout Diameter: 9.5"

# Mounting Holes: 8
