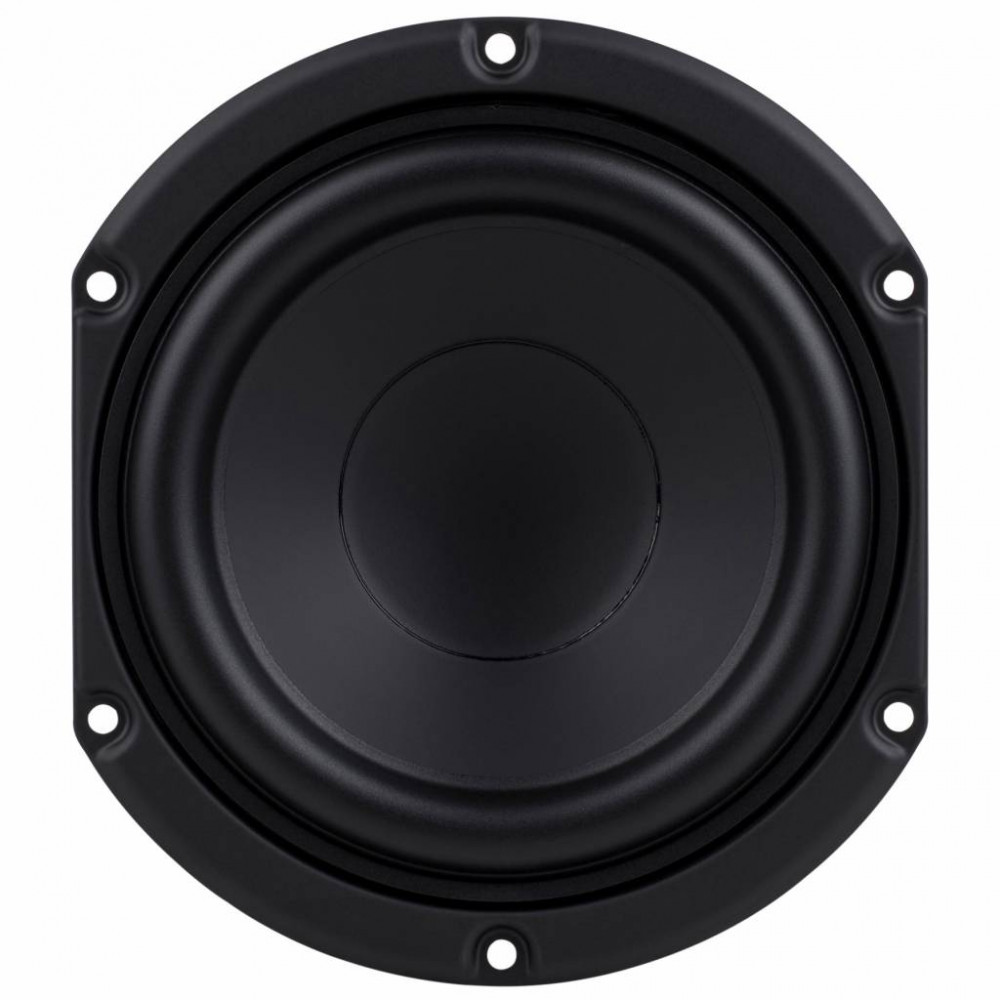

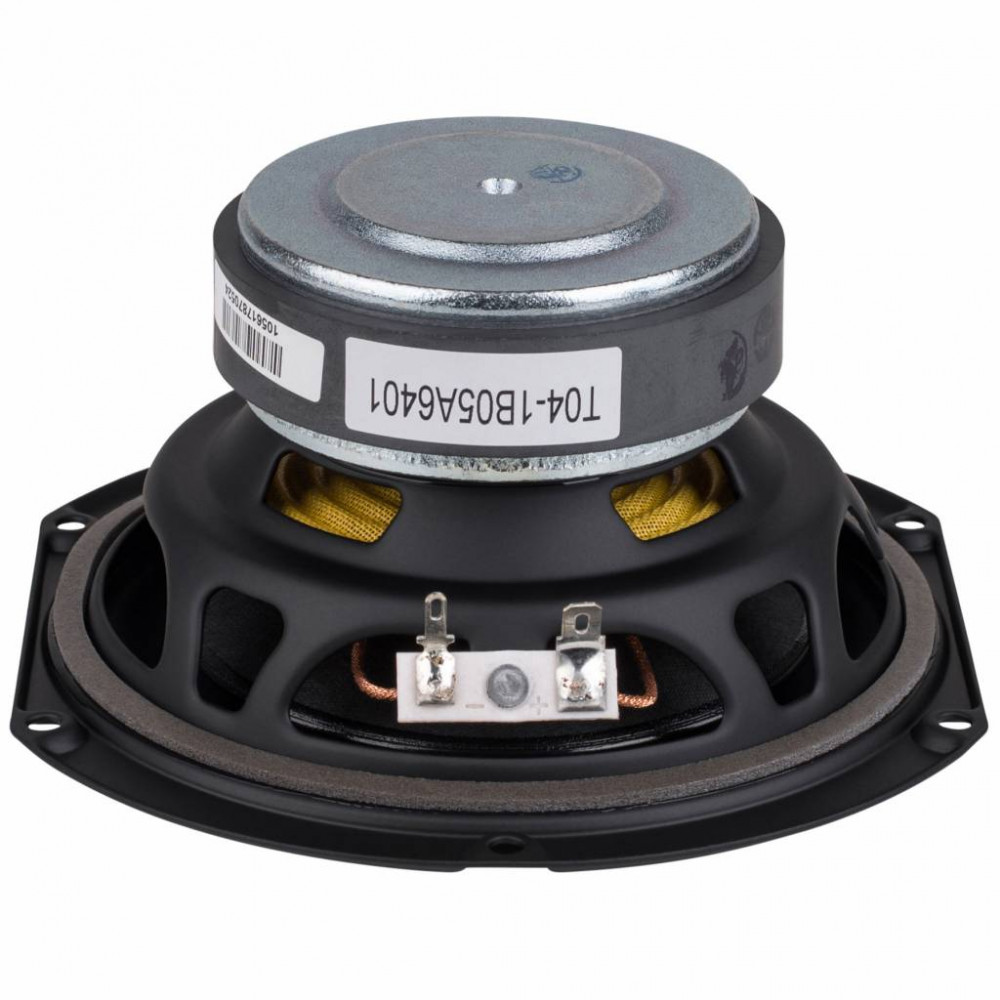

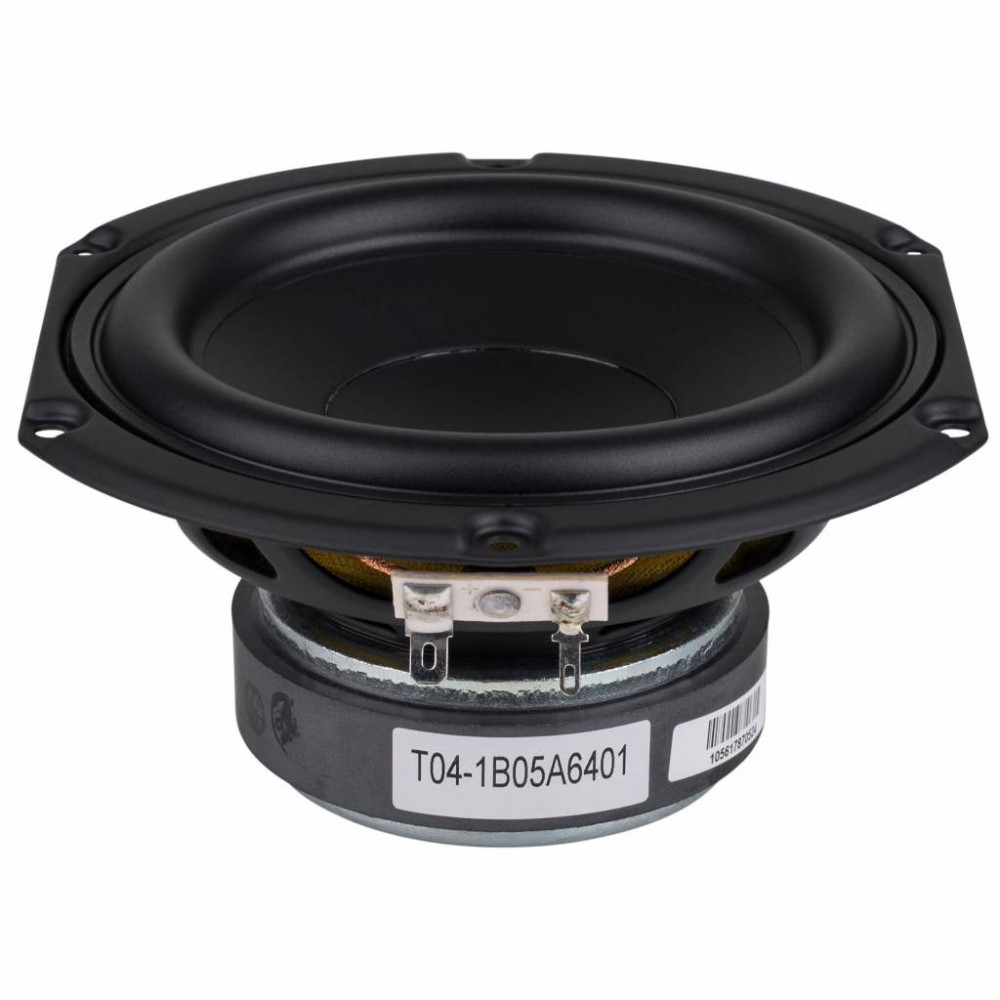

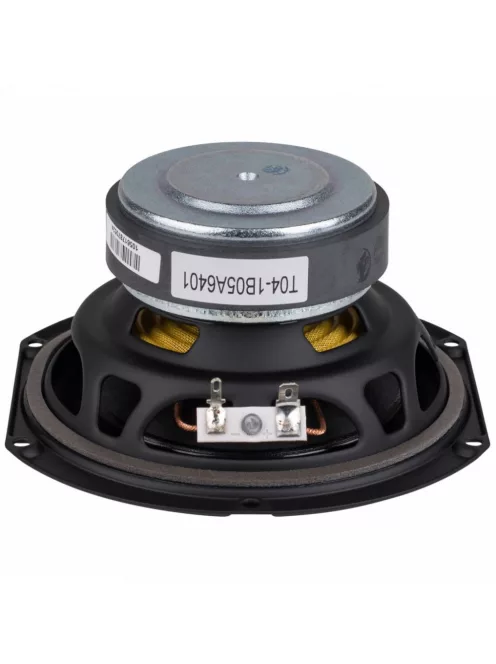

SDS-135F25CP02-04 5-1/4" Paper Cone Woofer
SDS-135F25CP02-04 5-1/4" Paper Cone Woofer
28.64 € excl. VAT

SDS-135F25CP02-04 5-1/4" Paper Cone Woofer

SDS-135F25CP02-04 5-1/4" Paper Cone Woofer
SDS-135F25CP02-04 5-1/4" Paper Cone Woofer
SDS-135F25CP02-04 5-1/4" Paper Cone Woofer
SDS-135F25CP02-04 5-1/4" Paper Cone Woofer
SDS-135F25CP02-04 5-1/4" Paper Cone Woofer
SDS-135F25CP02-04 5-1/4" Paper Cone Woofer
SDS-135F25CP02-04 5-1/4" Paper Cone Woofer
SDS-135F25CP02-04 5-1/4" Paper Cone Woofer
SDS-135F25CP02-04 5-1/4" Paper Cone Woofer
SDS-135F25CP02-04 5-1/4" Paper Cone Woofer
Peerless
Details
Shipping within (if available from supplier)
4-5 working days
Manufacturer
PeerlessbyTymphany
Further data
Orderable
28.64 € excl. VAT
Details
Woofer Type: Subwoofer
Nominal Diameter: 5-1/4"
Power Handling (RMS): 50 Watts
Power Handling (max): 100 Watts
Impedance (Z): 4 ohms
Sensitivity: 86.1 dB 2.83V/1m

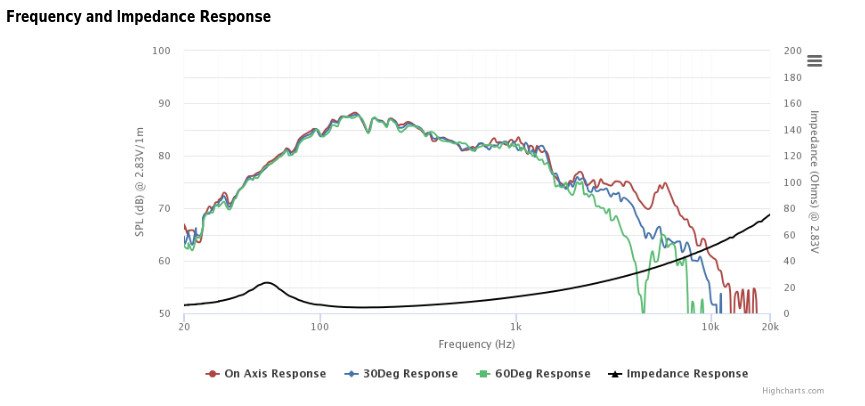

Frequency Response: 40 to 500 Hz
Voice Coil Diameter: 1"
DC Resistance (Re): 3.3 ohms
Voice Coil Inductance (Le): 1.22 mH
Resonant Frequency (Fs): 57.7 Hz
Mechanical Q (Qms): 3.89
Electromagnetic Q (Qes): 0.45
Total Q (Qts): 0.41
Diaphragm Mass Inc. Airload (Mms): 20.6g
Mechanical Compliance of Suspension (Cms): 0.369 mm/N
Surface Area of Cone (Sd): 86.35 cm²
BL Product (BL): 7.401 Tm
Compliance Equivalent Volume (Vas): 0.138 ft.³
Maximum Linear Excursion (Xmax): 5.2 mm
Cone / Diaphragm Material: Paper
Surround Material: Rubber
Voice Coil FormerAluminum
Basket / Frame Material: Steel
Magnet Material: Ferrite

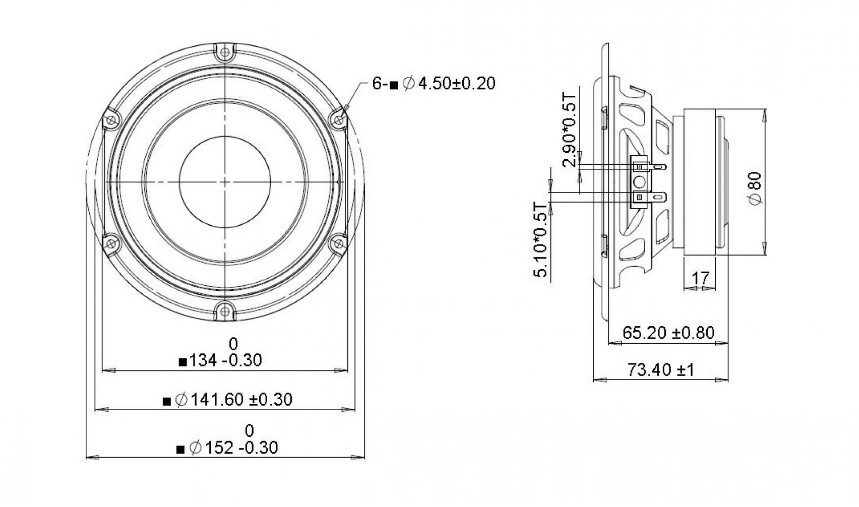

Overall Outside Diameter: 5.98"
Overall Depth: 2.55"
Baffle Cutout Diameter: 4.875"
Bolt Circle Diameter: 5.55"
# Mounting Holes: 6
Info
Article No.
PEE-SDS-135F25CP02-04
