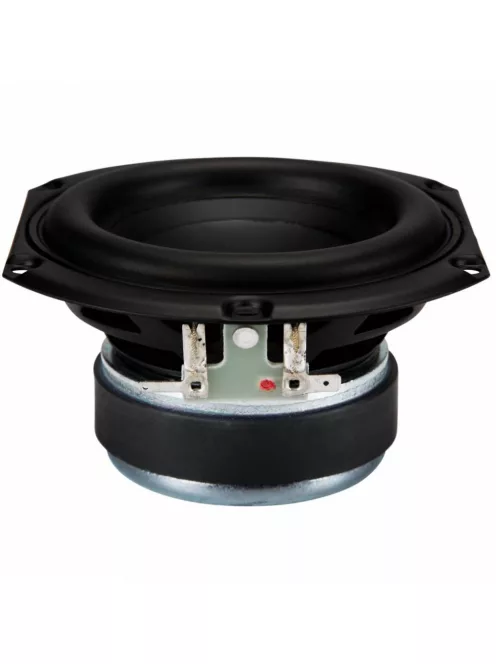

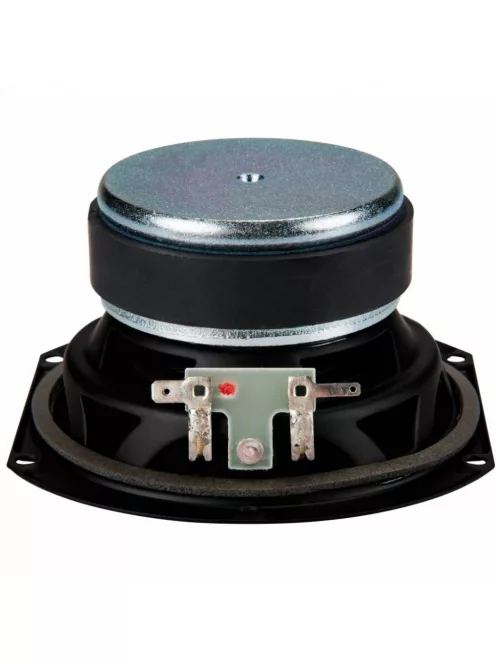

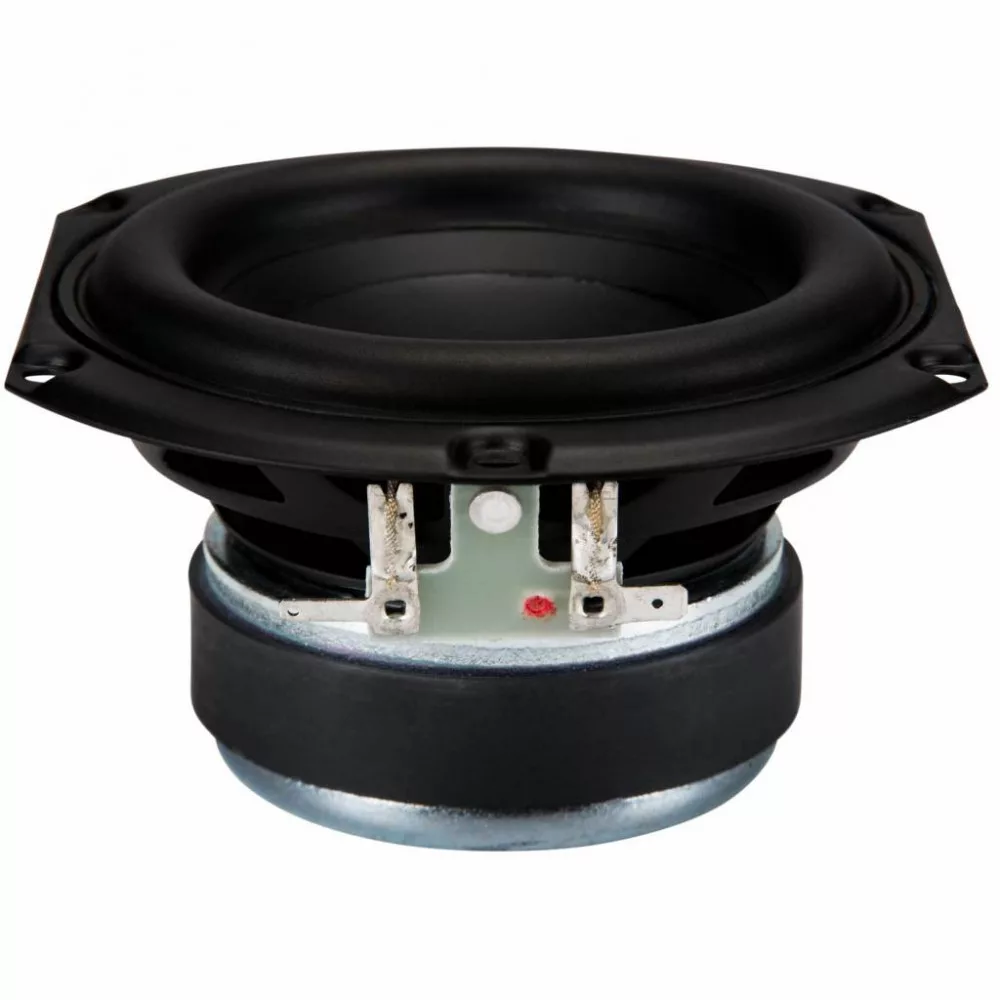

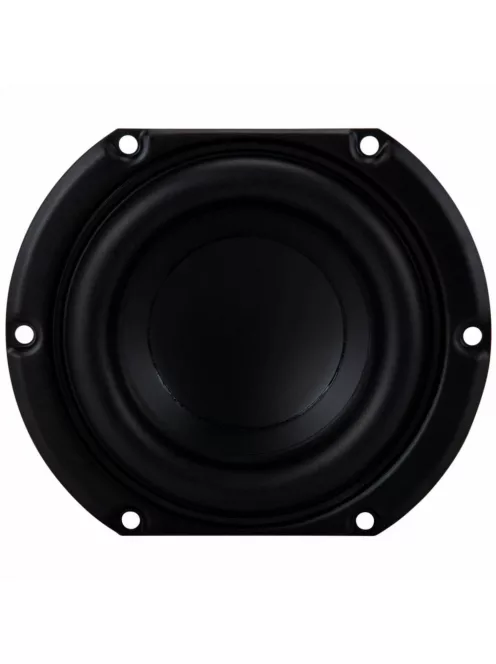

SDS-P830855 4" Woofer Treated Paper SDS Woofer

26.11 € excl. VAT

SDS-P830855 4" Woofer Treated Paper SDS Woofer

Name: SDS-P830855 4" Woofer Treated Paper SDS Woofer
Brand: PeerlessbyTymphany
SKU: PEE-SDS-P830855
Price: 33.15 EUR
Availability: InStock

Peerless

Details

Shipping within (if available from supplier)

4-5 working days

Manufacturer

PeerlessbyTymphany

Further data

Orderable

26.11 € excl. VAT

Details

Woofer Type: Subwoofer

Nominal Diameter: 8”

Power Handling (RMS): 30 Watts

Power Handling (max): 60 Watts

Impedance (Z): 8 Ohms

Sensitivity: 84.8 dB 2.83V/1m

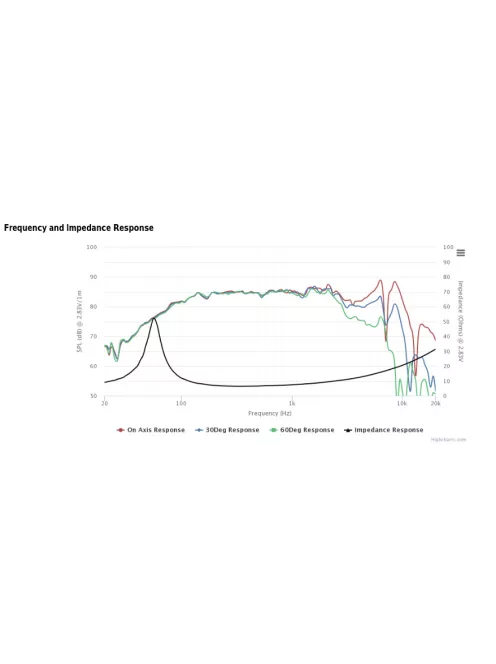

Frequency Response: 63 to 6,200Hz

Voice Coil Diameter: 1"

DC Resistance (Re): 5.6 ohms

Voice Coil Inductance (Le): 0.24 mH

Resonant Frequency (Fs): 63 Hz

Mechanical Q (Qms): 4.66

Electromagnetic Q (Qes): 0.49

Total Q (Qts): 0.44

Diaphragm Mass Inc. Airload (Mms): 6.9g

Mechanical Compliance of Suspension (Cms): 0.923 mm/N

Surface Area of Cone (Sd): 50.3 cm²

BL Product (BL): 5.58 Tm

Compliance Equivalent Volume (Vas): 0.11 ft.³

Maximum Linear Excursion (Xmax): 3 mm

Cone / Diaphragm Material: Treated Paper

Surround Material: Rubber

Basket / Frame Material: Steel

Magnet Material: Ferrite

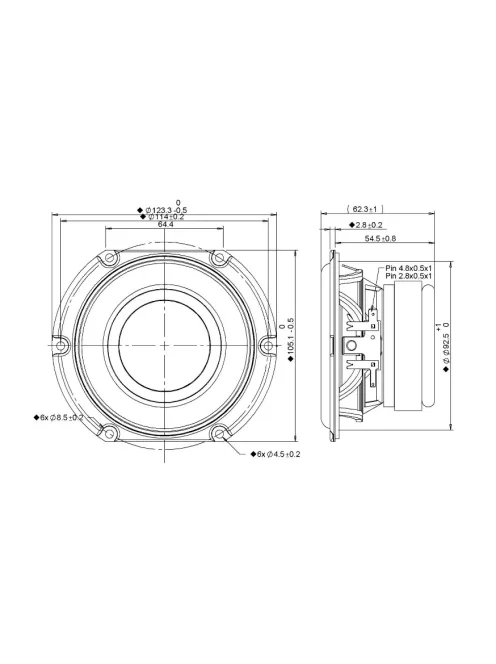

Overall Outside Diameter: 4.85"

Overall Depth: 3.64"

Baffle Cutout Diameter: 3.75"

# Mounting Holes: 6
