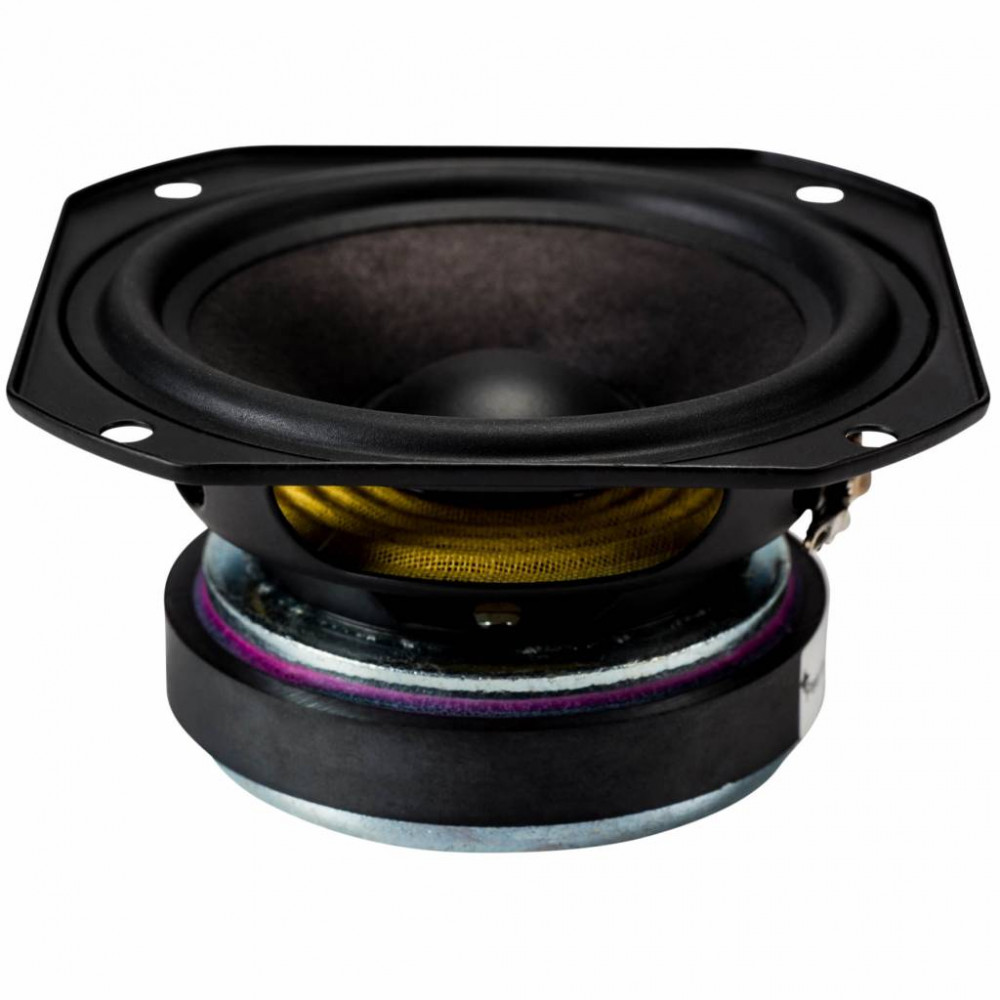

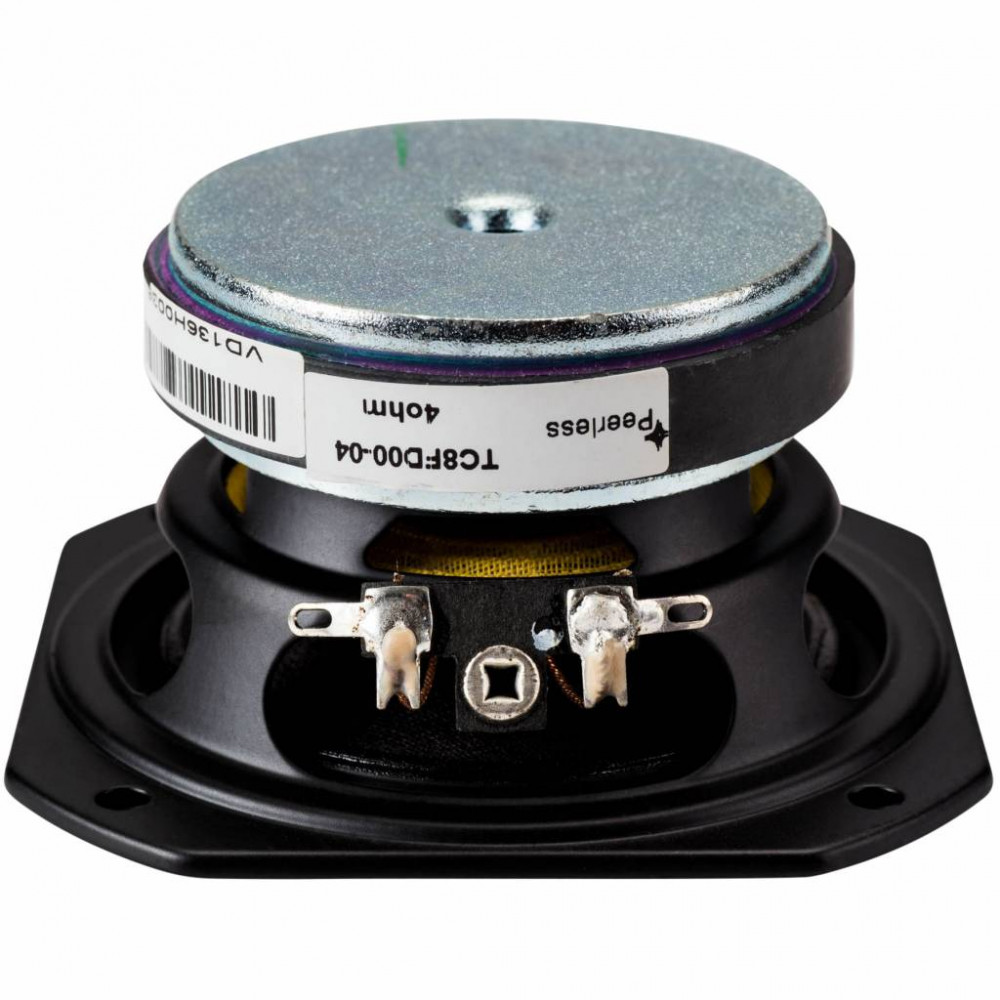

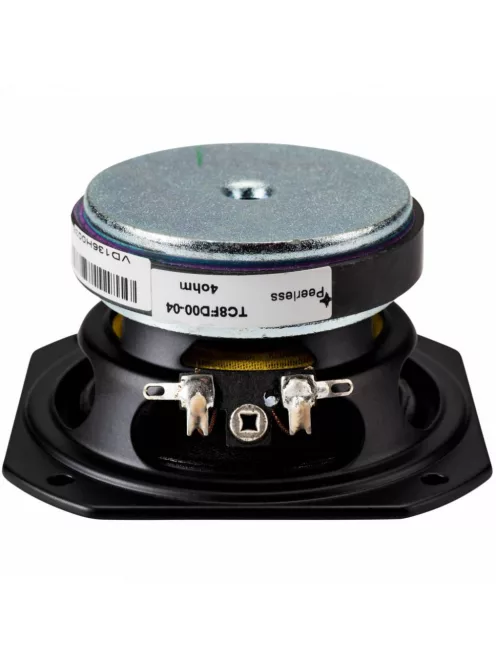

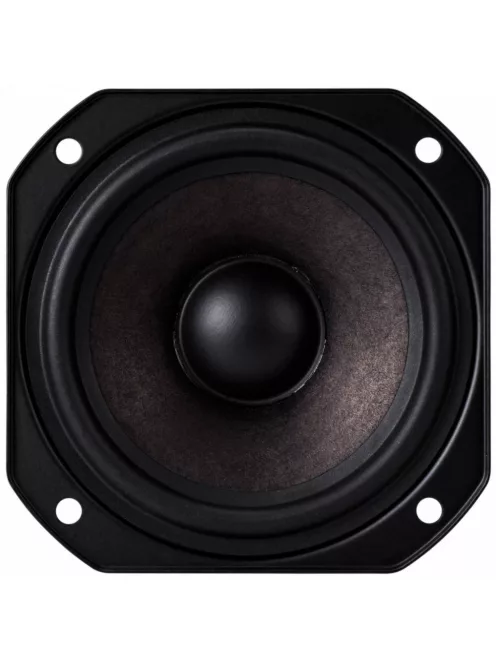

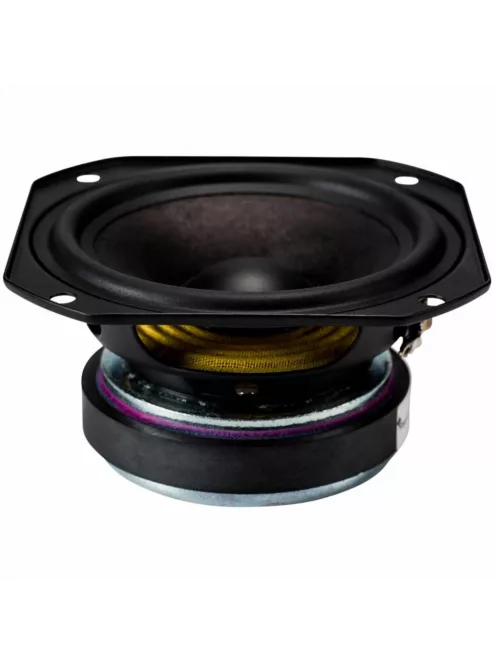

TC8FD00-04 3" Full Range Paper Cone Woofer

16.83 € excl. VAT

TC8FD00-04 3" Full Range Paper Cone Woofer

Name: TC8FD00-04 3" Full Range Paper Cone Woofer
Brand: PeerlessbyTymphany
SKU: PEE-TC8FD00-04
Price: 21.37 EUR
Availability: InStock

Peerless

Details

Shipping within (if available from supplier)

4-5 working days

Manufacturer

PeerlessbyTymphany

Further data

Orderable

16.83 € excl. VAT

Details

Woofer Type: Full Range Speaker

Nominal Diameter: 3"

Power Handling (RMS): 25 Watts

Power Handling (max): 50 Watts

Impedance (Z): 4 ohms

Sensitivity: 85.7 dB 2.83V/1m

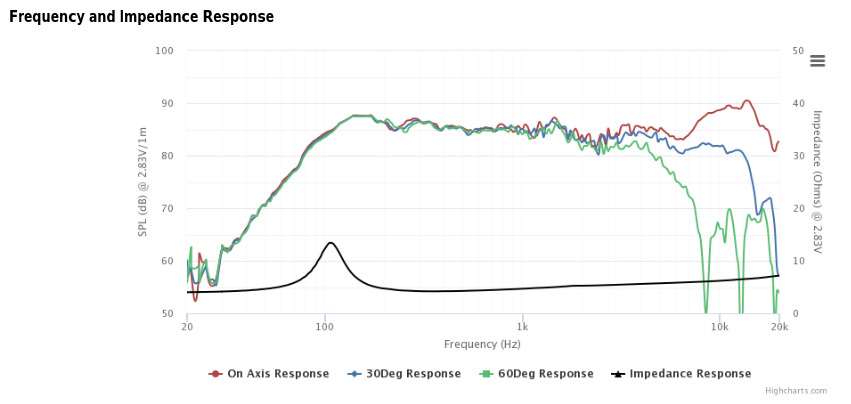

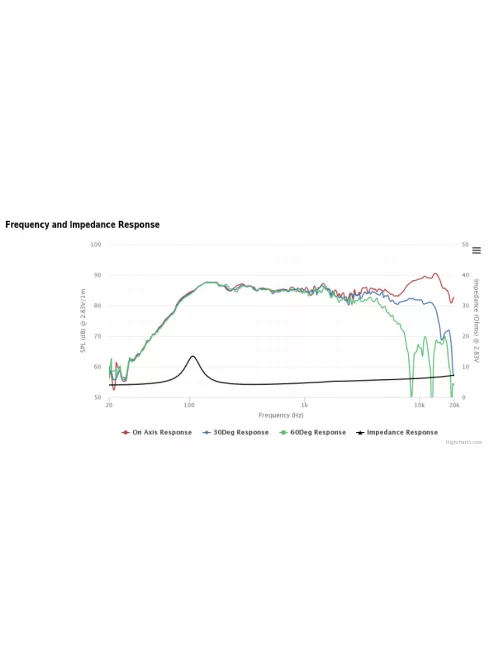

Frequency Response: 130 to 20,000Hz

Voice Coil Diameter: 0.75"

DC Resistance (Re): 3.3 ohms

Voice Coil Inductance (Le): 0.03 mH

Resonant Frequency (Fs): 125 Hz

Mechanical Q (Qms): 3.7

Electromagnetic Q (Qes): 1.23

Total Q (Qts): 0.92

Diaphragm Mass Inc. Airload (Mms): 2.55g

Mechanical Compliance of Suspension (Cms): 0.64 mm/N

Surface Area of Cone (Sd): 33.2 cm²

BL Product (BL): 2.32 Tm

Compliance Equivalent Volume (Vas): 0.03 ft.³

Maximum Linear Excursion (Xmax): 2.4 mm

Cone / Diaphragm Material: Paper

Surround Material: Rubber

Basket / Frame Material: Steel

Magnet Material: Ferrite

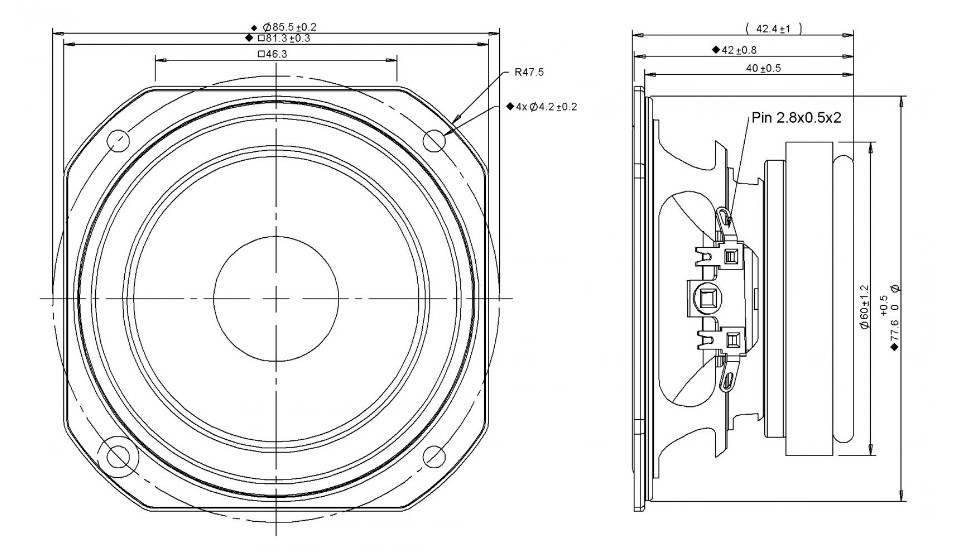

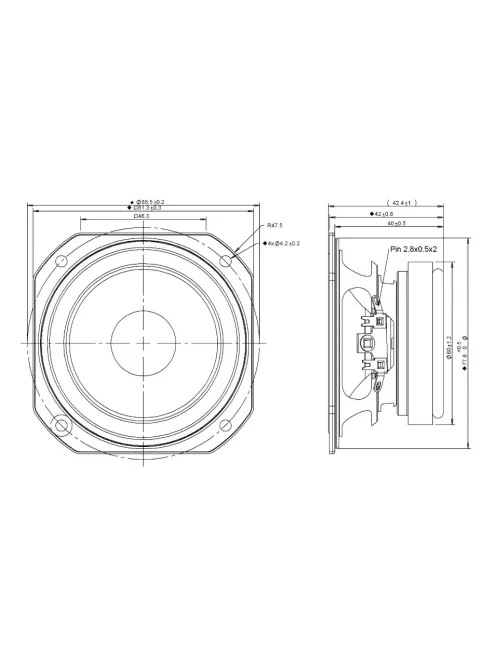

Overall Outside Diameter: 3.19"

Overall Depth: 1.65"

Baffle Cutout Diameter: 3.05"

# Mounting Holes: 4
