XT25SC40-04 1" Ring Radiator XT Tweeter 4 Ohm
XT25SC40-04 1" Ring Radiator XT Tweeter 4 Ohm
24.42 € excl. VAT

XT25SC40-04 1" Ring Radiator XT Tweeter 4 Ohm

XT25SC40-04 1" Ring Radiator XT Tweeter 4 Ohm
XT25SC40-04 1" Ring Radiator XT Tweeter 4 Ohm
XT25SC40-04 1" Ring Radiator XT Tweeter 4 Ohm
XT25SC40-04 1" Ring Radiator XT Tweeter 4 Ohm
XT25SC40-04 1" Ring Radiator XT Tweeter 4 Ohm
Peerless
Shipping within (if available from supplier)
4-5 working days
Manufacturer
PeerlessbyTymphany
Orderable
24.42 € excl. VAT
Details
Tweeter Type: Ring Radiator
Cone / Dome Diameter: 1"
Power Handling (RMS): 100 Watts
Impedance (Z): 4 ohms
Sensitivity: 91 dB 1W/1m

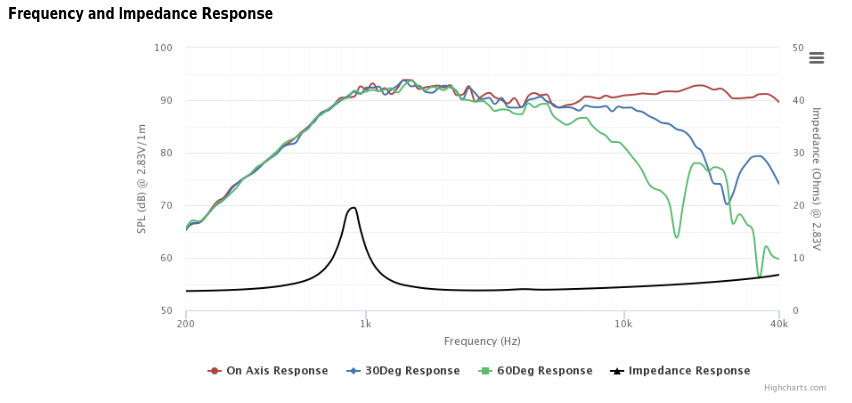

Frequency Response: 2500 to 20,000 Hz
Resonant Frequency (Fs): 1018 Hz
DC Resistance (Re): 3.2 ohms
Voice Coil Inductance (Le): 0.01 mH
Mechanical Q (Qms): 2.53
Electromagnetic Q (Qes): 0.83
Total Q (Qts): 0.63
Info
Article No.
PEE-XT25SC40-04
